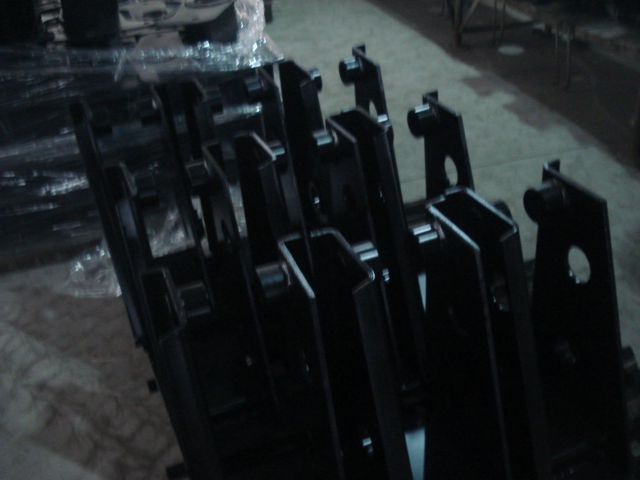

Equalizer/Hanger/Arm/Bush/Fron Middle Rear Hanger/3alxe BPW Type Suspeison Parts
Equlizer assy with bush for BPW suspension,rubber bush or metal bush.Other spare parts for BPW suspension.DescriptionQty./tandem suspensionu-bolt8u-bolt_upper_plate4link_bracket4axle_plate_upper......
Send Inquiry
Product Description

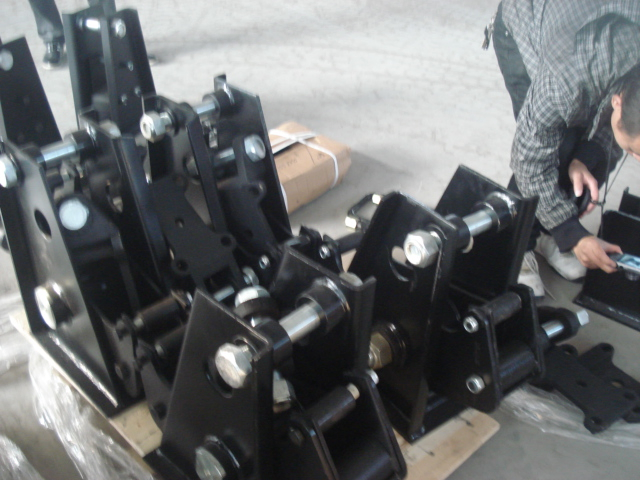

Equlizer assy with bush for BPW suspension,rubber bush or metal bush.
Other spare parts for BPW suspension.
Note:1)Dimensión A (cargado) sólo de referencia 2)Primavera opcional disponible 3)Distancia entre ejes opcional disponible.

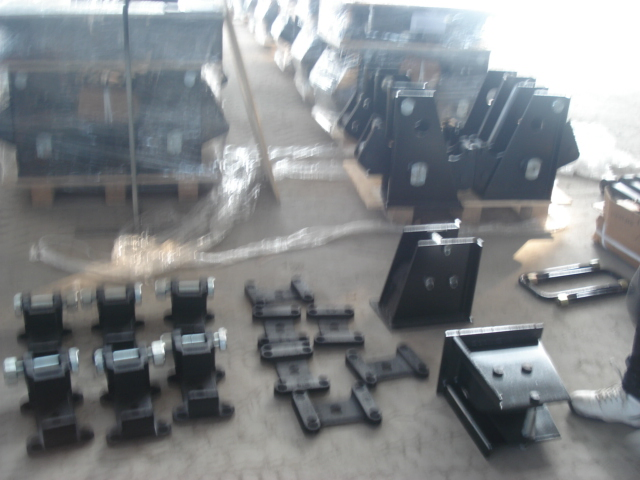

Other spare parts for BPW suspension.
| Description | Qty./tandem suspension |
| u-bolt | 8 |
| u-bolt_upper_plate | 4 |
| link_bracket | 4 |
| axle_plate_upper | 4 |
| u-bolt_plate | 4 |
| rear_bracket | 2 |
| adj_link_long | 2 |
| fixed_link_long | 2 |
| front_bracket | 2 |
| equilisier_bracket assy. | 2 |
| ESPACIO de eje | DIMENSIÓN | ||||
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | |
| 1168 | 2102 | 953 | 953 | 567 | 1122 |
| 1651 | 2769 | 1286 | 1286 | 829 | 1664 |
| 1600 | 2724 | 1264 | 1264 | 810 | 1616 |
| 1524 | 2635 | 1219 | 1219 | 762 | 1524 |
| 1372 | 2502 | 1149 | 1149 | 694 | 1384 |
| 1270 | 2381 | 1092 | 1092 | 635 | 1270 |
| tipo of Suspensión | A(mm) | H(mm) | |||
| (en vacío) | (cargado) | peso(Kg) | Carga sobre eje(t) | ||
| UTSG1-500-141 | 500 | 470 | 100×14-14(piece) | ≈420 | 20×1 |
| UTSG1-470-142 | 470 | 440 | 100×12-14(piece) | ≈387 | 16×1 |
| UTSG1-490-121 | 490 | 460 | 100×12-12(piece) | ≈363 | 14×1 |
| UTSG1-464-111 | 464 | 434 | 100×12-11(piece) | ≈338 | 12×1 |
| UTSG2-1360-500-141 | 500 | 470 | 100×14-14(piece) | ≈860 | 20×2 |
| UTSG2-1360-470-142 | 470 | 440 | 100×12-14(piece) | ≈794 | 16×2 |
| UTSG2-1360-490-121 | 490 | 460 | 100×12-12(piece) | ≈745 | 14×2 |
| UTSG2-1360-464-111 | 464 | 434 | 100×12-11(piece) | ≈696 | 12×2 |
| UTSG3-1360-500-141 | 500 | 470 | 100×14-14(piece) | ≈1300 | 20×3 |
| UTSG3-1360-470-142 | 470 | 440 | 100×12-14(piece) | ≈1202 | 16×3 |
| UTSG3-1360-490-121 | 490 | 460 | 100×12-12(piece) | ≈1127 | 14×3 |
| UTSG3-1360-464-111 | 464 | 434 | 100×12-11(piece) | ≈1054 | 12×3 |
