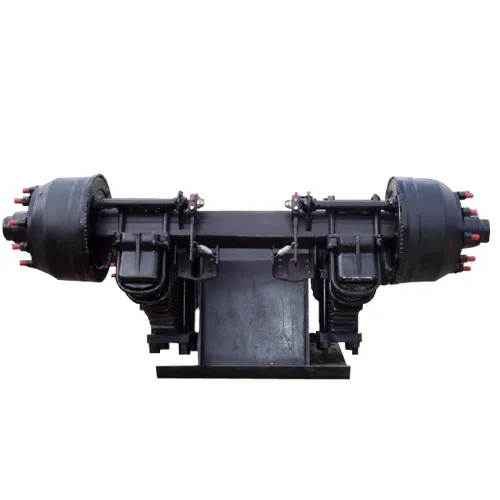

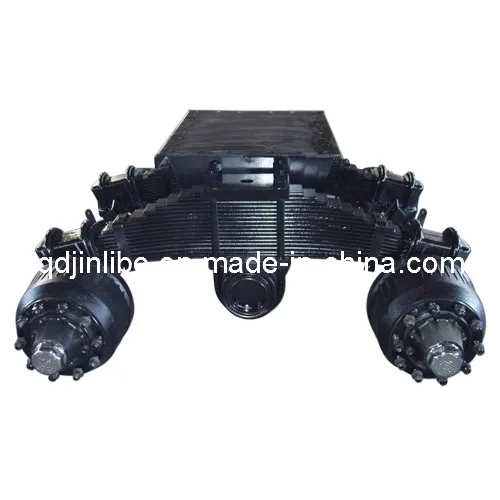

Bogie 24t 28t 32t with 10 Hole 6 Holes
Bogie 24T 28T 32T with 10 hole 6 holes1. Max payload 24T 28T 32T2. High quality and best price3. Certification: ISO9001Main products:Germany Axle, English Axle, American Axle, Bogie Suspension, half axle, Suspension parts,Fifth wheel, kingpin and other trailer parts. Through ISO9001: 2000 certificat......
Send Inquiry
Product Description
Bogie 24T 28T 32T with 10 hole 6 holes
1. Max payload 24T 28T 32T
2. High quality and best price
3. Certification: ISO9001
Main products:
Germany Axle, English Axle, American Axle, Bogie Suspension, half axle, Suspension parts,
Fifth wheel, kingpin and other trailer parts. Through ISO9001: 2000 certification and ISO/TS16949 we faithfully follow the stipulations of this
Standard so as to guarantee high product quality.
Product characteristics:
1. Specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. High performance premiun non-asbestos brake linings, extend service life
4. Easy fir ABS installation
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. New tight fit hub cap have O rings, high property for sealing
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintance
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims
9. Through ISO9001: 2000 certification and ISO/TS16949 we faithfully follow the stipulations of this standard so as to guarantee
High product quality.
Qingdao Jinlibo Industry and Trade Co., Ltd. Manufacture and supply trailer axle and related parts for many years. Welcoming
Interested compaines around the world to cooperate with us, hope we have a good cooperate.
1. Max payload 24T 28T 32T
2. High quality and best price
3. Certification: ISO9001
Main products:
Germany Axle, English Axle, American Axle, Bogie Suspension, half axle, Suspension parts,
Fifth wheel, kingpin and other trailer parts. Through ISO9001: 2000 certification and ISO/TS16949 we faithfully follow the stipulations of this
Standard so as to guarantee high product quality.
Product characteristics:
1. Specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. High performance premiun non-asbestos brake linings, extend service life
4. Easy fir ABS installation
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. New tight fit hub cap have O rings, high property for sealing
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintance
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims
9. Through ISO9001: 2000 certification and ISO/TS16949 we faithfully follow the stipulations of this standard so as to guarantee
High product quality.
Qingdao Jinlibo Industry and Trade Co., Ltd. Manufacture and supply trailer axle and related parts for many years. Welcoming
Interested compaines around the world to cooperate with us, hope we have a good cooperate.

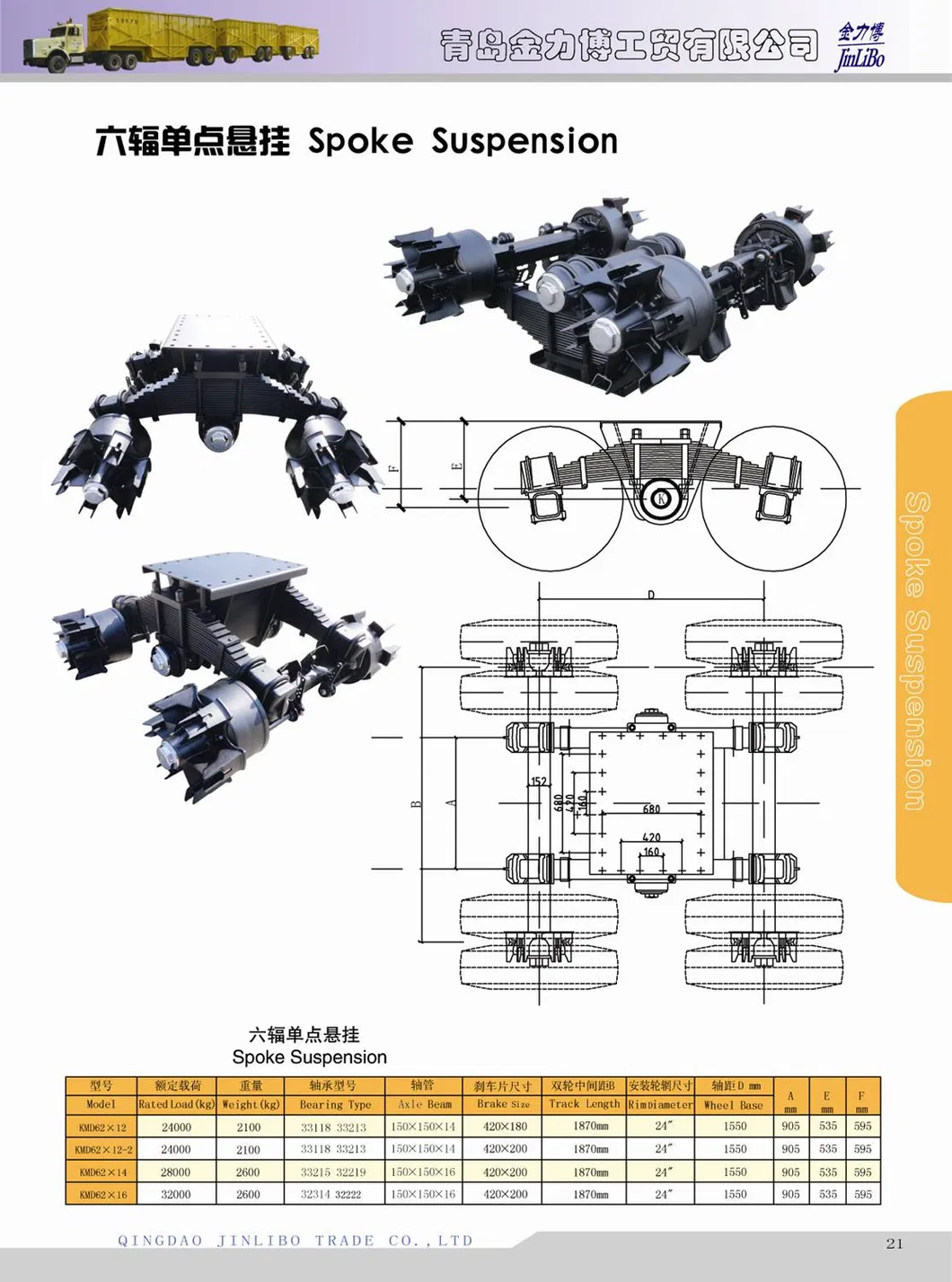

| Model | Rated load(kg) | Weight(kg) | Bearing type | Axletube(mm) | Brake size(mm) | Track(mm) | Rim diameter | Axle distance(mm) |
| RND62*12 | 24000 | 2100 | 33118 33213 | 150*150*14 | Φ420*180 | 1870 | 24" | 1550 |
| RND62*12-2 | 24000 | 2100 | 33118 33213 | 150*150*14 | Φ420*200 | 1870 | 24" | 1550 |
| RND62*14 | 28000 | 2600 | 33215 32219 | 150*150*16 | Φ420*200 | 1870 | 24" | 1550 |
| RND62*16 | 32000 | 2600 | 32314 32222 | 150*150*16 | Φ420*200 | 1870 | 24" | 1550 |
