Home > Products > Trailers > Trailer Parts > Semi Trailer Truck Parts Suspension 24t 28t 32t Single Point Bogie Suspension with Germany Type Axle for Auto Parts

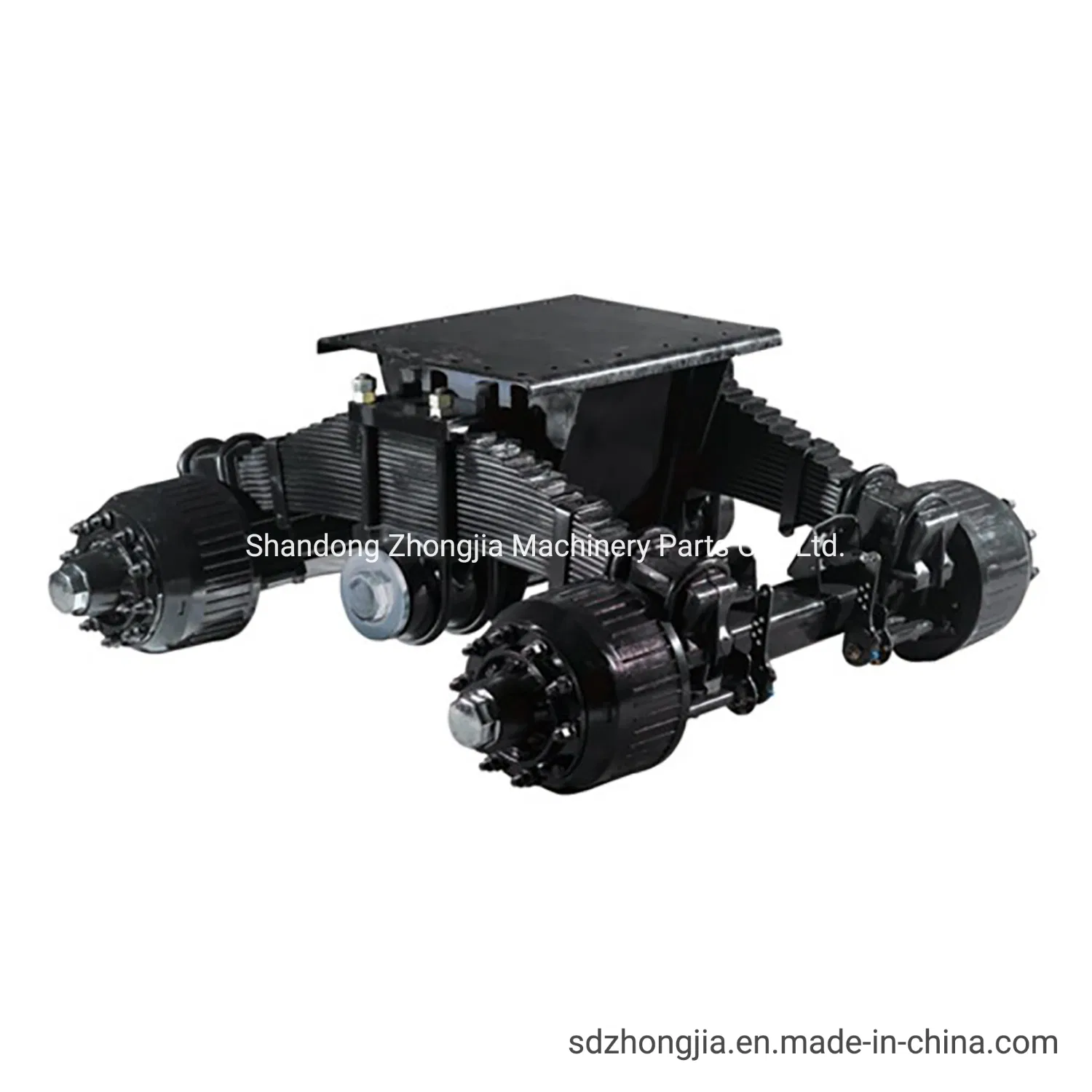

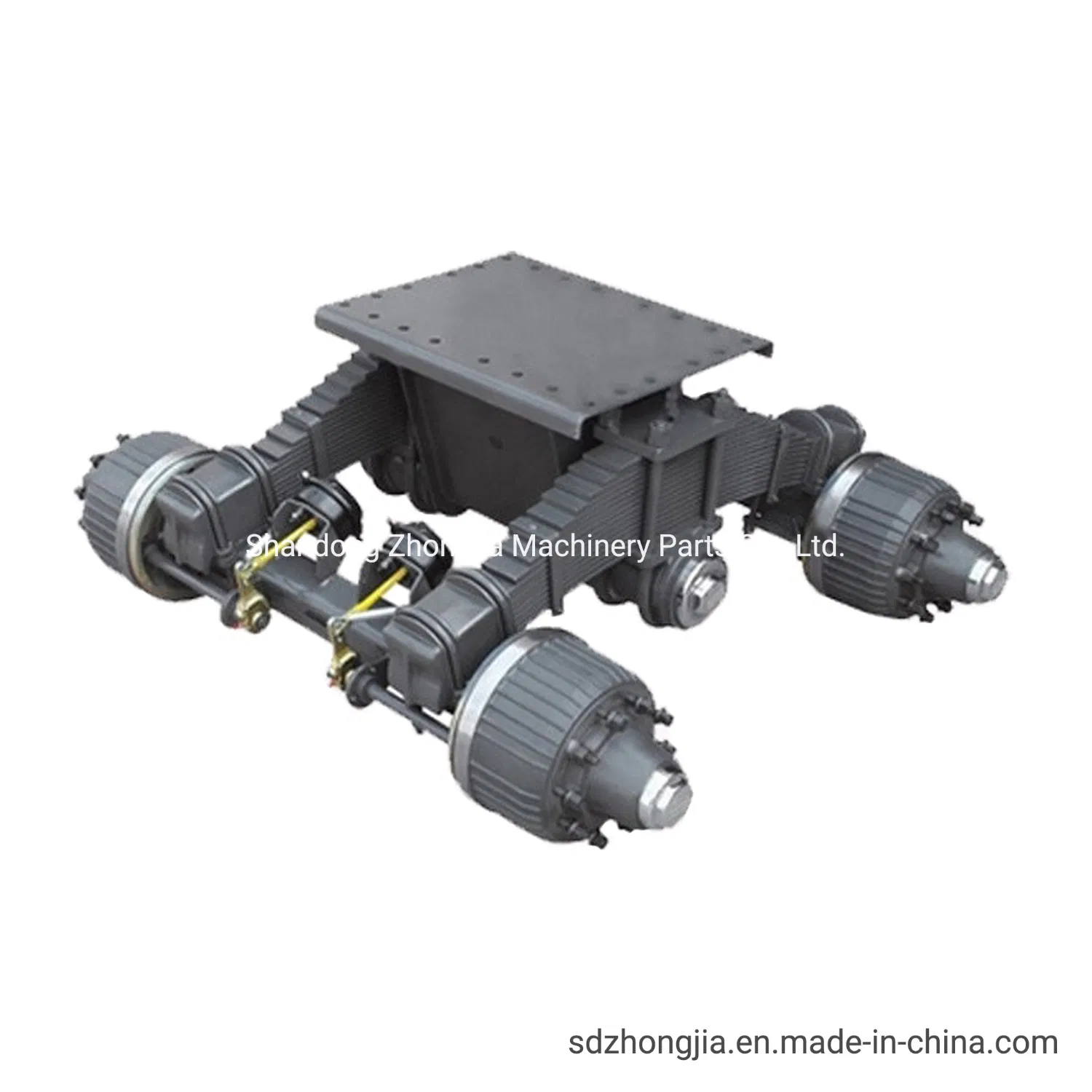

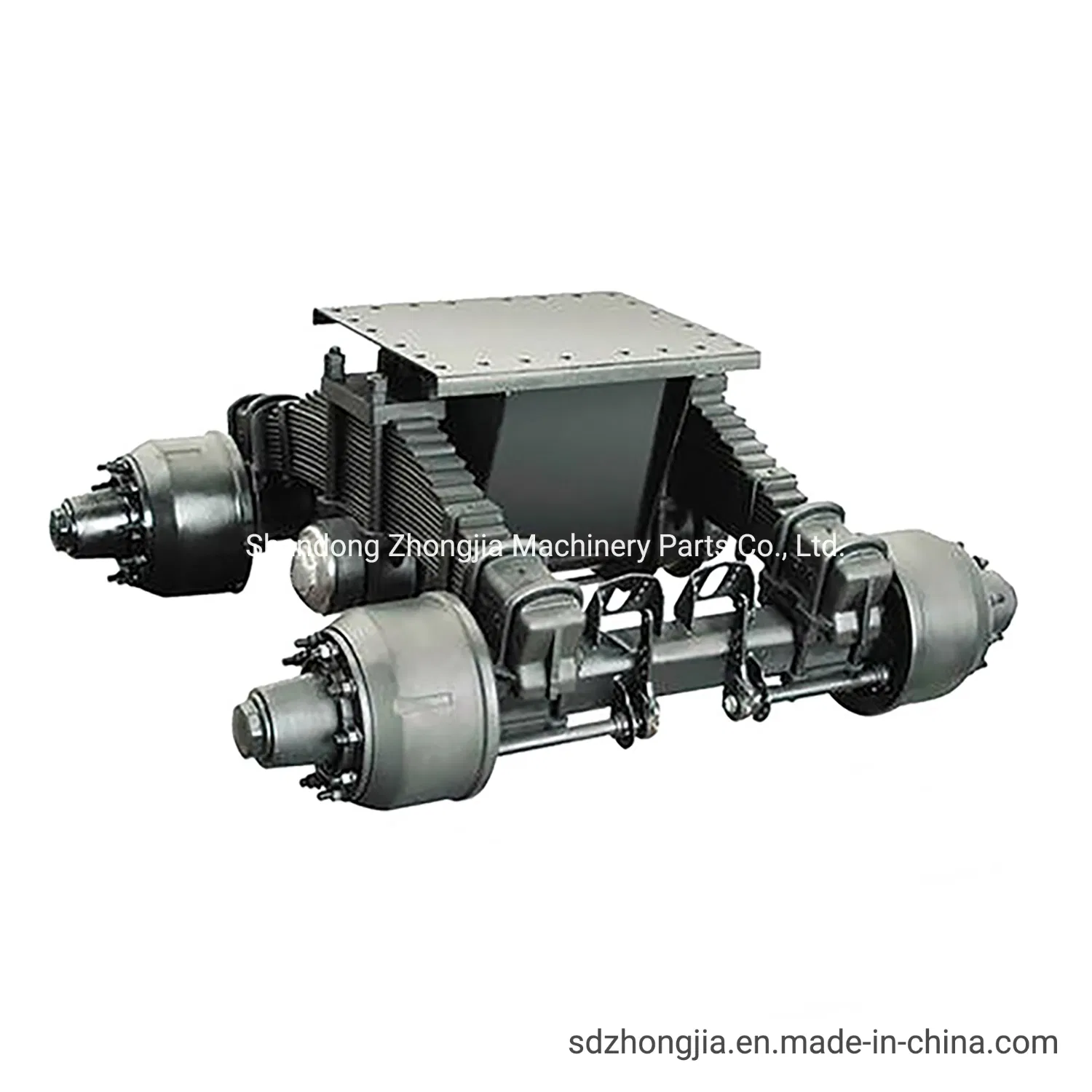

Semi Trailer Truck Parts Suspension 24t 28t 32t Single Point Bogie Suspension with Germany Type Axle for Auto Parts
Our Main Business Scope:1. Trailer Axles: American type axle, Germany type axle, English type axle, Spoke axle, Agriculture axle etc.2. Suspension: American type suspension, Germany type suspension, Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension etc.......
Send Inquiry
Product Description
Our Main Business Scope:
1. Trailer Axles: American type axle, Germany type axle, English type axle, Spoke axle, Agriculture axle etc.
2. Suspension: American type suspension, Germany type suspension, Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension etc.

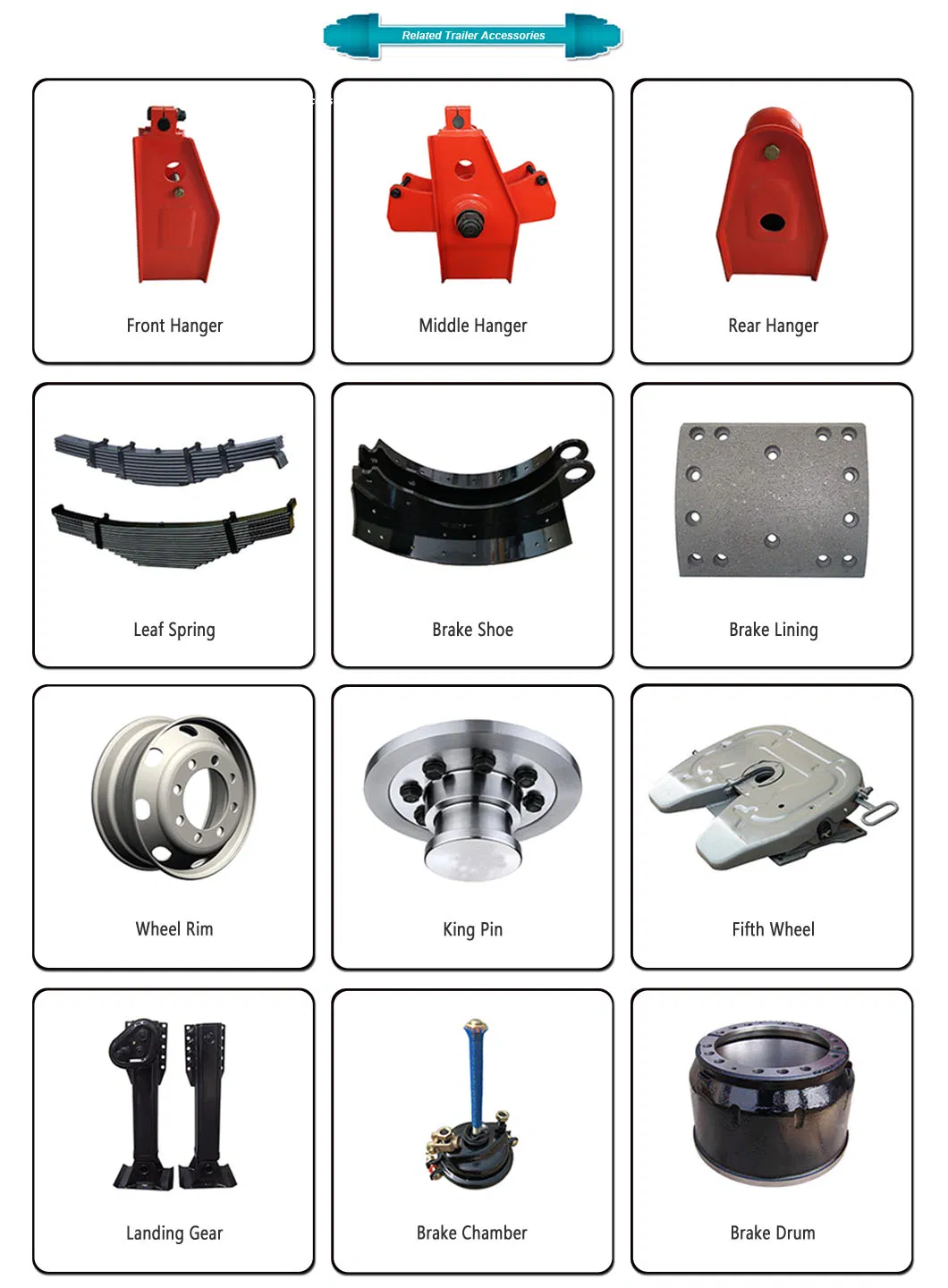

3. Other related trailer parts: Brake lining, Spring leaf, Landing gear, Wheel rim, Brake drum, Fifth wheel, King pin, Brake chamber etc.
Product Description:
1. American type, Germany type and Bogie suspension are the most popular ones
1. Trailer Axles: American type axle, Germany type axle, English type axle, Spoke axle, Agriculture axle etc.
2. Suspension: American type suspension, Germany type suspension, Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension etc.
3. Other related trailer parts: Brake lining, Spring leaf, Landing gear, Wheel rim, Brake drum, Fifth wheel, King pin, Brake chamber etc.
Product Description:
1. American type, Germany type and Bogie suspension are the most popular ones
2. 2-axle, 3-axle, 4-axle and single point suspension systems are all available
3. Customized semi-trailer suspensions are available Specifications for the bogie suspension:
Remarks:
1. The length of track can be customized
2. Axle is availabe with ABS when necessary
| Suspension Type | Max capacity (T) | Track (mm) | Axle beam (mm) | Brake size (mm) | Center distance of spring seat (mm) | Wheel base (mm) | GM Center distance of brake chamber (mm) | Wheel Fixing | Height of table center | Total length (mm) | Recom-mended wheel rim | Width/Qty of leaf spring (mm/pcs) | Weight (kgs) | Bearing | ||
| Studs | P.C.D (mm) | Hole diameter (mm) | ||||||||||||||
| ZJGBS2401 | 24 | 1840 | 150*150 | Φ420*180 | 980 | 1400 | 422 | 10-M22x1.5 | 335 | 281 | 600 | 2158 | 7.50v-20 | 90/18 | ≈1980 | 33213 33118 |
| ZJGBS2402 | 24 | 1840 | 150*150 | Φ420*200 | 900 | 1400 | 422 | 10-M22x1.5 | 335 | 281 | 600 | 2188 | 7.50v-20 | 90/18 | ≈2020 | 33213 33118 |
| ZJGBS2403 | 24 | 1840 | 150*150 | Φ420*220 | 900 | 1550 | 342 | 10-M22x1.5 | 335 | 281 | 600 | 2188 | 7.50v-20 | 90/18 | ≈2020 | 518445/10 518445/10 |
| ZJGBS2801 | 28 | 1840 | 150*150 | Φ420*200 | 900 | 1550 | 342 | 10-M22x1.5 | 335 | 281 | 600 | 2228 | 8.00v-20 | 120/19 | ≈2040 | 33215 32219 |
| ZJGBS3201 | 32 | 1840 | 150*150 | Φ420*200 | 900 | 1550 | 380 | 10-M22x1.5 | 335 | 281 | 660 | 2250 | 8.50v-20 | 120/17 | ≈2490 | 32222 32314 |
| ZJGBS3202 | 32 | 1854 | 150*150 | Φ420*200 | 900 | 1550 | 380 | 10-M22x1.5 | 335 | 281 | 660 | 2235 | 8.50v-20 | 120/17 | ≈2490 | 32222 32314 |
| ZJGBS3203 | 32 | 1850 | 150*150 | Φ420*220 | 900 | 1550 | 348 | 10-M22x1.5 | 335 | 281 | 600 | 2200 | 8.50v-20 | 120/17 | ≈2430 | 518445/10 220149/10 |
1. The length of track can be customized
2. Axle is availabe with ABS when necessary
