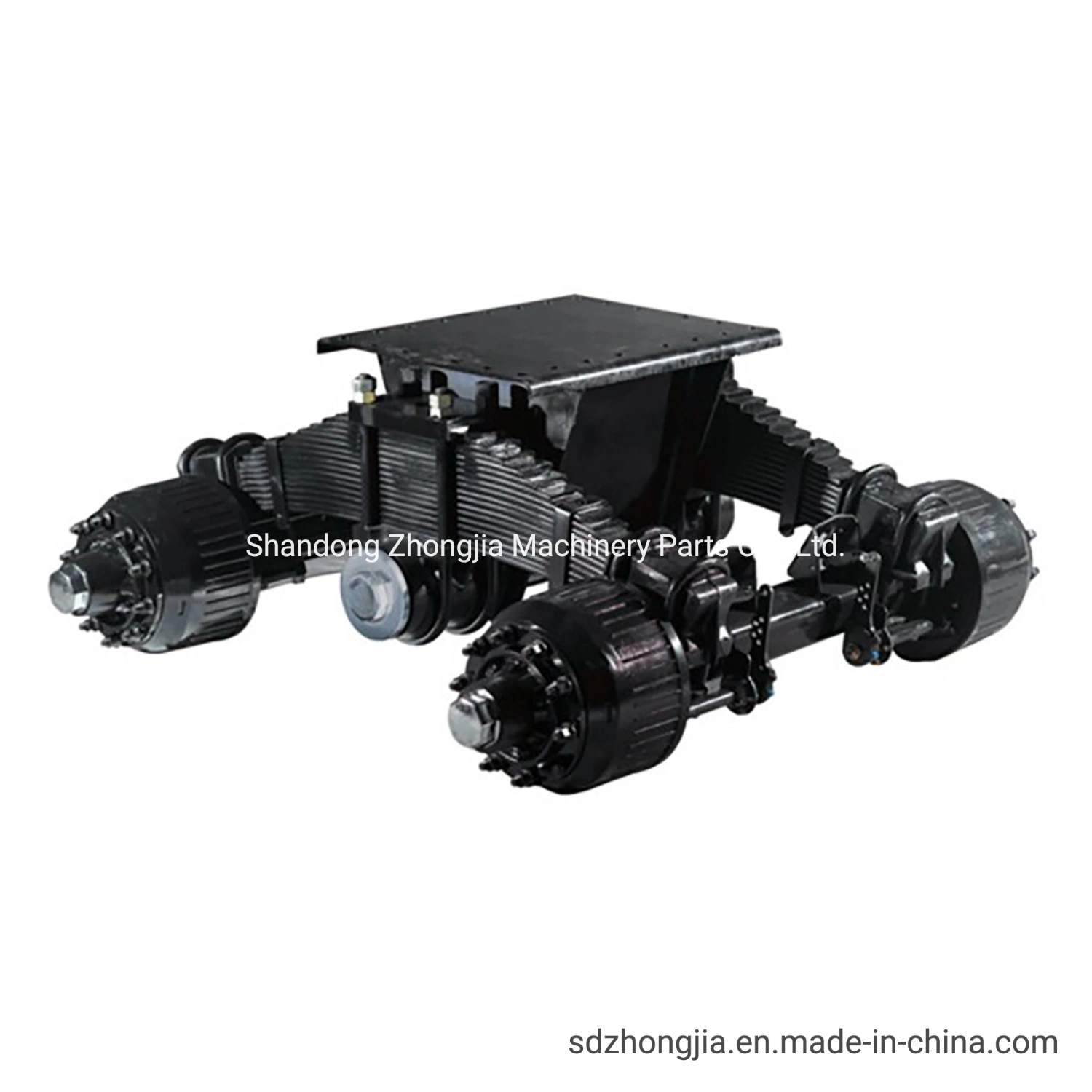

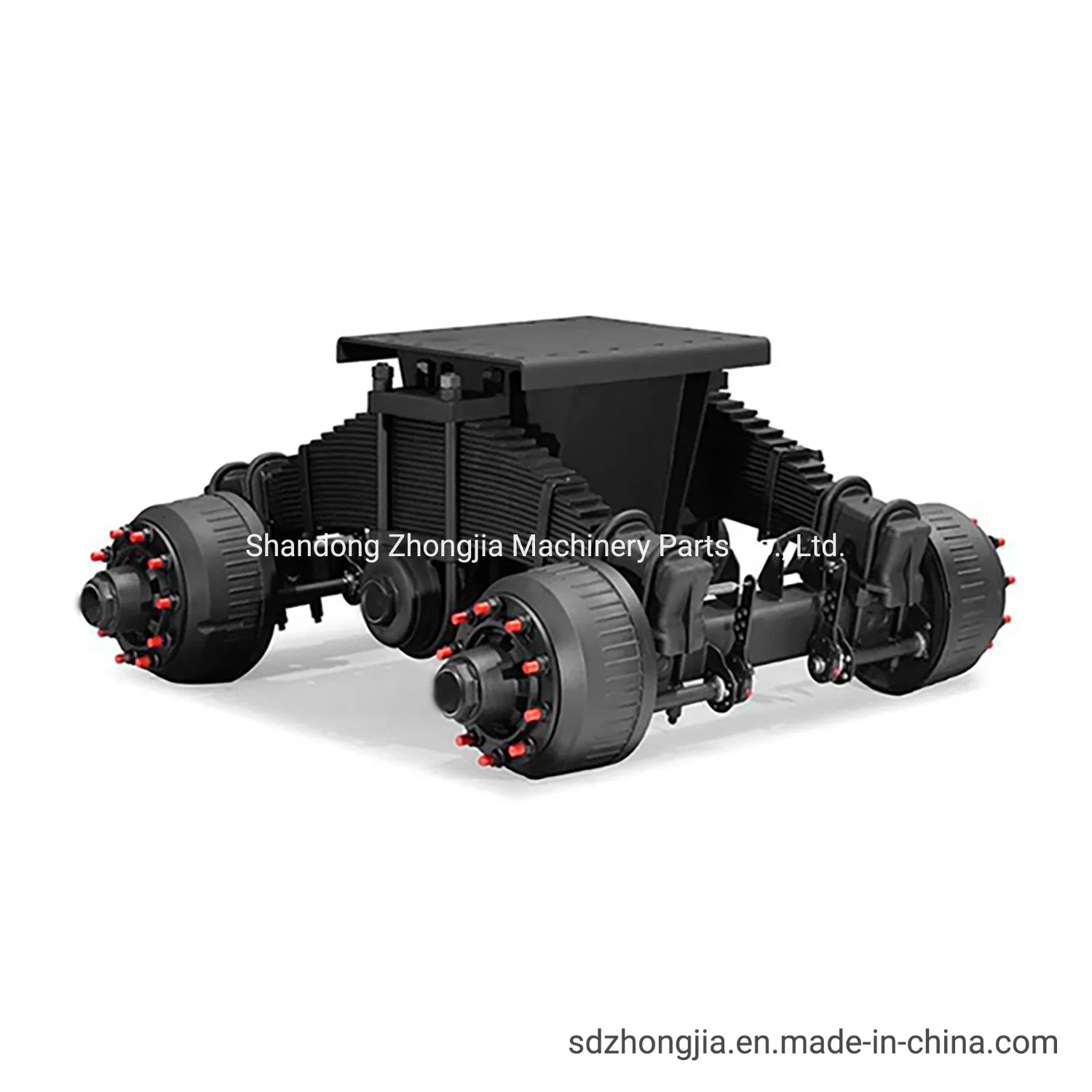

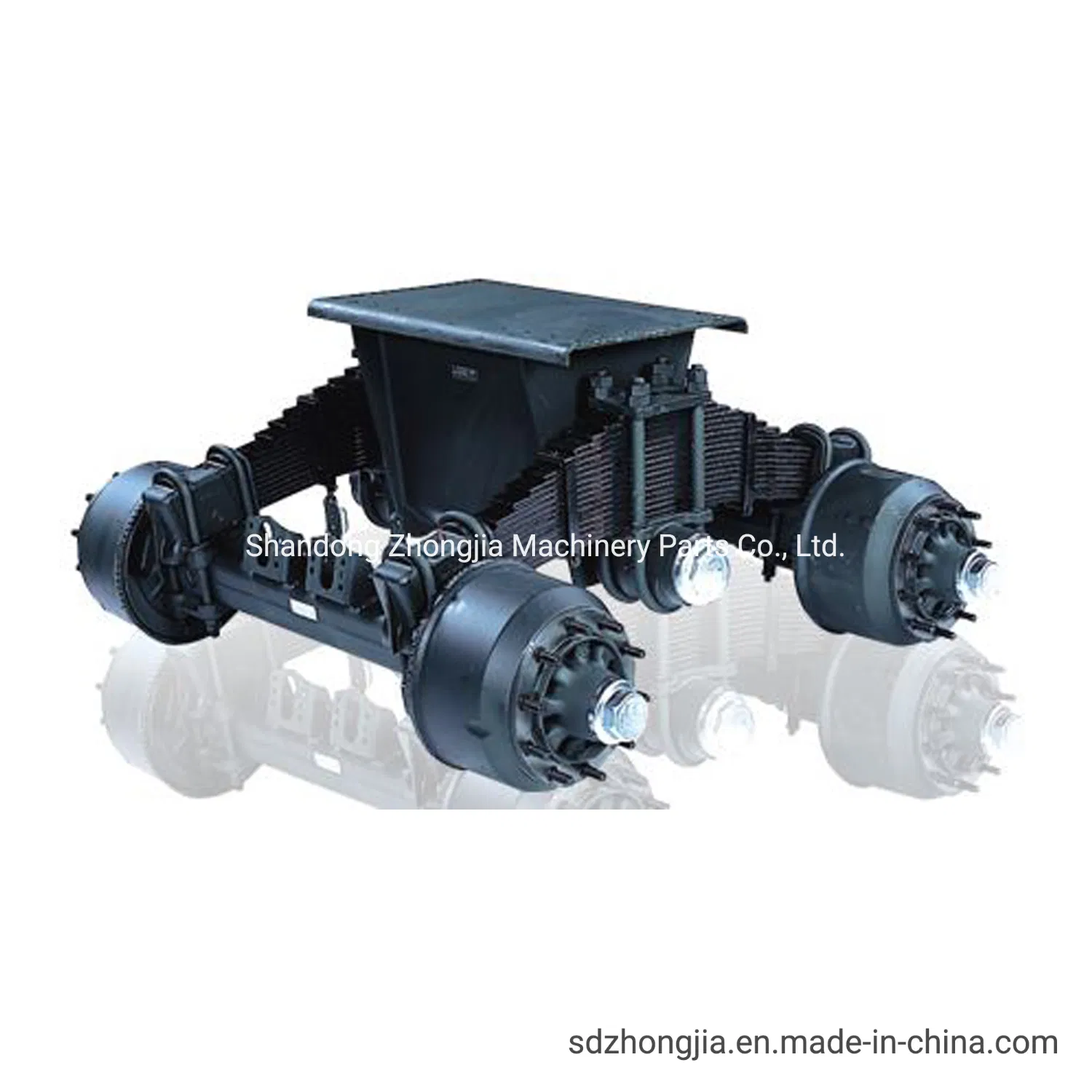

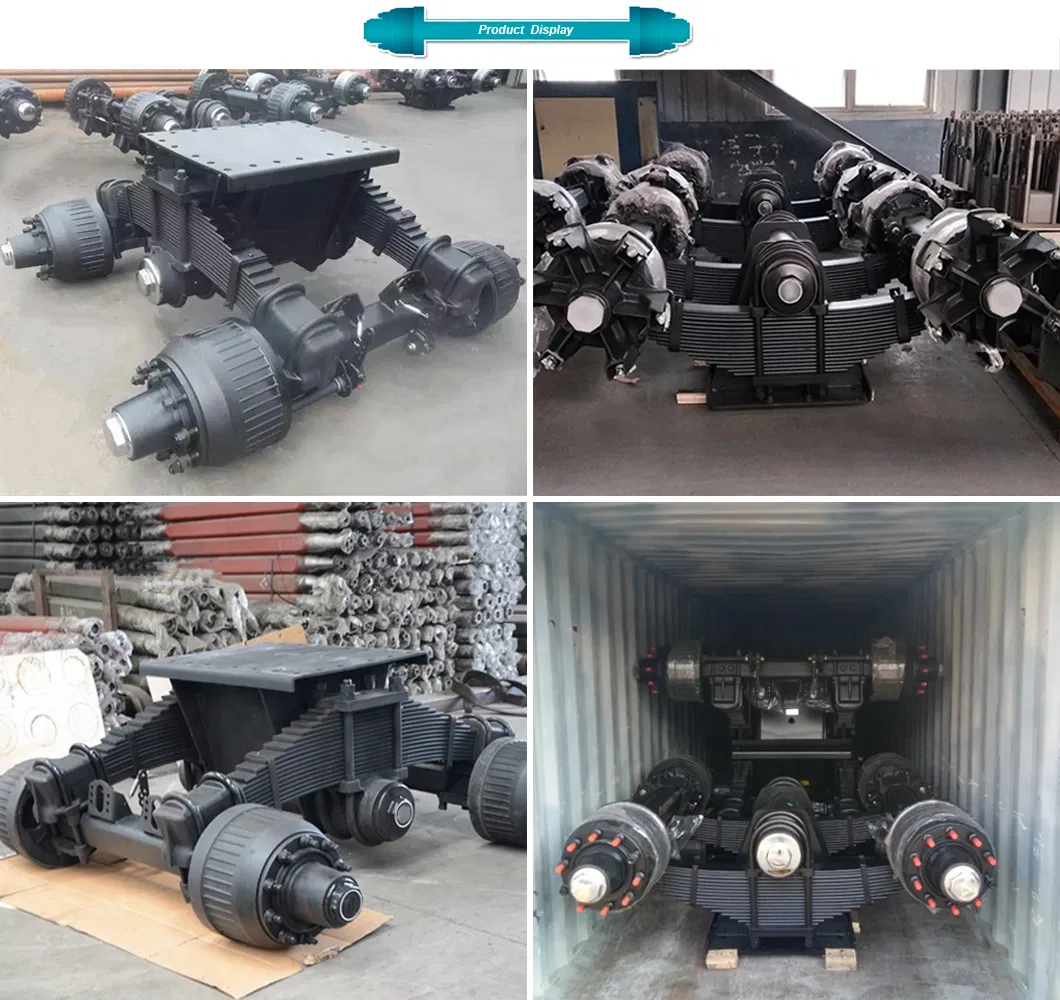

24t 28t 32t Bogie Suspension Single Point Suspension with Germany Type Axle for Semi Trailer Auto Parts and Truck Spare Parts
Our Main Business Scope:1. Trailer Axles: American type axle, Germany type axle, English type axle, Spoke axle, Agriculture axle etc.2. Suspension: American type suspension, Germany type suspension, Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension etc.......
Send Inquiry
Product Description
Our Main Business Scope:
1. Trailer Axles: American type axle, Germany type axle, English type axle, Spoke axle, Agriculture axle etc.
2. Suspension: American type suspension, Germany type suspension, Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension etc.

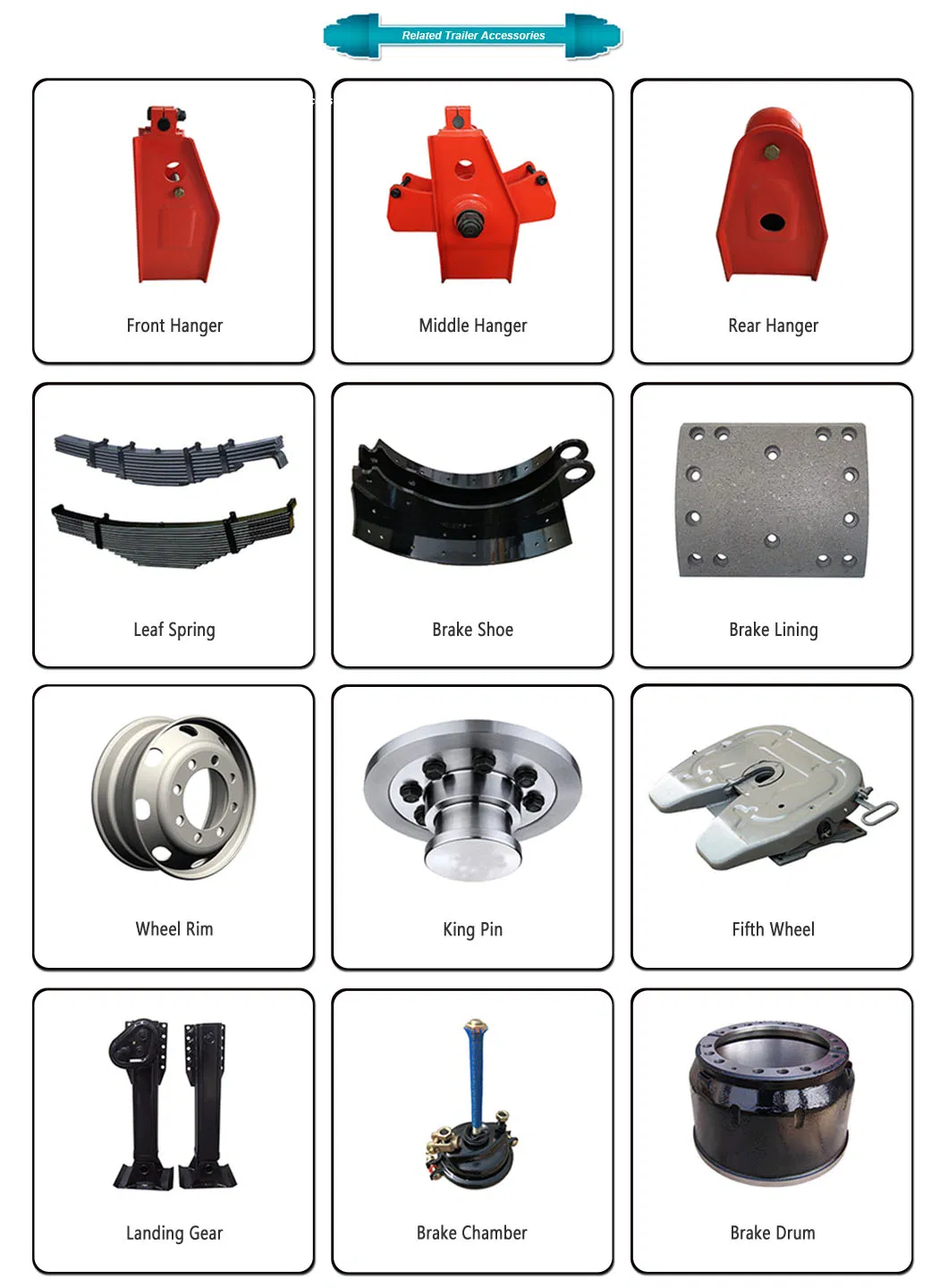

3. Other related trailer parts: Brake lining, Spring leaf, Landing gear, Wheel rim, Brake drum, Fifth wheel, King pin, Brake chamber etc.
Product Description:
1. American type, Germany type and Bogie suspension are the most popular ones
Specifications for the bogie suspension:
Remarks:
1. The length of track can be customized
2. Axle is availabe with ABS when necessary
1. Trailer Axles: American type axle, Germany type axle, English type axle, Spoke axle, Agriculture axle etc.
2. Suspension: American type suspension, Germany type suspension, Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension etc.
3. Other related trailer parts: Brake lining, Spring leaf, Landing gear, Wheel rim, Brake drum, Fifth wheel, King pin, Brake chamber etc.
Product Description:
1. American type, Germany type and Bogie suspension are the most popular ones
2. 2-axle, 3-axle, 4-axle and single point suspension systems are all available
3. Customized semi-trailer suspensions are available Specifications for the bogie suspension:
| Suspension Type | Max capacity (T) | Track (mm) | Axle beam (mm) | Brake size (mm) | Center distance of spring seat (mm) | Wheel base (mm) | GM Center distance of brake chamber (mm) | Wheel Fixing | Height of table center | Total length (mm) | Recom-mended wheel rim | Width/Qty of leaf spring (mm/pcs) | Weight (kgs) | Bearing | ||
| Studs | P.C.D (mm) | Hole diameter (mm) | ||||||||||||||
| ZJGBS2401 | 24 | 1840 | 150*150 | Φ420*180 | 980 | 1400 | 422 | 10-M22x1.5 | 335 | 281 | 600 | 2158 | 7.50v-20 | 90/18 | ≈1980 | 33213 33118 |
| ZJGBS2402 | 24 | 1840 | 150*150 | Φ420*200 | 900 | 1400 | 422 | 10-M22x1.5 | 335 | 281 | 600 | 2188 | 7.50v-20 | 90/18 | ≈2020 | 33213 33118 |
| ZJGBS2403 | 24 | 1840 | 150*150 | Φ420*220 | 900 | 1550 | 342 | 10-M22x1.5 | 335 | 281 | 600 | 2188 | 7.50v-20 | 90/18 | ≈2020 | 518445/10 518445/10 |
| ZJGBS2801 | 28 | 1840 | 150*150 | Φ420*200 | 900 | 1550 | 342 | 10-M22x1.5 | 335 | 281 | 600 | 2228 | 8.00v-20 | 120/19 | ≈2040 | 33215 32219 |
| ZJGBS3201 | 32 | 1840 | 150*150 | Φ420*200 | 900 | 1550 | 380 | 10-M22x1.5 | 335 | 281 | 660 | 2250 | 8.50v-20 | 120/17 | ≈2490 | 32222 32314 |
| ZJGBS3202 | 32 | 1854 | 150*150 | Φ420*200 | 900 | 1550 | 380 | 10-M22x1.5 | 335 | 281 | 660 | 2235 | 8.50v-20 | 120/17 | ≈2490 | 32222 32314 |
| ZJGBS3203 | 32 | 1850 | 150*150 | Φ420*220 | 900 | 1550 | 348 | 10-M22x1.5 | 335 | 281 | 600 | 2200 | 8.50v-20 | 120/17 | ≈2430 | 518445/10 220149/10 |
1. The length of track can be customized
2. Axle is availabe with ABS when necessary
