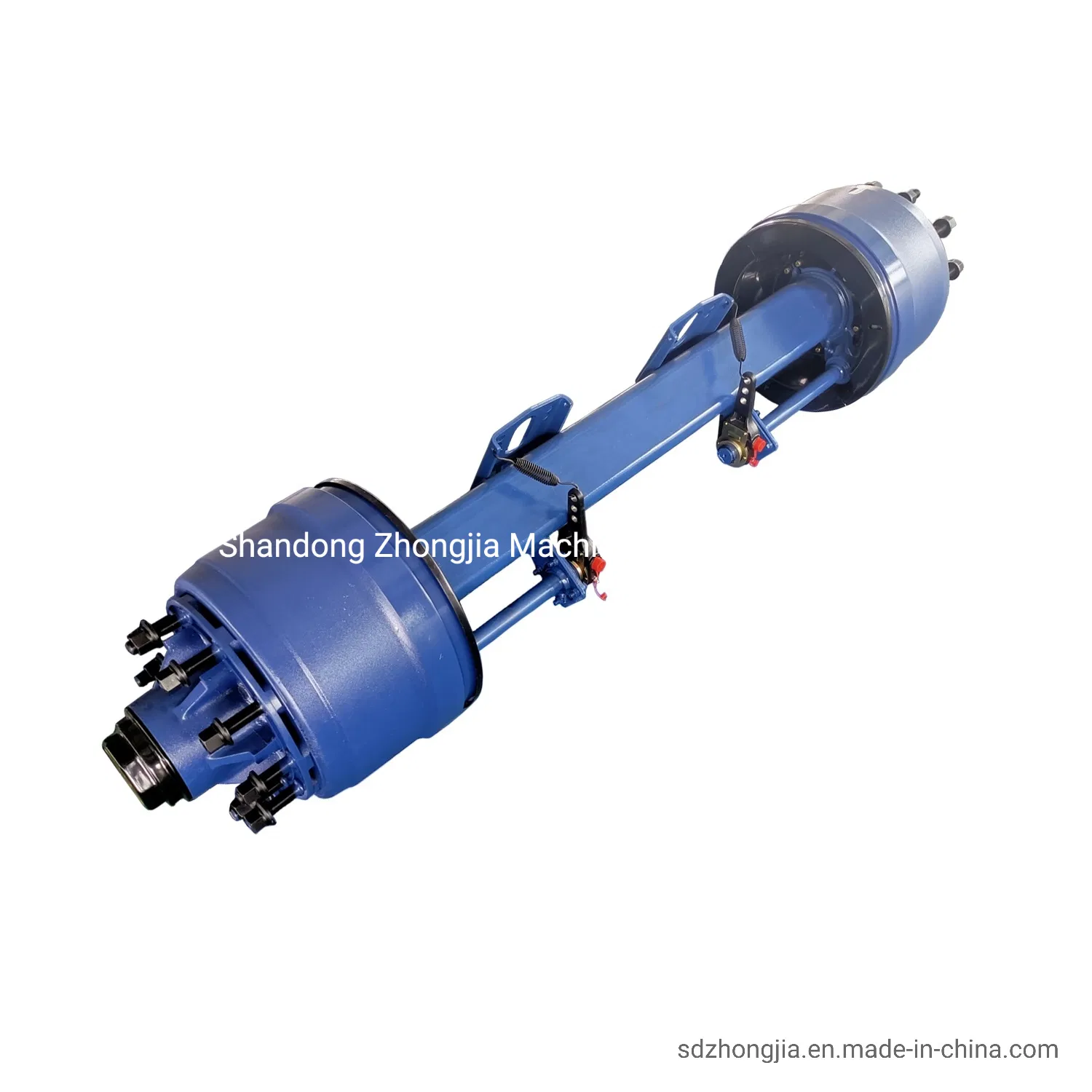

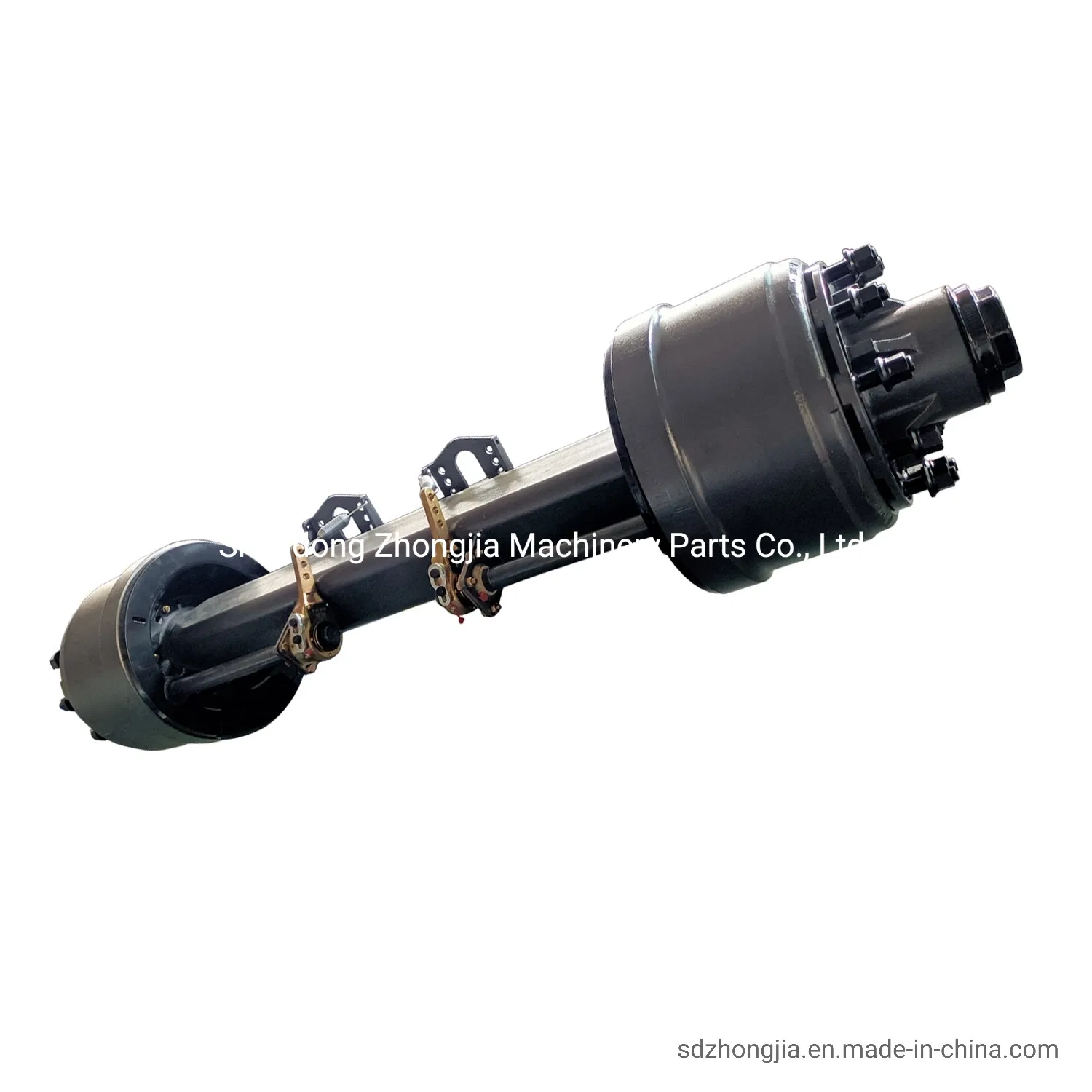

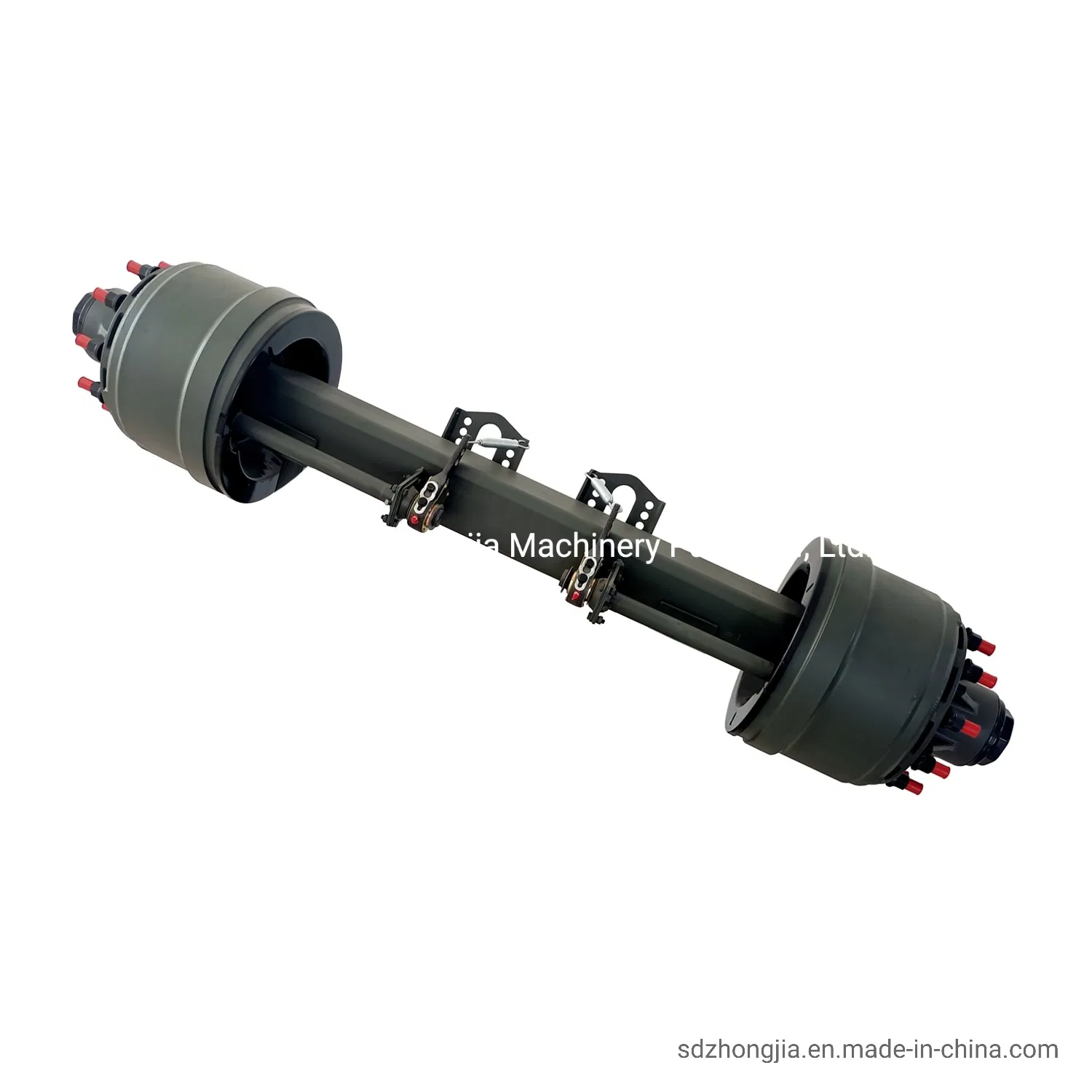

Hot Selling American Type Inboard 13t Axle for Semi Trailer Parts and Spare Parts
Our Main Business Scope:1. Trailer Axles: American type axle, Germany type axle, English type axle, Spoke axle, Agriculture axle etc.2. Suspension: American type suspension, Germany type suspension, Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension etc.......
Send Inquiry
Product Description
Our Main Business Scope:
1. Trailer Axles: American type axle, Germany type axle, English type axle, Spoke axle, Agriculture axle etc.
2. Suspension: American type suspension, Germany type suspension, Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension etc.

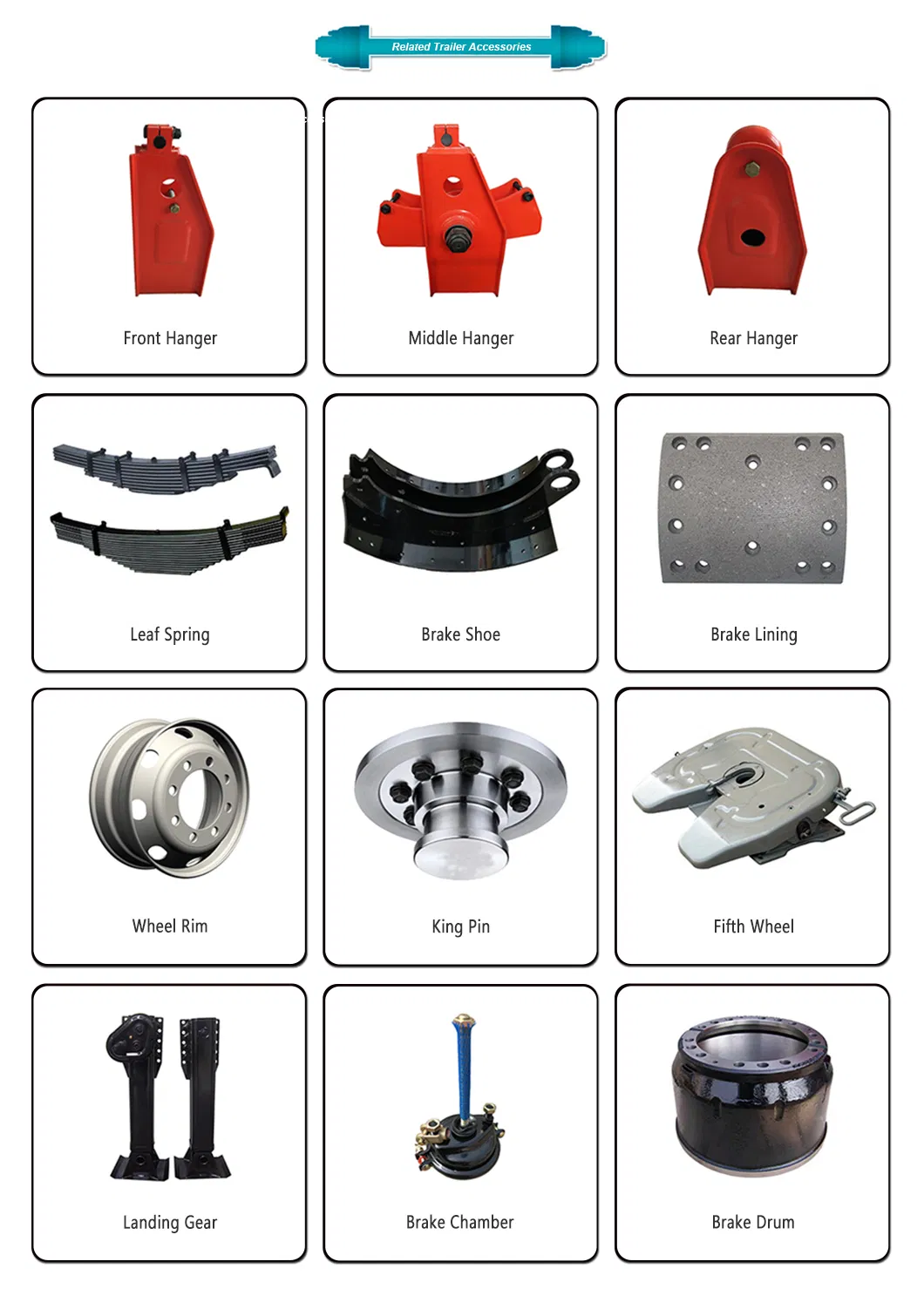

3. Other related trailer parts such as brake lining, spring leaf, landing gear, wheel rim, brake drum, fifth wheel, king pin, brake chamber etc.
Product Description:
1) Axle Type: American type, Germany type, Fuwa type etc
2) Axle Beam: Round or Square Beam (150*150mm or 127*127mm)
3) Application: Trailer, Semi-trailer, Low-bed trailers, Lorry, Heavy duty trucks
4) Max Capacity: 11T/12T/13T/16T/20T
5) Track: 1820/1840/1850 (sizes are optional)
6) Brake: 420*180/420*220 (sizes are optional)
7) ABS brake can be installed
8) Customized semi-trailer axles are available
Product Specification:
1. Trailer Axles: American type axle, Germany type axle, English type axle, Spoke axle, Agriculture axle etc.
2. Suspension: American type suspension, Germany type suspension, Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension etc.
3. Other related trailer parts such as brake lining, spring leaf, landing gear, wheel rim, brake drum, fifth wheel, king pin, brake chamber etc.
Product Description:
1) Axle Type: American type, Germany type, Fuwa type etc
2) Axle Beam: Round or Square Beam (150*150mm or 127*127mm)
3) Application: Trailer, Semi-trailer, Low-bed trailers, Lorry, Heavy duty trucks
4) Max Capacity: 11T/12T/13T/16T/20T
5) Track: 1820/1840/1850 (sizes are optional)
6) Brake: 420*180/420*220 (sizes are optional)
7) ABS brake can be installed
8) Customized semi-trailer axles are available
Product Specification:
| Max capacity(T) | Track (mm) | Brake size (mm) | Center distance of spring seat (mm) | Axle Tube(mm) | Center distance of brake chamber (mm) | Wheel Fixing | Total length (mm) | Recommended wheel rim | Weight(kgs) | Bearing | ||
| Studs | P.C.D (mm) | Hole diameter (mm) | ||||||||||
| 13 | 1840 | Φ420*180 | ≥930 | 150*150*12 | 390 | 10-M22x1.5 ISO | 335 | 281 | 2185 | 7.5v-20 | 340 | Outer 518445/10 Inner 518445/10 |
| 13 | 1840 | Φ420*180 | ≥930 | 150*150*12 | 390 | 10-M22x1.5 ISO | 285.75 | 221 | 2185 | 7.5v-20 | 340 | |
| 13 | 1840 | Φ420*180 | ≥930 | 150*150*12 | 390 | 8-M20x1.5 JAP | 285 | 221 | 2185 | 7.5v-20 | 340 | |
| 13 | 1840 | Φ420*220 | ≥930 | 150*150*12 | 350 | 8-M30x2 ISO | 285.75 | 221 | 2185 | 7.5v-20 | 358 | |
| 13 | 1840 | Φ420*220 | ≥930 | 150*150*12 | 350 | 10-M22x1.5 ISO | 335 | 281 | 2185 | 7.5v-20 | 358 | |
| 15 | 1850 | Φ420*180 | ≥940 | 150*150*14 | 400 | 10-M22x1.5 ISO | 335 | 281 | 2205 | 8.0v-20 | 398 | Outer 518445/10 Inner 220149/10 |
| 16 | 1850 | Φ420*220 | ≥940 | 150*150*14 | 360 | 10-M22x1.5 ISO | 335 | 281 | 2205 | 8.0v-20 | 398 | |
| 20 | 1850 | Φ420*220 | ≥940 | 150*150*16 | 360 | 10-M24x1.5 ISO | 335 | 281 | 2270 | 8.0v-20 | 430 | Outer 518445/10 Inner 32222/10 |
