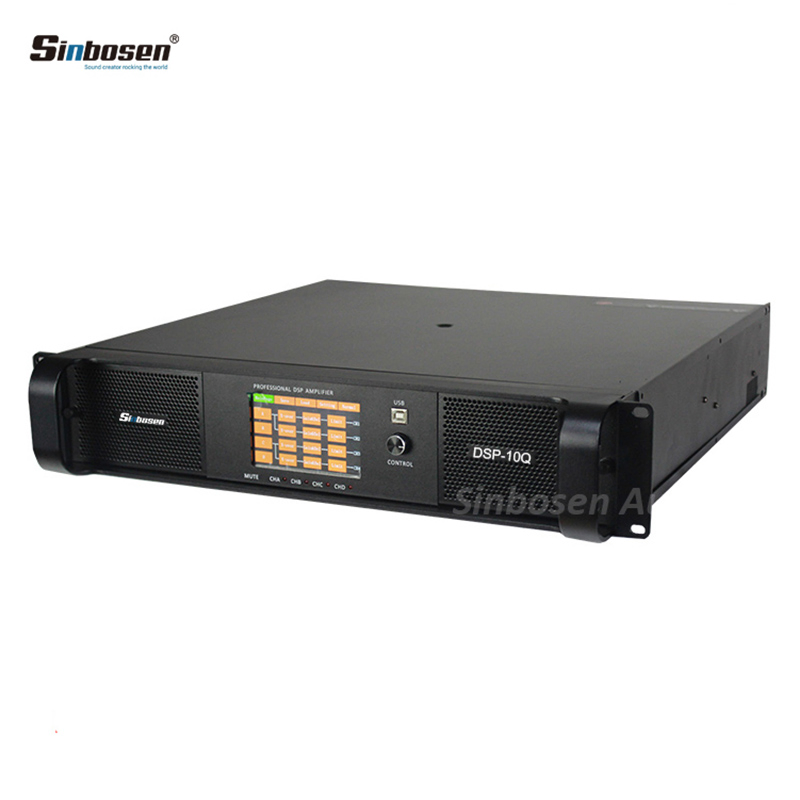

Sinbosen DJ Sounds Amplifier DSP10000q Professional Music Amplifier DSP Power AMP
Sinbosen dj sounds amplifier DSP10000Q professional music amplifier dsp power ampSinbosen Audio DSP Series Amplifier DSP10000QDSP12000QDSP20000Q8 ohm Stereo Power (RMS)1300WX41500WX42200WX44 ohm Stereo Power (RMS)2100WX42800WX44000WX42 ohm Stereo Power (RMS)2500WX43500WX44500WX48 ohm Bridged Pow......
Send Inquiry
Product Description
Sinbosen dj sounds amplifier DSP10000Q professional music amplifier dsp power amp
Sinbosen Audio DSP Series Amplifier
Product Detail
Some users prefer to make amplifier with DSP function in one same machine.Don't need to spare more time to install the extra audio processor.2 in 1 design makeaudio system more lighter ,simpler to operate .So we create the DSP series based on FP series amplifier.A perfect Sound reinforcement used in multiple ranges of home and paging applications such as home, theater, office, malls.
Feature
4 Channel Class TD power amplifier.
4 x 2,100 Watts into 4 Ohms,4 x 1,300 Watts into 8 Ohms
Neutrik XLR*/speakon connectors.
Creat SUPER sound quality.

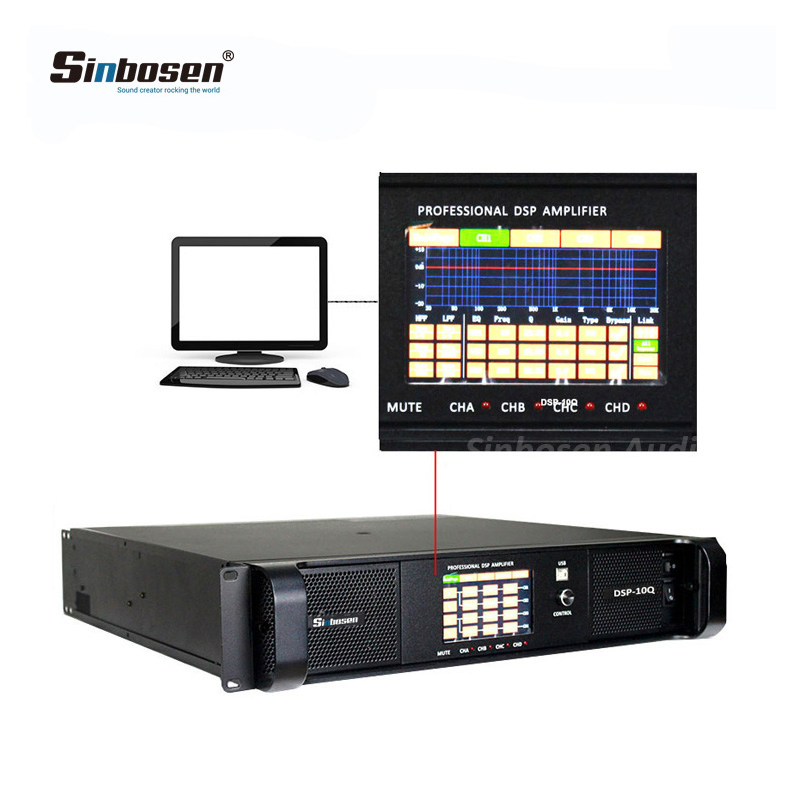

Control the sound effect by Touch on front 4" LED display screen.

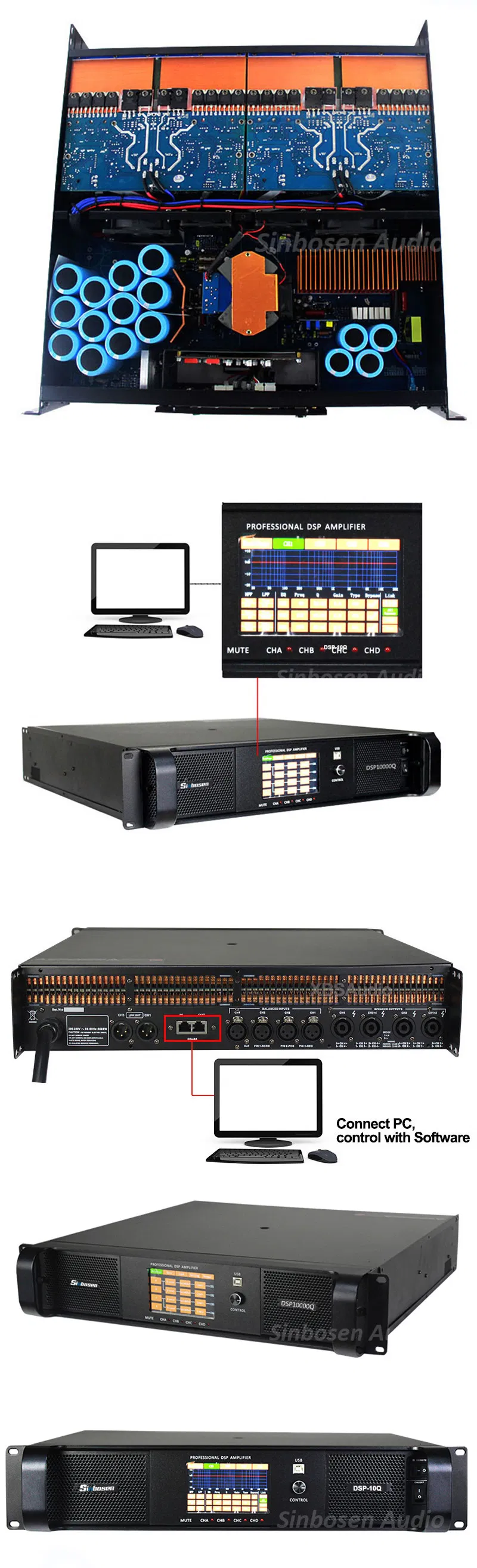

Or control the sound effect by Computer.
Simple DSP software,no need install,easy operate it.
Bridge-mode operation for Touring Applications.
Comprehensive protection scheme.

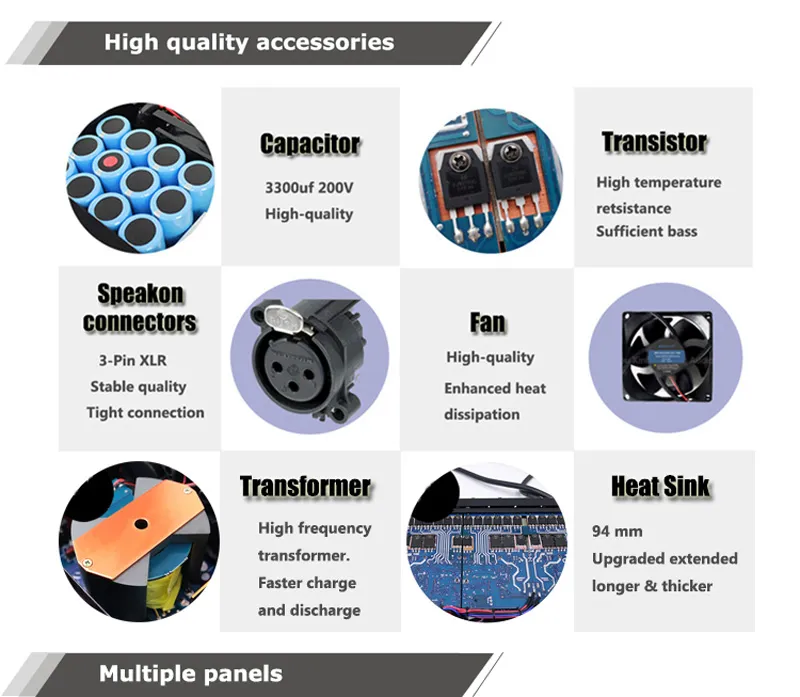

Use original Siemens high-quaity capacitor 3300uf 200V.
Use Original ONSEMI transistor.
Neutrik XLR*/Speakon connectors.
Extended heatsink to 94 mm.
Why choose us?
1.Three years warranty, free accessories.If there are quality problems,provide pictures or video, engineers judge the problem and provide after-sale support Products with CE ROHS certification.
2.We are 10 years manufature about professional audio speaker and power amplifier,4 years gold supplier on Alibaba.
3.Our engineers have 10 years work experience, very professional.
4.The product is light and suitable for performance and conferences.
5.There is no minimum order quantity limit ,you can choose to order 1pc or 1000000pcs.No limit about quality.
6.Products with CE ROHS certification.
If you are interested in our products, please contact us
Sinbosen Audio DSP Series Amplifier
| DSP10000Q | DSP12000Q | DSP20000Q | |||||
| 8 ohm Stereo Power (RMS) | 1300WX4 | 1500WX4 | 2200WX4 | ||||
| 4 ohm Stereo Power (RMS) | 2100WX4 | 2800WX4 | 4000WX4 | ||||
| 2 ohm Stereo Power (RMS) | 2500WX4 | 3500WX4 | 4500WX4 | ||||
| 8 ohm Bridged Power (RMS) | 4200WX2 | 5600WX2 | 8000WX2 | ||||
| 4 ohm Bridged Power (RMS) | 5000WX2 | 7000WX2 | 9000WX2 | ||||
| Frequency Response(+o/-0.3dB,1W/8Ω): | 20 Hz - 34 kHz | ||||||
| THD 20 Hz - 20 kHz for 1W: | <0.1% | ||||||
| Signal-to-Noise Ratio: | >112 dBA | ||||||
| Channel separation (Crosstalk) at 1 kHz : | >70 dB | ||||||

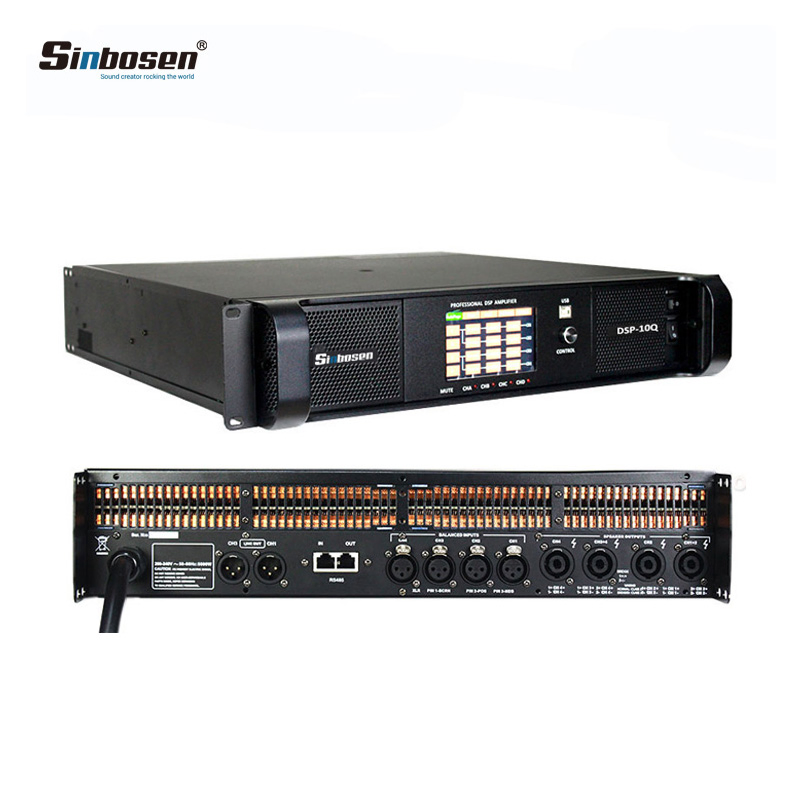

| Input Connectors (per channel): | 3 pin XLR, electronically balanced | ||||||
| Output Connectors (per channel): | Binding Posts 2-pole | ||||||
| Class: | TD | ||||||
| TourClass Protection: | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
| Operating voltage, 220V / 110V nominal: | 180-240 V / 90-130 V selectable | ||||||
| Voltage Gain(dB): | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
| Input impedance: | 20 kOhm | ||||||
| Level adjustment (per ch.): | Front panel potentiometer, 31 positions detented from -inf to 0 dB | ||||||
Product Detail
Some users prefer to make amplifier with DSP function in one same machine.Don't need to spare more time to install the extra audio processor.2 in 1 design makeaudio system more lighter ,simpler to operate .So we create the DSP series based on FP series amplifier.A perfect Sound reinforcement used in multiple ranges of home and paging applications such as home, theater, office, malls.

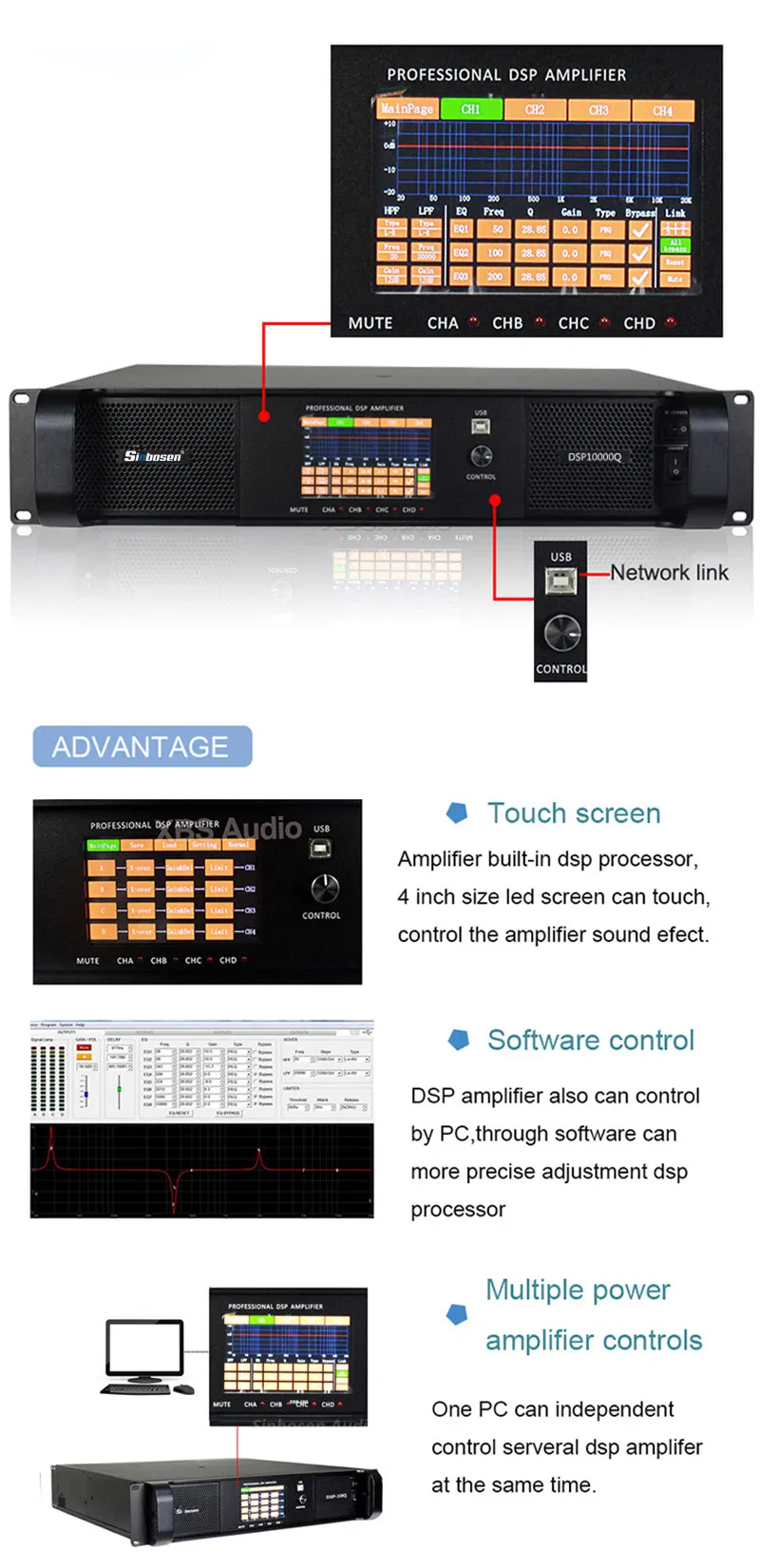

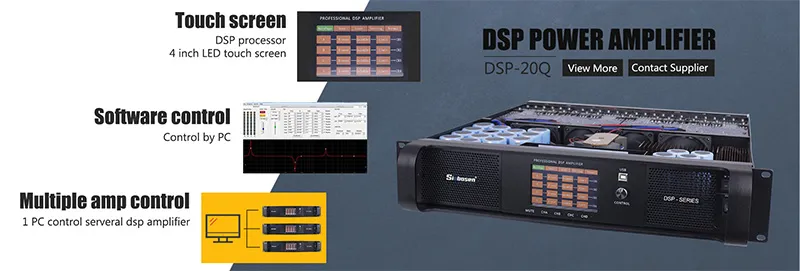

| Touch screen | Software control | Multiple power amplifier controls |
| Amplifier built-in processor,4 inch size led screen can touch,control the amplifier sound effect | DSP amplifier also cintrol by PC,through software can more precise adjustment dsp processor | One PC can independent control serveral dsp amplifier at the same time |
Feature
4 Channel Class TD power amplifier.
4 x 2,100 Watts into 4 Ohms,4 x 1,300 Watts into 8 Ohms
Neutrik XLR*/speakon connectors.
Creat SUPER sound quality.
Control the sound effect by Touch on front 4" LED display screen.
Or control the sound effect by Computer.
Simple DSP software,no need install,easy operate it.
Bridge-mode operation for Touring Applications.
Comprehensive protection scheme.
Use original Siemens high-quaity capacitor 3300uf 200V.
Use Original ONSEMI transistor.
Neutrik XLR*/Speakon connectors.
Extended heatsink to 94 mm.
Why choose us?
1.Three years warranty, free accessories.If there are quality problems,provide pictures or video, engineers judge the problem and provide after-sale support Products with CE ROHS certification.
2.We are 10 years manufature about professional audio speaker and power amplifier,4 years gold supplier on Alibaba.
3.Our engineers have 10 years work experience, very professional.
4.The product is light and suitable for performance and conferences.
5.There is no minimum order quantity limit ,you can choose to order 1pc or 1000000pcs.No limit about quality.
6.Products with CE ROHS certification.
If you are interested in our products, please contact us
