1000W Class D Ma Series Mixer Amplifier with Audio Sources Compact Mixer Power Amplifier with Dante and DSP

Product Description

1000W class D MA Series Mixer Amplifier with Audio sources compact mixer power amplifier with Dante and DSP

Description

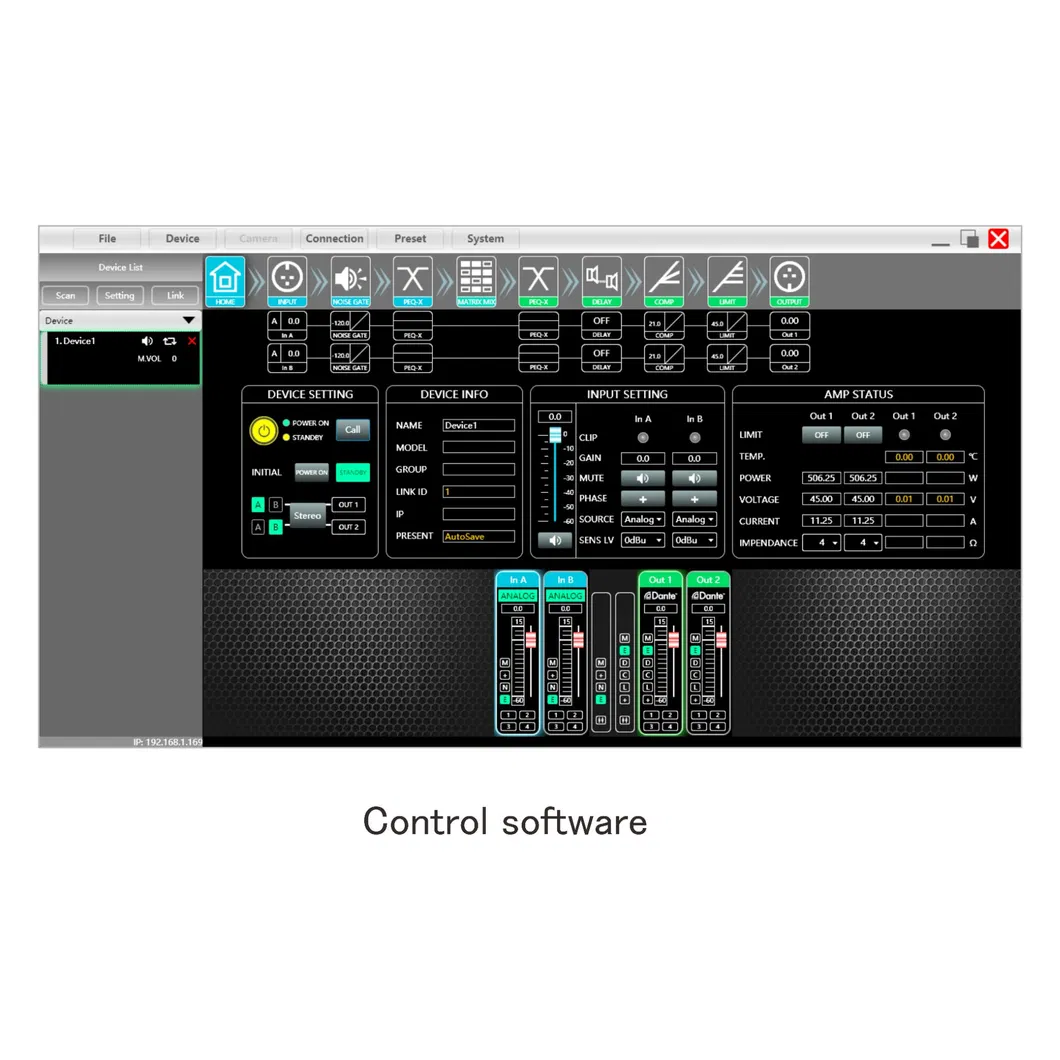

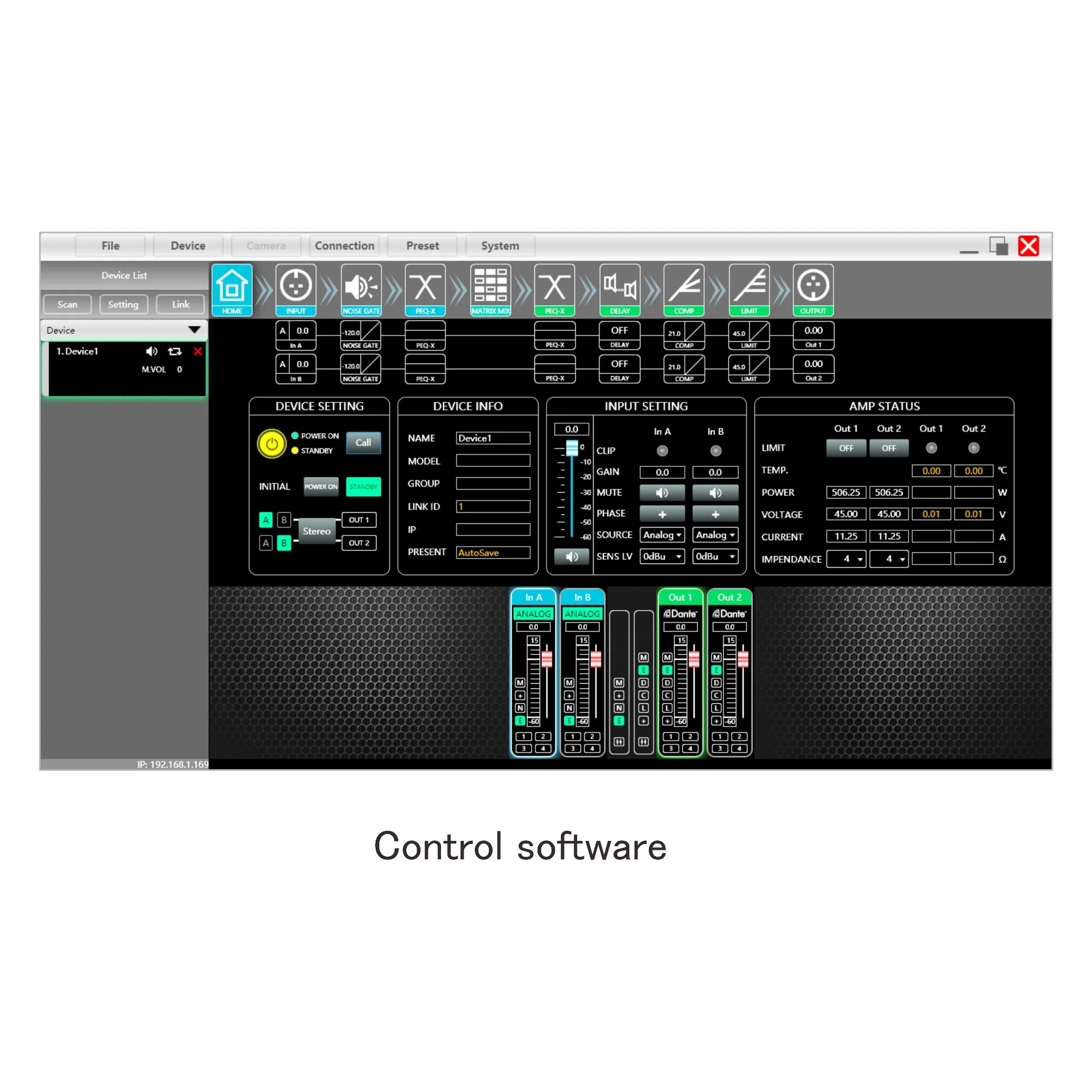

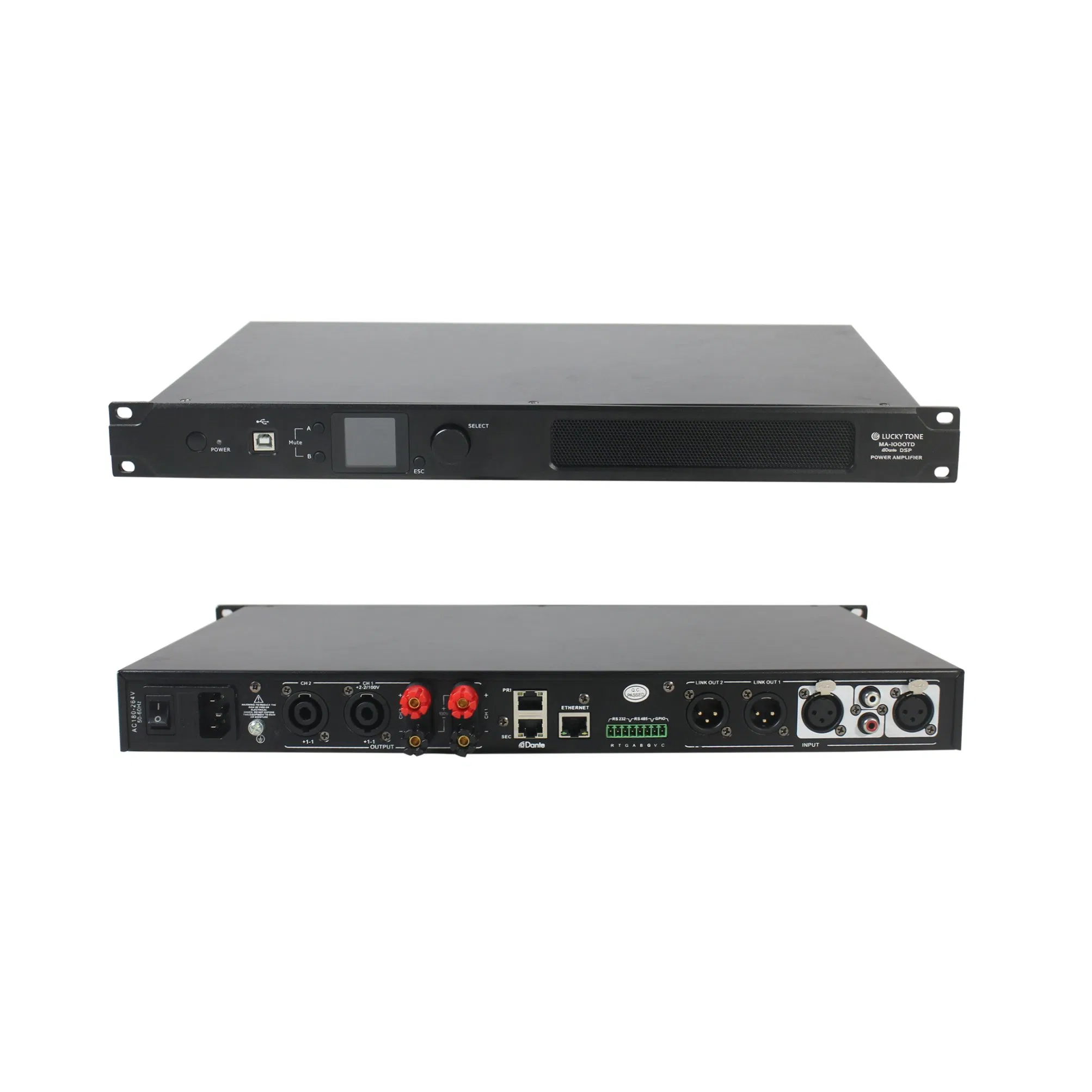

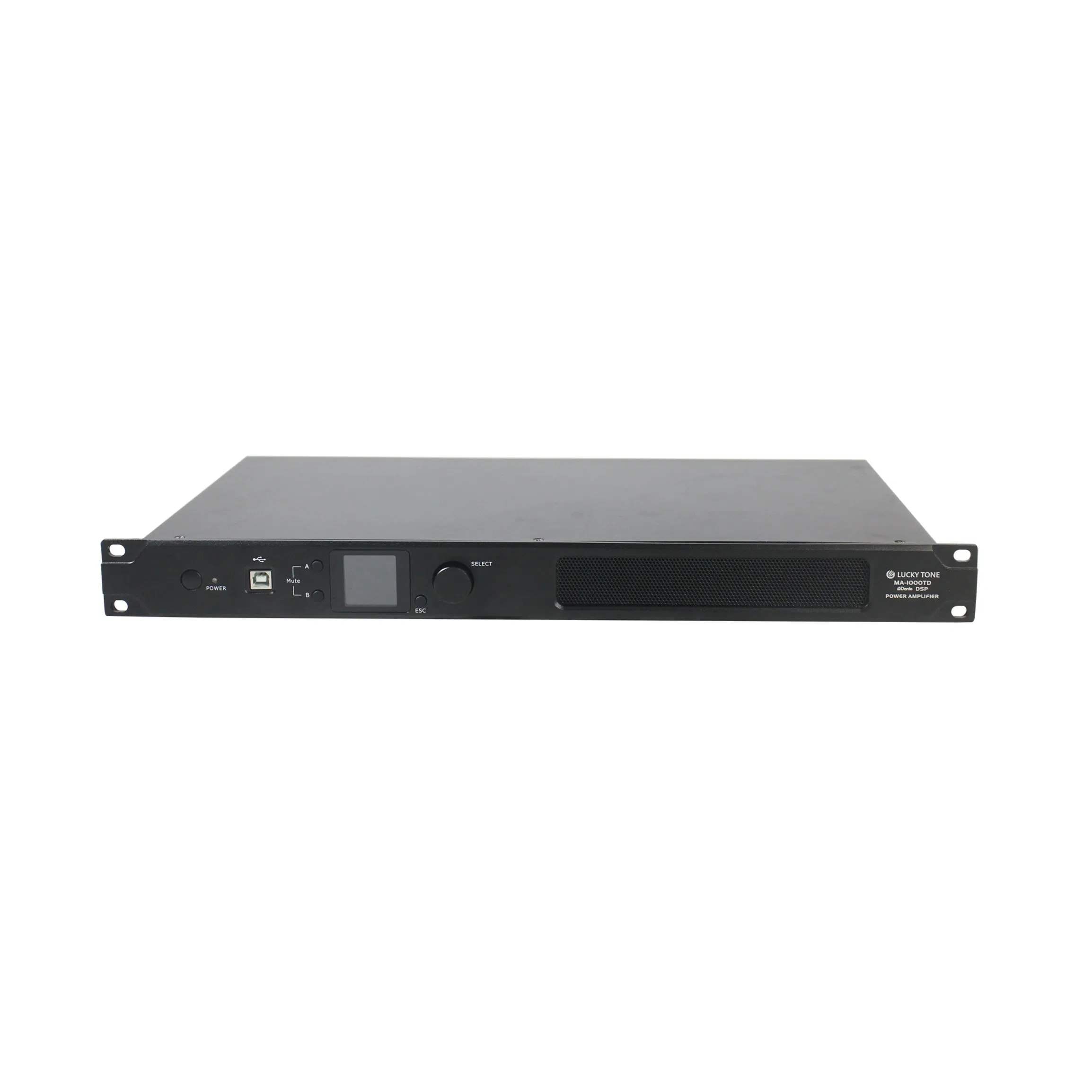

MA-1000TD is a multi-function network DSP digital High-Z and low-Z power amplifier 2*500W@4Ω, 2*300W@8Ω, bridged 1000W@8Ω, low-Z 100V-1000W@10Ω. It can remotely monitor the status of power amplifier, set compression Controller, limiter, noise gate, parametric equalization, matrix routing, delay and other DSP functions in real time. Simple software interface provides customers with simple setup and operation experience, and a variety of connection methods ensure its good configurability and expandability, suitable for various applications, such as performance center, theatre, gallery, hotel, conference center, shopping center, retail store, restaurant, etc

Features

< Flexible Dante Network amplififier with DSP with both 100V line and 8ohm

< Software selectable

< Local analog audio input selection

< Built-in DSP digital processor

< Network TCP/IP control for multiple device management

< Support multiple on line modes: USB, TCP/IP, RS232, RS485

< Real-time remote monitoring of power amplififier working status

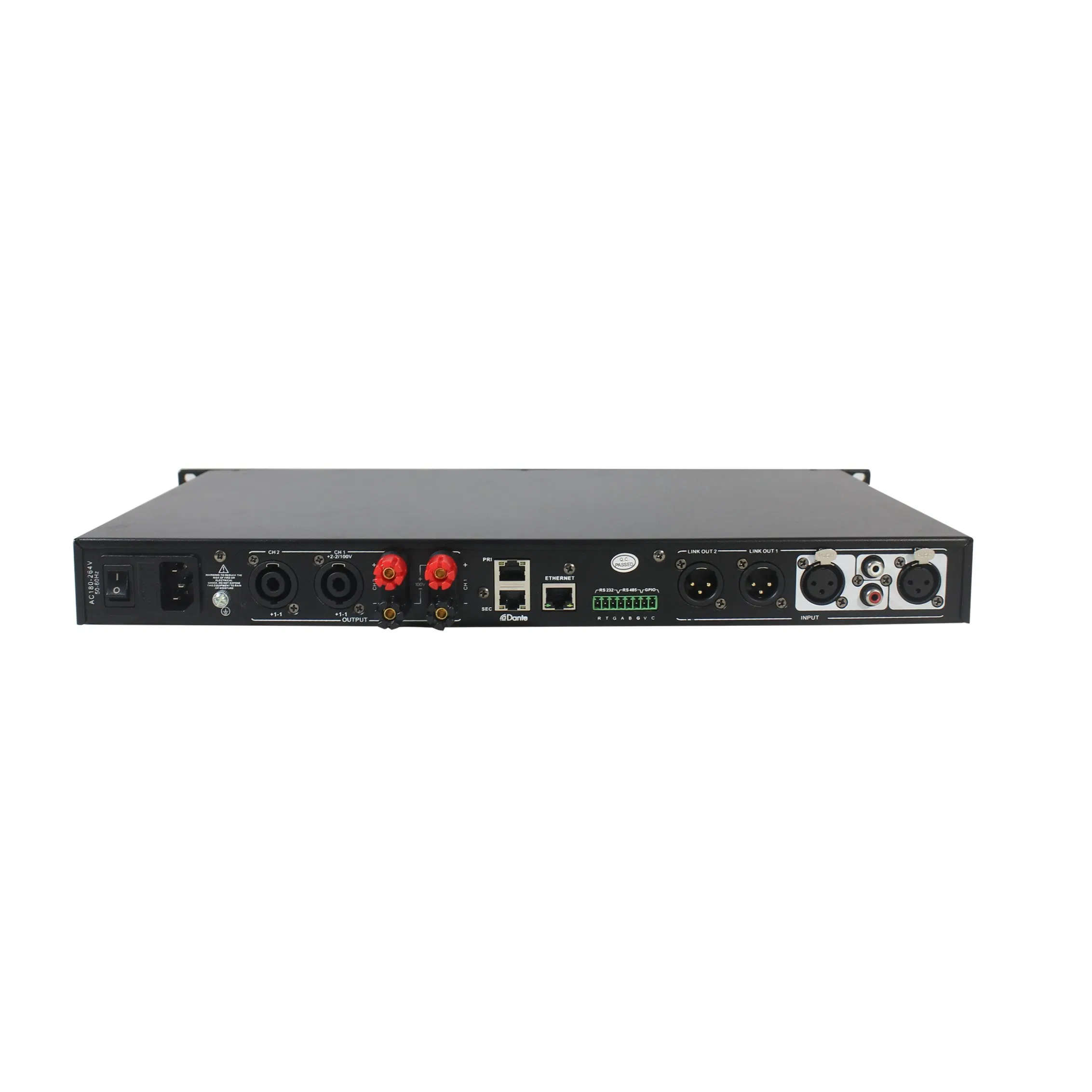

< Support balanced XLR input and unbalanced RCA input

< Support stereo, bridge, mono, free matrix mode, one- button switching

MA-1000T

2X500W mixer amplifier with DSP

MA-1000TD

2X500W mixer amplifier with DSP and Dante

MA-2000T

4X500W mixer amplifier with DSP

MA-2000TD

4X500W mixer amplifier with DSP and Dante

MODEL MA-1000TD

MODEL	MA-1000T/MA-1000TD
Output Power	2500w at 4ohm; or 11000W at 8ohm bridged, 11000W 100V line bridged, 1600W 70V line bridged
Output	100V or 4 - 16ohm, DSP software selectable
Frequency Response	20 - 20,000 Hz, +/- 0.5dB at 1W, 8ohm
THD	Less than 0.1% at 1W to full load
S/N Ratio	6dBu and 0dBu at 94dB
Input EQ	5 Bands
Output EQ	9 Bands
Cooling	Internal 12VDC fan, extensive heat sinking
Display	*240240 res, IPS colored**
Dante interface	2 Channel
Power Requirements	100-240V AC, 50/60 Hz
Dimensions	44.5(H) x 483(W) x 330(D) mm
Built-in Dimensions	1 U rack 19 inch
Finish	Panel: Aluminum plate, black; Case: steel plate, black
