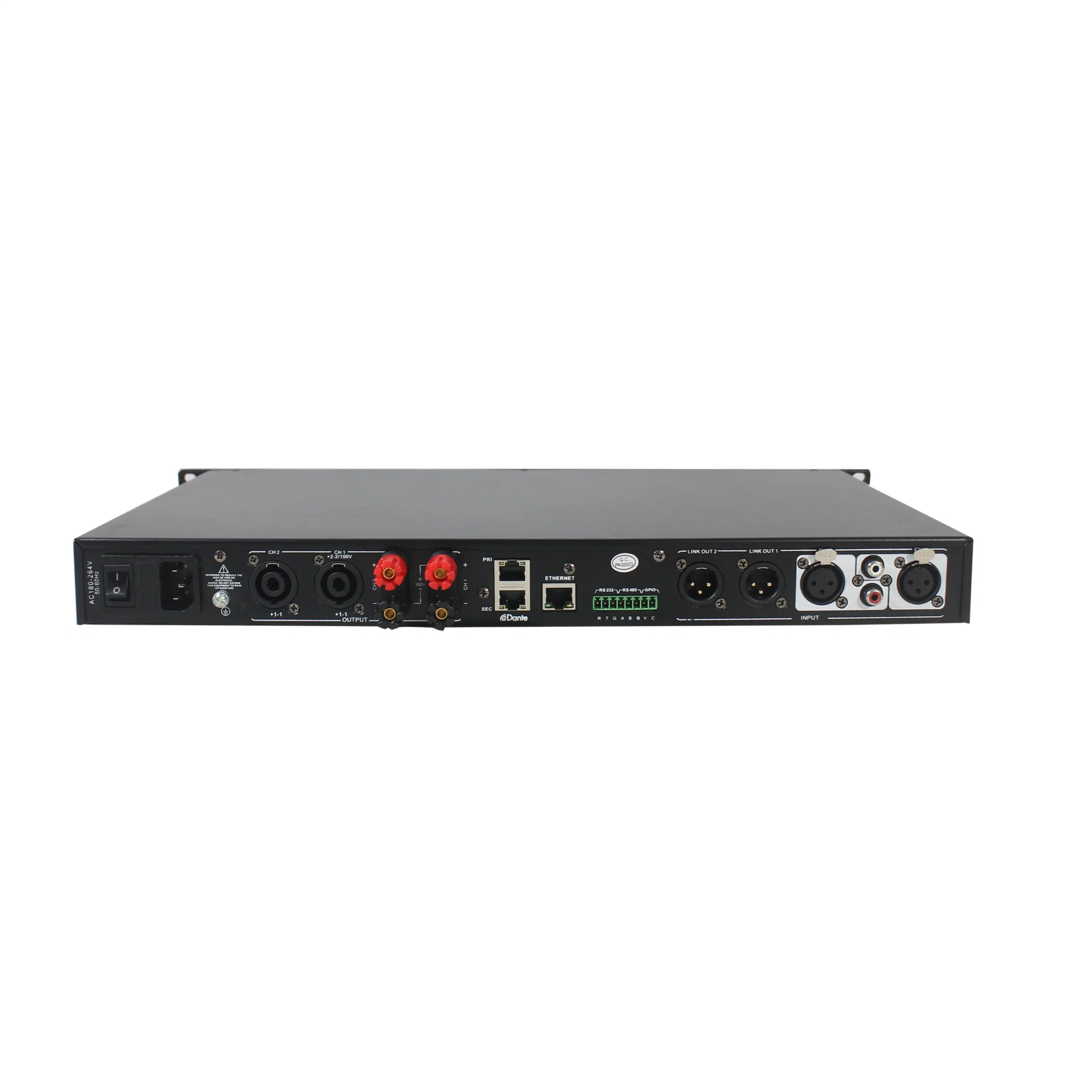

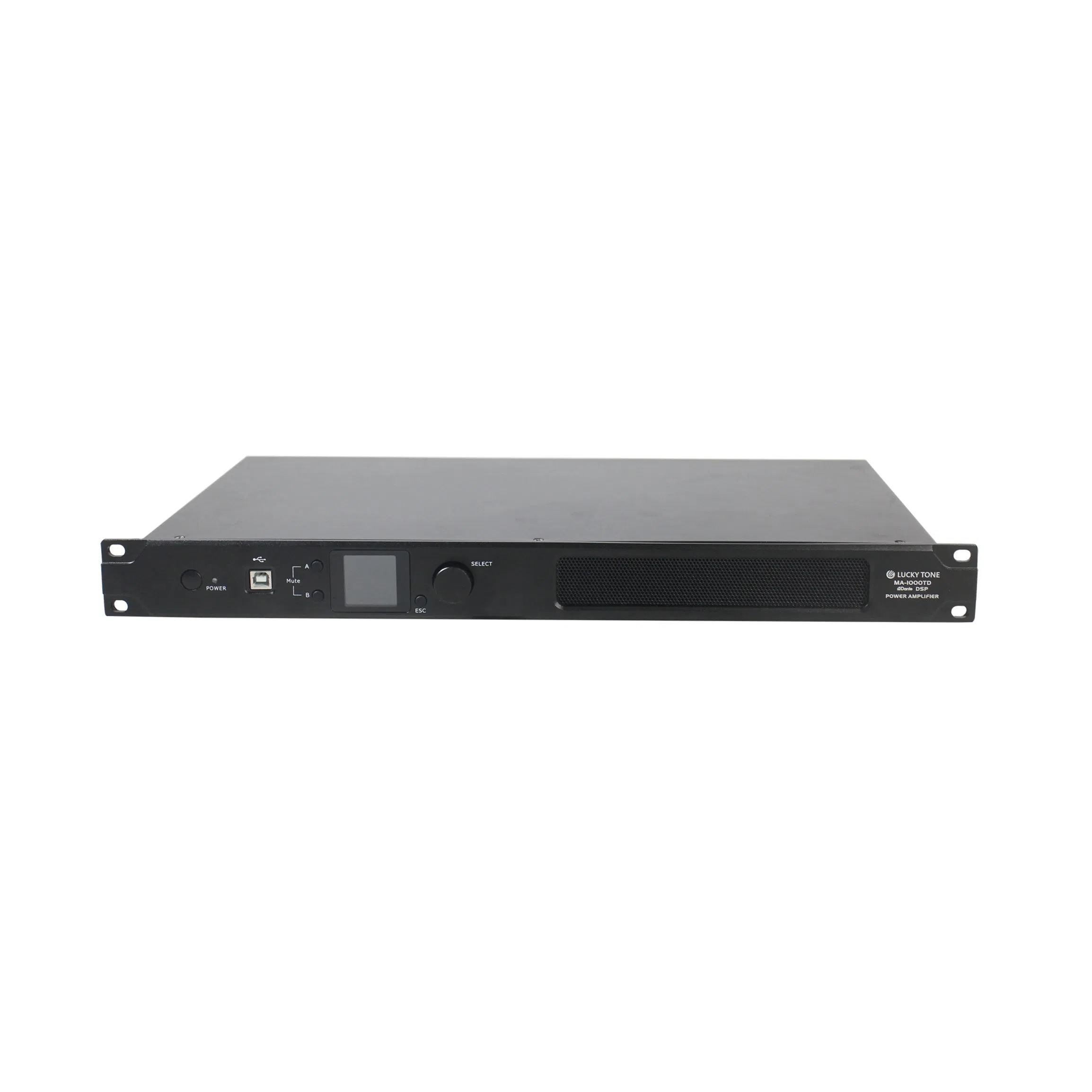

Dante Network and DSP 1000W Professional Class-D Mixer Power Amplifier with Control Software

Product Description

Dante Network and DSP 1000W Professional Class-D Mixer power Amplifier with Control Software

Class D Mixer Amplifier with Audio Sources, Dante and DSP

Description:

MA-1000TD is a multi-function network DSP digital High-Z and low-Z power amplifier 2*500W@4Ω, 2*300W@8Ω, bridged 1000W@8Ω, low-Z 100V-1000W@10Ω. It can remotely monitor the status of power amplifier, set compression Controller, limiter,noise gate, parametric equalization, matrix routing, delay and other DSP functions in real time. Simple software interface provides
customers with simple setup and operation experience, and a variety of connection methods ensure its good configurability and
expandability, suitable for various applications, such as performance center, theatre, gallery, hotel, conference center,
shopping center, retail store, restaurant, etc.

Features:

• Flexible Dante Network amplifier with DSP with both 100V line and 8ohm

• Software selectable

• Local analog audio input selection

• Built-in DSP digital processor

• Network TCP/IP control for multiple device management

• Support multiple on line modes: USB, TCP/IP, RS232, RS485

• Real-time remote monitoring of power amplifier working status

• Support balanced XLR input and unbalanced RCA input

• Support stereo, bridge, mono, free matrix mode, one-button switching

Technical Specifications:

Model:	MA-1000TD
Output Power	2500w at 4ohm; or 11000W at 8ohm bridged,
	11000W 100V line bridged, 1600W 70V line bridged
Output	100V or 4 - 16ohm, DSP software selectable
Frequency Response	20 - 20,000 Hz, +/- 0.5dB at 1W, 8ohm
THD	Less than 0.1% at 1W to full load
S/N Ratio	6dBu and 0dBu at 94dB
Input EQ	5 Bands
Output EQ	9 Bands
Cooling	Internal 12VDC fan, extensive heat sinking
Display	240*240 res, IPS colored
Dante interface	2 Channel
Power Requirements	100-240V AC, 50/60 Hz
Dimensions	44.5(H) x 483(W) x 330(D) mm
Built-in Dimensions	1 U rack 19 inch
Finish	Panel: Aluminum plate, black; Case: steel plate, black
