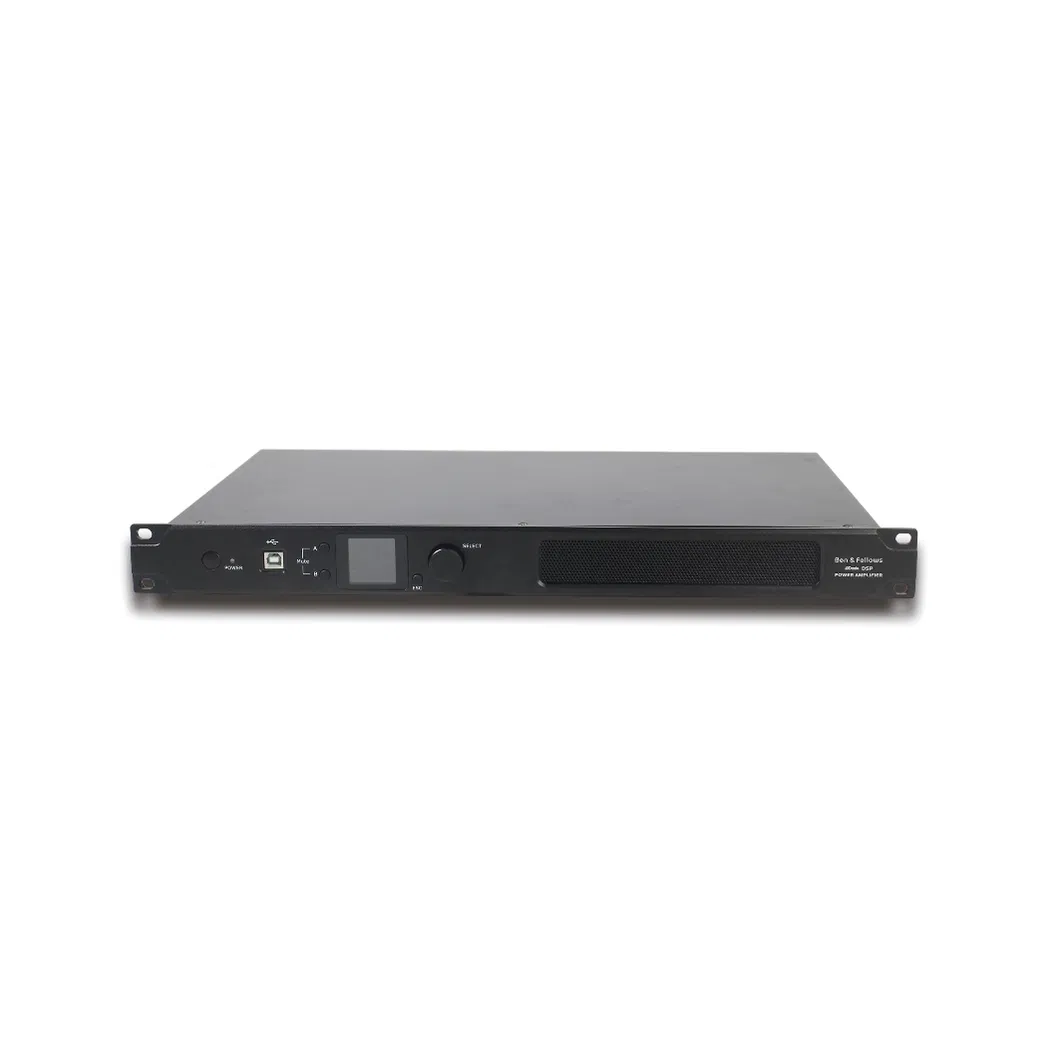

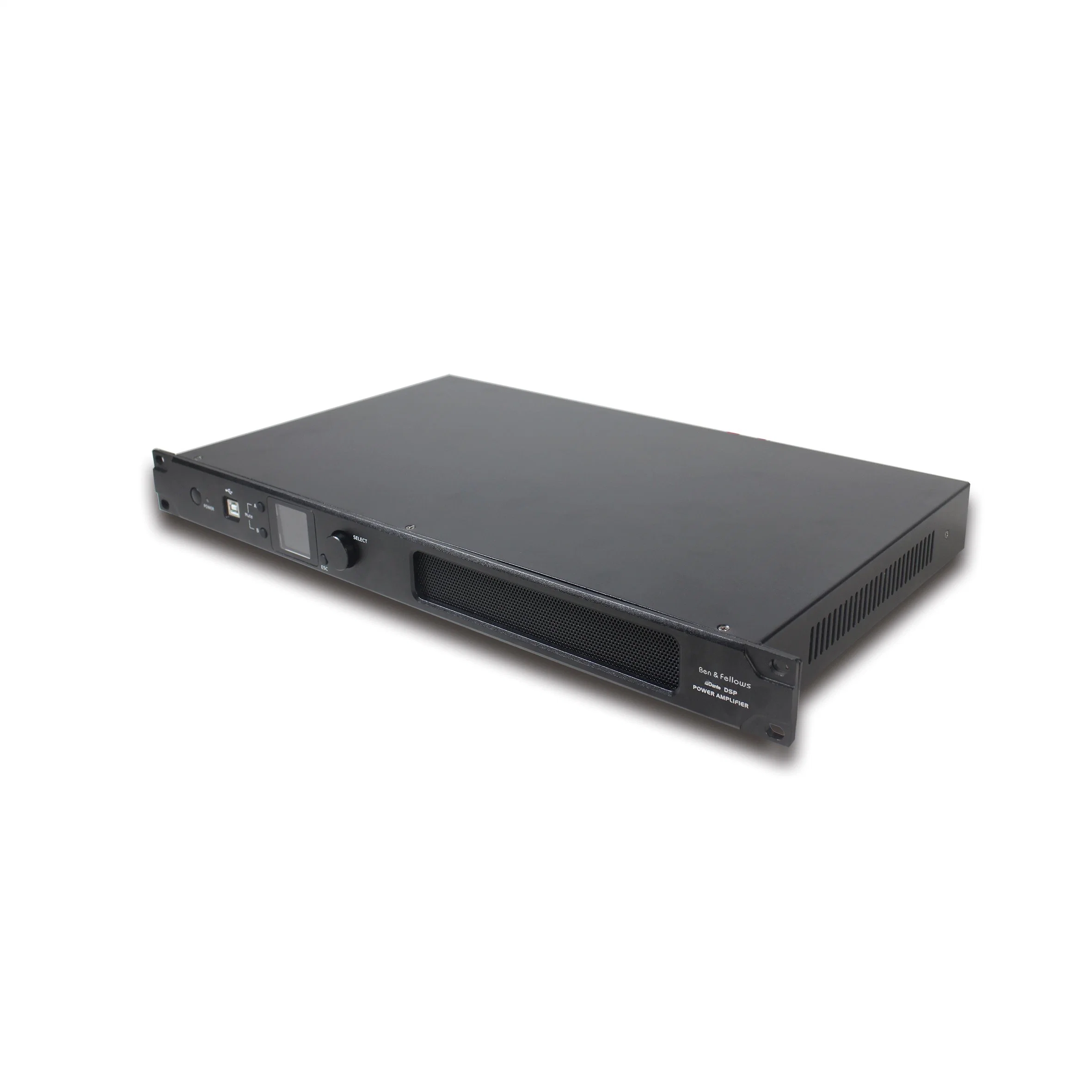

Dante Audio Class D Mixer Amplifier with Audio Sources, Dante and DSP
Overview
513102 is a multi-function network DSP digital High-Z and low-Z power amplifier 2*500W@4Ω, 2*300W@8Ω, bridged 1000W@8Ω, low-Z 100V-1000W@10Ω. It can remotely monitor the status of power amplifier, set compression Controller, limiter, noise gate, parametric equalization, matrix routing, delay and other DSP functions in real time. Simple software interface provides customers with simple setup and operation experience, and a variety of connection methods ensure its good configurability and expandability, suitable for various applications, such as performance center, theatre, gallery, hotel, conference center, shopping center, retail store, restaurant, etc.
Features & Benefits:
Flexible Dante Network amplifier with DSP with both 100V line and 8ohm
Software selectable
Local analog audio input selection
Built-in DSP digital processor
Network TCP/IP control for multiple device management
Support multiple on line modes: USB, TCP/IP, RS232, RS485
Real-time remote monitoring of power amplifier working status

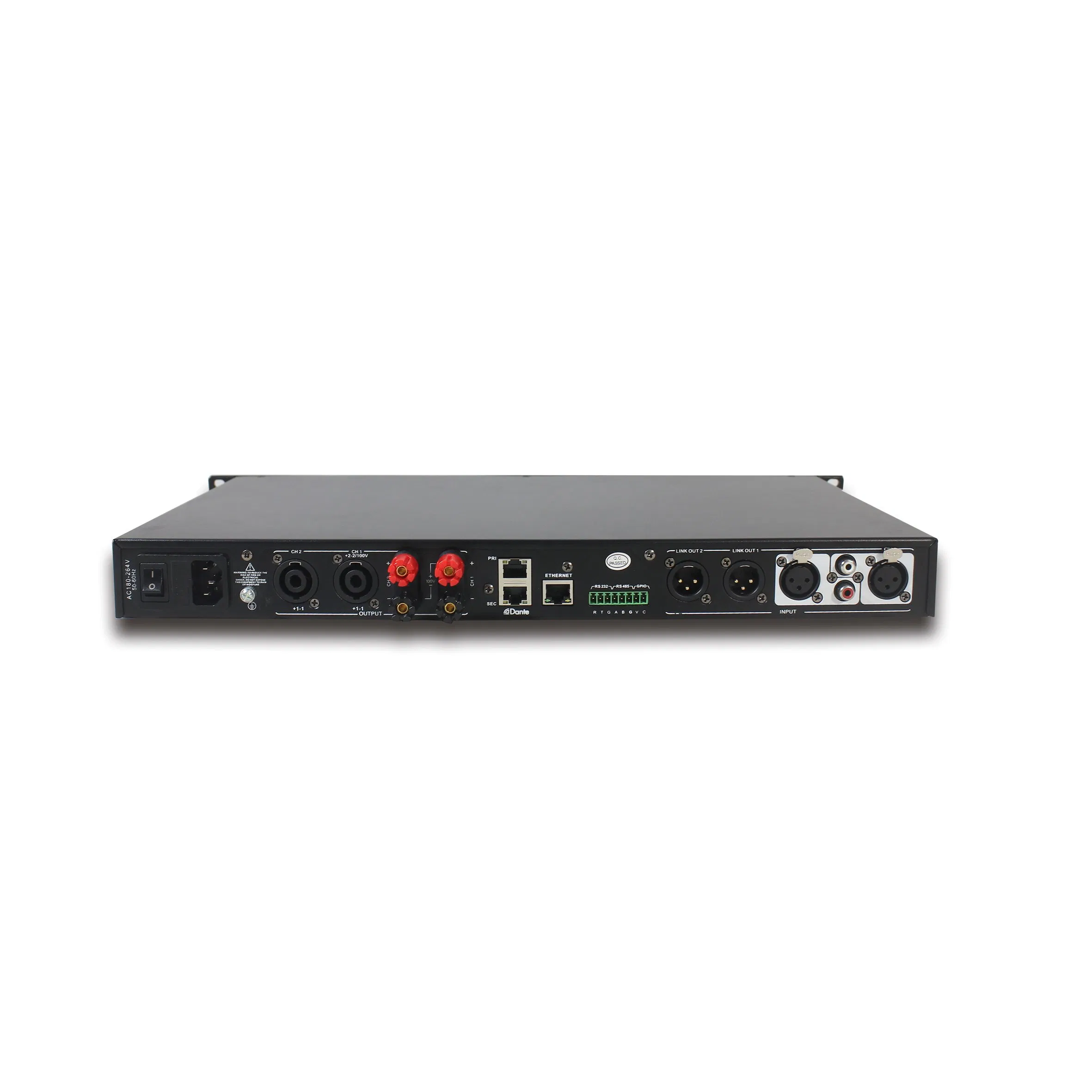

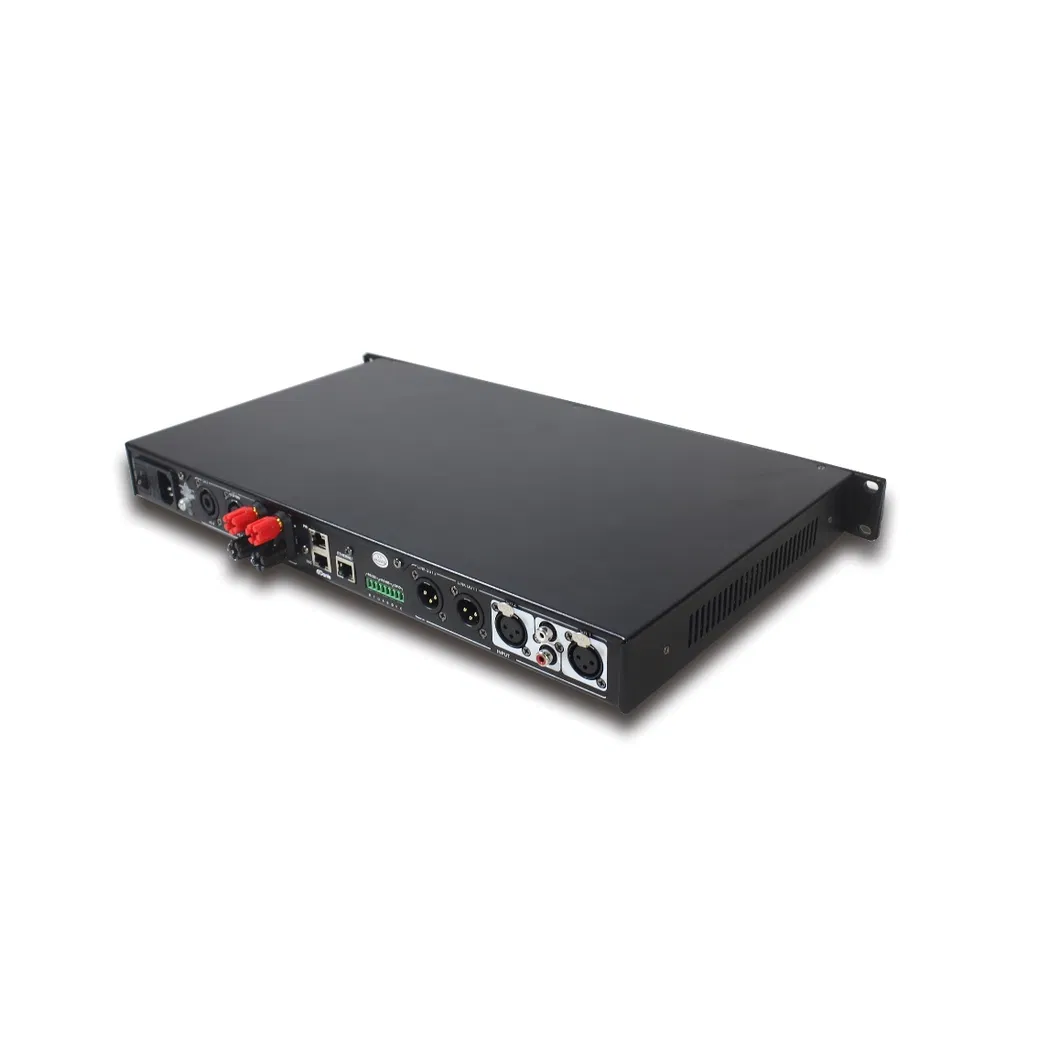

Support balanced XLR input and unbalanced RCA input
Support stereo, bridge, mono, free matrix mode, one-button switching
Detail
Specification
| MODEL | 513102 |
| Output Power | 2*500w at 4ohm; or 1*1000W at 8ohm bridged,1*1000W 100V line bridged, 1*600W 70V line bridged |
| Output | 100V or 4 - 16ohm, DSP software selectable |
| Frequency Response | 20 - 20,000 Hz, +/- 0.5dB at 1W, 8ohm |
| THD | Less than 0.1% at 1W to full load |
| S/N Ratio | 6dBu and 0dBu at 94dB |
| Input EQ | 5 Bands |
| Output EQ | 9 Bands |
| Cooling | Internal 12VDC fan, extensive heat sinking |
| Display | 240*240 res, IPS colored |
| Dante interface | 2 Channel |
| Power Requirements | 100-240V AC, 50/60 Hz |
| Dimensions | 44.5(H) x 483(W) x 330(D) mm |
| Built-in Dimensions | 1 U rack 19 inch |
| Finish | Panel: Aluminum plate, black; Case: steel plate, black |
