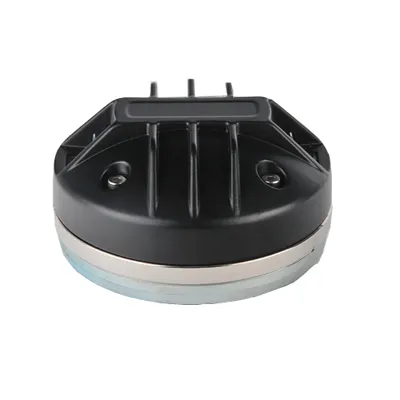

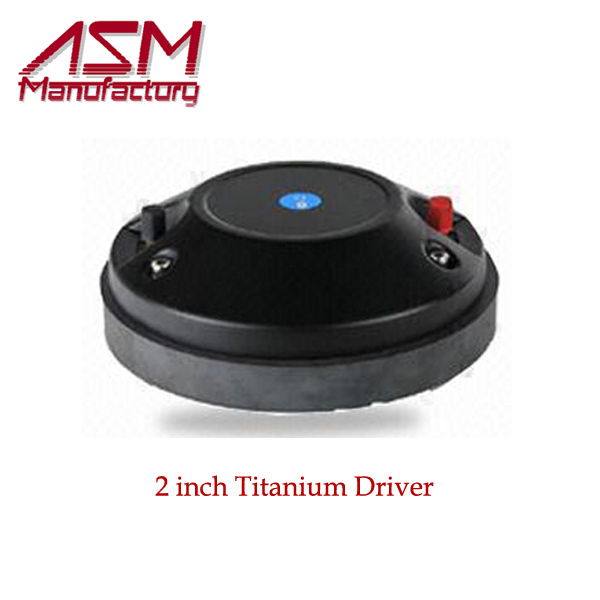

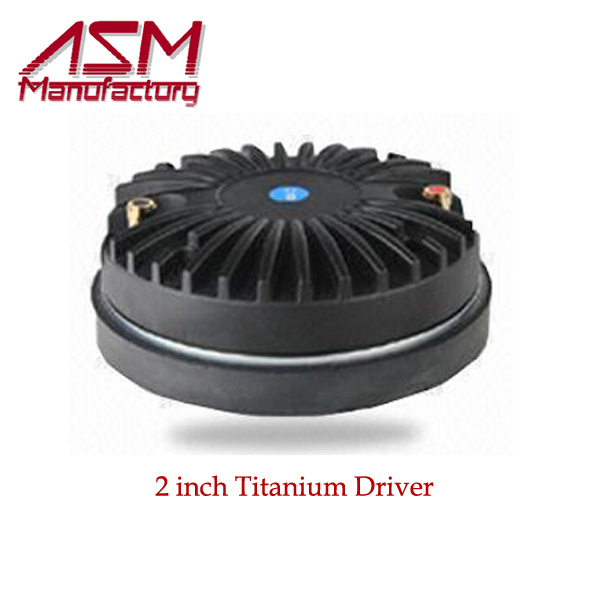

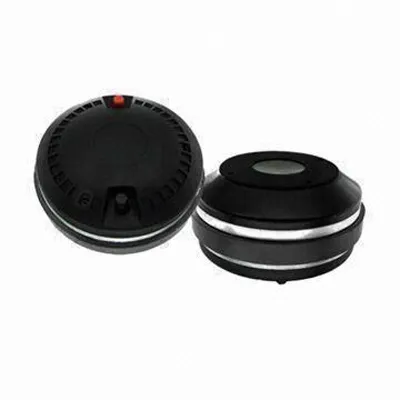

2" High Frequency Compressed Driver Tweeter
2" High Frequency Compressed Driver Tweeter Speciification Throat Diameter: 2 in (50mm) Mounting Type: Bolt-on Nominal Impedance: 8 Ohm Power Capacity: 80Watts RMS (pink noise signal -12db/OCT)Sensitivity(1W/1M): 110dB(mounted on JC H-613 horn) Frequency Range: 500Hz-18KHz Diaphragm Material: T......
Send Inquiry
Product Description
2" High Frequency Compressed Driver Tweeter Speciification
Throat Diameter: 2 in (50mm)
Mounting Type: Bolt-on
Nominal Impedance: 8 Ohm
Power Capacity: 80Watts RMS (pink noise signal -12db/OCT)
Sensitivity(1W/1M): 110dB(mounted on JC H-613 horn)
Frequency Range: 500Hz-18KHz
Diaphragm Material: Titanium
Voice Coil Diameter 2.84 in(72.2mm)
Voice Coil Material Round&Ribbon Aluminium Wire
Flux Density: 1.8T
Magnet: Strontium Ferrite
Packing Details:
Overall Diameter × Depth: 170mm (6.7in) ×72.5mm (2.85in)
Net Weight: 5.36Kg
Pcs/CTN: 4pcs
Carton Size: 38×21×18cm
