Witson Sewer Pipe Inspection with Push Rod Wheel 20m Fiberglass Cable

Product Description

WITSON sewer pipe inspection With Push Rod Wheel 20M Fiberglass Cable

Professional pipe Sewer drain wall Inspection camera with min. 20M fyberglass flexible Cable and DVR funtion, help you view inside pipeline, etc...

Item No.: W3-CMP3188DN (Backup and Playback through USB flash memory)

Application Possibility:
Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection; Maintenance of Plumbing and Wiring behind walls

Witson Sewer Pipe Inspection with Push Rod Wheel 20m Fiberglass Cable

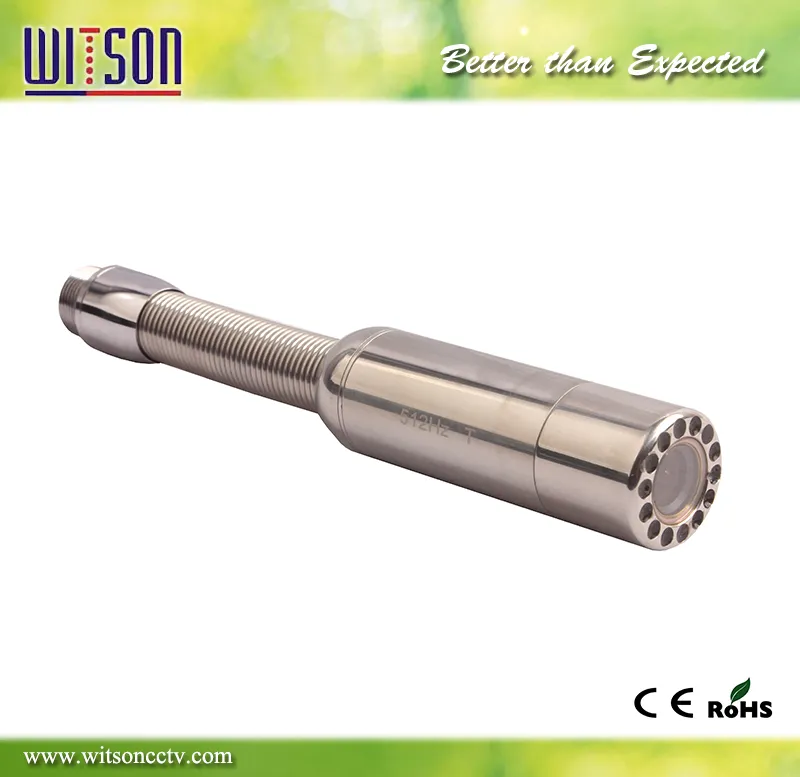

Camera Specifications:
High Resoluton Color Image Sensor, 120° Camera vision angle
Up to 800 TV Lines,
Sapphire glass lens cover, 12 white LED for good view in dark area
Diameter of Camera head: 22mm
Total length including the Spring & Connecter
Optional with 512hz sonde

Witson Sewer Pipe Inspection with Push Rod Wheel 20m Fiberglass Cable

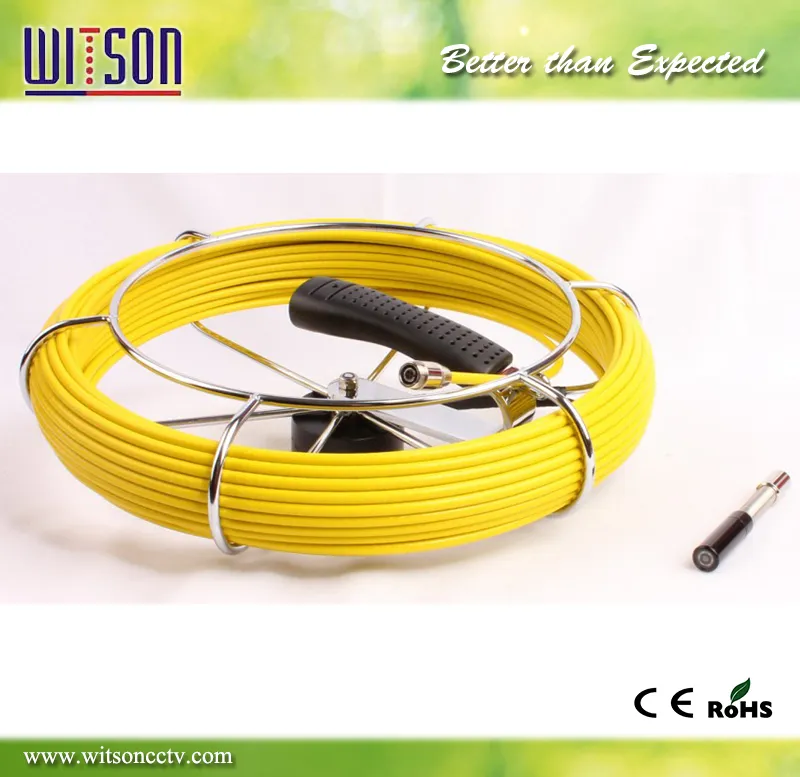

Cable Wheel Specifications
Stainless wheel with special structure connecter to monitor
20/30/40m (65/98/131 ft) fiberglass rod cable
Gold point touch connecter to Camera
5-3/4" rubber covered handle
12-4/5" wheel diameter
Optional Push rod cable wheel support C12--Φ 12mm camera head

Witson Sewer Pipe Inspection with Push Rod Wheel 20m Fiberglass Cable

Monitor Specifications
7" TFT LCD Monitor, 320 x 960 pixel
AC/DC power supply
Charging Li-on Batter built-in, for 3-4 hours working hours
-20º F~+120º F operating temperature
5"(H) x 7-4/5"(W) x 1"(D)
With USB DVR function for video and audio recording, snapshot.

The LCD panel with USB DVR and audio Mic recording

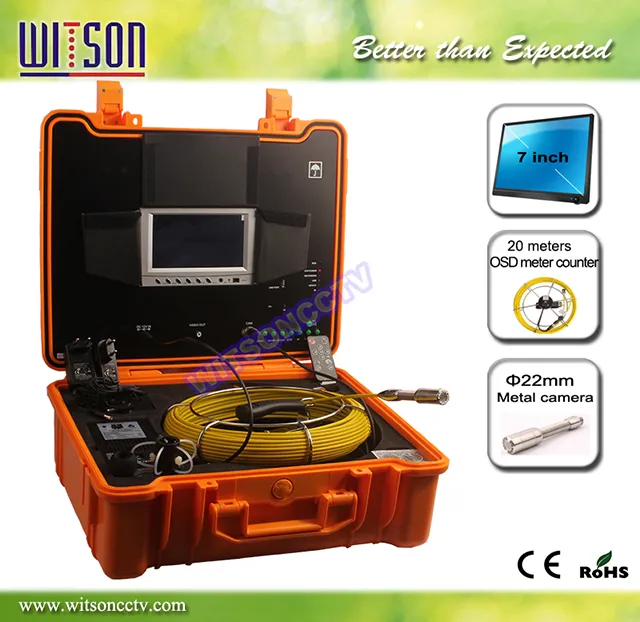

What's included?
Inspection camera with 12 LEDs
USB digital video recorder with remote control
20/30/40m fibreglass cable and stainless steel reel
12V rechargeable battery
18cm (7") TFT LCD screen
Sturdy storage box into which all items mount/fit

Packing Detail:
Each set in a professional ABS case, 1 sets in a master carton
Carton net weight: 13KG
Carton gross weight: 14.00KG
Arton Size: 60x29x53CM
