Vehicle Vibration-Proof 2MP 33X Zoom Night Vision Car Marine Vehicle Mounted IP67 Mobile Surveillance PTZ Camera
Key Features> 1920×1080 Progressive Scan CMOS, Day/Night monitoring> 33X Optical zoom, 5.5~180mm> IR LED Illumination for Night Vision, 150m IR distance> 360°endless rotation > Micro-Step, Accurate Pan/Tilt 0.05°> Ip67 Design> Operation Temperatures Ran......
Send Inquiry
Product Description
Key Features
> 1920×1080 Progressive Scan CMOS, Day/Night monitoring
> 33X Optical zoom, 5.5~180mm> IR LED Illumination for Night Vision, 150m IR distance
> 360°endless rotation > Micro-Step, Accurate Pan/Tilt 0.05°
> Ip67 Design
> Operation Temperatures Ranging from −40° to +60°C
> Optional gyroscope stabilization

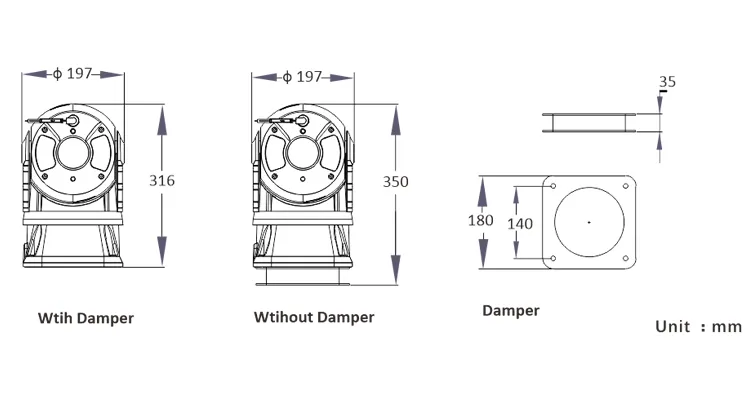

> Optional damper absorber
> Optional dual-sensor version, to be integrated with thermal camera
1. Specifications
Model No. | SOAR970-2133 |
Camera | |
Image Sensor | 1/2.8" Progressive Scan CMOS |
Effective Pixels | 1920(H) x 1080(V), 2 Megapixels; |
Minimum Illumination | Color: [email protected]; W/B: [email protected] (IR on) |
Lens | |
Focal Length | Focal Length 5.5mm~180mm |
Optical Zoom | Optical Zoom 33x, 16x digital zoom |
Aperture Range | F1.5-F4.0 |
Field of View | H: 60.5-2.3°(Wide-Tele) |
V: 35.1-1.3°(Wide-Tele) | |
Working Distance | 100-1500mm(Wide-Tele) |
Zoom Speed | Approx. 3.5 s (optical lens, wide-tele) |
Video | |
Compression | H.265/H.264 / MJPEG |
Streaming | 3 Streams |
BLC | BLC / HLC / WDR(120dB) |
White Balance | Auto,ATW,Indoor,Outdoor,Manual |
Gain Control | Auto / Manual |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Interoperability | ONVIF , PSIA, CGI |
Web Viewer | IE10/Google/Firefox/Safari... |
PTZ | |
Pan Range | 360° endless |
Pan Speed | 0.05°~80° /s |
Tilt Range | -25°~90° |
Tilt Speed | 0.5°~60°/s |
Number of Preset | 255 |
Patrol | 6 patrols, up to 18 presets per patrol |
Pattern | 4 , with the total recording time not less than 10 mins |
Power loss recovery | Support |
Infrared | |
IR distance | Up to 150m |
IR intensity | Automatically adjusted, depending on the zoom ratio |
| General | |
Power | DC 12~24V,40W(Max) |
Working temperature | -40ºC~60ºC |
Humidity | 90% or less |
Protection level | Ip67, TVS 4000V Lightning protection, surge protection |
Wiper | Optional |
Mount option | Vehicle mouting, Ceiling/tripod Mounting |
Weight | 6.5kg |

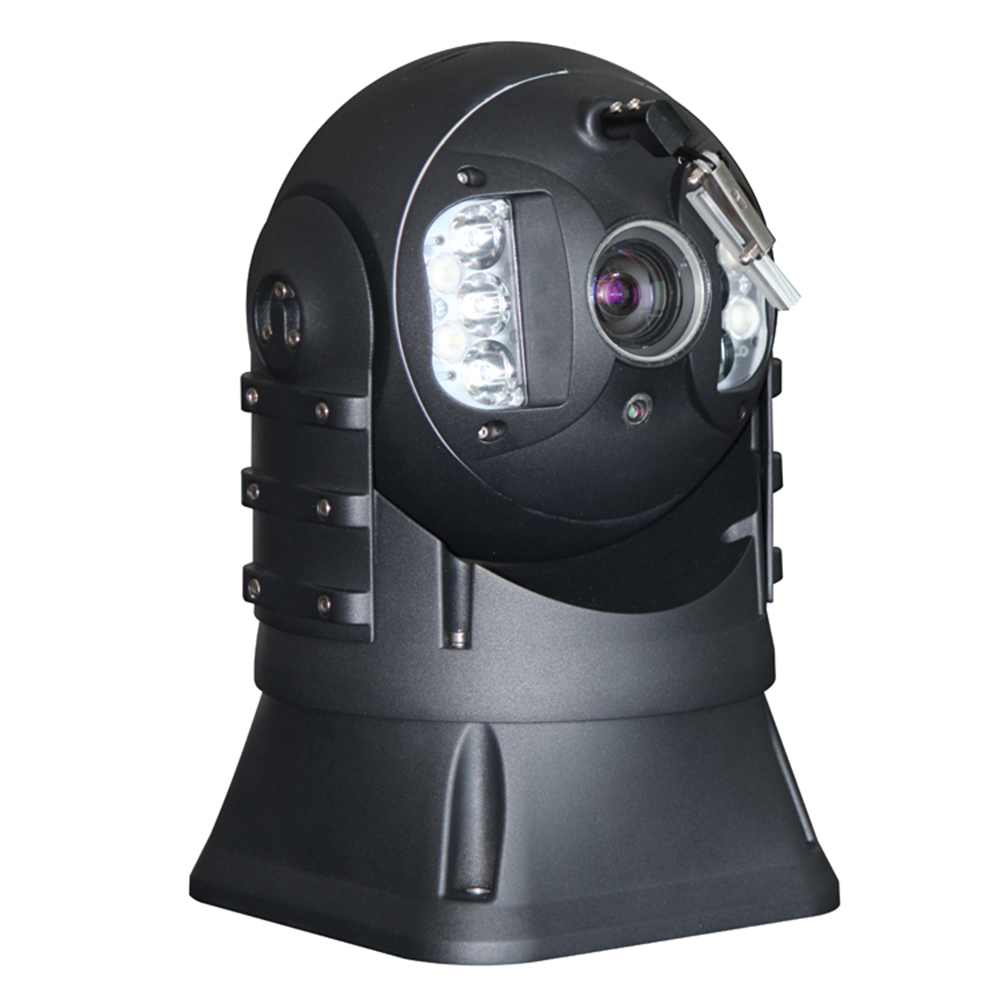

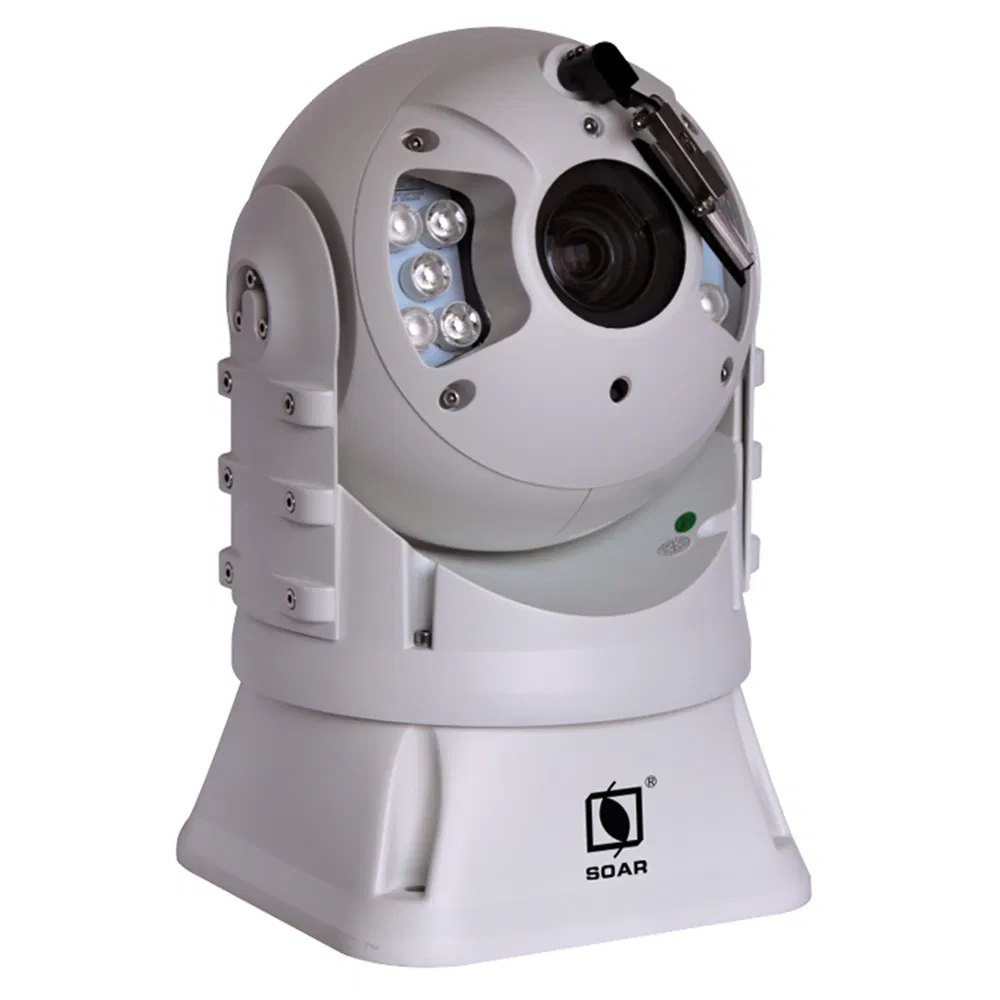

Model No.: SOAR970-2133
SOAR970 series mobile PTZ is designed for mobile surveillance application. With its excellent waterproof ability up to Ip67 and optional gyroscope stabilization, it is also widely applied in marine application. The PTZ can be optionally be ordered with HDIP, Analog, SDI output; Integrated IR LED or laser illumination allows it to see from 150m up to 800m in complete darkness.
We just listed most standard/recommended configuration in this page. As manufacturer, we are willing to design solutions based your application, and budget.
Applications:
> Vehicle surveillance
> Marine surveillance
> Law enforcement surveillance
> Command center cctv
> Mining monitoring
> Boundary security

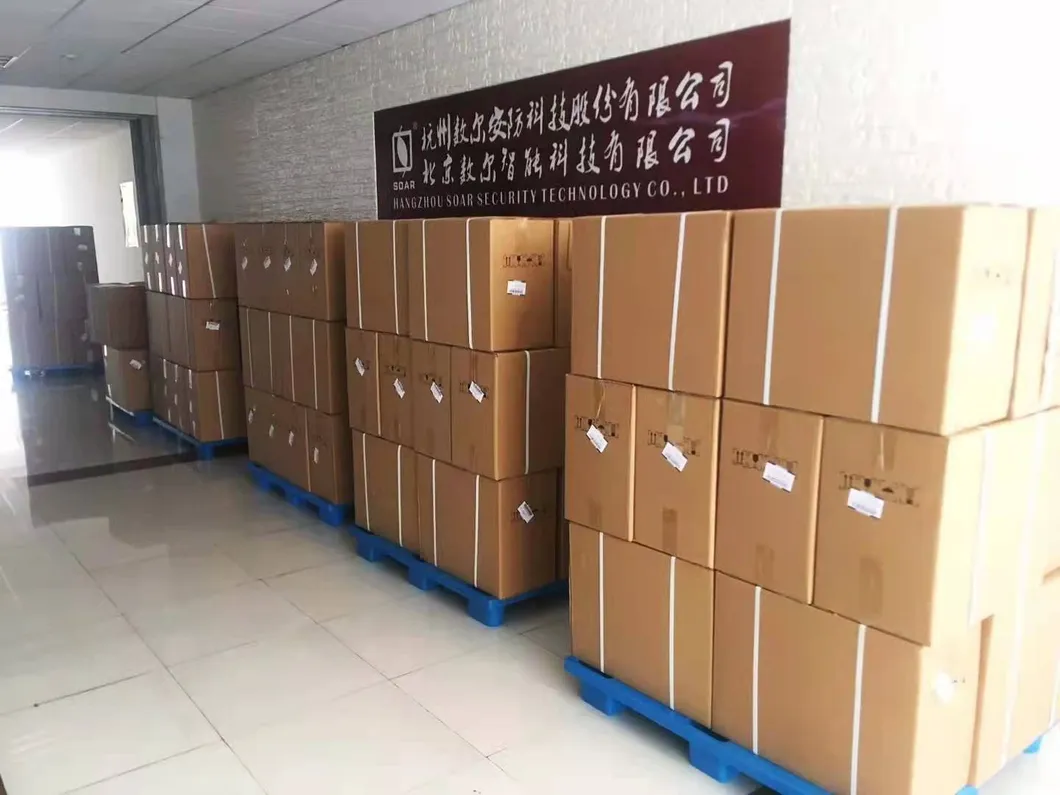

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

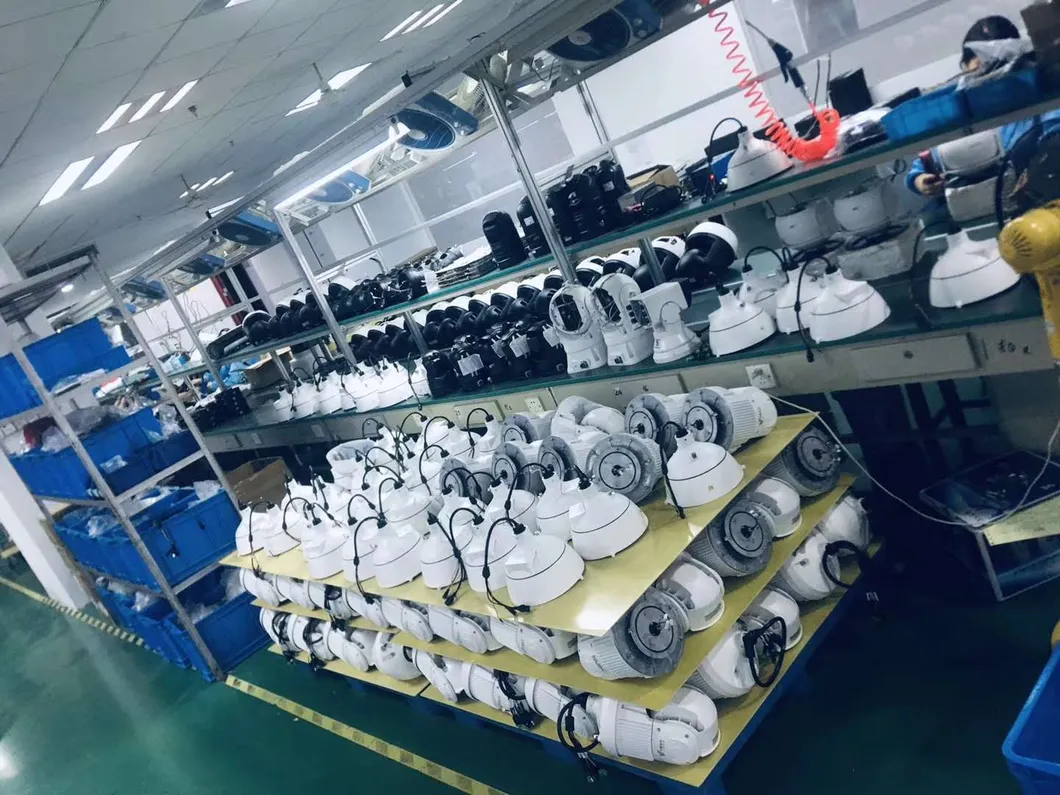

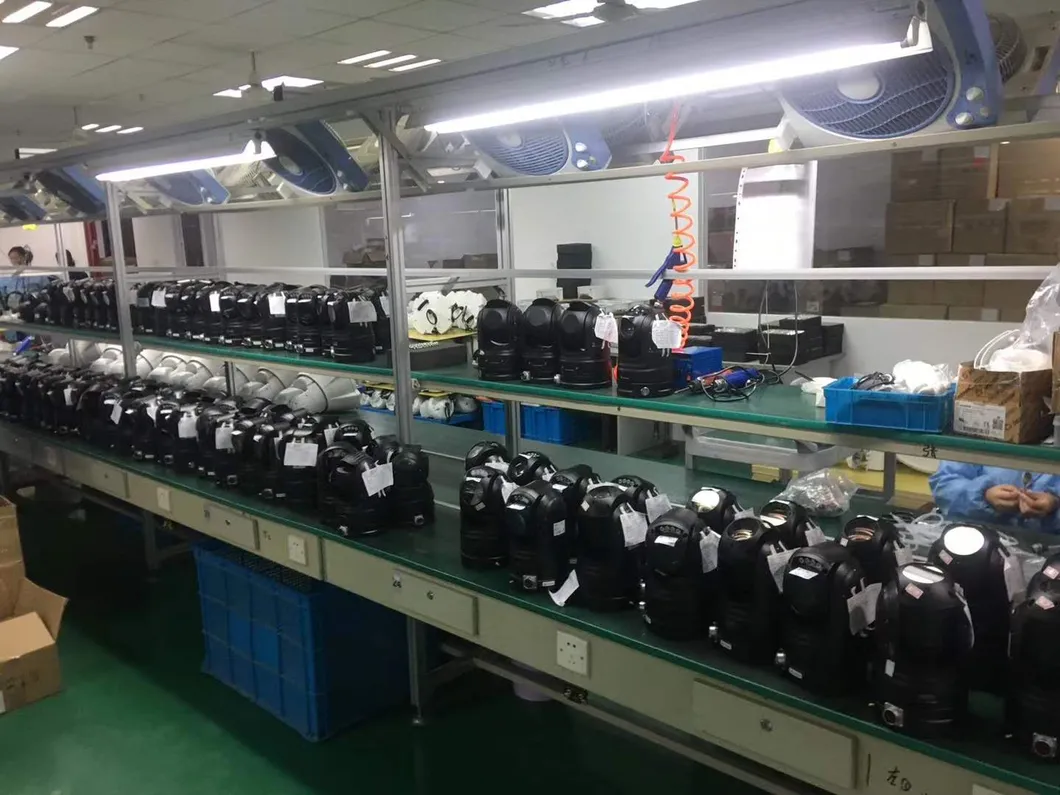

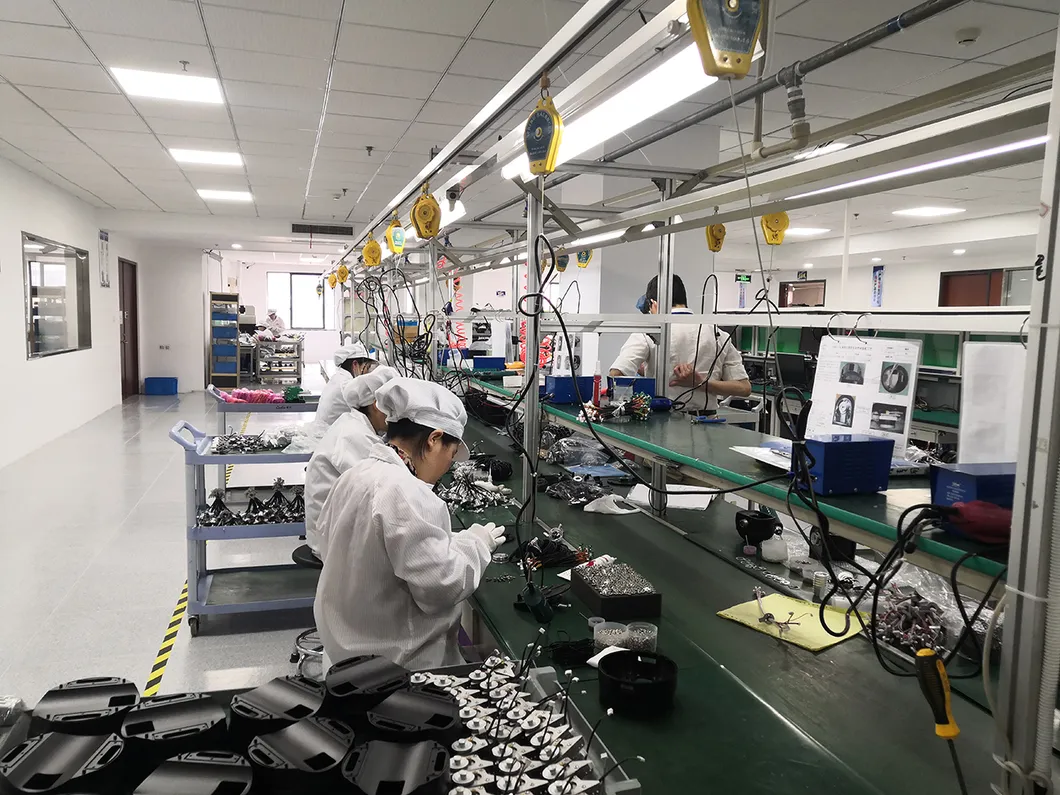

3.Company Profile
Hangzhou Soar Security Technology Co., Ltd is a professional video surveillance products provider, devoted in the front-end surveillance product design , manufacture and sales for more than 15 years, Since the foundation in 2005. We were honored as "national technical innovation enterprise" in 2015, and successfully listed in public Stock in 2016, stock code:839365.
Our R&D team consists of 60+ members of Masters and senior engineers majored in industrial design, FPGA, ISP, video analysis, AI algorithm, etc.
Our main products are various PTZ and Zoom camera module for vertical/niche market, passed ISO9001 quality certification.
Our products are widely sold all over the world. Meanwhile, we also provide OEM/ODM service. We focus on product innovation, to serve customers, create value for customers as the company's purpose.
4.Our Services
Delivery Time: Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.
OEM Service: We could offer OEM and ODM services for our clients.
Quality Warranty: 1 years hardware warranty, whole life technical service for continue cooperating customers.
