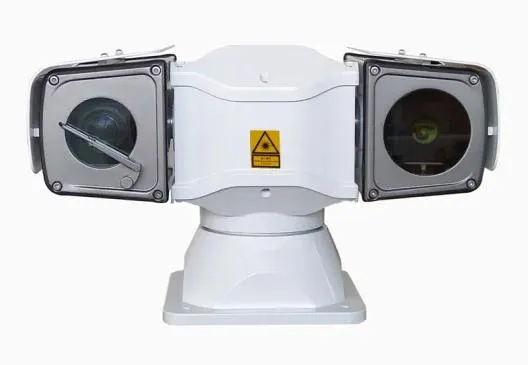

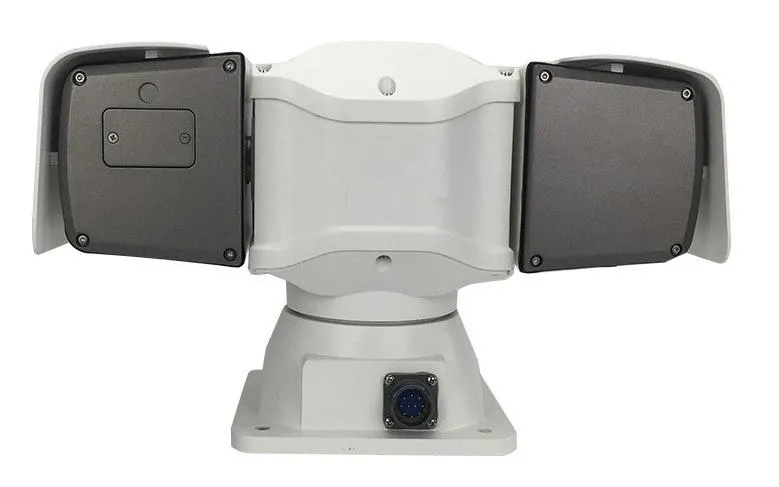

China 20X 30X 44X 55X Zoom 2.0MP Long Distance Visual Night Vision Infrared Power Laser HD Network Vehicle Laser PTZ CCTV Camera

Product Description

Hight quality 20X,30X, 44X, 55X Zoom 2.0MP long distance visual Night Vision Infrared power Laser HD Network Vehicle Laser PTZ CCTV Camera

Product Name: Night Vision Laser HD Network Vehicle PTZ CCTV Camera
Model:20X,30X, 44X, 55X
Features
·The first independent defogging defrosting module, solve the camera and lens fogging

·High-quality heating parts are used in the camera housing, so that the whole housing can work together to form an effective antifogging and defogging
·PTZ adopts the integrated upper and lower structure so that the PTZ and infrared housing will not bump and dislocate.
·PTZ standard with the original regulator module, filter the vehicle transient current instability, so that PTZ remains stable
Night Vision Supplement: PTZ adopts imported array infrared lights,Multi-angle work together, the working life up to 30,000 hours, night vision is 10-1000 meters

20X 30X 44X 55X Zoom 2.0MP Long Distance Visual Night Vision Infrared Power Laser HD Network Vehicle Laser PTZ CCTV Camera

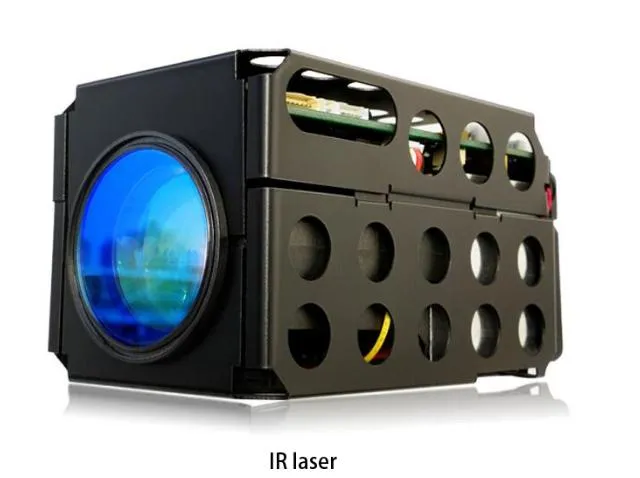

Laser Values and Description
Parameters	Values and Description
Lighting Distance	10-1000m
Wavelength	808±10nm(940nm / 980nm)
Laser Chip Power	5-10±0.5W
Output power	3-6.0±0.5W
Lighting Angles	Minimum Angle 0.8°; Lighting Distance >1000m; Spot Diameter <14m;
	Near Angle 30°; Lighting Distance >80m
Working Voltage	DC12V±10%
Power Consumption	32W
Control Mode	TTL232\485
Communication Mode	UART_TTL, RS-485
Communication Protocol	Pelco_D(Baud Rate 9600bps by default or 4800bps / 2400bps)
Storage Temperature	-40ºC~+80ºC
Operating Temperature	-20ºC~+50ºC

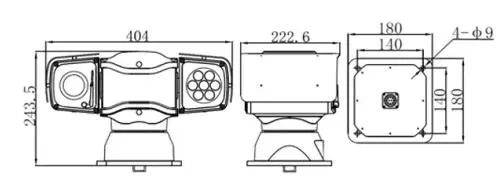

Dimension	65mmx66mmx128mm
Weight	About 400g

HD IP: PTZ support mainstream megapixel digital high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser
SDI HD:PTZ support megapixel HD movement, HD-SDI digital interface output, megapixel digital high-definition image lossless, real-time transmission, no delay, a variety of resolution adjustable (1080p / 60 1080p / 30 1080p / 25 720p / 60 720p / 30 720p / 25)
Coaxial HD:PTZ support common AHD / CVI / TVI coaxial HD movement, and support coaxial HD DVR output, the image without any coding compression, full real-time high-definition picture coaxial transmission

Application: police mobile law enforcement / fire emergency command / emergency command system / road mobile patrol / urban management law enforcement / special vehicle mobile inspection

Product Technical Data:

PTZ Function
Pan preset speed	100°/s
Tilt preset speed	60-80°/s
Pan control speed	0°~60°/S
Tilt control speed	0°~40°/S
Pan range	360°endless rotation
Tilt range	-90° ~ +90°
Preset positions,Tracking	256 positions 6-8 tracking
Control Way	RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional
Relative Humidity	Less than 90%
IP Grade	IP66
Working Temperature	-35° ~ +55°
Impact resistance requirements	≥4G
Wiper	Support
Installation	Variety of installation according to the environment

Video Compression	H.264/H.265
Audio Compression	G.722.1,G.711-alaw,G.711-ulaw,MP2L2,G.726
Compression output rate	32Kbps-16Mbps
Support Protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP optional),GB28181
Interface Protocol	ONVIF/PSIA/CGI/ISAPI
Communication Protocol	PelcoD-P Protocol
Storage Function	Support MicroSD storage
Intelligent Arlarm	Motion detection, mask alarm, full memory, memory mistake
While previewing video	Most 10 Channels
Dual-Stream	960P+D1
User Rights	At most 32 users,with three grades: Administrator, Operator, and ordinary users can only view
Safe Mode	Authorized user name and password, and MAC address binding; HTTPS encryption; IEEE 802.1x network access control, IP address filtering
ROI Code	Support 24pcs,Grade can be adjusted

Camera Module Data:

Optional Optical Zoom:20x,30x,44x,55x 2.0 Mega pixel 1/2.8" Progressive Scan CMOS ICR day&night hd ip camera module
camera	Image sensor	1/2.8" Progressive Scan CMOS
	Scanning system	Progressive Scan
	Signal system	PAL/NTSC
	S/N Ratio	>52dB
	Video output	Network coding output
	Resolution	50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080) 50HZ:25fps(1280x720) 60HZ:30fps(1280x720)
Lens	Focal length	4.7-94mm,20 zoom optical
	Aperture	F1.6-F3.5
	Pan viewing angle	61.4-2.9°(wide angle-telescope)
	Close-up	10-1500mm(angle-telescope)
	Zoom speed	About 2.7 second(optical,wide angle-telescope)
	Day&night	ICR filter
Compression standard	Video compression standard	H.265/H.264
	Compression output coding rate	32kbps-12Mbps
	Audio compression standard	G.722.1,G.711-a law,G.711-u law,MP2L2,G.726,AAC,PCM
Network function	Support protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP,optional)
Function	Focus mode	automatic/manul/one focus
	Exposure mode	Automatic explosure/aperture first/shutter first/manual first
	Day&night	automatic/color/white black
	Electronic shutter	1/1 second ~ 1/30,000 second
	Wide dynamic	4 grade adjustable
	Explosure compensation	10 grade adjustable
	External interface	36pin FFC (including network port,RS485,RS232,CVBS,SDHC,Alarm In/Out,Line In/Out,power)
General specification	Working temperature and humidity	(-10° ~ 60°),less than 90%RH
	Power Supply	DC12V±10%
	Power Consumption	Static 2.5W,dynamic 4.5W

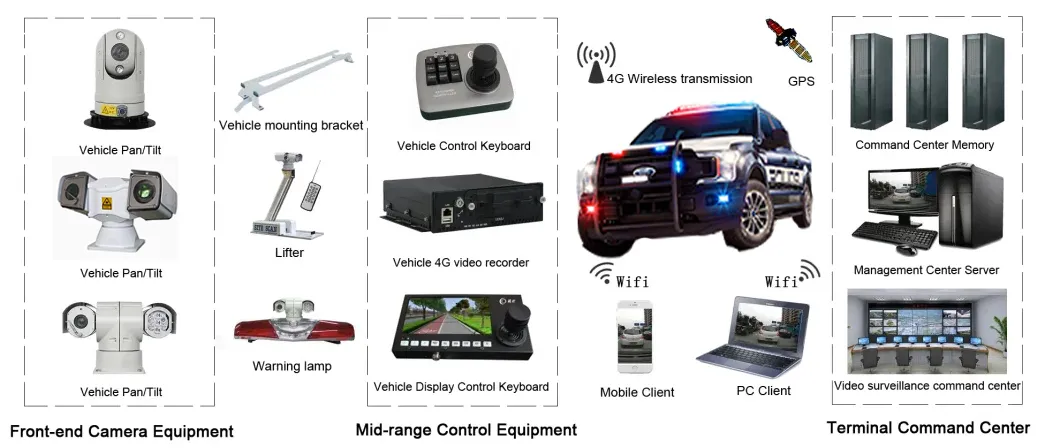

Topology Digram solutions of vehicle wireless video system 20X 30X 44X 55X Zoom 2.0MP Long Distance Visual Night Vision Infrared Power Laser HD Network Vehicle Laser PTZ CCTV Camera
