China Elp 1280*720p Webcam CCTV USB Camera Module Mjpeg 30fps Ov9712 USB Camera with 2.8-12mm Varifocal Lens

Product Description

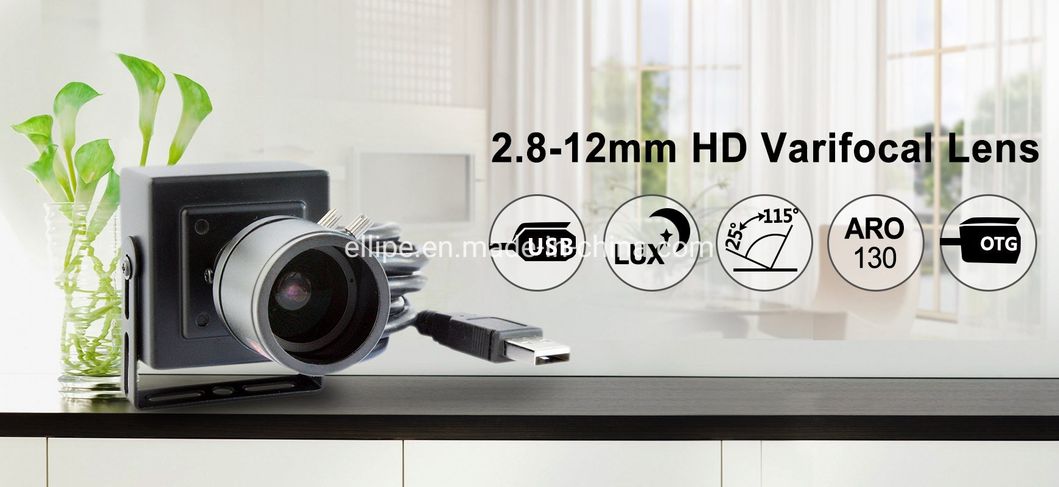

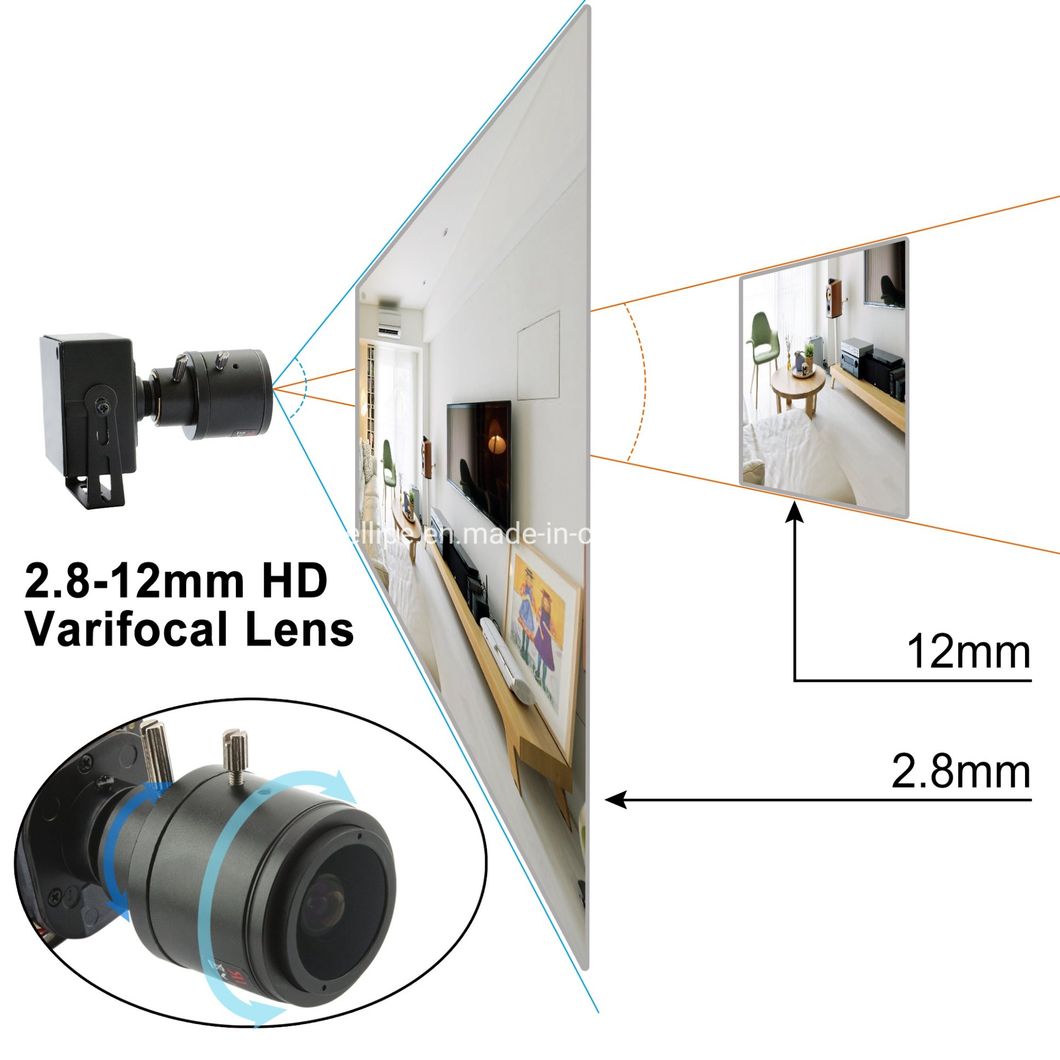

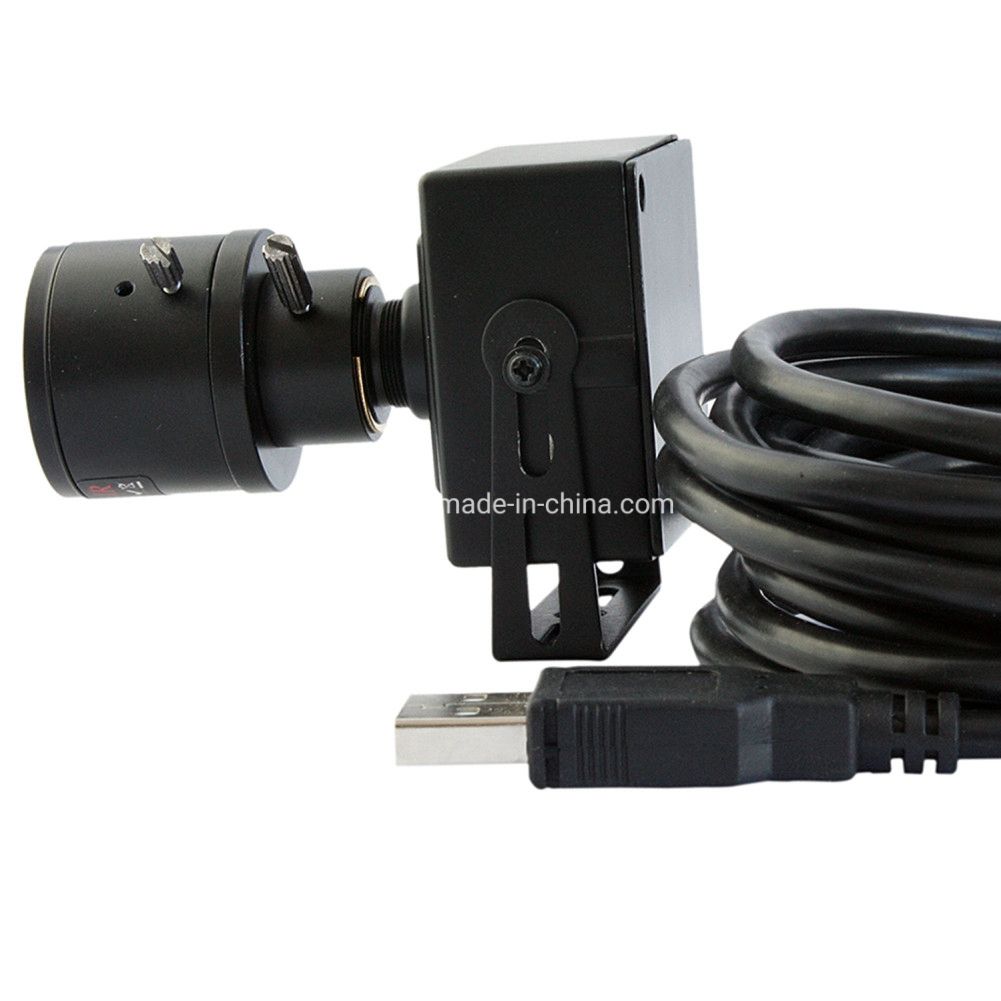

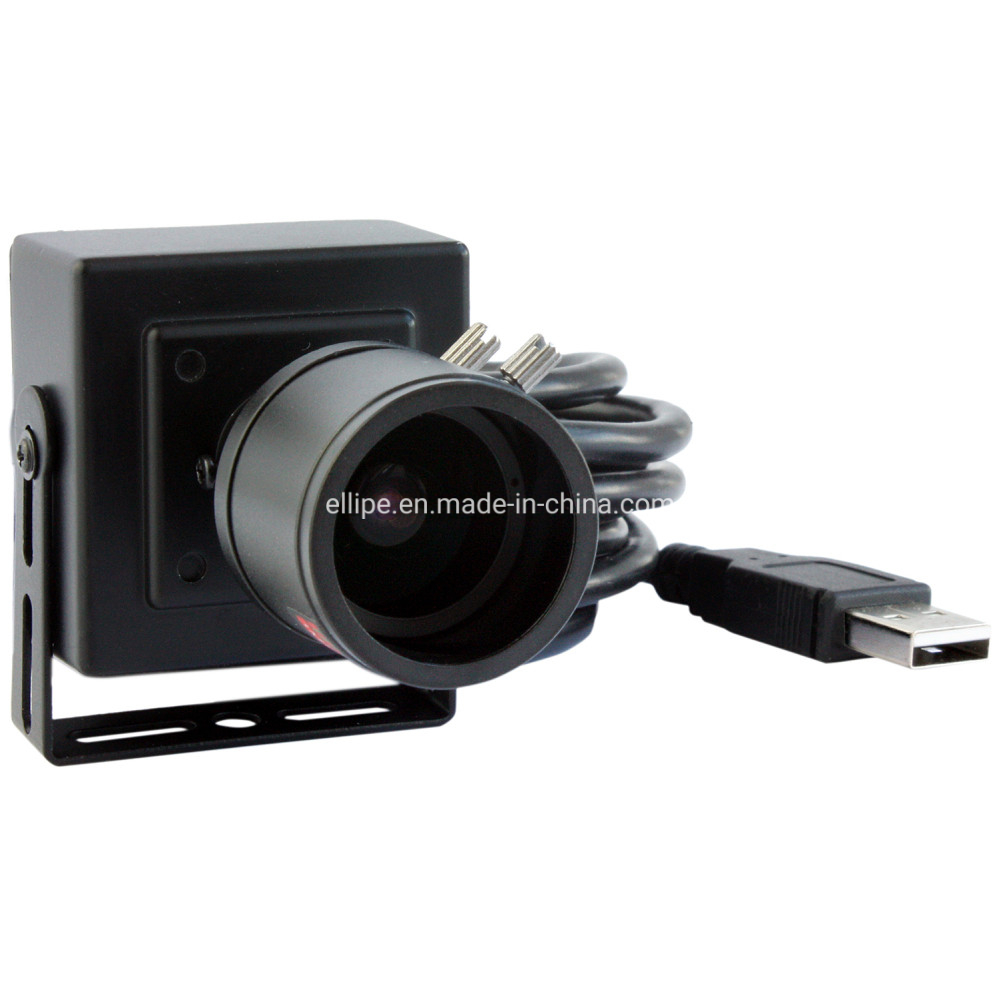

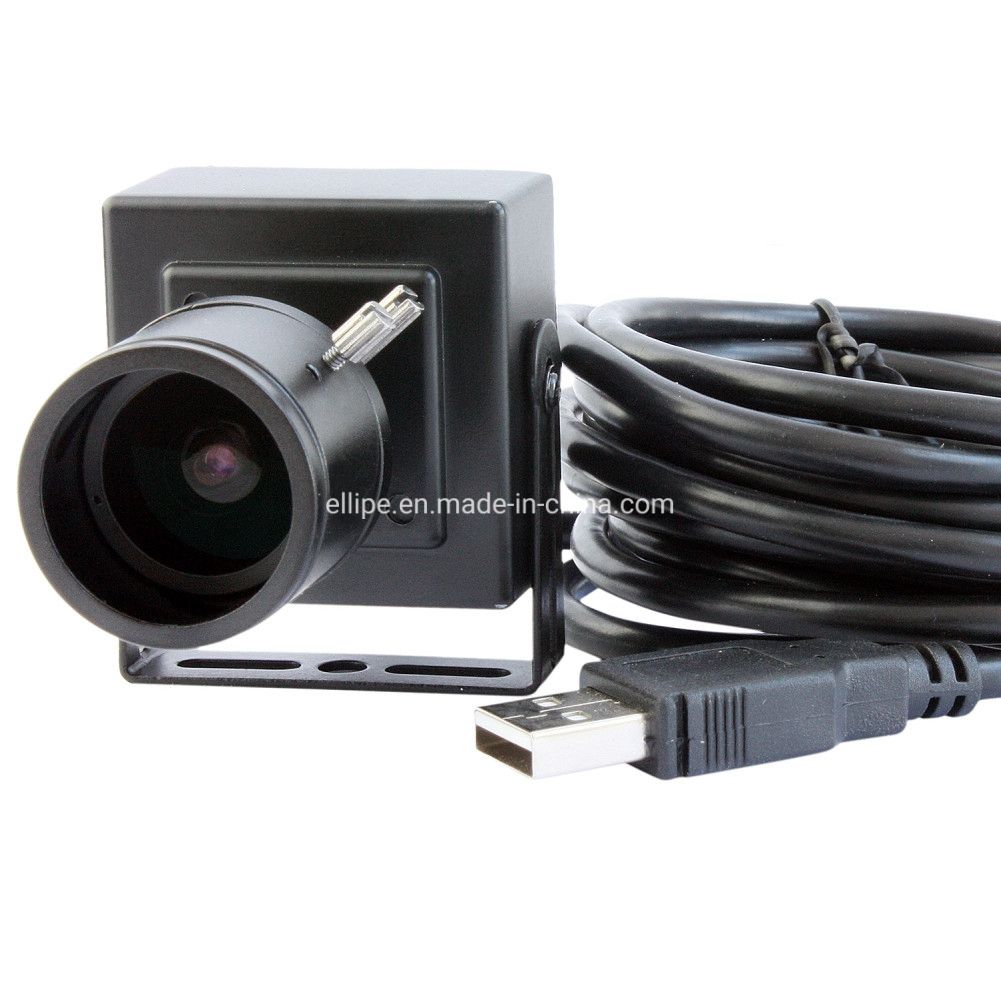

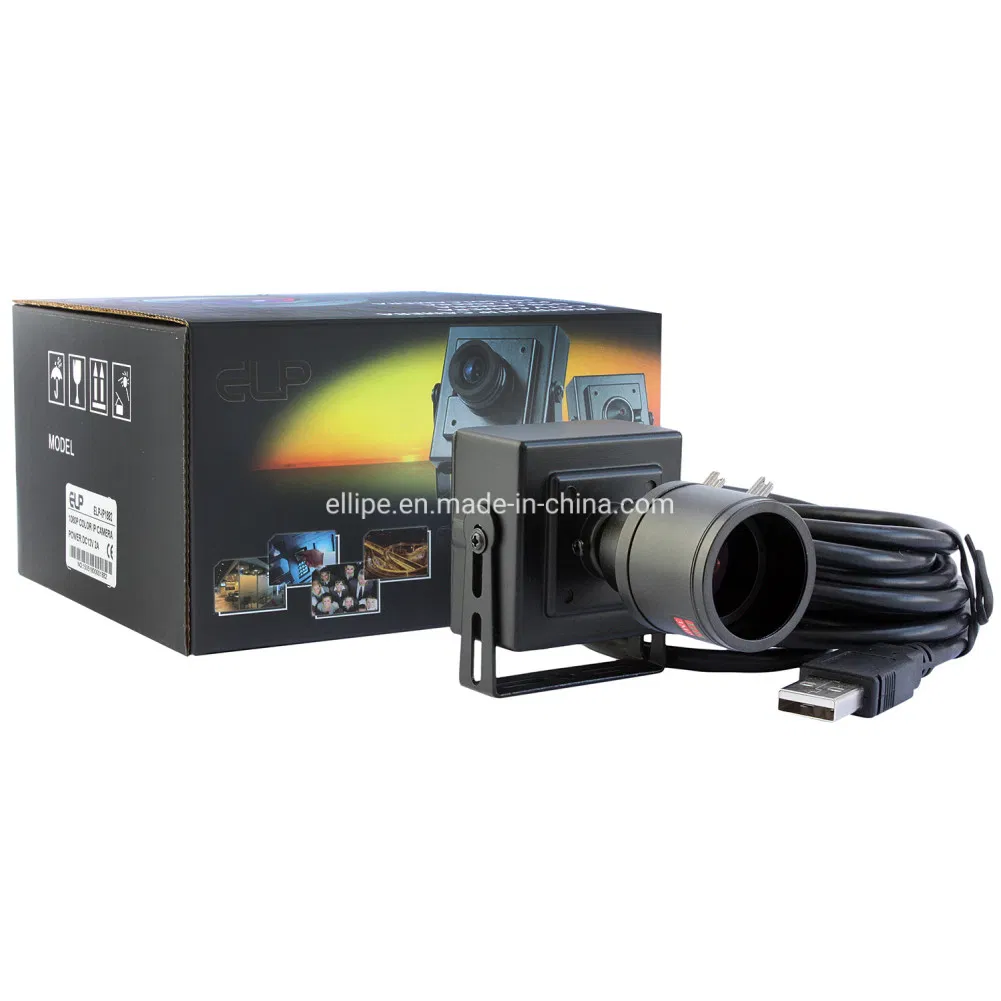

ELP 1280*720p Webcam CCTV USB Camera Module MJPEG 30fps OV9712 USB Camera with 2.8-12mm varifocal Lens

Main Features

*720P resolution 1280x720P
*USB interface Camera Module for Monochrome Stereo
*Android&Linux system support
*YUY and MJPEG compression format optional
*CMOS 720P sensor for high quality image and low power consumption
*High speed USB 2.0 interface for high resolution PC camera interface
*high pixel technology for sharp image and accurate color reproduction
*low light performance - ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate- deliver 30 fps in 1280X720 resolution
*High quality lens, true and undistorted color image
*Low power consumption - ideal for portable equipment

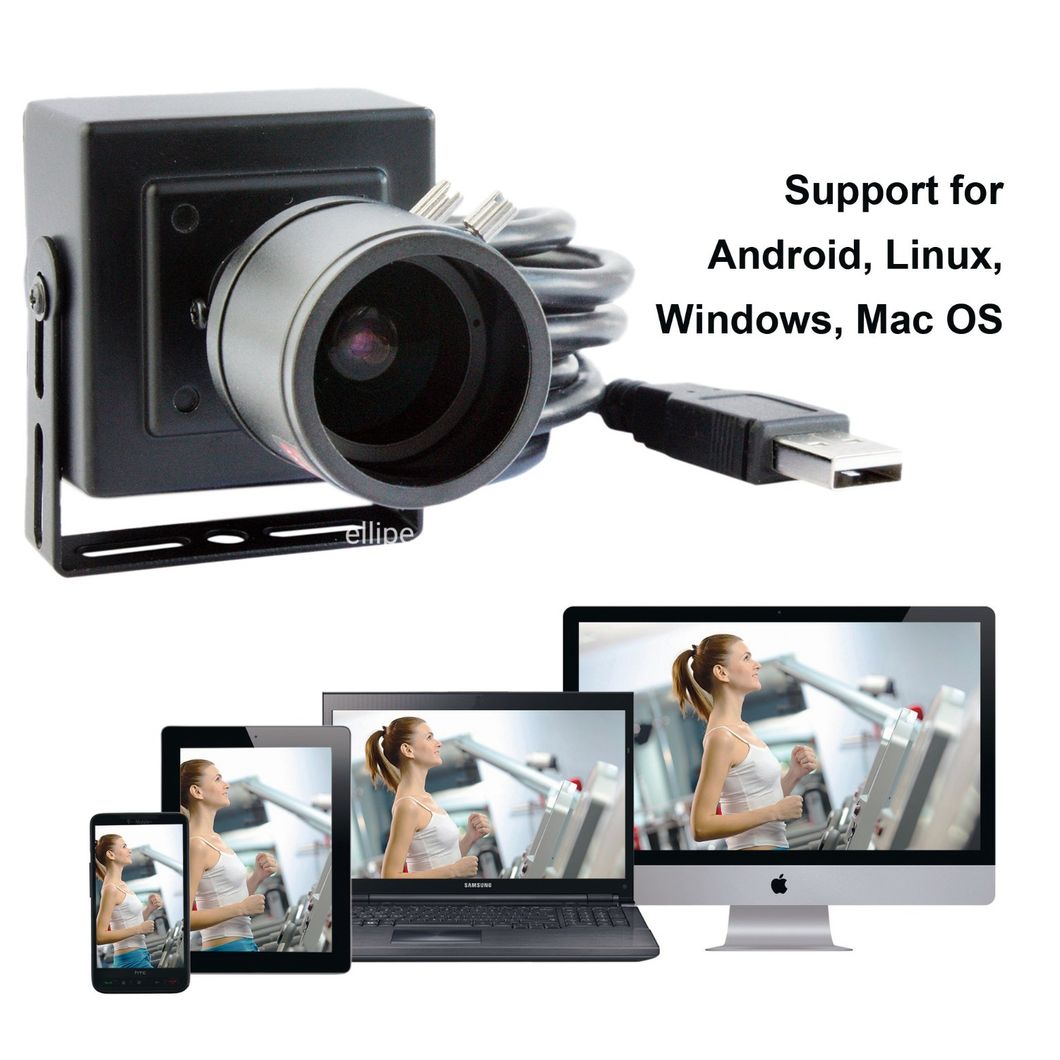

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC

Specification

Optional models	ELP-USB100W03M-BFV
Sensor	OV9712
Lens size	100W, 1.0megapixel, 1280X720
Max. Resolution	640X480 VGA
Picture format	YUY2
Picture format	MJPEG
USB Protocal	USB2.0 HS/FS, USB1.1 FS
Support free driver	USB Video Class(UVC)1.1
Auto exposure AEC	Support
Auto white blance AEB	Support
Frame rate	1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 10fps
	960 (H) x 720 (V) pixels MJPEG 30fps YUY2 15fps
	800 (H) x 600 (V) pixels MJPEG 30fps YUY2 20fps
	640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps
	352(H) x 288 (V) pixels MJPEG 30fps YUY2 30fps
	320 (H) x 240 (V) pixels MJPEG 30fps YUY2 30fps
	176(H) x 144 (V) pixels MJPEG 30fps YUY2 30fps
	160 (H) x 120 (V) pixels MJPEG 30fps YUY2 30fps
Adjustable parameters	Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision	optional, can choose IR board
view angle	30-150 degree optional
voltage	DC 5V
current	150mA
work temperature	DEGREES(-20~70)
Size	32x32mm
Support OS	WinXP/Vista/WIN7/WIN8
	Linux with UVC
	Mac-OS X 10.4.8 or later
	Wince with UVC
	Android 4.0 or above
