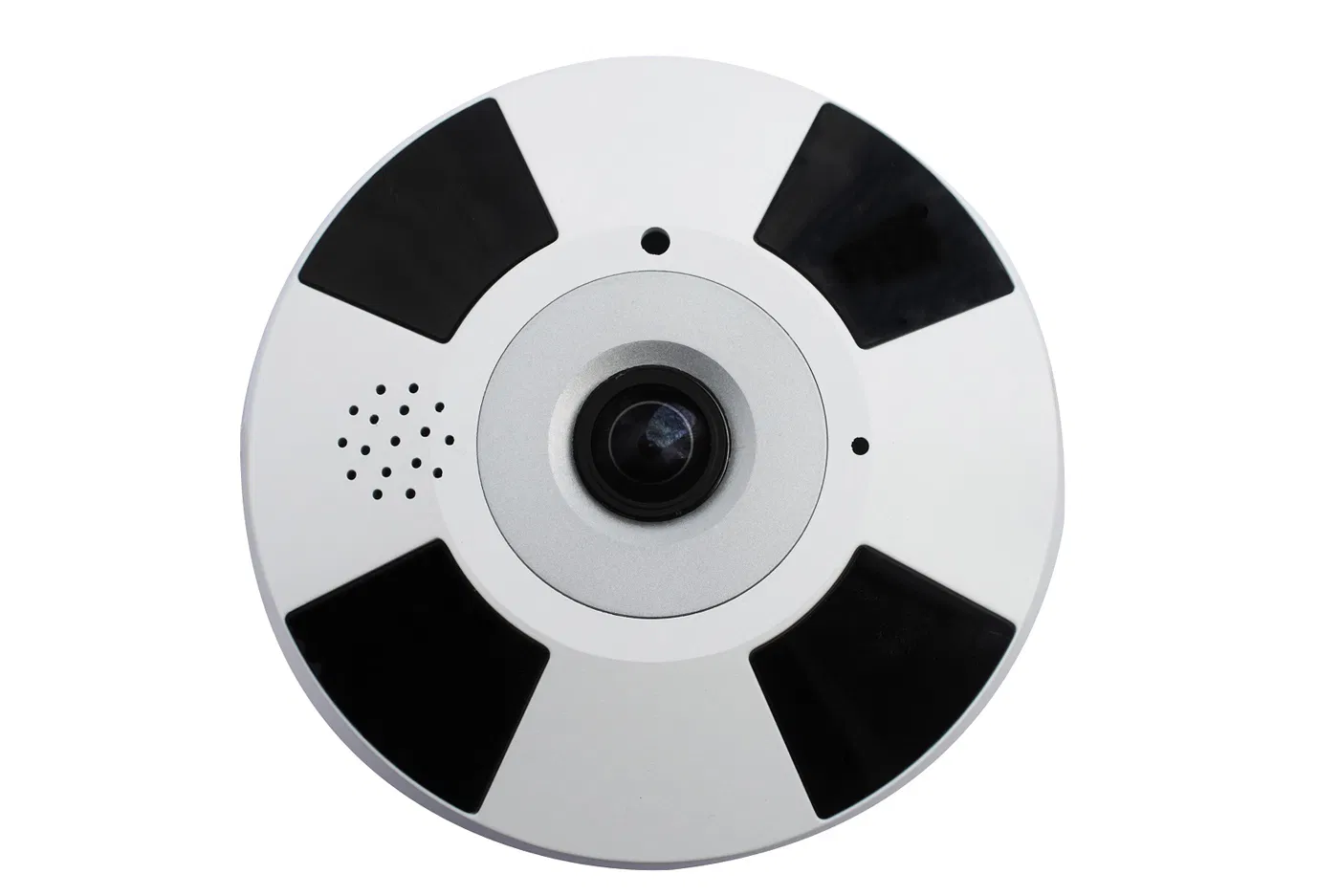

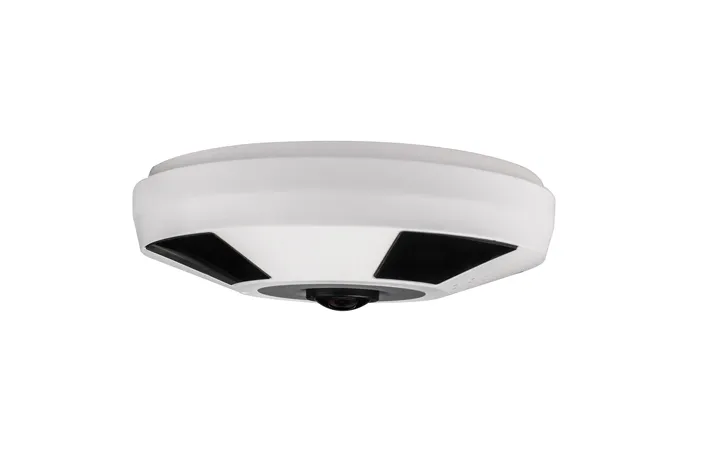

Wide View 20m Coms Indoor CCTV IP Panoramic Fisheye Camera
Features:Max resolution 12Mega(4000*3000 @ 20fps) Support low bit rate, low delay and ROI enhance codingH. 265 high effctive compression, save bandwidth and storage spaceSupport multi-line OSD, OSD color can be adjustedHigh effective IR leds, long service life,IR distance can reach 15-20mSupport Sma......
Send Inquiry
Product Description
Features:
Max resolution 12Mega(4000*3000 @ 20fps)
Support low bit rate, low delay and ROI enhance coding
H. 265 high effctive compression, save bandwidth and storage space
Support multi-line OSD, OSD color can be adjusted
High effective IR leds, long service life,IR distance can reach 15-20m
Support Smart IR, prevent IR overexposure at night
ICR infrared filter plate automatic switch, achieve real D/N monitoring
Support corridor mode, increase the monitoring area in longitudinal strip environment
Support PoE (optional)
Support Micro SD card (128G) local storage
Support 3D digital N/R,DWDR
Support auto electronic shutter function,adapt different monitoring environment
Support various intelligent alarm
Support bidirectional talk
Support 1CH alarm input / 1CH alarm output
Support GB28181, Onvif access
Support Emai, FTP, NTP
Support HTTPS encryption transmission
Original equipment boot to modify password, ensure password security
Remarks: Samples price fluctuates according to current materials market.
1. Audio input
2. Power supply input
3. Network interface
4. Alarm input/alarm output
5. Analog video output
6. RS485 7. Audio output
Max resolution 12Mega(4000*3000 @ 20fps)
Support low bit rate, low delay and ROI enhance coding
H. 265 high effctive compression, save bandwidth and storage space
Support multi-line OSD, OSD color can be adjusted
High effective IR leds, long service life,IR distance can reach 15-20m
Support Smart IR, prevent IR overexposure at night
ICR infrared filter plate automatic switch, achieve real D/N monitoring
Support corridor mode, increase the monitoring area in longitudinal strip environment
Support PoE (optional)
Support Micro SD card (128G) local storage
Support 3D digital N/R,DWDR
Support auto electronic shutter function,adapt different monitoring environment
Support various intelligent alarm
Support bidirectional talk
Support 1CH alarm input / 1CH alarm output
Support GB28181, Onvif access
Support Emai, FTP, NTP
Support HTTPS encryption transmission
Original equipment boot to modify password, ensure password security
Remarks: Samples price fluctuates according to current materials market.
| CCG3-VL-FE79-12MP | |
| CAMERA | |
| Image sensor | 1/1.7" 12MP Progressive scan CMOS |
| Min.illumination | 0Lux/F1.4(IR ON)Color:0.1Lux/F1.4,B/W0.05Lux/F1.4 |
| IR distance | 15-20M(4xIR leds) |
| Electronic shutter | Auto/ Manual(1/25~1/10000),FLK |
| Day/ Night | ICR switch, auto, color, B/W, exit |
| Lens | 185° horizontal viewing Angle, 360° round view |
| Lens interface | M12 |
| Output | PAL/NTSC adjustable |
| WDR | DWDR (Off/Low/Middle/High) |
| Light board control | Auto/ Manual/Off |
| 3D N/R | Off/Low/Middle/High/Higher |
| Defog | Off/Low/Middle/High |
| Exposure control | Auto/ Manual |
| Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| AUDIO/VIDEO ENCODING | |
| Video compression | H.265/H.264/MJPEG |
| H.265 Encoding | Main Profile |
| H.264 Encoding | BaseLine / Main Profile / High Profile |
| Encoding features | Fish-eye or 4*PTZ: 50Hz:20fps@(4000×3000),25fps@(3000×3000 , 2560×2560);12fps@(1600×1200)*4 60Hz:20fps@(4000×3000),24fps@(3000×3000 , 2560×2560);15fps@(1600×1200)*4 Fish-eye main code stream + fish-eye subcode stream+3*PTZ: 50Hz:10fps@(2048×2048 , 1280×1280),10fps@(720×720),10fps@(1600×1200)*3 60Hz:10fps@(1280×1280),10fps@(720×720),10fps@(1600×1200)*3 Full view main code stream + subcode stream: 50Hz:12fps@(3072×2304 , 3072×1152), 12fps@(704×576) 60Hz:15fps@(3072×2304 , 3072×1152), 15fps@(704×576) |
| Max. Resolution | 4000*3000 |
| Video bit rate | Constant bit rate, variable bit rate(32Kbps~16Mbps) |
| Video type | Complex stream/ Video stream |
| Audio compression | G.711u |
| Audio bit rate | 64Kbps |
| Audio control | Support input/output volume gain control |
| ROI | Support 4 zones, multi-stage level |
| Watermark function | / |
| NETWORK | |
| Network protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, FTP |
| Access protocol | ONVIF,GB28181 (optional) |
| Browser | Support IE, Chrome, Firefox, Safari |
| Video preview meanwhile | 4 |
| User permission | User add/modify/delete, permission management |
| Safe mode | Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification |
| Motion detection | Set detection zone, Multi-level sensitivity can be set |
| Tampering alarm | 1 zone |
| Privacy Mask | 4 zones |
| Intelligent analysis | Target Counting, Area Detection, Left/Lost, Line Crossing |
| Event linkage | Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage |
| Multicast function | Support |
| ANR | Support,match with NVR |
| Mobile surveillance | Support Apple, Android |
| Device exception | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
| DST | Support |
| Snapshot | Support snapshot, snapshot resolution is encoding resolution |
| System Upgrade | Support online remote upgrade |
| Other | / |
| INTERFACE | |
| Network Interface | RJ45 10M/100M/1000M network adaptive |
| Analog video output | 1CH 1.0Vp-p Composite Video Output |
| Audio | Line Input/Output |
| Alarm input | 1CH |
| Alarm output | 1CH |
| Reset | Support |
| RS485 | Support |
| TF card | Support Max 128G, Micro SD(SDHC /SDXC) card local-storage |
| Other | / |
| GENERAL | |
| Operating temperature | -10°C ~ 50°C |
| Operating humidity | 0-90 |
| Protection grade | / |
| Power supply | DC12V /PoE optional |
| PoE | Optional |
| Power consumption (max) | <15W |
| Dimensions(mm) | Φ149.4(D)mm*50(H)mm |
| Weight/PCS(g) | / |
1. Audio input
2. Power supply input
3. Network interface
4. Alarm input/alarm output
5. Analog video output
6. RS485 7. Audio output
