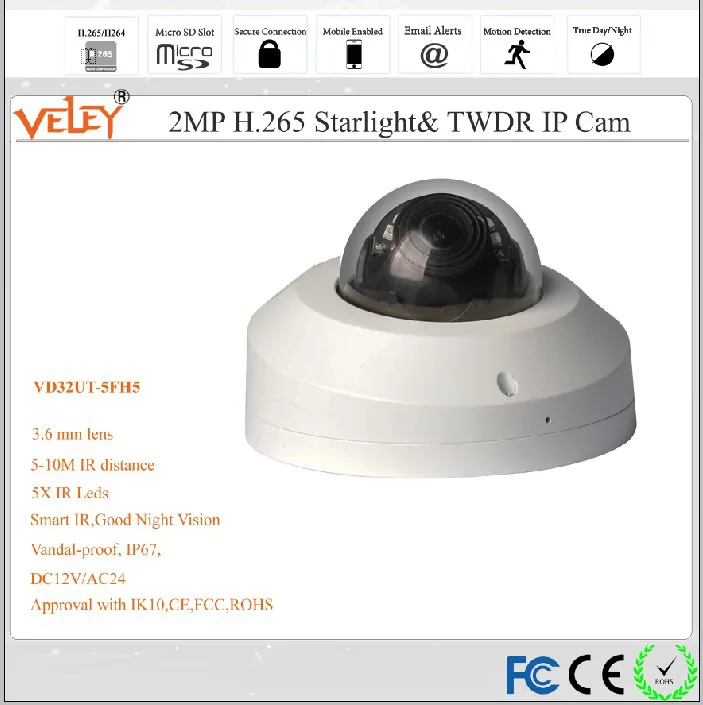

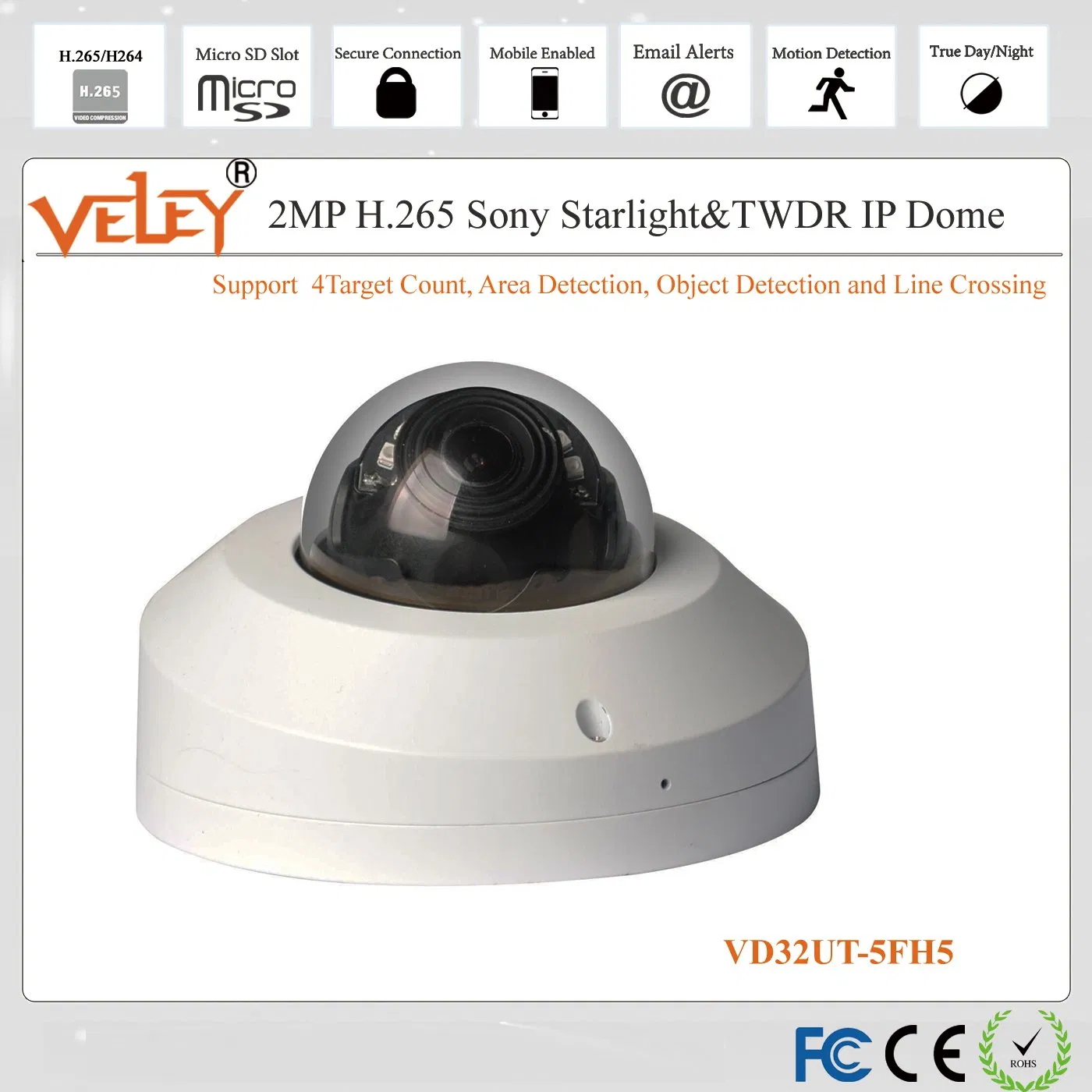

Smart Cloud Web Camera TF Card Mini Camera IP Network
2 Megapixel, H.265/H.264,1/2.8" SONY 2.13 Mega pixels CMOS,10-20M IR distance/ 6pcs IR Leds, Smart IR, 3.6mm fix lens,Snap/Email/FTP /NTP/UPNP/ONVIF protocol, ROI, WDR, 3DNR,Support dual stream, IP66, Vandalproof, DC12VSupport dual stream, IP66, DC12V3.6mm fixed lens Support POE plus,TF card s......
Send Inquiry
Product Description
2 Megapixel, H.265/H.264,
1/2.8" SONY 2.13 Mega pixels CMOS,
10-20M IR distance/ 6pcs IR Leds, Smart IR, 3.6mm fix lens,
Snap/Email/FTP /NTP/UPNP/ONVIF protocol, ROI, WDR, 3DNR,
Support dual stream, IP66, Vandalproof, DC12V
Support dual stream, IP66, DC12V
3.6mm fixed lens
Support POE plus,TF card slot,Audio, Alarm, RS485
1/2.8" SONY 2.13 Mega pixels CMOS,
10-20M IR distance/ 6pcs IR Leds, Smart IR, 3.6mm fix lens,
Snap/Email/FTP /NTP/UPNP/ONVIF protocol, ROI, WDR, 3DNR,
Support dual stream, IP66, Vandalproof, DC12V
Support dual stream, IP66, DC12V
3.6mm fixed lens
Support POE plus,TF card slot,Audio, Alarm, RS485
| CG1-VD32UT-5FH5 | |
| CAMERA | |
| Image sensor | 1/2.8"SONY STARVIS CMOS Sensor |
| Min.Illumination | 0Lux/F1.4(IR on)color:0.002Lux/F1.4, B/W:0.0002Lux/F1.4 |
| IR distance | 10-20M IR distance 12pcs high power IR Leds |
| Electronic shutter | Auto/ Manual(1/25~1/10000), FLK |
| Day/ Night | ICR switch, auto, color, B/W, ext |
| Scan system | Progressive scan |
| Lens | 3.6mm fixed lens |
| Lens interface | Φ |
| R/N ratio | ≥50db (AGC OFF) |
| Output | PAL/NTSC adjustable |
| WDR | T-WDR(120dB) |
| Video Parameter | Mirror, 3D Noise reduction, Sharpness/Brightness adjustable |
| AUDIO/VIDEO COMPRESSION | |
| Video compression | H.265/H.264/MJPEG |
| Encoding features | Dual-stream; NTSC:Main stream:1080P@60fps, sub-stream:D1@60fps PAL:Main stream:1080P@50fps, sub-stream:D1@50fps |
| Max.Image resolution | 1920X1080 |
| Video bit rate | Constant bit rate, variable bit rate (16kbps~8000kbps) |
| Stream type | Complex stream/ Video stream |
| Audio compression | G.711A |
| Audio bit rate | 64Kbps |
| NETWORK | |
| Motion detection | Can be set to a single detection zone, Multi-level sensitivity can be set |
| Privacy zones | 4 zones |
| Snapshot | Support JPEG capture, snapshot resolution based on encoding resolution |
| Password protection | Support |
| Character display | Support (Channel, Date) |
| Alarm function | Network abnomaly, privacy alarm, motion detection |
| Intelligent analysis | Target counting, object detection, zone detection, virtual cordon |
| Mobile surveillance | Apple, Android |
| Network Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP, ONVIF |
| Port protocol | ONVIF, I8 |
| Other | / |
| INTERFACE | |
| Network interface | RJ45 10M/100M network adaptive |
| Analog video output | 1CH 1.0Vp-p complex video output |
| Audio input | / |
| Alarm | / |
| TF card | Support, Max 64G |
| RS485 | / |
| Reset | / |
| GENERAL | |
| Operating temperature /humidity | -20°C ~ 55°C/0-90 |
| Protection grade | IP66/IK10 |
| Power supply | DC12V /POE optional |
| Power consumption (max) | <8W |
| Dimensions(mm) | 92.85(W)*95.5(H)*262.82(L)mm |
| Weight/PCS(g) | 300g |
