China Mini CCTV Security System IP Waterproof 5MP 4X PTZ Bullet Video Camera

Product Description

Mini CCTV Security System IP Waterproof 5MP 4X PTZ Bullet Video Camera
(ES-HD345T-IP54-WH)

System Function:
*PTZ Bullet Camera, beautiful appearance;
*Friendly quick install structure design, easier building;
*Adopt high-performance sensor, H.264/ H.265 compression format,resolution achieve 2592*1944@15fps.
*3 class lightning proof,support for lightning protection, anti surge, anti surge.
*Protection grade: IP66.

Infrared function:
*6pcs IR Led,IR Distance 80M,minimum Illumination:0 Lux
*The constant current circuit design,Infrared ages can be reach 30 thousand hours.
*Lens 4X(2.8-12mm), PAL: 1080P/25fps or NTSC: 1080P/30fps optional.

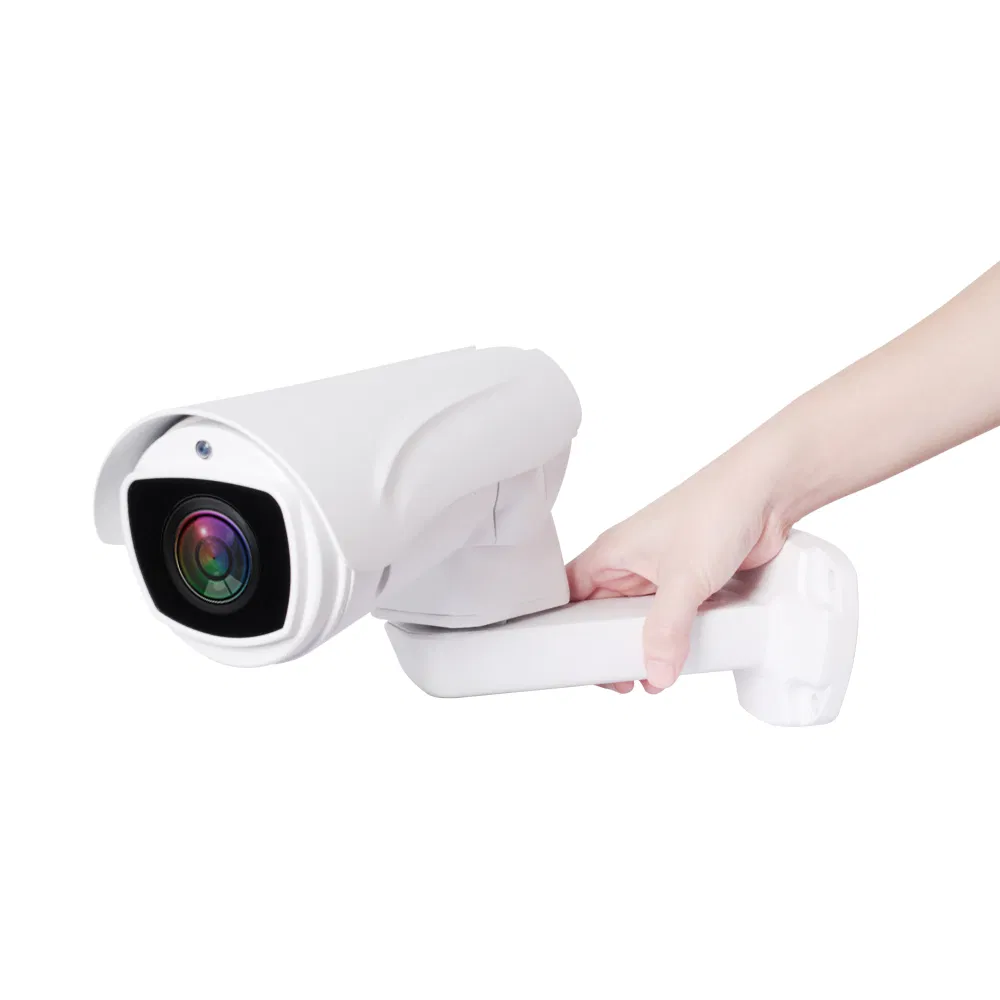

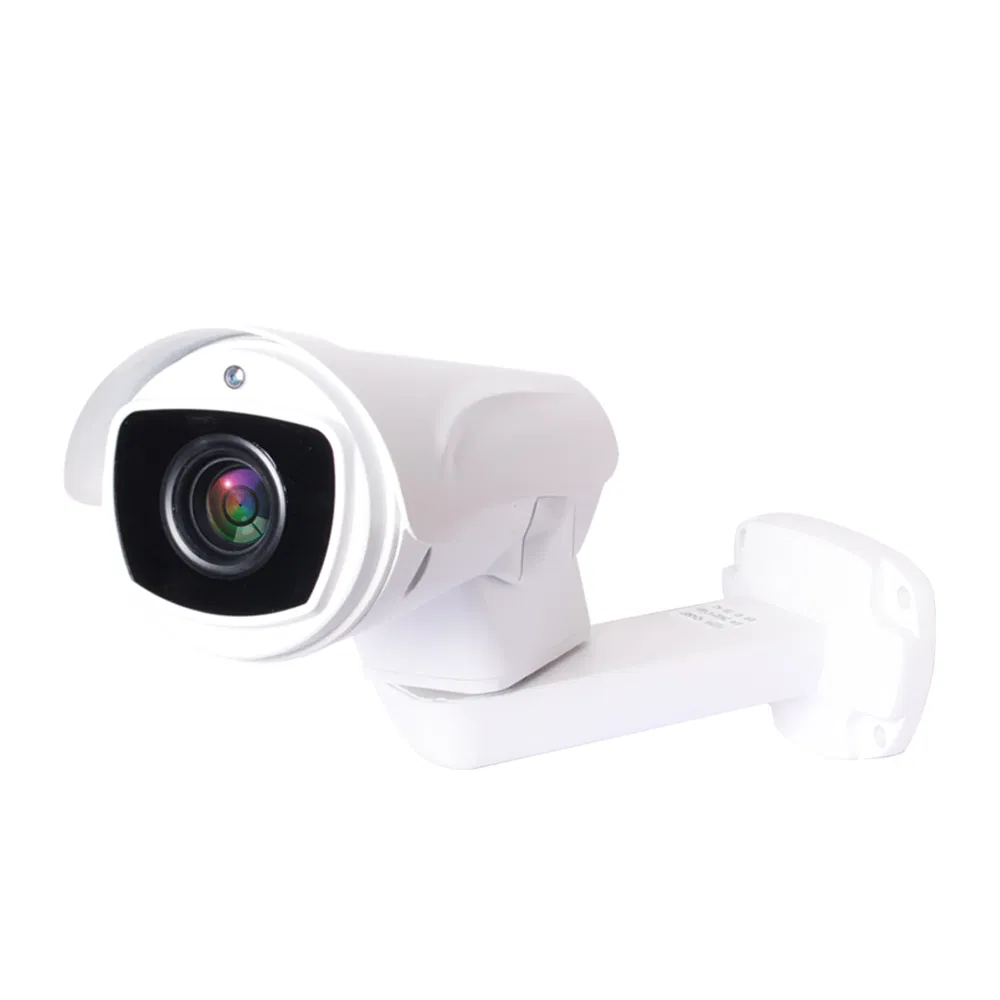

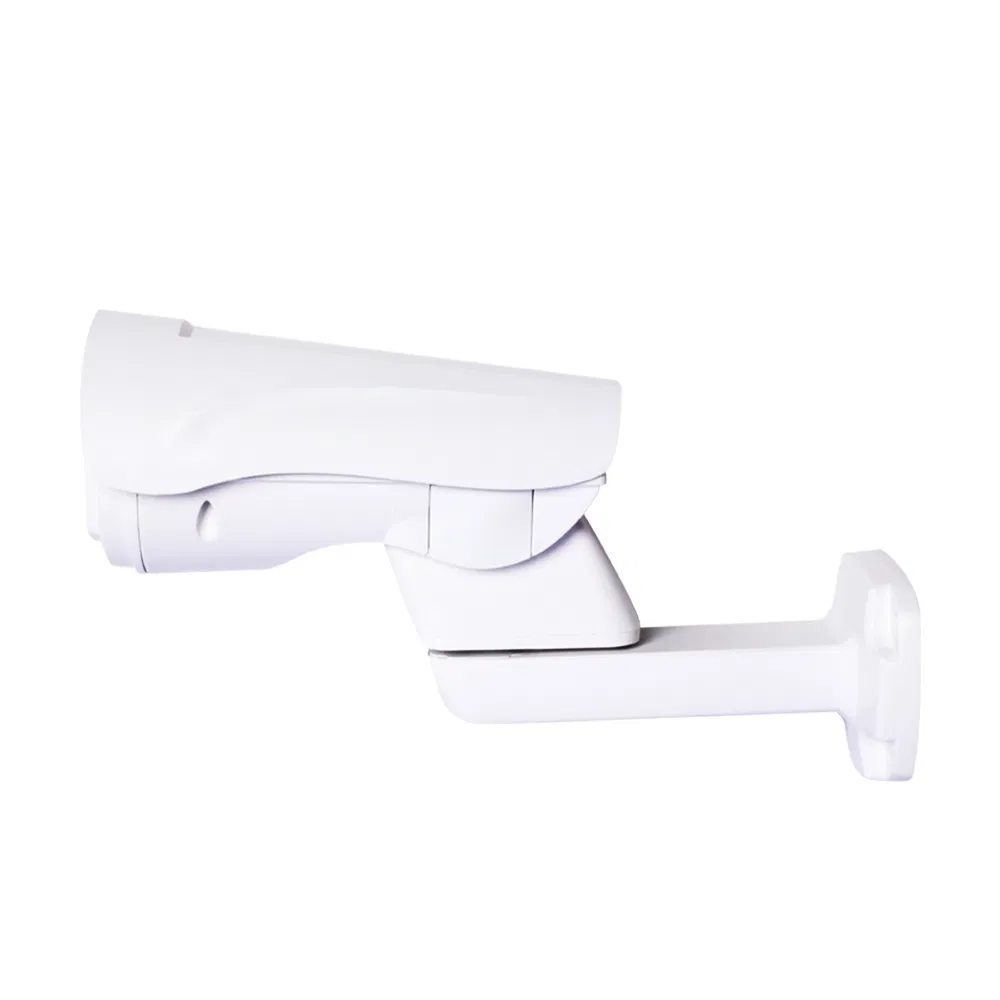

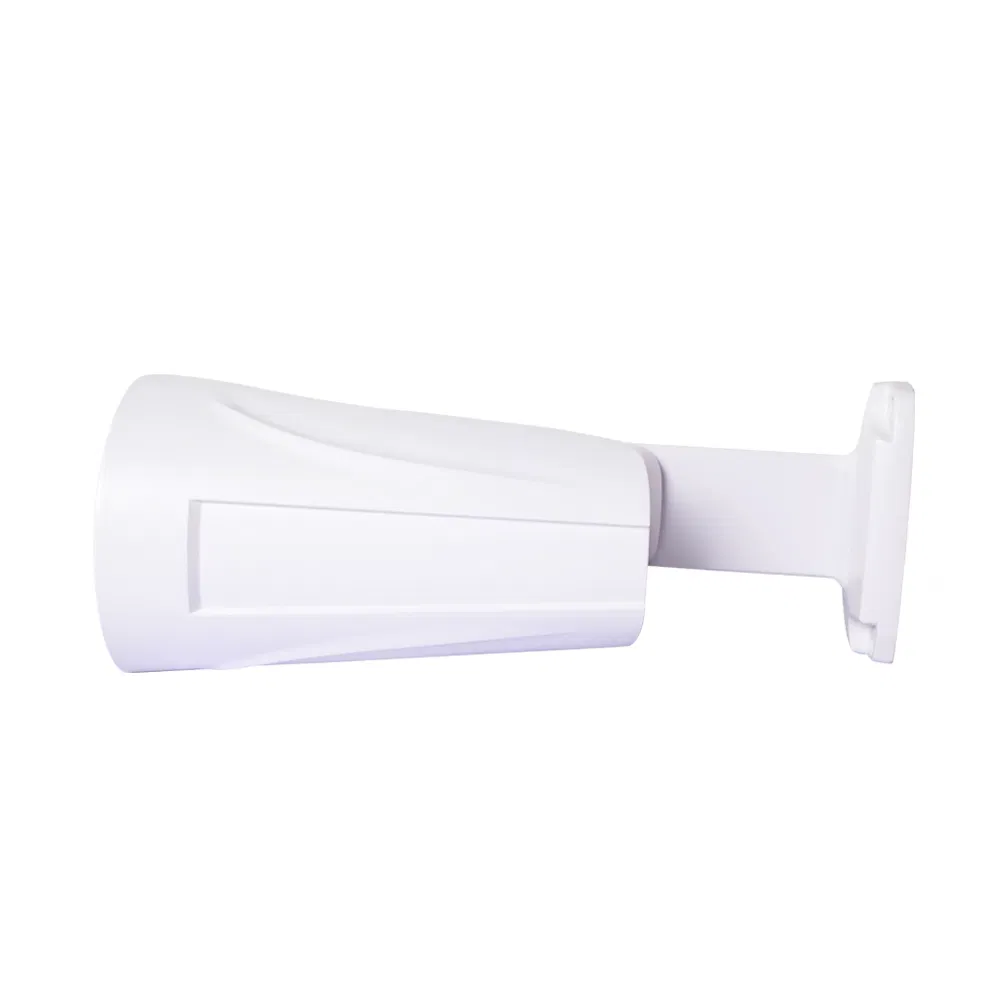

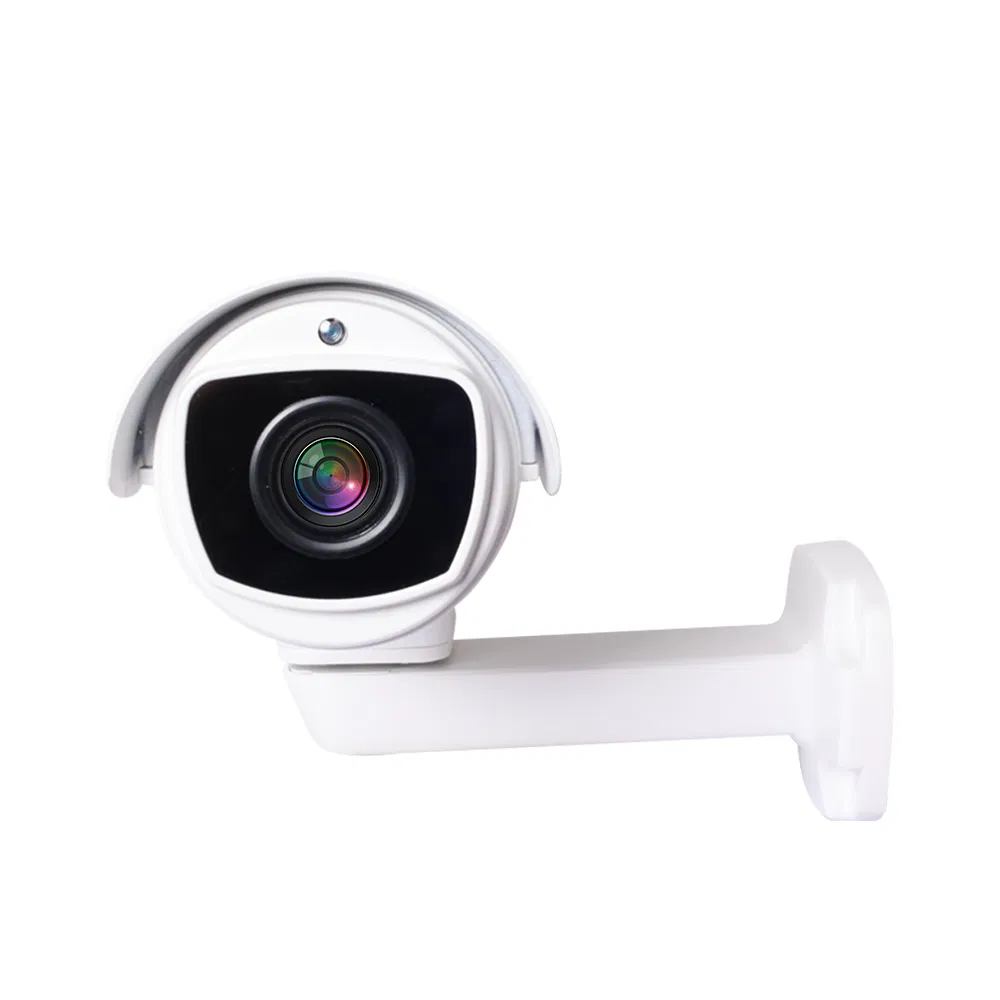

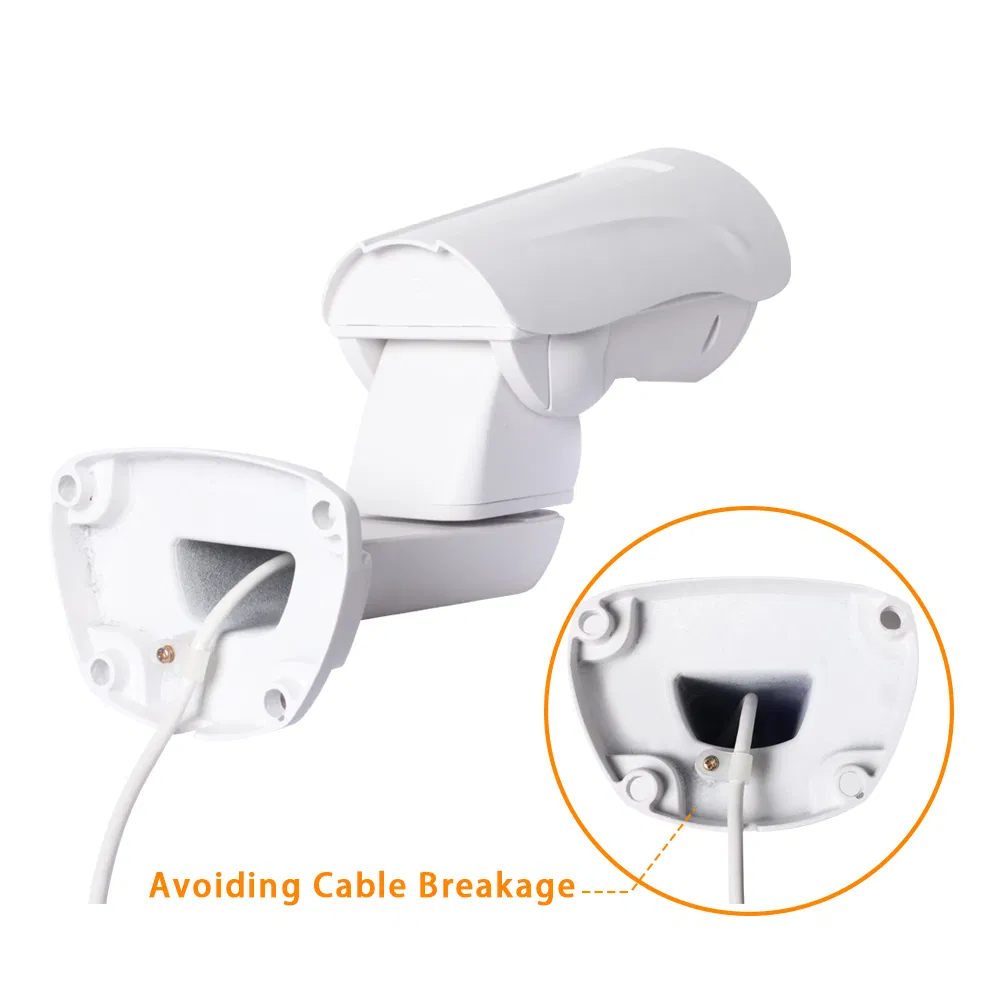

Product images:

Technical datasheet:

Specification
DSP	HI3516E	HI3516D
Sensor	Sony307	AR0521
Pixel	200W	500W
Resolution ratio	1920*1080@20fps	2592*1944@15fps
Lens	f=2.8mm-12mm/5.1mm-51mm	f=2.8mm-12mm/5.1mm-51mm
Power	DC12V2A
Operating temperature	-40ºC~+60ºC
Consumption	≤15W
Rotation Range	Pan: 0°~180° , Tilt: -45°~+45°
Pan rotation speed	30°/s
Tilt rotation speed	30°/s
Led	4X:6 PCS IR led 10X:2 PCS LASER led+4 PCS IR LED
Auto Control IR LED	PWM
IR distance	4X:Up to 80 meters 10X:Up to100 meters
A-B scan	User programmabel(scan speed 1-9 levels setting available)
Preset Points	220pcs presets
Inspection teams	3 groups( Max.16 points, dwell time user electable)
Mechanical zero calibration	Support
Video compression	H.264/H.265/M-JPEG
Audio compression	G711,PCM
audio frequency	optional
Mobile View	Support android/ios smart phone
APP	Hisee
Communications Protocol	TCP/IP,HTTP, NTP,IGMP, DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,PPPoE,P2P
Software Control	IE, CMS, Management Platform
network security	HTTPS,802.1X,IP ADDRESS FILTERING
Quick command	PELCO instruction set
waterproof	IP66
Lightning Protection	Transient voltage 6000V
Packing case size	40x20x16/pcs 68x41x62/12pcs

How to order from us?
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, online contact or email to us.
2. We will send you a Proforma Invoice to total cost of mentioned goods and other relevant charges including shipping cost once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.

MOQ:
1. For the sample order, we have no limit for the quantity.
2. From the second order, the MOQ is 30pcs.
3. OEM MOQ is 300pcs/model, Special cases can be negotiated.

Payment Terms:
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. More than 10, 000USD, 50% prepaid deposit, payment balance before shipment, we are also acceptable.

Lead Time:
1. Sample order can be delivered from our company in 3-4 working days.
2. General order can be delivered from our factory in 5 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.

Shipping:
FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping.

OEM/ODM Service:
1 If the total order quantities are above 300pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!

Warranty Policy:
We provide 1 years warranty for DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.

Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 300pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support. In before sale and after sale
6) Package: Standard Carton, well to protect the cameras during the shipping, good package well to help you selling the products.
