China Military Defense Multi Function Thermal Imaging Binocular with Laser Range Finder and GPS

Product Description

Multi-sensor Handheld/Portable Thermal Camera Binoculars---Night Vision Goggles--SHR-MIR1000
Military Defense Multi Function Thermal Imaging Binocular with Laser Range Finder and GPS

Military Defense Multi Function Thermal Imaging Binocular with Laser Range Finder and GPS

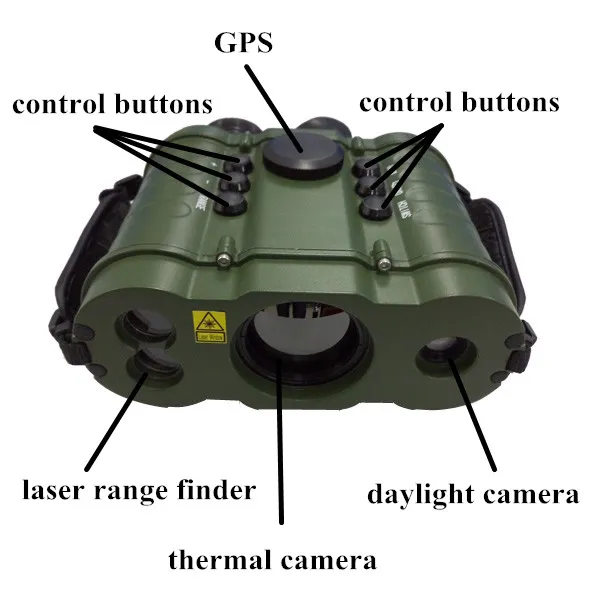

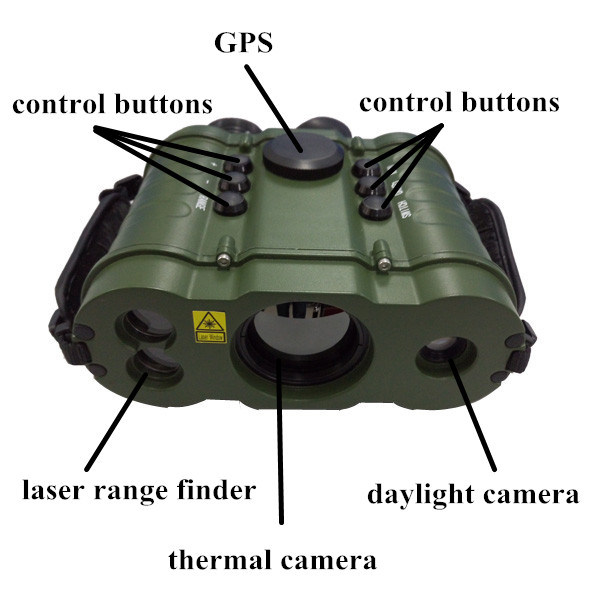

Main features

1. 25hz, 324x256,50mm thermal with high resolution Vox thermal sensor

2.Laser Range Finder

3.GPS function

4. 35mm day/light camera lens, magnification 6.5 x

5.Has Image Denoising and DDE functions, can output hot black/hot white/palette colors

6. Binocular OLED display

7. Analog video output, DC12V, built in lithium battery

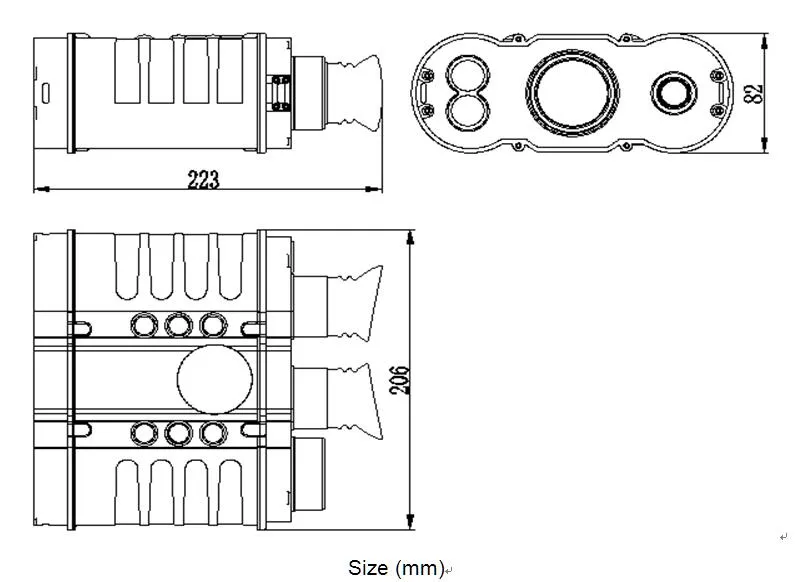

Outline:

Specifications:

Model	SHR-MIR1000
Effective distance	Object	People (1.8m*0.5m)	Vehicle (2.3m*2.3m)
	Detect distance	1200m	3300m
	Recognize distance	300m	820m
Thermal imaging camera	Pixel	324×256
	Spectral range	8-14μm
	NETD	≤50mK (F1.0, 300K)
	Focal length	50mm / F0.8
	FOV	9.1° x 7.3°
	Focus mode	Electronics
Day light camera	Magnification	×6.5
	FOV	7.8°
	Lens	35mm
Image display	Display	OLED
	Frame rate	25Hz
GPS	Accuracy	10m(rms)
	Satellite	GPS / Beidou-2
Digital compass	Accuracy	±0.5° (Dip angle 0°)
Laser range-finder	Laser type	Semiconductor laser, 1550nm laser wave length
	Detection range	20m~2.5km (for 2.3m*2.3m size object)
	Ranging accuracy	±2m (Within 1km), ±5m (1km -2.5km)
Storage	Capacity	10000 pcs pictures; 30 hours video
Interface	Power Supply	DC12V
	Other interfaces	PAL video output, USB data interface
Power	Voltage	DC12V
	Last time	3 hours
	Consumption	5W
Environment indicators	Work Temp.	-20ºC to +55ºC
	International protection	IP67
Physical indicators	Weight	≤1.7kg
	Size	223mm × 206mm × 82mm
