Product Description

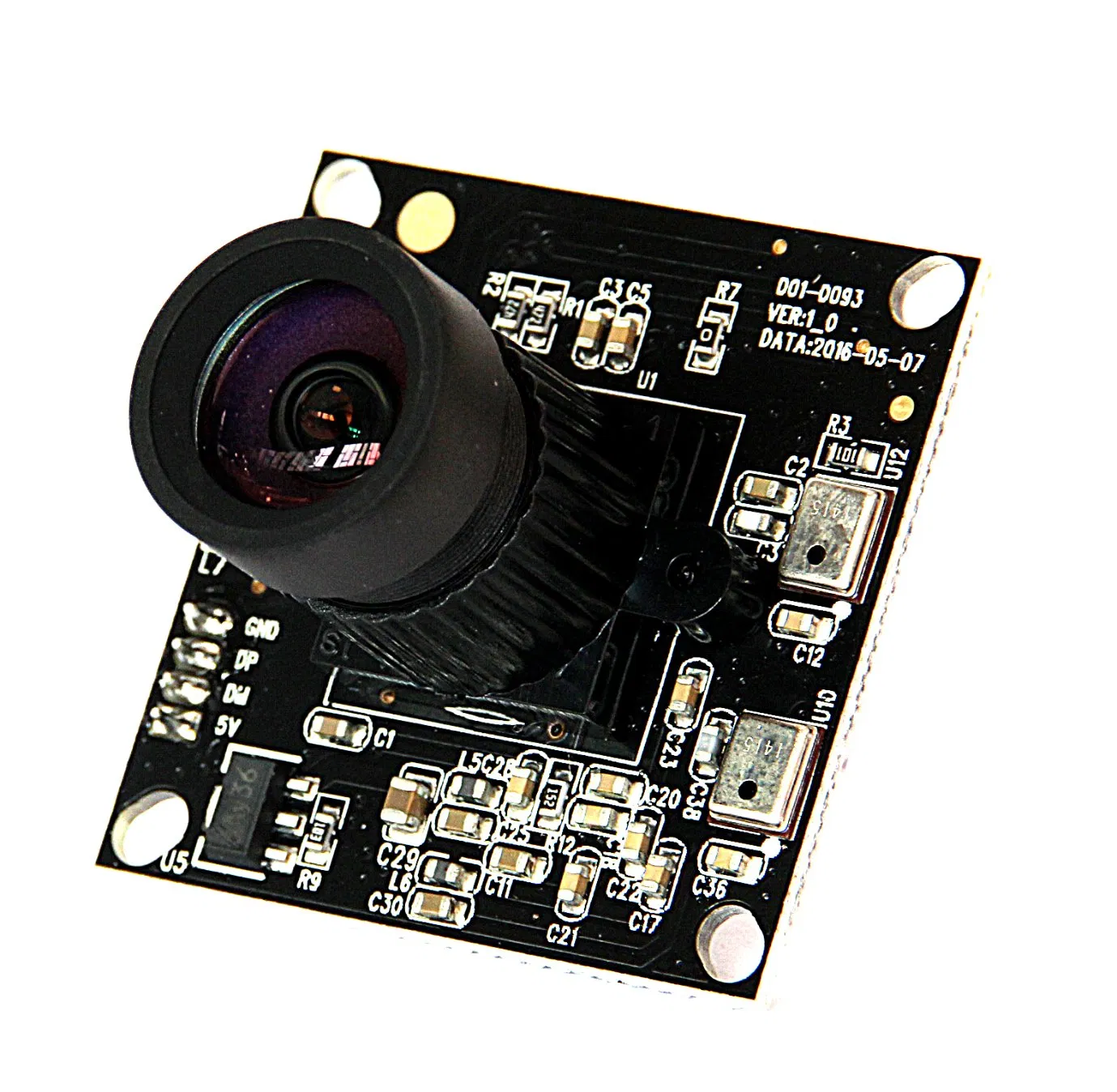

Manufacturers Direct Supply HD 5MP WDR USB Camera Module for Face Recognition:

1. 1/2.5 inch MI5100 Cmos camera module

2. 5megapixel high speed 30fps USB camera

3. Full HD realtime usb webcam with UVC, support Windows, Linux, Mac with UVC and Android system.

4. USB camera module with 55 degree

5. 32*32mm mini micro USB board camera

Specification:

Items	Parameters
SENSOR	MI5100
Lens Size	1/2.5-inch (4:3)
Maximum Pixels	3mega
Maximum Effective Resolution	2,592H x 1,944V
Data Format	MJPG/YUY2
Pixel Size	2.2µm x 2.2µm
Dynamic Range	70.1dB
Lens	FOV :D= 55
	Optical length :11.21MM
	lens construction:2G2P+IR
	mount :M12*P0.5mm
Focusing	Fixed focus
Frame Rate	30fps
Auto Control	Saturation,Contrast, Acutance,White balance,Exposure
Audio	High quality digital MIC, single or dual channel is optional
Voltage	DC 5V
Working Current	MAX 300mA
USB Connector	USB2.0
Storage Temperature	-20C to +70C
Working Temperature	Change with environmental temperature
System Compatibility	1,Windows XP(SP2,SP3),Vista ,7,8,10
System Compatibility	2,Linux or OS with UVC driver

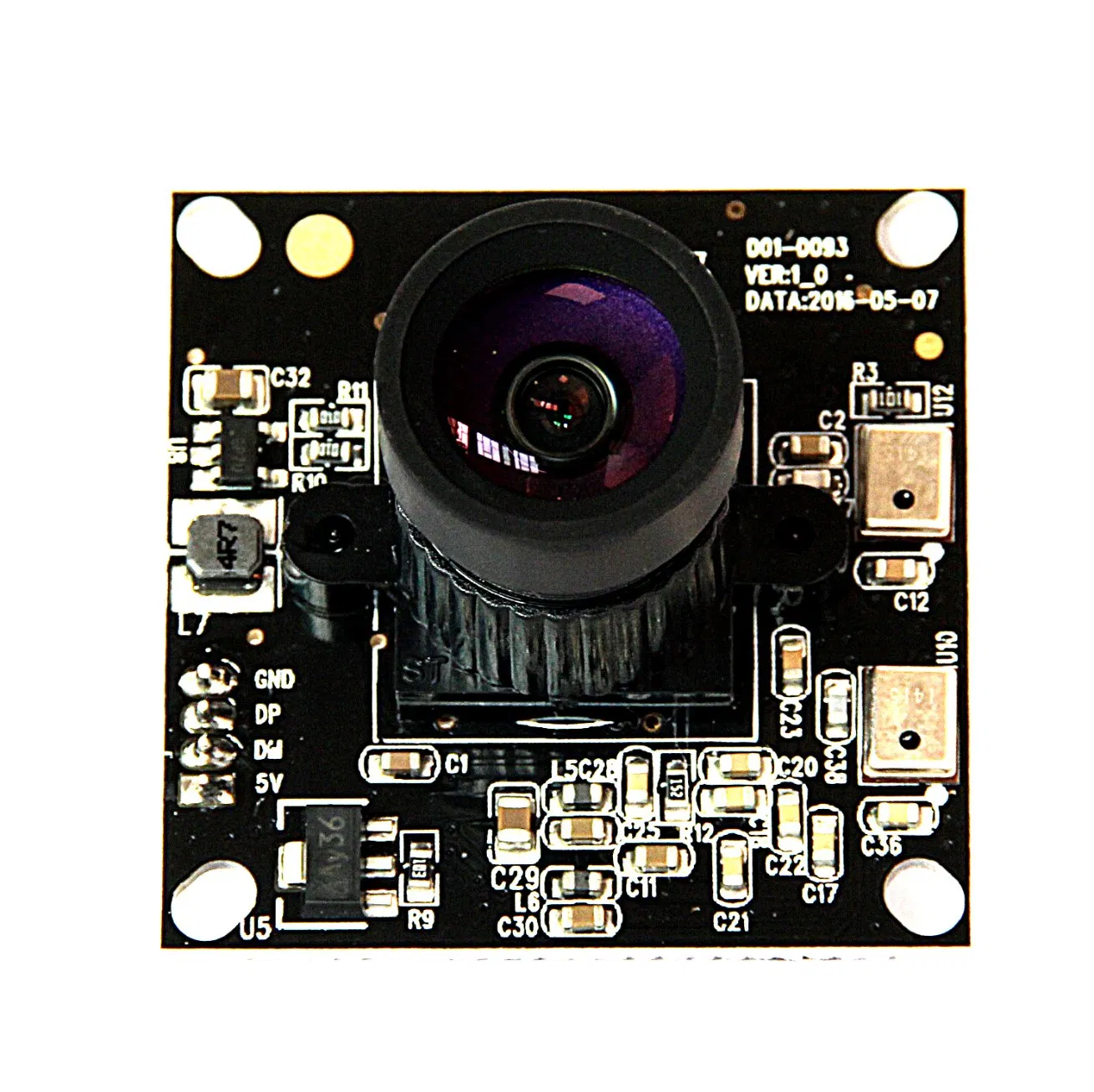

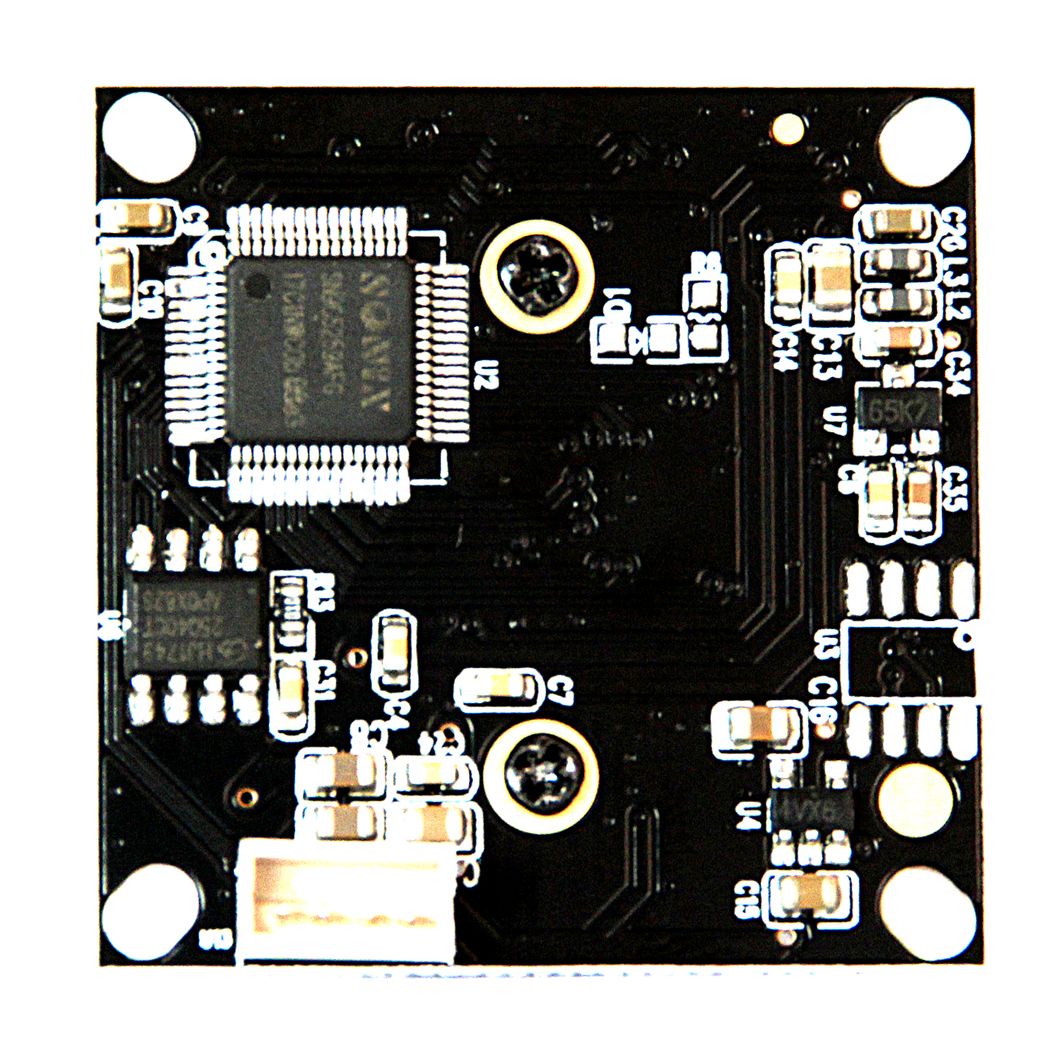

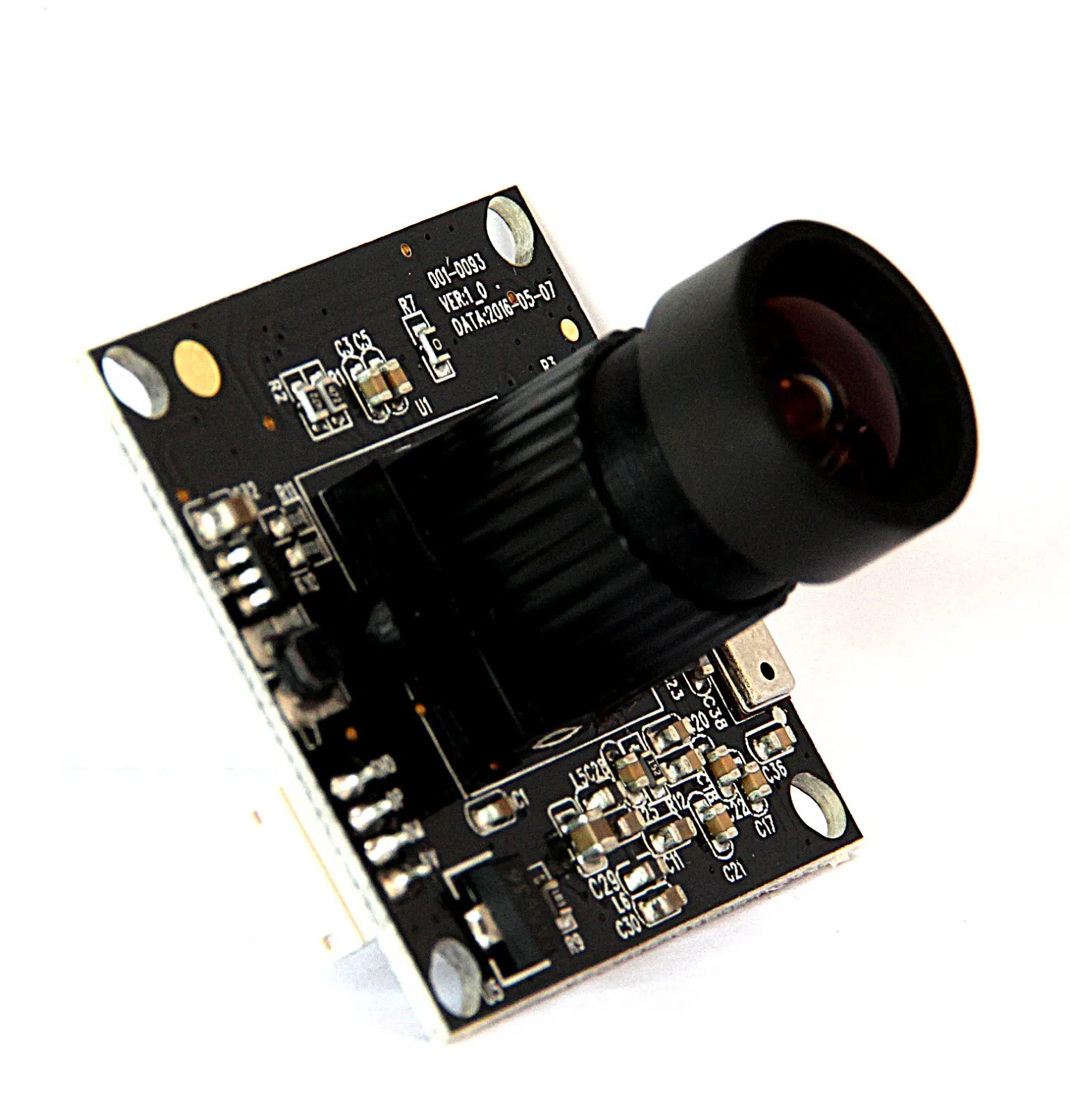

Pictures Display:

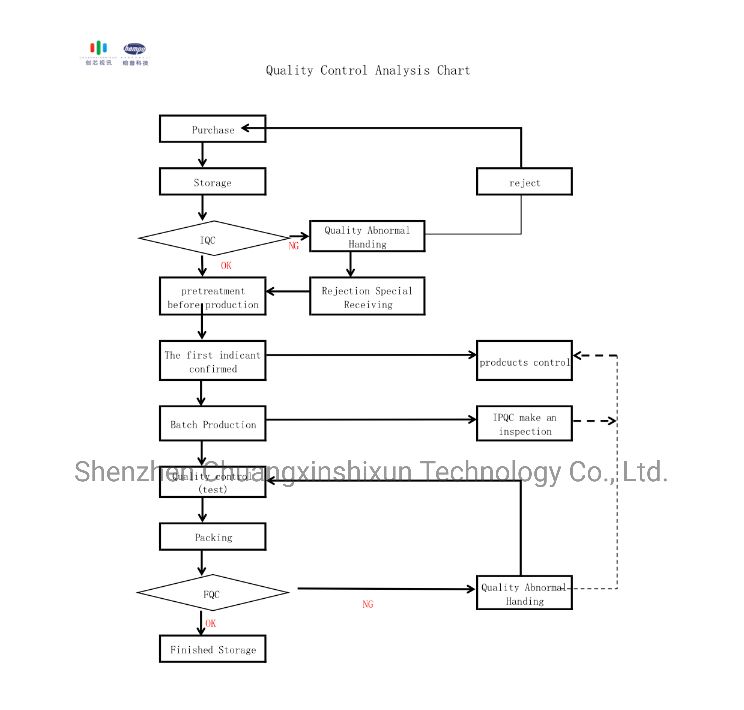

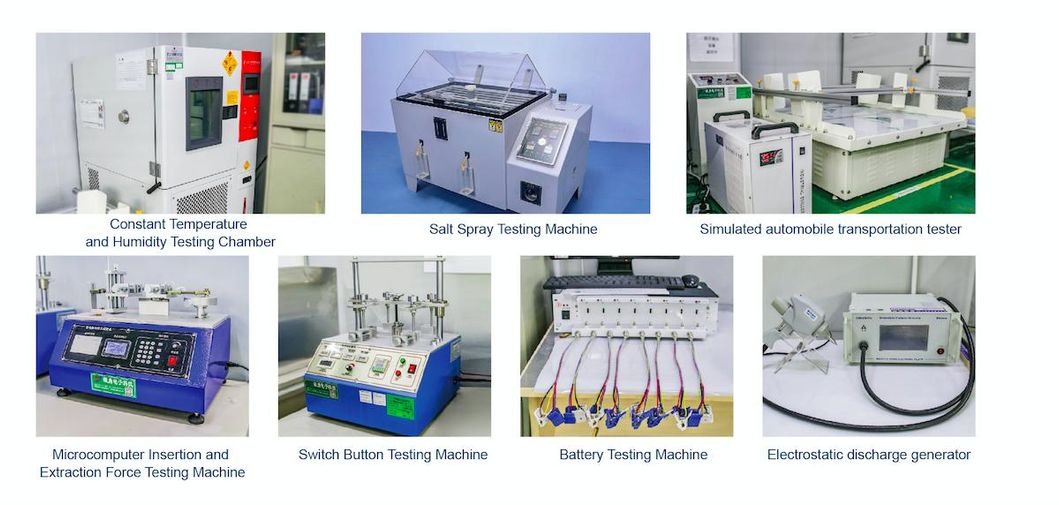

Quality Control:

Company Information:

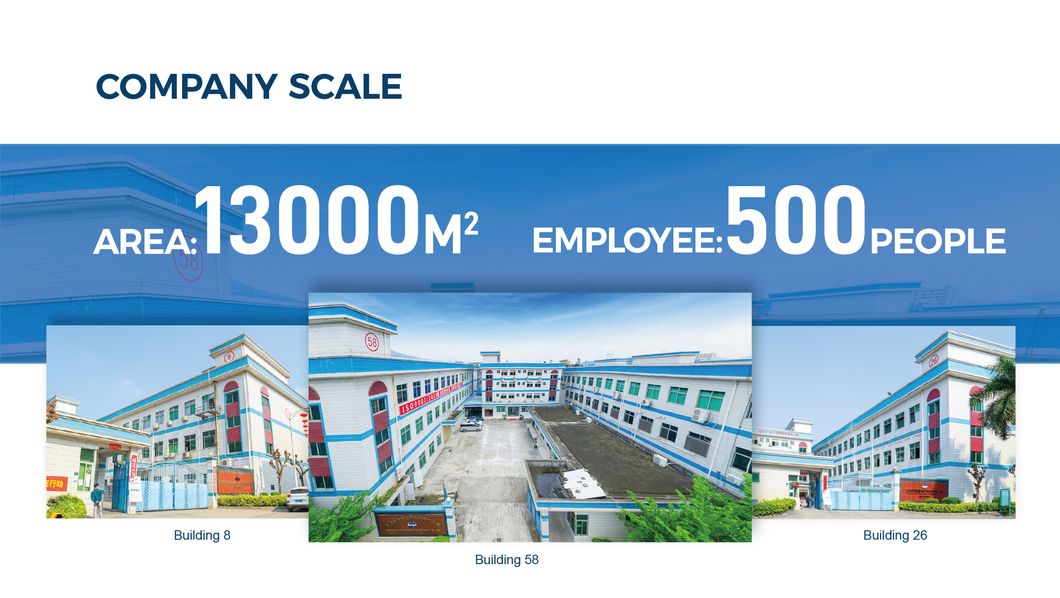

Shenzhen Chuangxinshixun Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Here are our main products: camera modules such as USB camera modules, MIPI camera modules and DVP camera modules; cameras such as PC camera and video conference camera; OID devices such as talking pen and smart pen. We have served many famous companies such as Midea and A4 tech, and many research institutes.

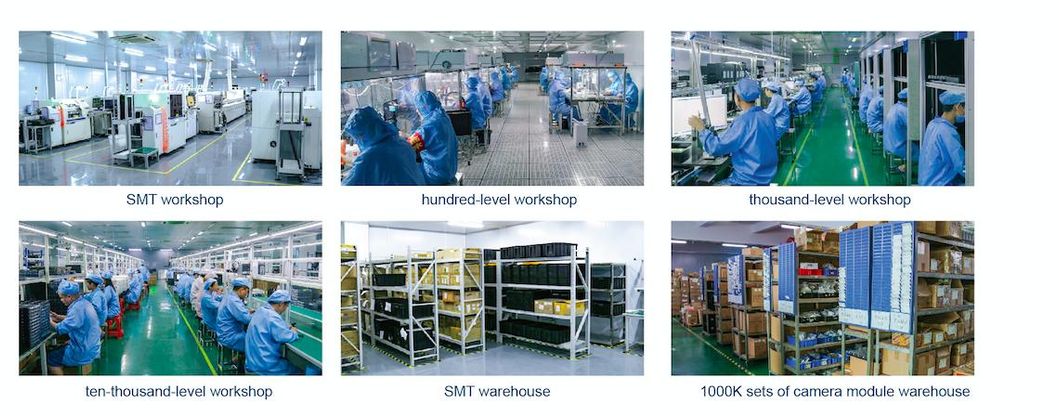

We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly which thanks to the technical support of our parent company Shenzhen Zhongxin Chuangzhan Technology Co., Ltd, who won the title of National High-Tech Enterprise. At present, there are more than 20 staffs on R&D and engineering, who have been working in the imaging industry more than 10 years.
We passed the ISO quality management system certification, and has attracted a number of quality management personnel with experience in listed companies. Our QC team has more than 30 staffs, who established a complete quality control system from IQC, IPQC, FQC to OQC.
Through the joint efforts of all colleagues, our company has obtained more than 10 national patents in appearance design, software application, tooling and fixture development, etc.
