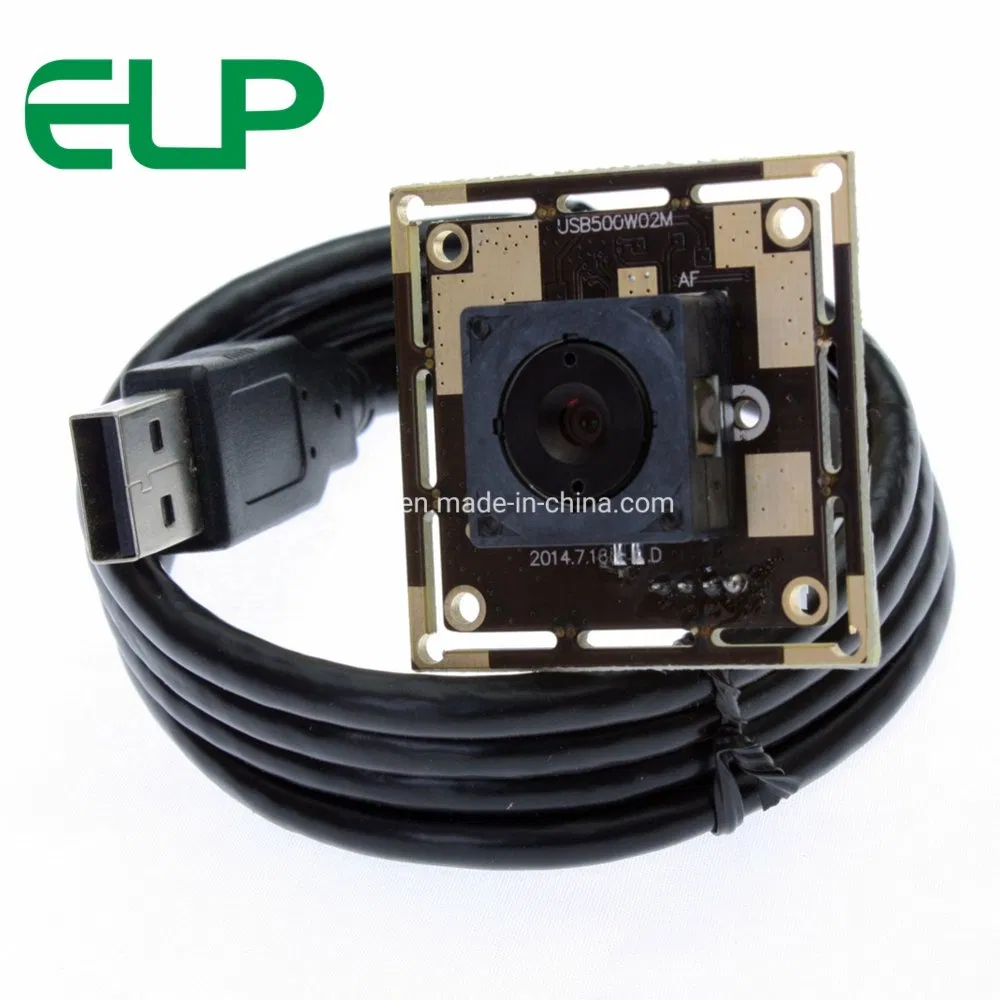

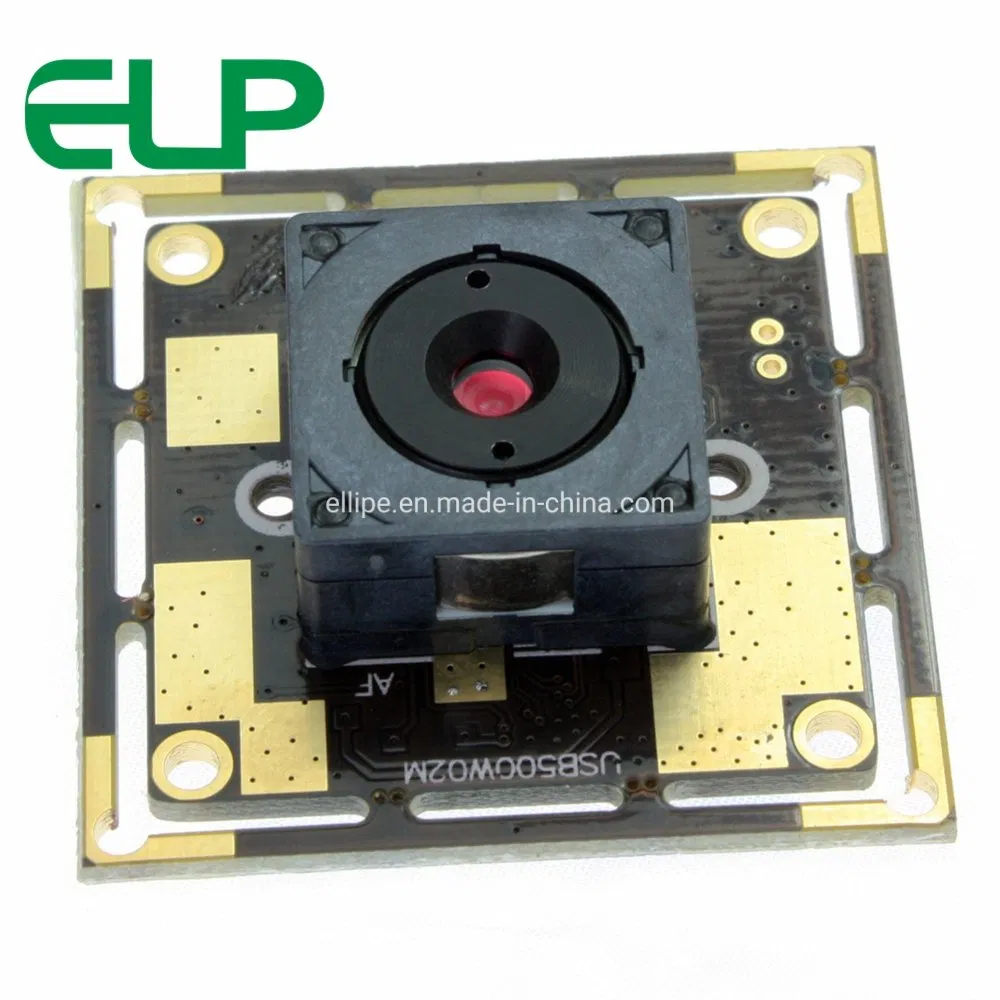

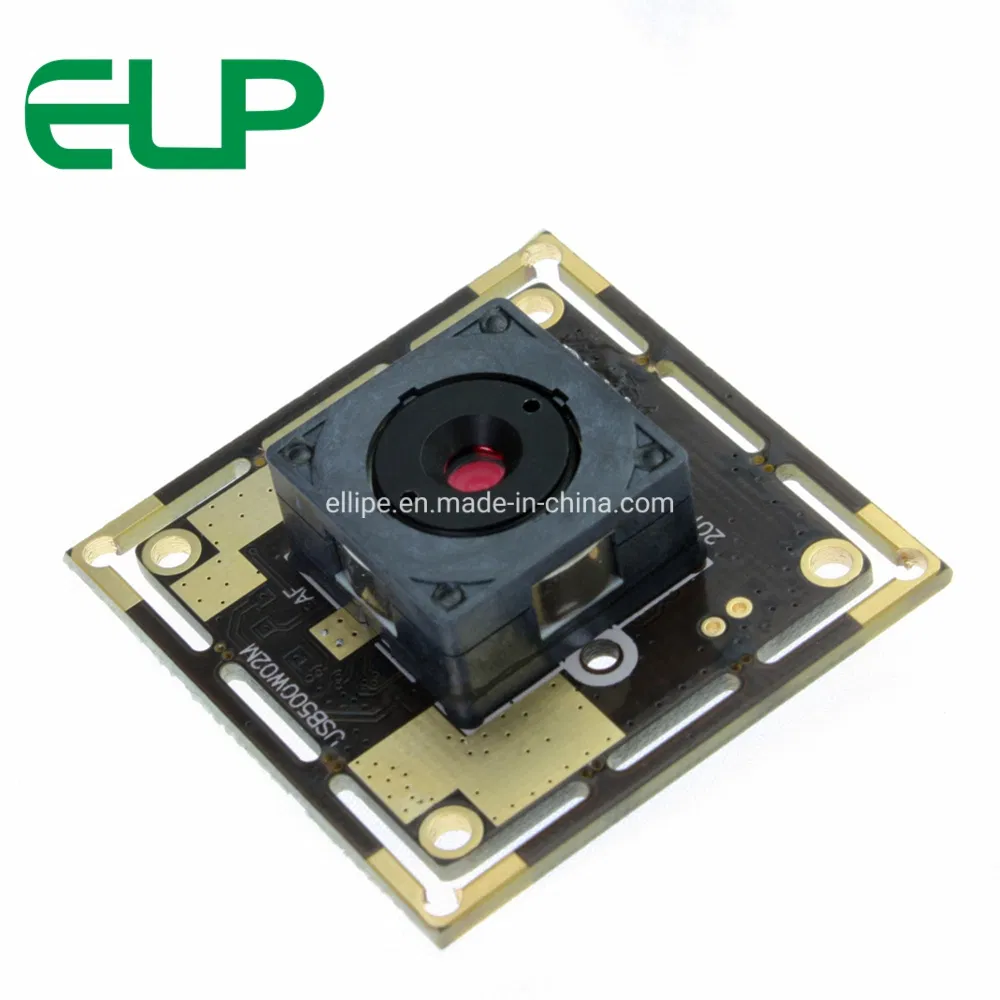

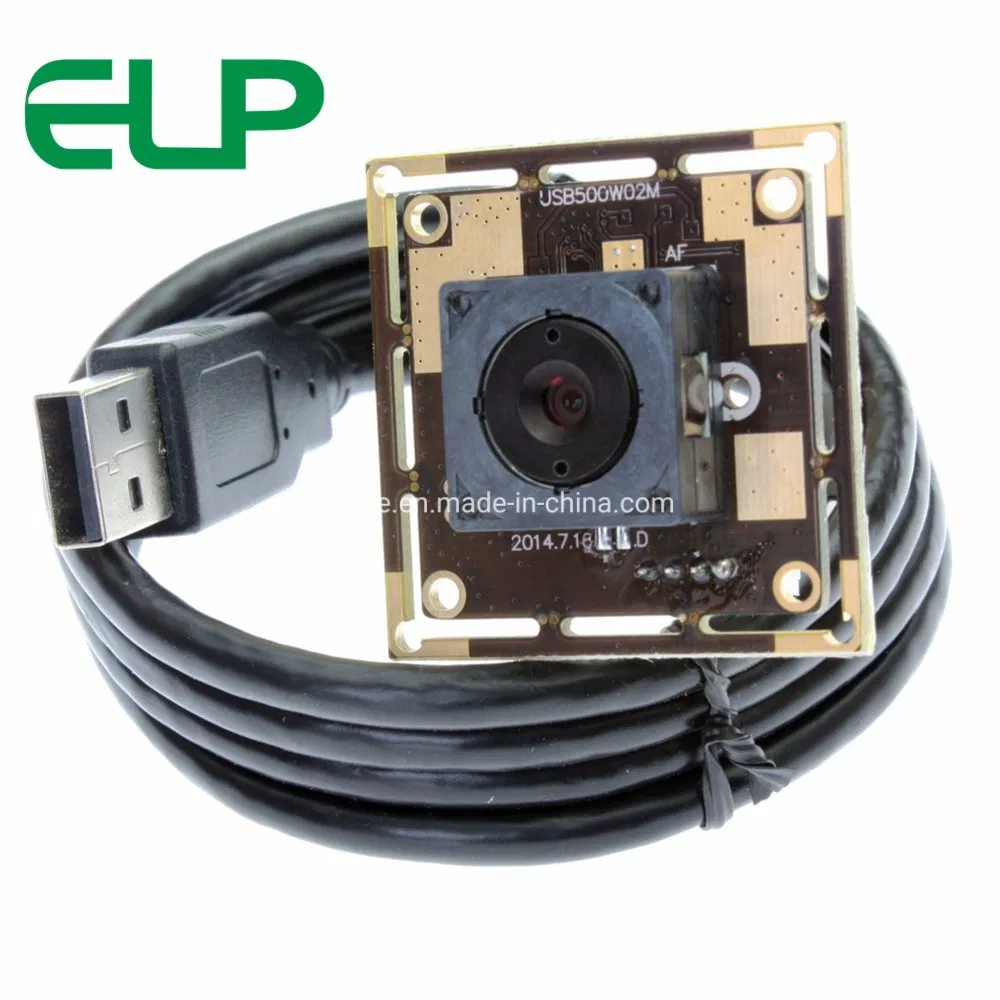

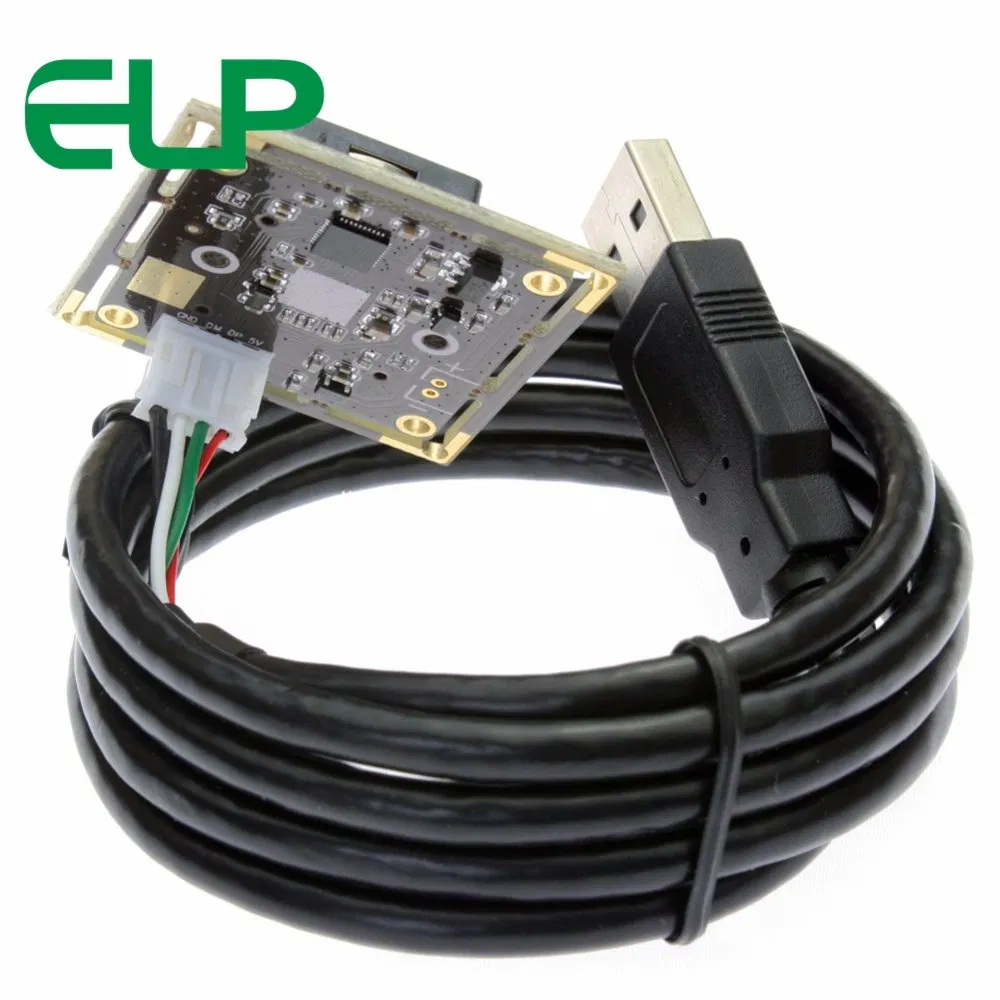

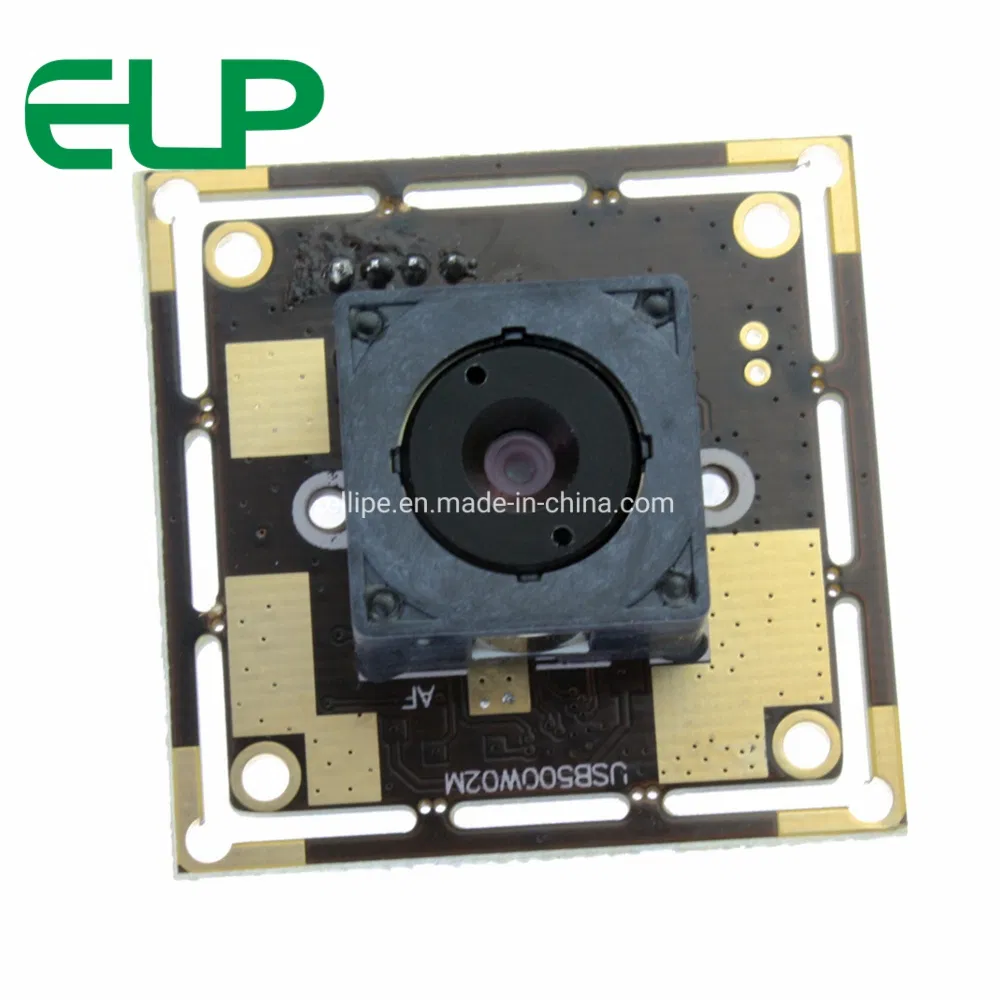

Elp 5MP Autofocus Camera Module HD 45 Degree Lens at 30fps Mini CMOS USB Camera
ELP 5MP Autofocus Camera Module HD 45 Degree Lens at 30fps Mini CMOS USB Camera Features*500W Auto Focus HD Lens*5Megapixel CMOS sensor for high quality image.*High speed USB 2.0 interface for high resolution PC camera interface.*high pixel technology for sharp image and accurate color reproduction.......
Send Inquiry
Product Description
ELP 5MP Autofocus Camera Module HD 45 Degree Lens at 30fps Mini CMOS USB Camera
Features
*500W Auto Focus HD Lens
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Parameters
Image Sensor: OmniVision1/4" Color CMOS image sensor OV5640
LENS: HD Auto Focus Lens
(can also choose other suitable lens as your required view angle)
CABLE: 1m USB cable (2M/3M/5M optional)
(can also make the other special length cable according to your requirement)
Effective Pixels:
2592 (H) x 1944 (V) pixels
2048 (H) x 1536 (V) pixels
1600 (H) x 1200 (V) pixels
1920 (H) x 1080 (V) pixels
1280 (H) x 1024(V) pixels
1280 (H) x 720 (V) pixels
1024 (H) x 768 (V) pixels
800 (H) x 600 (V) pixels
640 (H) x 480 (V) pixels
320 (H) x 240 (V) pixels
(Other special size resolution is customized)
Signal Output: Serial data for USB standard compliant 2.0 and 1.1
Performance:
2592 (H) x 1944 (V) pixels MJPEG 8fps
2048 (H) x 1536 (V) pixels MJPEG 10fps
1600 (H) x 1200 (V) pixels MJPEG 12fps
1920 (H) x 1080 (V) pixels MJPEG 12fps
1280 (H) x 1024 (V) pixels MJPEG 12fps
1280 (H) x 720 (V) pixels MJPEG 30fps
1024 (H) x 768 (V) pixels MJPEG 30fps
800 (H) x 600 (V) pixels MJPEG 30fps
640 (H) x 480 (V) pixels MJPEG 30fps
320 (H) x 240 (V) pixels MJPEG 30fps
Operating System: Linux 2.6.26 or above, Windows XP SP2or above
UVC: Windows XP SP2 or above
Operating temperature: -30°C-70°C
Power Consumption: 5V 120mA
Dimensions (mm): 32mm*32mm/38mm*38mm
(can make other dimension as customers' requirement)
APPLICATION
Features
*500W Auto Focus HD Lens
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Parameters
Image Sensor: OmniVision1/4" Color CMOS image sensor OV5640
LENS: HD Auto Focus Lens
(can also choose other suitable lens as your required view angle)
CABLE: 1m USB cable (2M/3M/5M optional)
(can also make the other special length cable according to your requirement)
Effective Pixels:
2592 (H) x 1944 (V) pixels
2048 (H) x 1536 (V) pixels
1600 (H) x 1200 (V) pixels
1920 (H) x 1080 (V) pixels
1280 (H) x 1024(V) pixels
1280 (H) x 720 (V) pixels
1024 (H) x 768 (V) pixels
800 (H) x 600 (V) pixels
640 (H) x 480 (V) pixels
320 (H) x 240 (V) pixels
(Other special size resolution is customized)
Signal Output: Serial data for USB standard compliant 2.0 and 1.1
Performance:
2592 (H) x 1944 (V) pixels MJPEG 8fps
2048 (H) x 1536 (V) pixels MJPEG 10fps
1600 (H) x 1200 (V) pixels MJPEG 12fps
1920 (H) x 1080 (V) pixels MJPEG 12fps
1280 (H) x 1024 (V) pixels MJPEG 12fps
1280 (H) x 720 (V) pixels MJPEG 30fps
1024 (H) x 768 (V) pixels MJPEG 30fps
800 (H) x 600 (V) pixels MJPEG 30fps
640 (H) x 480 (V) pixels MJPEG 30fps
320 (H) x 240 (V) pixels MJPEG 30fps
Operating System: Linux 2.6.26 or above, Windows XP SP2or above
UVC: Windows XP SP2 or above
Operating temperature: -30°C-70°C
Power Consumption: 5V 120mA
Dimensions (mm): 32mm*32mm/38mm*38mm
(can make other dimension as customers' requirement)
| Optional model | ELP-USB500W02M-AF45 |
| Sensor | OmniVision1/4" Color CMOS image sensor OV5640 |
| Max Resolution | 2592 (H) x 1944 (V) pixels |
| Lens size | 30degree/ 45degree/ 60degree/ 75degree |
| Picture Format | YUY2, Mjpeg |
| USB Protocal | USB 2.0 HS/FS, USB1.1 FS |
| Support Free Driver | UVC1.1 |
| Auto Exposure AEC | Support |
| Auto White Balance | Support |
| Frame Rate | 1280 (H) x 720 (V) pixels MJPEG 30fps |
| Adjustable Parameters | Brightness/Contrast/Color Saturation/Definition/Gamma/WB |
| Night Vision | optional, can choose IR board |
| View Angle | 30-150 degree optional |
| Voltage | DC 5V |
| Current | 150mA |
| Work Temperature | Degree (-20-70) |
| Size | 32mm*32mm/38mm*38mm |
| Support OS | WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS x 10.4.8 or later Wince with UVC Android 4.0 or above |
