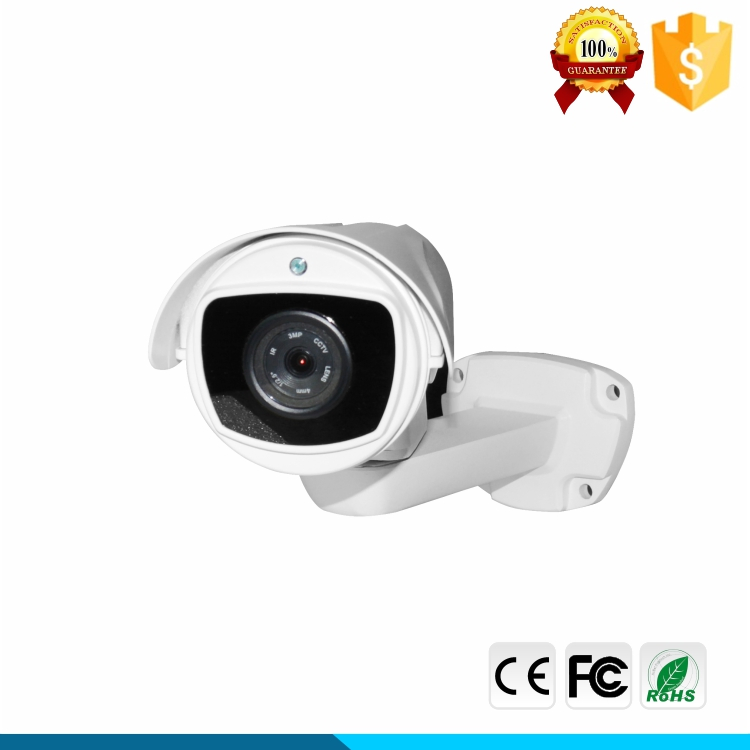

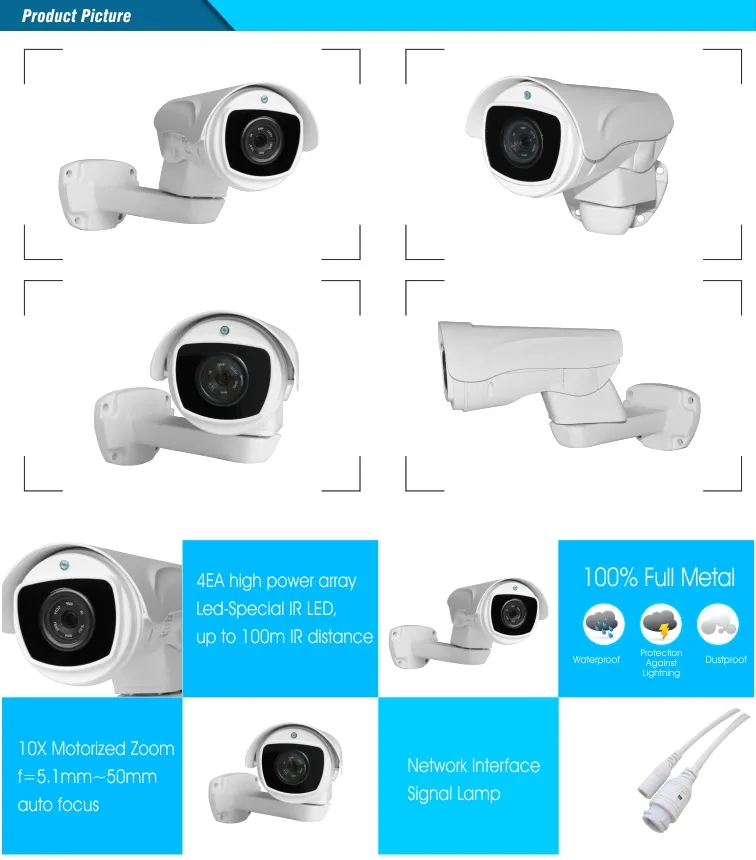

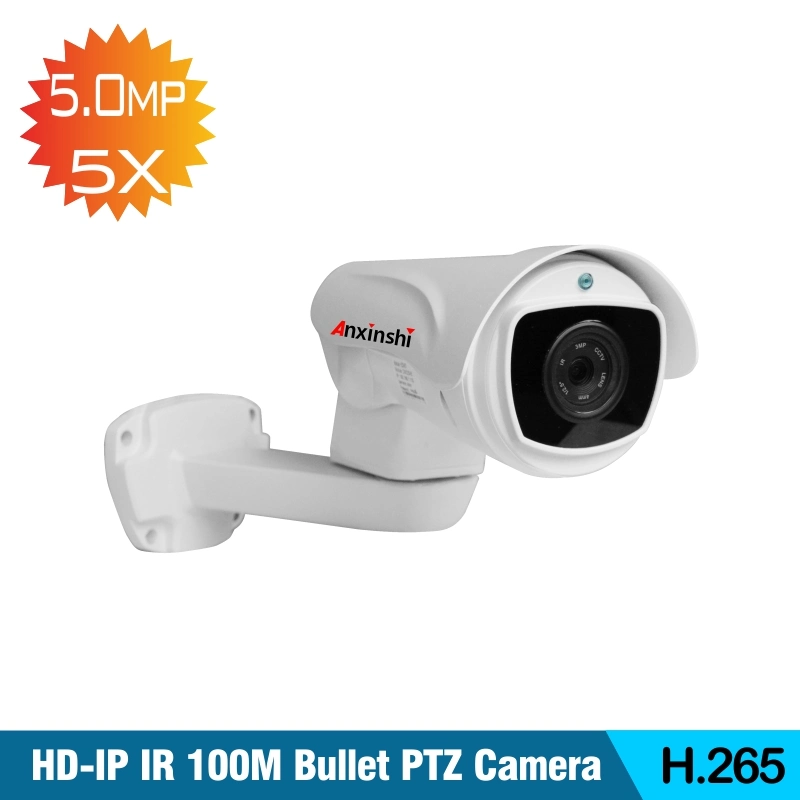

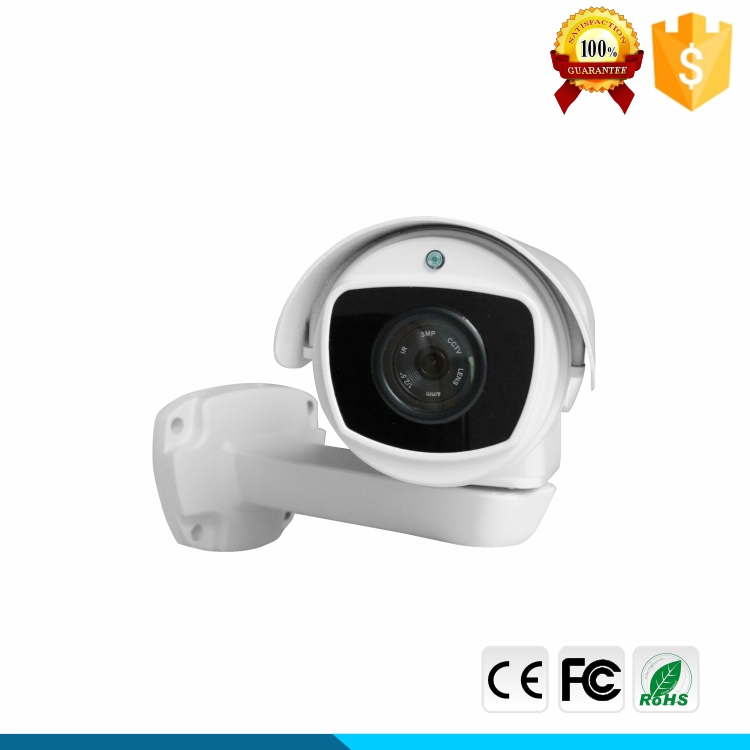

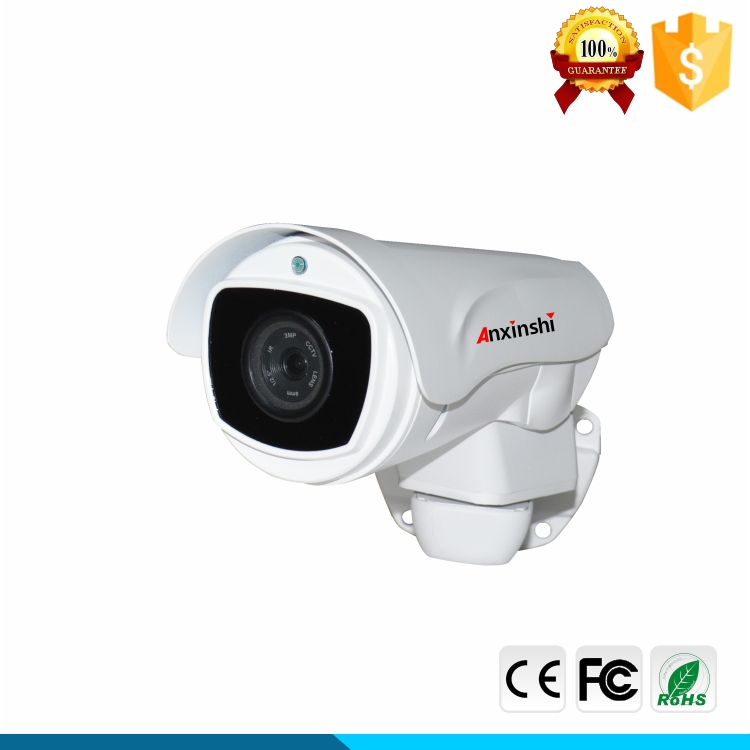

China 5MP 5X IR 100m IP PTZ P2p IP Bullet Security Camera

Product Description

Camera;
1.1/3" 5.0M Pixel AR5521 CMOS, HI3516D + AR5521

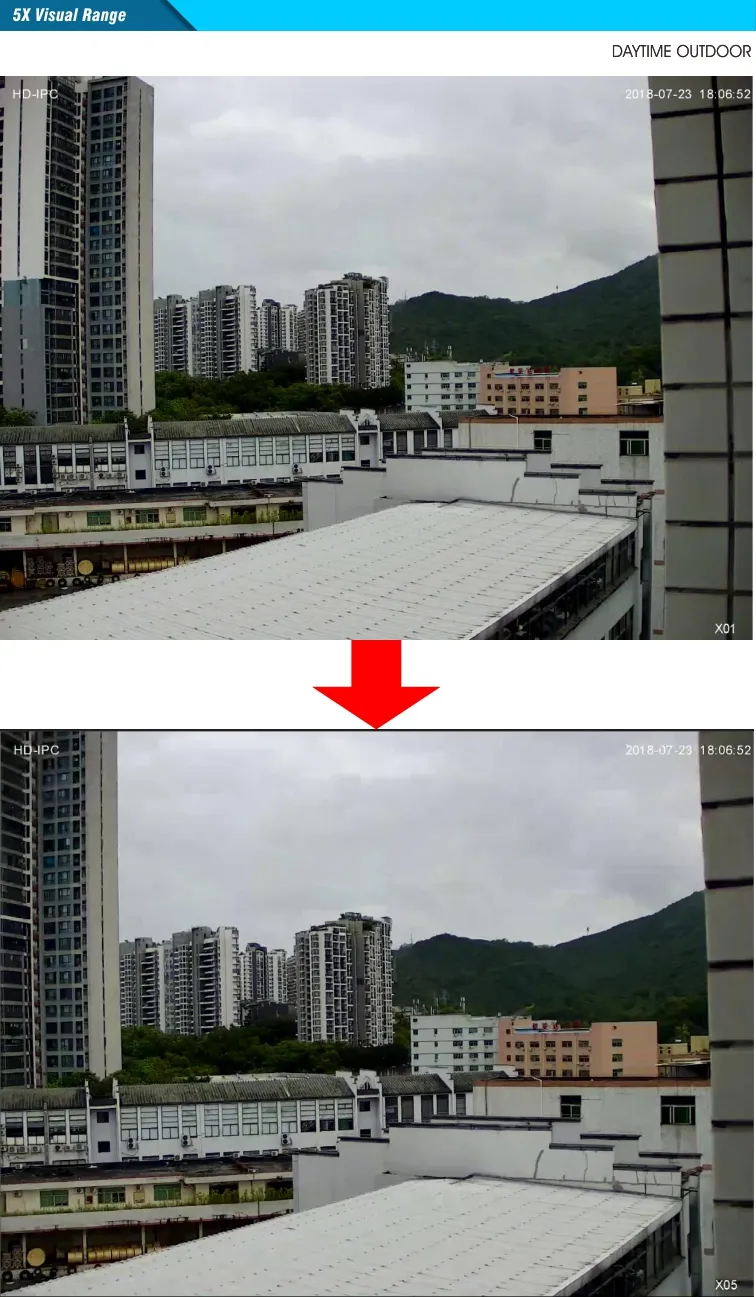

2.5X optical zoom, auto focus, f=(2.7mm~13.5mm)
3.5.0MP available
4.True Day/Night, 3D DNR, Digital WDR
5.Backlight compensation, and auto gain control (AGC)

Network Features;
1.Main Stream;2592x1944@15fps 2304x1296@30fps.
2592x1520@22fps
2.Support the P2P or Android, IOS
3.Support Onvif2.4
4.H.264 main profile & M-JPEG Triple-streams Encoding , Three Simultaneous video streams
5.Standard SDK, CGI, easily to be integrated with other digital systems
6.Support a variety of network protocol such as TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P
7.Compatible with HIKVISION/DAHUA/Milestone/AEVISION/UC2 and AXXON platform

PTZ Features;
1. 0-220°continuous pan rotation speed up to 35°/s
2. UP -45° ~Down 40° tilt rotation speed up to 25°/s
3. 220 presets, 3 groups tour
4. Quickly Installation Structure
5.4 PCS Array 42Mil IR+2 PCS Laser LED, up to 100m IR distance

Mode	Name and Description	5X Zoom 5.0MP Color IP PTZ Bullet Camera
Mode	Name and Description	ASIH401-005-050
Camera	Image Sensor	1/3" 5.0M Pixel AR5521 CMOS, HI3516D + AR5521
	Effective Pixels	5.0 Mpixes
	Min. Illumination	Color; 0.05Lux@(F1.6, AGC ON) ; 0.01Lux@(F1.6, AGC ON)
	Zoom	5X optical zoom, f=2.7mm~13.5mm, D/N( ICR-Cut) ,F1.6~F1.8
	Day/Night	Day / Night / External control(IR Cut Filter),IR 80M
	SNR	≥50dB(AGC OFF)
	WDR	Digital WDR≥70dB
	AGC	Auto / Manual
	White balance	Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
	Digital noise Reduction	DNR, 3DNR
Network	Video Compression	H.265/H.264 Main Profile/M-JPEG
	Max Image Size	2592x1944@15fps / 2304x1296@30fps. / 2592x1520@22fps
	Streams	Triple streams
	Frame Rate	Main stream:
		2592x1944@15fps / 2304x1296@30fps. / 2592x1520@22fps
		Sub-stream:
		480640, 1-25(30)fps; 480 360 1-25(30fps 352288, 1-25(30)fps; 176144, 1-25(30)fps
		MJPEG:
		19201080, 1280720, Close
	Bitrate	CBR/VBR, bitrate; 32Kbps~10Mbps variable
	Audio Compression	G711, PCM
	P2P	Android / IOS
	Protocols	TCP/IP,HTTP, NTP,IGMP, DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,P2P
	Motion detect	Support
	Onvif	Onvif 2.4
PTZ	CPU Type	32 bit ARM CPU
	Pan Range	0° ~220°
	Tilt Range	UP -45° ~Down 40°
	Manual Control Speed	25°/s
	Preset points	220
	Tour	3
	AB scan range	Any point in range:-45º~40º and 0º~200º
	AB scan speed	1-9 grades
	Intelligent power off real time memory	automatic save functions setting , automatic wake up tour function
	Manual continued Auto Scan	Non-limited position of manual continued Auto scan
	POE	Support optional
General Parameters	Power Supply	DC12V/PoE 25W
	Operation Temperature	-40ºC~+60ºC
	Operation Humidity	Less than 95%RH(no condensation)
	Weather Proof Rating	IP66
	Installation	Equipped With Bracket
	Lightning Protection	Transient voltage 6000V
	Consumption	≤15W
