China 5.8km IR Night Marine Binoculars for Border and Coastal Safety

Product Description

Introduction:

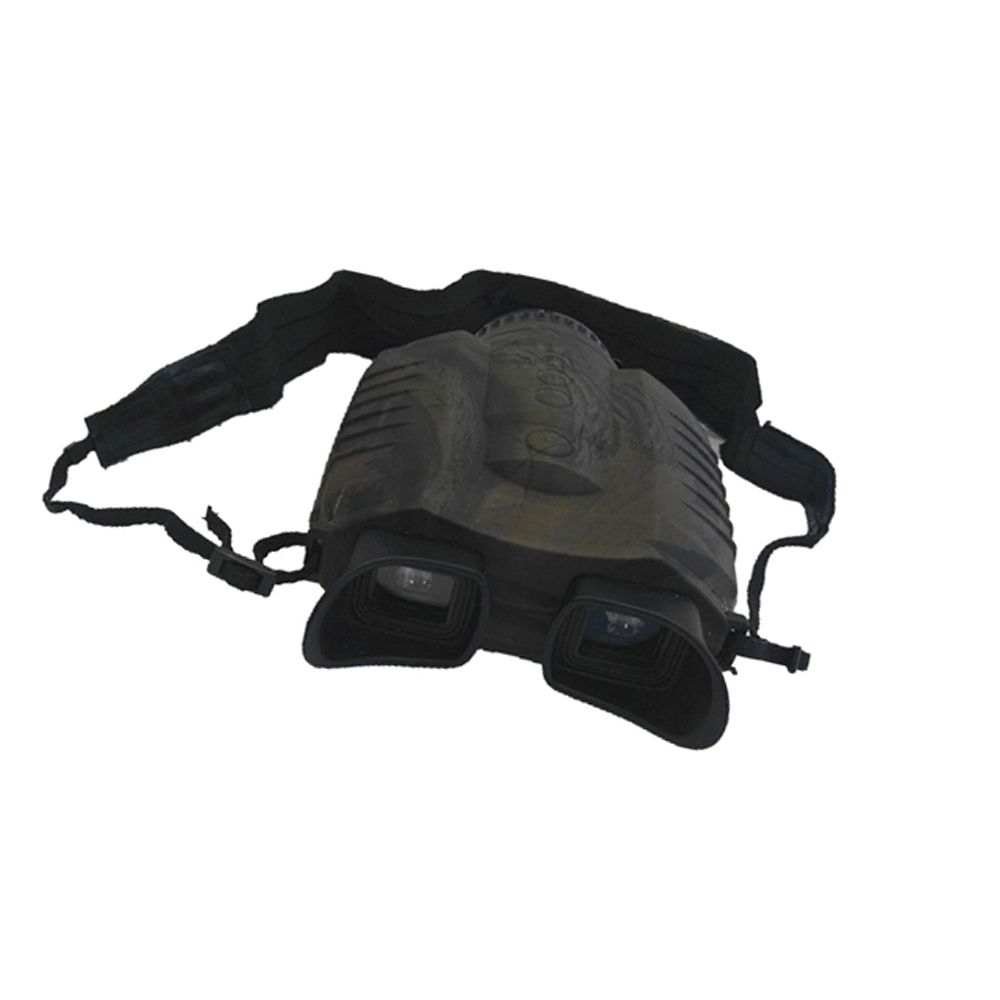

MTC portable thermal camera is specially designed for mobile observation. With the latest the 5th generation uncooled infrared technology, unique imaging circuit components and AS optical design, it could search and observe object effectively in 5km. It has own unique advantages, like low weight, low consumption. This camera is equipped with a high-quality rubber soft cover as per human hands design, that suit both portable and fixed observation, for night collecting evidence, search targets. One integral aluminum alloy housing and sealed with nitrogen, IP66 protection to enable the camera works well in severe weather conditions.

Application:
Border and coastal safety, city monitoring, oilfield safety, railway monitoring, night gathering evidence etc.

5.8km IR Night Marine Binoculars for Border and Coastal Safety

Features:
1. 5^th generation uncooled thermal sensor, decrease the size, weight and cost.
2. Aluminum alloy housing, weatherproof rate IP65, anti-rain, anti-dust.
3. NETD up to 50mk, higher sensitivity, little effect by rain, fog, and snow, obtain more delicate picture.
4. Unique AS optical design and high precision optical mechanical design, excellent image quality.
5. Excellent non-uniform image correct technology, good image and dynamic range, without TEC thermostatic control.
6. SDE image detail enhancement technology, no noise, B/W and B/W inverse color mode.

Model	CQ-MTC41C07R
Detection	Vehicle 5800m Human 2000m
Identification	Vehicle 1460m Human 600m
Sensor	5^th generation UFPA
Resolution	336*256
Wave length	7.5~14 um
Digital zoom	2x; 4x

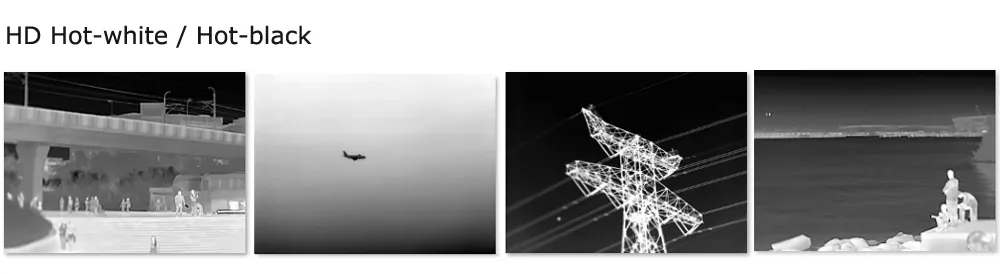

Color mode	Hot-white / Hot-black
Lens	75mm, F1.0
FOV	5.4°*4.1°
Eyepiece display	640*480, LCOS binocular display with eyeshade, high hidden
Image storage/video	4G memory card, 1000 photos in JPEG format, video for 3.5 hours in AVI format, USB export
ECO mode	Auto
Operation	Four buttons, two at each side
Battery parameter	Operation voltage DC: +2.6V - 5.5V;
	Power consumption < 2.8W (video time)
	2x lithium battery, 25500, 3000 mAh
	Continuous working time : >5 hour at no record, >3.5 hours at record.
	Using life > 500 times,charge/ discharge cycles
Starting time	<3s
Interface	Video output
Weatherproof	IP66
Humidity	5%~95%(non-condensing)
Storage temperature	-40°C ~ +70°C
Operation temp.	-20°C ~ +60°C
Weight	<1.5kg (included battery)
Dimensions	170 (L) * 168 (L) * 76 (L) mm
Accessories	Video cable, lens cap, rubber covert, charger, lithium battery, suitcase
* Note: the detection distance is related to temperature tolerance of objet and environment, atmospheric transmissivity etc.
