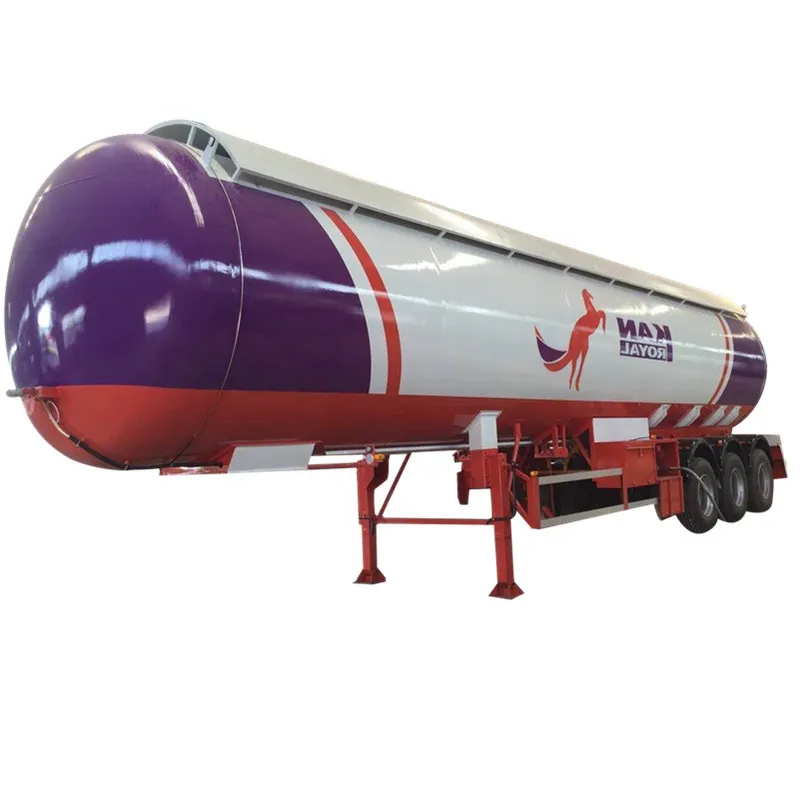

Heavy Duty 3 Axles Anhydrous Ammonia LPG Transport Tank Trailer Carriy 24ton
Heavy Duty 3 Axles Anhydrous Ammonia LPG Transport Tank Trailer Carriy 24Ton Trailer produce LPG Tanker Trailer between 20 Cbm to 60 bm with hydrostatic test and BV ASME SGS Inspection as per customer requests.Images of LPG Tanker Trailer 45.2m3 Anhydrous Ammonia Semi TrailerKerb weight14400kgP......
Send Inquiry
Product Description
Heavy Duty 3 Axles Anhydrous Ammonia LPG Transport Tank Trailer Carriy 24Ton
Trailer produce LPG Tanker Trailer between 20 Cbm to 60 bm with hydrostatic test and BV ASME SGS Inspection as per customer requests.

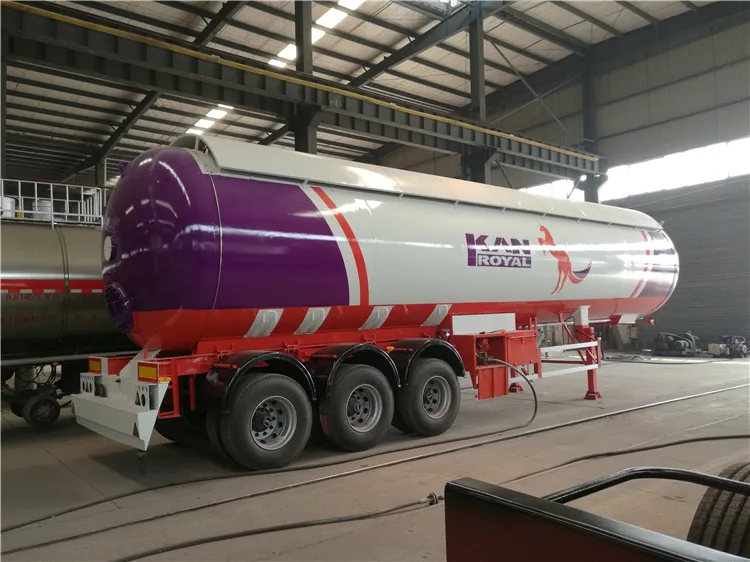

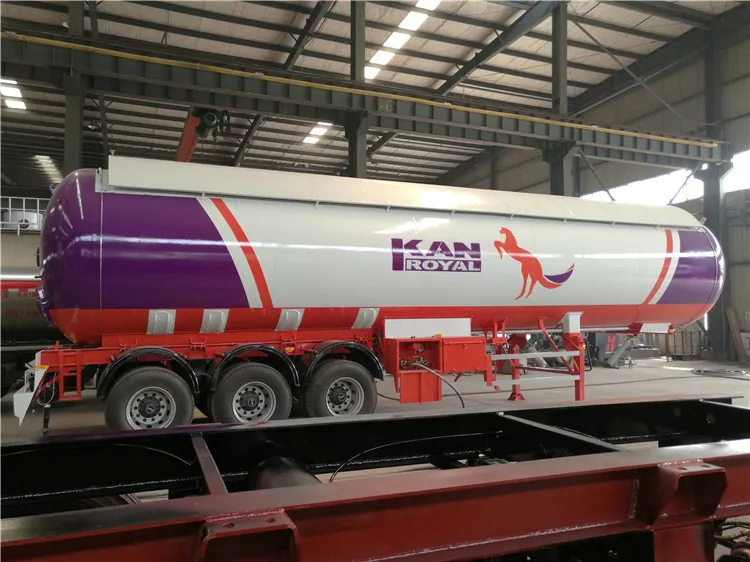

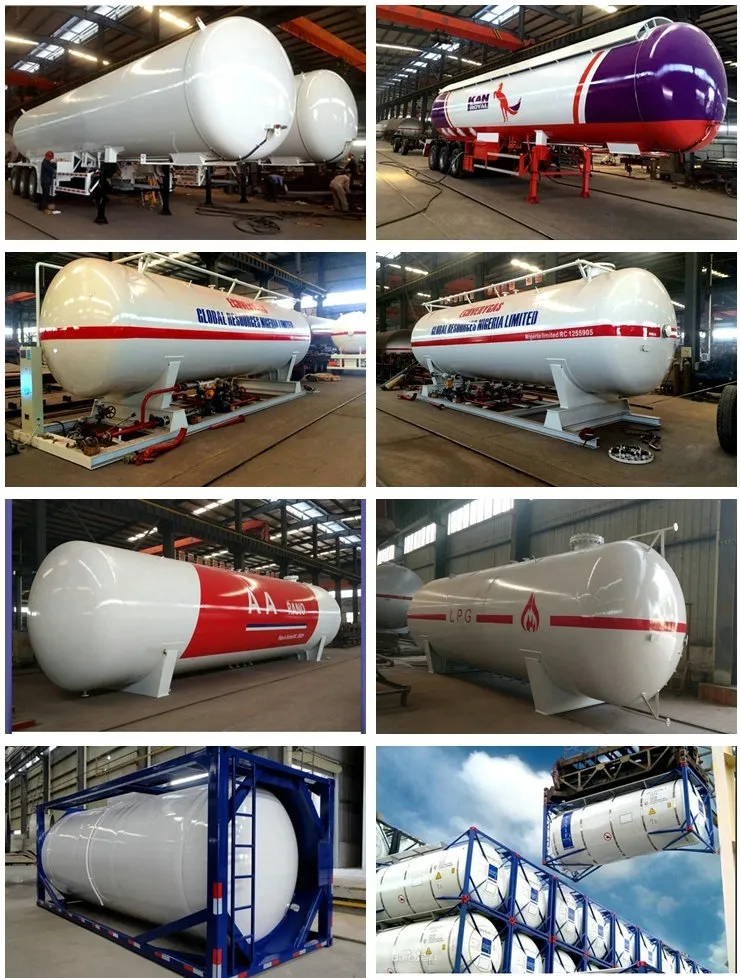

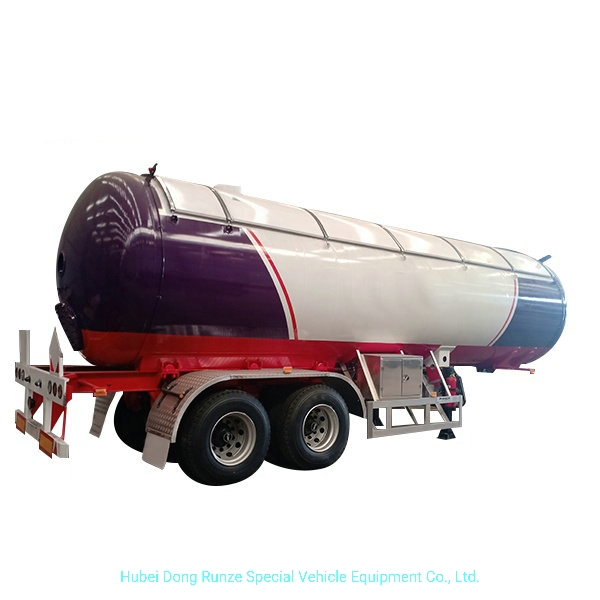

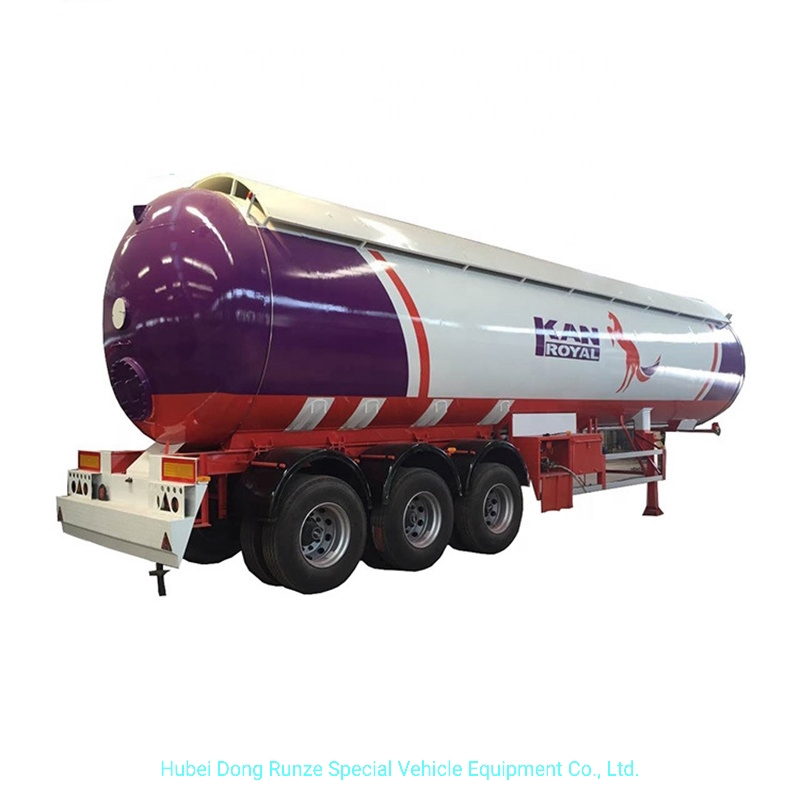

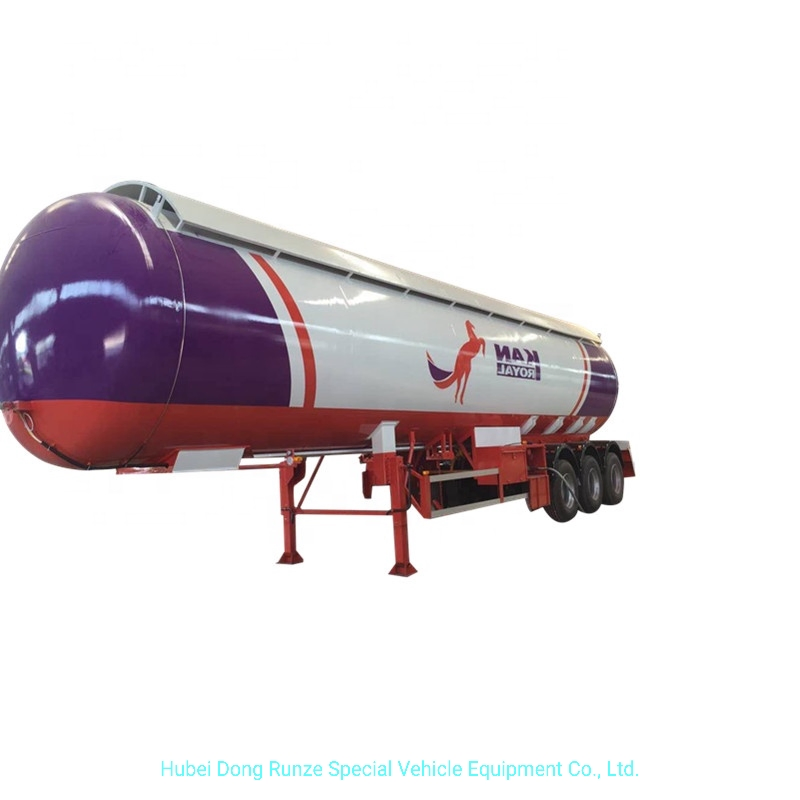

Images of LPG Tanker Trailer
↵
45.2m3 Anhydrous Ammonia Semi Trailer | ||
Kerb weight | 14400kg | |
Payload | 23950kg | |
Gross weight | 38350 kg | |
Full load | Kingpin | 15282kg |
Rear axle load | 23068kg | |
Design Pressure | 1.91 MPa | |
Water capacity | 45.2 m³ | |
Desgin Temperature | 50 ºC | |
External Dimension (LengthxWidthxHeight) | 12400x2490x3980mm | |
Tank | |
Filling medium | anhydrous ammonia |
Filling weight per volume | 0.53t/m3 |
Welding efficiency | 1.0 |
Tank material | Q370R(Normalizing) |
Corrosion Allowance | 2.0 mm |
Air test pressure | 1.91 MPa |
25Ton Cooking Gas Tank Trailer (1.61Mpa Pressure Vessel LPG Road Tanker)
Industrial Gas Tank Trailers for Sale - NGL/LPG/NH3
Tri-axle LPG Transport Tank Trailer 25 tons (Gas Propane , Isobutane, Dimethyl Ether Road Tanker LPG Bobtail Truck) 3 FUWA / BPW Axles LPG Tank Trailers
LPG Tank Trailer Bobtail Truck Transport 30- 60 m3 Butane Propane Cooking Gas
LPG Tank Trailer Bobtail Truck Transport 30- 60 m3 Butane Propane Cooking Gas
LPG Bowser Tanker (1.61Mpa Pressure Vessel Tank)
Liquefied Petroleum Gas Propane , Isobutane, Dimethyl Ether
Liquefied Petroleum Gas Propane , Isobutane, Dimethyl Ether
Industrial Gas Tank Trailers Bowser
tank transport trailers for carrying Natural Gas Liquids (NGL), Liquefied Petroleum Gas (LPG), Ammonia (NH3), Compressed Hydrogen, and other industrial gases and liquids
| Product No.: | Overall dimension (mm) | Capacity (cbm) | Medium | Design pressure | Material |
| 9310GYQ | 11324*2500*3730 | 40.5 | Propane | 1.61mpa | Q345R |
| 9390GYQ | 12700*2500*3975 | 56 | Propane | 1.61mpa | Q370R |
| 9400GYQA | 13000*2500*3990 | 59.52 | Propane | 1.61mpa | Q370R |
| 9402GYQA | 12050*2490*3880 | 57.1 | Propene | 1.95mpa | Q370R |
| 9403GYQ | 12500*2500*3990 | 47.58 | Dimethyl Ether | 1.15mpa | Q345R |
| 9405GYQA | 12500*2500*3990 | 49 | Liquid Ammonia | 1.91mpa | Q370R |
| 9406GYQ | 12640*2490*3980 | 56 | Isobutane | 0.70mpa | Q345R |
| 9409GYQ | 12900*2500*3977 | 58.5 | Propane | 1.61mpa | Q345R |
| 10945*2480*3670 | 23.97 | Silfur Dioxide | 0.73mpa | Q345R | |
| 12000*2500*3970 | 52.6 | Butadiene | 0.7mpa | Q345R |
3 Axle Tank Semi Trailer for LPG/Propane /Dme/ Isobutane
Gas / LPG Tank semi-trailers - Semi tank trailer
| Item 9401GYQ | Unit | Parameter | |
| Product name | 3 axle semi-trailer | ||
| Practical capacity | M3 | 59.05 | |
| Gross weight | kg | 40000 | |
| Curb weight | 15200 | ||
| rated loading capacity | 24800-30000kg | ||
| Overall dimension | mm | 12965 * 2500 * 3990 | |
| Axle | 3 | ||
| Wheelbase | 7970 +1310 +1310 | ||
| Tread | Front tread | - | |
| Rear tread | 1840/1840/1840 | ||
| Front/rear suspension | mm | -/1450 | |
| Leaf spring | -/8/8/8 , -/10/10/10 | ||
| Fifth wheel max loading | kg | 16000 | |
| Tyre specification | 12 | 12R22.5 /11.00R20 | |
| Exclusive configuration | Tank material | Q345R | |
| Standard configuration | 13T axle, safety valve,single fluid two valve box.hydraulic legs,traction pin,liquid Indicator,pressure gauge,temperature gauge,emergency cut-off valve,valve box,fire suppression bottle,spark hider cover,anti static grounding tape,protective guard,tyre protective shield. | ||
| Other | Filling Medium:propane;design pressure 1.77Mpa,design temperature 50°C,filling ratio:0.42t/m3,corrosion allowance:1mm;dimension of tank:12850×2496mm . | ||
| Standard configuration | GB150-1998<Steel pressure vessels>,Supervision regulation on safety technology for pressure vessel,Supervision regulation on safety technology for Liquefy gas tank truck. | ||
| Shanghai price | |||
LPG TANKER TRAILERS FOR SALE
| Tank Body | Maximum Work Pressure Mpa | 1.61 | |
| Design Pressure Mpa | 1.61 | ||
| Design Temperature ºC | -40 to 50 | ||
| Loading weight per unit capacity kg/L | 0.42 | ||
| Capacity m3 | 59.05 | ||
| Loading medium | LPG | ||
| Medium characteristics | Moderate Harm | ||
| Body material | shell mm | Q345R | |
| head mm | Q345R | ||
| Corrosion allowance | shell mm | 2 | |
| head mm | 2 | ||
| Negative deviation ofthickness | shell mm | 0 | |
| head mm | 0.3 | ||
| Welded joint coefficient | 1 | ||
| hydraulic test pressure Mpa | 2.1 | ||
| Design service life | 15 years | ||
| Heating method | Integrally annealing | ||
| Safety Valve | Type | Built-in spring full-open type | |
| Specification | PN4.0 DN50 | ||
| Set pressure Mpa | 2.13 | ||
| Liquid Level Meter | Type | Floating ball rotation | |
| Range m | 0~2.38 | ||
| Nominal presure Mpa | |||
| Pressure Gauge | Dial diameter mm | ≥100 | |
| TIRES | 12R22.5 12PR | 12pcs | |
| Filling Medium | Liquefied Petroleum Gas (propane) |
| Medium Density | 420-590 kg/ cbm |
| Design Temperature(ºC) | Under 50ºC |
| Water Pressure Test(MPa) | 2.1 Mpa / 21 Bar |
| Design Pressure(MPa) | 1.61 Mpa / 16.1 Bar |
| Corrosion Allowance(mm) | 1mm |
| Material of Main Parts | Tanker body: Q345,12mm, |
| Tanker End plate:Q345R,12mm | |
| Main beam:16Mn | |
| Heat Treatment | Overall treatment in a furnace,600ºC to 640 ºC |
| Flaw Detection | 100% Flaw detection with X-ray |
| Manhole (Size as Customer's Requirement) | |
| Quantity | 1xDN450mm on top |
| Safety Valve(As Customer's Requirement) | |
| Quantity | 1 piece |
| Location | On the top of tanker |
| Size | DN100 |
| Level Gauge | |
| Type | Hand Rotation Level Gauge |
| Location | At the rear of the end plate |
| Wheeling System | |
| Axles | 3*13Ton FUWA Brand |
| Leaf Spring | 10-piece, 6 sets |
| Suspension | Heavy Duty Mechanical Suspension |
| Tire | 12R22.5 Tubeless tire, 13 including one spare tire |
| Landing leg | JOST Brand |
| King Pin | JOST Brand 2" |
| Pneumatic Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks. |
| Safety Control System | |
| Emergency Cut-off Valves | 2 pcs, DN25×1 for gas phase,DN50×1 for liquid phase |
| Ball Valve | 4 pcs,DN25×2 for gas phase,DN50×2 for liquid phase |
| Liquid Gauge | 1 piece |
| Thermometer | 2 piece |
| Pressure Gage | 2 piece |
| Accessories | |
| Small Tool Box | 1 piece |
| Wheel Carrier | 2 pcs |
| Fire Extinguisher | 4 pcs |
| Mud Guard | 6 pcs |
| Tanker Paint | Color or Logo painted as requirement |
| Model | 9400GYQ | Liquid Ammonia Tank semi trailer | |
| Items | Data | ||
| Transport Semi-Trailer | Curb Weight | ~15510kg/ air suspension ~16080 kg/spring suspension | |
| Rated Loading Weight | 23900kg;24750kg;25000kg | ||
| Maximum Gross Weight | ~40000kg | ||
| Front Fitting Radius mm | 1710mm | ||
| Interstice Radius mm | 2300mm | ||
| Wheel Base mm | 5290+1310+1310; 6020+1310+1310; 6200+1310+1310; 6940+1310+1310 | ||
| Minimum Ground Clearance mm | 320mm-540mm | ||
| Water Pressure Mpa | 2.49Mpa | ||
| Airtight Test Pressure Mpa | 1.91Mpa | ||
| Stroke Of Support Unit mm | 483mm | ||
| King Pin Diameter Mm | φ50 ; φ90; | ||
| Dimension(L×W×H) mm | 11845x2500x3850; 11505 ×2500 × 3940; 12606 × 2500 × 3750 ; 12000×2500×3900mm | ||
| Tank Body | Maximum Work Pressure Mpa | 1.91 | |
| Design Pressure Mpa | 1.91 | ||
| Design Temperature ºC | -19ºC to 50ºC | ||
| Loading weight per unit capacity kg/L | 0.52-0.53 ( 530kg/m3) | ||
| Tank Capacity m3 | 46M3; 46.7M3; | ||
| Loading Medium | Liquid Ammonia | ||
| Medium Characteristics | Moderate Harm | ||
| Body Material | Shell mm | Q345R 13.95~14mm | |
| Head mm | Q345R 13.92~14mm | ||
| Corrosion Allowance | Shell mm | 2 | |
| Head mm | 2 | ||
| Negative Deviation Of Thickness | Shell mm | 0 | |
| Head mm | 0.3 | ||
| Welded Joint Coefficient | 1 | ||
| Hydraulic Test Pressure Mpa | 2.49 | ||
| Design Service Life | 15 Years | ||
| Heating Method | Integrally Annealing | ||
| Safety Valve | Type | Built-In Spring Full-Open Type | |
| Specification | DN80 | ||
| Set Pressure Mpa | 2.13 | ||
| Liquid Level Meter | Type | Floating Ball Rotation | |
| Range m | 0~2.38 | ||
| Nominal Presure Mpa | |||
| Pressure Gauge | Dial Diameter mm | ≥100 | |
| Accuracy | Level 1.6 | ||
| Range Mpa | 0~4.0 | ||
| 1. Manhole Quantity One Dimensions 450mm Id DN450 Specification Q345R ; Bolted Type (24 x M24) Gasket PTFE 2. Safety Relief Valve Assembly Quantity One DN80 Gasket PTFE Location Top Of The Tank. 3. Gas Line Dimensions DN 25 Gasket PTFE 4. Liquid Line Dimensions DN 50 (2") Gasket PTFE | |||

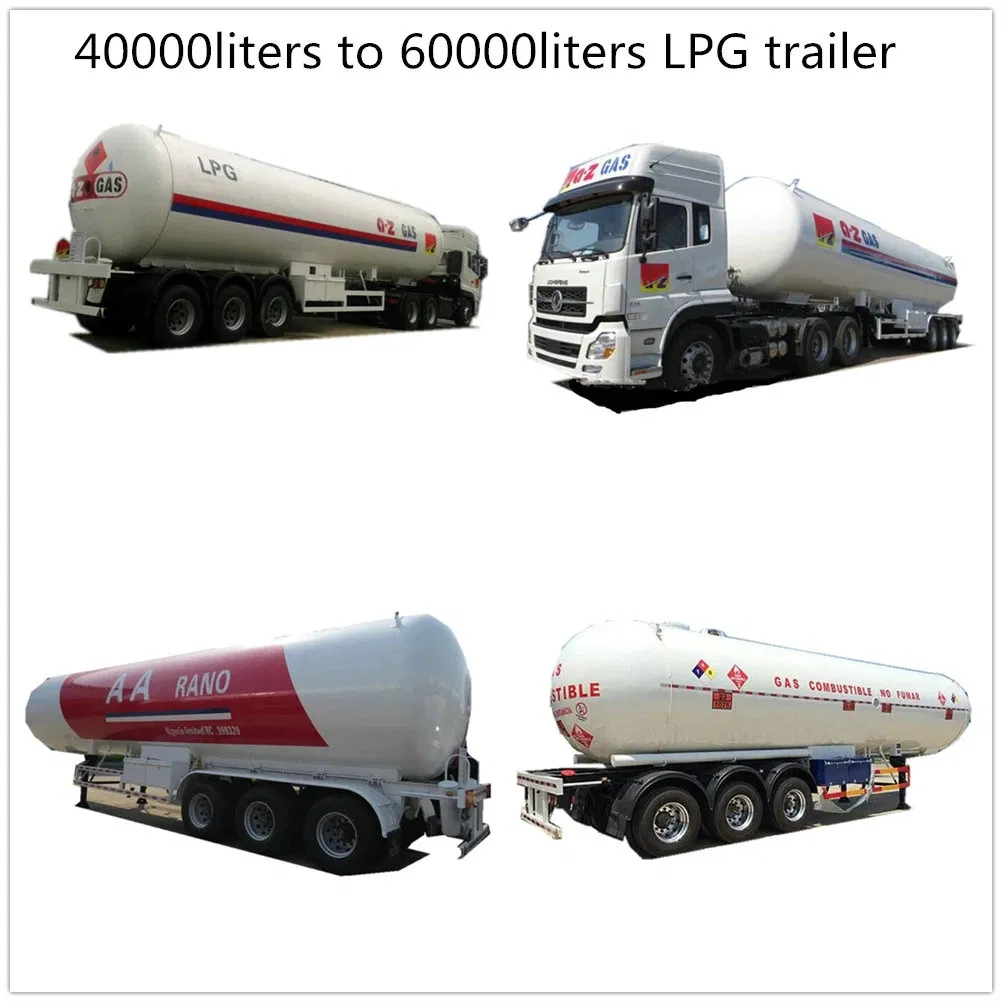

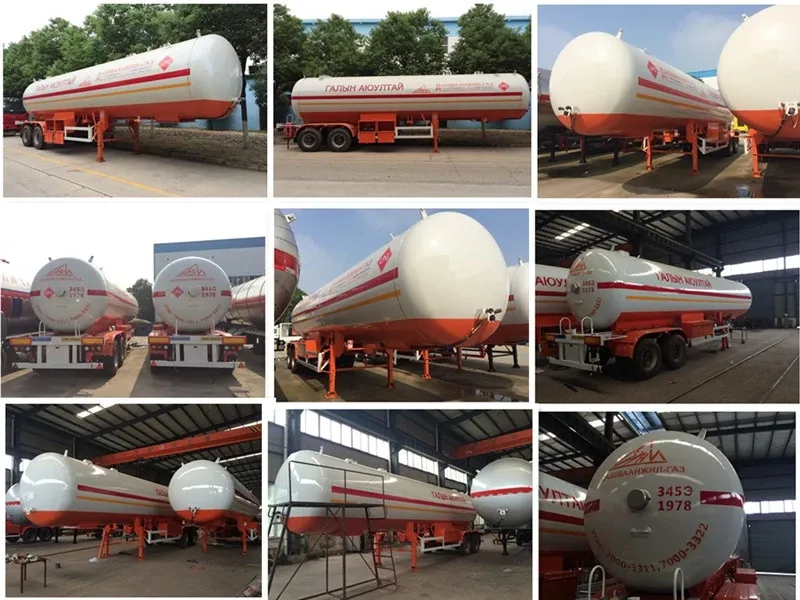

Images of LPG Gas Tanker Trailer
| SPECIFICATIONS | ||||
| Standard in China | ||||
| 1 | pressure vessels | |||
| 2 | GB/T19905-2005 Liquefied gas truck | |||
| 3 | Movable Pressure vessel safety technology and inspection procedures | |||
| 4 | ||||
| Tanker Essential Information | ||||
| 1 | Dimensions(length*width*height) | 12982*2500*3990(mm) | ||
| 2 | Estimated Tare Weight | 16396KG | ||
| 3 | Payload | 23604KG | ||
| 4 | Total Weight | 40000KG | ||
| Shell Of Tanker | ||||
| 1 | Products | LPG , Propane | ||
| 2 | Fluid property | Flammable | ||
| 3 | Design temperature | to 50ºC | ||
| 4 | Design pressure | 1.61MPa | ||
| 5 | Corrosion allowance | 1.0mm | ||
| 6 | weld joint factor | 1.0 | ||
| 7 | Major materials of bearing pressure | Tanker body : Q345R , 12mm GB713 | ||
| End plate : Q345R , 14mm GB713 | ||||
| Main Beam : AG700(Non-bearing pressure material) | ||||
| 16MnIIINB/T47008 | ||||
| 8 | Filling weight per volume | |||
| 9 | Maximum filling weight | |||
| 10 | Compartments | ONE | ||
| 11 | Shape | Round(elliptica) | ||
| Detection | ||||
| 1 | Heat treatment | Overall heat treatment in a furnace , 600ºC to 640ºC | ||
| 2 | Flaw detection | 100% Flaw detection | ||
| 3 | Test PRESSURE | 1.61MPa | ||
| 4 | hydraulic test | 2.1MPa | ||
| 5 | Magnaflux | Aim at welding place flaw detection can not cover | ||
| Manhole (As customer's requirement ) (DN450) | ||||
| 1 | Quantity | 1 ; On top | ||
| Safety Valve (As customer's requirement ) | ||||
| 1 | Quantity | One | ||
| 2 | Location | On the top of tanker ; | ||
| 3 | Size | A412F-25-22 DN100 or as custom requirement | ||
| LEVEL G UAG E(As customer's requirement ) ZGM 2.47/2.5 | ||||
| 1 | Quantity and Model | |||
| 2 | Location | On bottom of tanker | ||
| 3 | Size | As customer's requirement | ||
| Valve and pipe Detail (As customer's requirement ) | ||||
| Running System | ||||
| 1 | Axles | 3 | 13 TON FUWA Axles 1 | |
| 2 | Suspension system | 1 | FUWA leaf spring suspension 13*90*10 | |
| 3 | Wheel rim | 12 | 9.0*22.5 | |
| 4 | Tyre | 12 | Brand : Triangle,12R22.5 | |
| 5 | Kingpin | 1 | 3.5",bolt on ,in rubbing plate,fabricated | |
| 6 | Landing legs | 2 | JOST D200 single linkage, Gear type ,28T | |

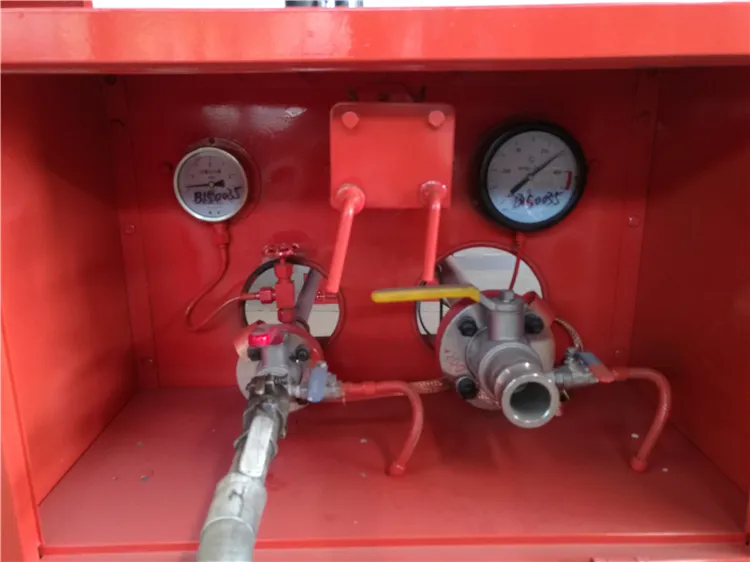

| Control System | ||||
| 1 | Emergency Cut-off Valves | 4 | Gas phase QGJ43F-25-8 liquid phase QGJ43F-25-7 | |
| 2 | Ball Valve | 4 | Gas phase Q41F-25P-9 liquid phase Q41F-25P-8 | |
| 3 | operating mode | 2 | Mechanical | |
| 4 | Liquid gauge | 1 | ZGM 2.47/2.5 | |
| 5 | Pressure indicating thermometers | 2 | WTQ-280 -40-80ºC level 1.5 | |
| 6 | · pressure gage | 2 | YTN-100T 0-4MPa level 1.6 | |
| Pneumatic Brake System | ||||
| 1 | Spring brake chamber | 6 | FUWA | |
| 2 | Air connector | 2 | FUWA | |
| 3 | Relay Valve | 1 | A412F-25-22 DN100 1.72MPa | |
| 4 | ABS | 1 | ABS | |
| Electronical System | ||||
| 1 | 7-Pin Socket | 1 | 24V 7-pin socket | |
| 2 | LED Lamp | 1 | All kinds of lamp | |
| 3 | Cable | 1 | Stander cable | |
| Accessories | ||||
| 1 | Small Tool box | 1 | ||
| 2 | Wheel carrier | 2 | ||
| 3 | Fire extinguisher | 2 | 8kg With red box | |
| 4 | Cabinet | 2 | ||
| 5 | Steel fender | 6 | ||
| 6 | Static conductive belt | 1 | C shape | |
| 7 | Impeller blasting | 1 | Completely | |
| 8 | Paint | 1 | As customer requirements | |
| TERMS | ||||
| 1 | Payment terms: 30%TT in advance,the balance should be paid before shipment.Or L/C at sight.(BY T/T or L/C) | |||
| 2 | Terms of delivery: in 40 days after the seller received 30% advance payment (try deliver the goods as soon as possible) | |||
| 3 | PORT:Tianjin or Qingdao or Shanghai | |||
| 4 | MOQ: one unit | |||
SPECIFICATIONS
I. ASME Code | ||||||
Capacity | 38.3m³ | 46m³ (with pump) ** | 47.5m³ | 55m³ | 58m³ | 60m³ (with pump) ** |
*Max. Payload | 18000kg (19.15 t) | 21300kg (23 t) | 23000kg (23.75 t) | 25710kg (27.5 t) | 26130kg (29 t) | 25500kg (30 t) |
Kerb Weight | 11900kg | 16900kg | 14000kg | 16790kg | 17300kg | 22150kg |
Gross Vehicle Weight | 29900kg | 38200kg | 37000kg | 42500kg | 43430kg | 47650kg |
Outline Dimension | L:10470mm W:2550mm H:3920mm | L:13152mm W:2500mm H:3850mm | L:13137mm W:2500mm H:3850mm | L:14297mm W:2500mm H:4000mm | L:13238mm W:2640mm H:4050mm | L:13052mm W:2550mm H:4000mm |
Design Pressure | 1.724 MPa | 2.26 MPa | 1.724MPa | 1.724MPa | 1.724MPa | 2.5MPa |
MAWP | 1.724 MPa at 51.7ºC | 2.26 MPa at 70ºC | 1.724MPa | - | 1.724MPa | 2.5MPa |
Design Temperature | 51.7ºC | 70ºC | -23.3/51.7ºC | 50ºC | -23.3/51.7ºC | -40/+70ºC |
Corrosion Allowance | 0mm | 2mm | 0mm | 0mm | 0mm | 1mm |
Material of Shell | SA-612M(N) | SA-537M | SA-612M(N) | SA-612M(N) | SA-612M(N) | SA-612 |
Material of Head | SA-612M(N) | SA-537M | SA-612M(N) | SA-612M(N) | SA-612M(N) | SA-612 |
Thickness of Shell | 12.5mm | 15mm | 12mm | 12.5mm | 14mm | 16mm |
Thickness of Head | 8mm | 10mm | 8mm | 8mm | 8mm | 16mm |
Test Pressure (Hydraulic Horizontal) | 2.25MPa | 3.4MPa | 2.24MPa | 2.25MPa | 2.25MPa | 3.58MPa |
Air Test Pressure | 1.724MPa | 2.26MPa | 1.724MPa | 1.724MPa | 1.724MPa | - |
*Please note that different medium component will cause different density and different payload. ** CIMC Hongtu is able to supply you LPG trailer with pump, the reference photos can be viewed hereinafter. ***Please contact for more different kinds of capacity and standard tanks. | ||||||
II. China GB Standard | |||||
Volume | 36m³ | 46m³ | 52m³ | 58.1m³ | 61.9m³ |
*Max. Payload | 15120kg (18 t) | 19320kg (23 t) | 25506kg (26 t) | 26915kg (29.05 t) | 26000kg (30.05 t) |
Kerb Weight | 11880kg | 14680kg | 13374kg | 15000kg | 14000kg |
Gross Vehicle Weight | 27000kg | 34000kg | 38800kg | 41915kg | 40000kg |
Outline Dimension | L:9400mm W:2500mm H:3900mm | L:10360mm W:2500mm H:3990mm | L:12000mm W:2500mm H:3990mm | L:13150mm W:2500mm H:4100mm | L:13590mm W:2550mm H:4000mm |
Design Pressure | 1.61MPa | 1.61MPa | 1.77MPa | 1.72/-0.1MPa | 1.61/-0.04MPa |
Design Temperature | -20/50ºC | -20/50ºC | -20/50ºC | -20/50ºC | -40/50ºC |
Corrosion Allowance | 1mm | 1mm | 1mm | 1mm | 1mm |
Material of Shell | Q370R(N) | Q370R(N) | Q420R (WH590D) | Q370R(N) | WH590E(N) |
Material of Head | Q370R(N) | Q370R(N) | Q420R (WH590D) | Q370R(N) | 16MnDR(N) |
Thickness of Shell | 12mm | 13mm | 11mm | 12mm | 10mm |
Thickness of Head | 11mm | 12mm | 10mm | 8mm | 8mm |
Test Pressure (Hydraulic Horizontal) | 2.1MPa | 2.1MPa | 2.7MPa | 2.24MPa | 2.1MPa |
Air Test Pressure | 1.61MPa | 1.61MPa | 1.77MPa | 1.72MPa | 1.61MPa |
*Please note that different medium component will cause different density and different payload. ** CIMC Hongtu is able to supply you LPG trailer with pump, the reference photos can be viewed hereinafter. ***Please contact for more different kinds of capacity and standard tanks. | |||||
III. European Standard ADR | |
Design Code | EN12493:2013+A1:2014 |
Volume | 60m³ |
Max. Payload | 25200kg |
Kerb Weight | 14800kg |
Gross Vehicle Weight | 40000kg |
Outline Dimension LengthxWidthxHeight | 13115x2550x4000 mm |
Wheel Base | 7900+1320+1320 |
Design Pressure | 2.1/-0.04 MPa |
Maxiumum Working Pressure | 1.62 MPa |
Design Temperature | -20/+50ºC |
Material of Shell | P460NL1 |
Nominal Thickness | 10(Shell)/13(End) mm |
Hydrostatic Pressure Test | 2.10 MPa |
Images of Butane Tanker Trailer
Propane Tank Trailers
56cbm isobutane trailer, 56cbm isobutane trailer
Pressure Vessel Liquid Ammonia Storage Tank 10CBM-100CBM Anhydrous Liquid Ammonia (Liquid NH3)
| Tank | Volume (m³) | loading mass (ton) | standard and configuration | |
| 1 | Liquid ammonia tank | 10 | 5.2 | Execution standard: GB150 "pressure vessel" and "fixed pressure vessel safety technology and supervision code" design pressure: 21.6 design temperature: 50 ° c filling ratio: 0.52 corrosion allowance: material: 2 mm subject Q345R |
| 2 | 20 | 10.4 | ||
| 3 | Liquid ammonia tank | 25 | 13 | |
| 4 | 32 | 16.64 | ||
| 5 | Liquid ammonia tank | 50 | 26 | |
| 6 | 60 | 32.2 | ||
| 7 | Liquid ammonia tank | 80 | 41.6 | |
| 8 | 100 | 46.8 |
Gasoline / Fuel Tank Trailers For Sale
Butane Tank Horizontal Storage 40m3 (Pressure Vessel ) for LPG Gas Propane, Liquid Sulfur Dioxide, Isobutane, Dimethyl Ether
Propane design pressure of 1.77 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.42 T/M3
Design of liquid ammonia pressure of 2.16 MPa design temperature 50 ºC corrosion allowance 2 mm density of 0.52 T/M3
Propane design pressure of 1.77 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.42 T/M3
Propane design pressure of 2.16 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.43 T/M3
Liquid sulfur dioxide design pressure of 0.98 MPa design temperature 50 ºC corrosion allowance 4 mm density of 1.2 T/M3
Gas pressure is 4.1 MPa design temperature 50 ºC corrosion allowance of 1.4 mm
Propane design pressure of 1.77 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.42 T/M3
Isobutane design pressure of 0.79 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.49 T/M3
Dimethyl ether design pressure of 1.15 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.58 T/M3
Design of liquid ammonia pressure of 2.16 MPa design temperature 50 ºC corrosion allowance 2 mm density of 0.52 T/M3
Propane design pressure of 1.77 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.42 T/M3
Propane design pressure of 2.16 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.43 T/M3
Liquid sulfur dioxide design pressure of 0.98 MPa design temperature 50 ºC corrosion allowance 4 mm density of 1.2 T/M3
Gas pressure is 4.1 MPa design temperature 50 ºC corrosion allowance of 1.4 mm
Propane design pressure of 1.77 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.42 T/M3
Isobutane design pressure of 0.79 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.49 T/M3
Dimethyl ether design pressure of 1.15 MPa design temperature 50 ºC corrosion allowance 1 mm density of 0.58 T/M3
Gas / LPG Tank semi-trailers - Semi tank trailer
LPG TANKER TRAILERS FOR SALE
Related searches for LPG Tanker trailer
- used lpg tanker trailers
- lpg tanker trailers for sale
- lpg tanker truck
- lpg tanker for sale
- lpg tanker ship
- lpg transport tankers for sale
- propane tanker trailer for sale
- used lpg trailers for sale
- used propane tank transport trailers
- propane tank hauler for sale
- propane tank hauler
- propane tank hauling trailers
- used propane transports for sale
- new propane trailers for sale
- propane tank carriers trailer
- propane tank trailers
- gas tanker truck
- gas tankers for sale
- gas tanker trucks for sale
- gas tanker truck size
Tube Transport Trailer,Tube Transporter Tanker Trailers With Bottom Valves, Bottom Unloading Tanker Trailers, Uploading Tanker Trailers, Top Loading Tanker ,Trailers ,Top Loading Towable Fuel Tank Trailers, Towable Fuel Tank, Mobile Water Tank Trailer, Mobile Fuel Tank Trailer, Water Tanker Tank Trailer ,Tank Trailer, Asphalt Bitumen Tanker Semi Trailer, Liquid Sulfur Freight, Liquid Sulfur Tankers, Liquid Sulfur Transportation, Molten Sulfur Freight, Molten Sulfur Tankers, Molten Sulfur Transportation ,Sulfur-Acid Transportation, 57.000 Lt LPGTanker Semi-Trailers, 3 Axles LPGTanker Semi-Trailers, 2 Axles LPGTanker Semi-Trailers, Liquid Natural Gas Transportation, Gas Transportation ,Compressed Gas Liquid Transportation ,Compressed Natural Gas Transportation ,Compressed Gas Liquid Carriers, Liquefied Gas Carriers, ASME U Stamp LPGTanker Semi-Trailers ,ASME U Stamp LPGTankers, ASME LPGTanker Semi-Trailers ,ASME LPGTanker Trailers, ASME LPGTankers, Adr LPGTanker Semi-Trailers, Adr LPGTanker Trailers ,Adr LPGTankers, Fully Pressurized Tankers, Liqufied Nitrogen Gas Transportation, Liqufied Gas Carrier ,Liquefied Petroleum Gas Tanker Semi-Trailers, Liquefied Petroleum Gas Tanker Trailers, Liquefied Petroleum Gas Tankers, Used LPGTanker Semi Trailers, LPGTanker Trailers ,LPGTanker Semi Trailers, LPGTruck Trailer, LPGTransport Trailer ,New LPGTransport Trailer, Used LPGTanker Trailer, Used Tanker Trailer ,LPGTanker Trailers For Sale, LPGTanker Trucks, LPGTanker Trailer, LPGTanker Semi Trailer, LPGTanker ,LPGTanker Trai
Related Category
Send Inquiry
Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.
