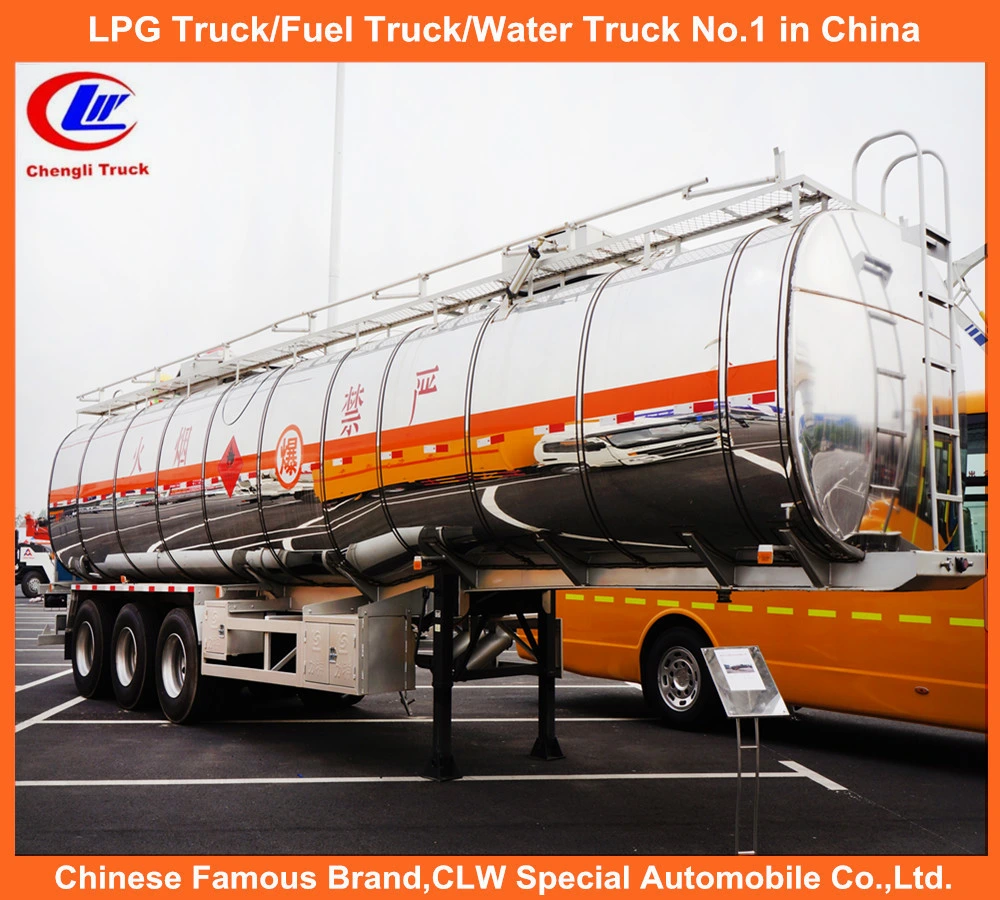

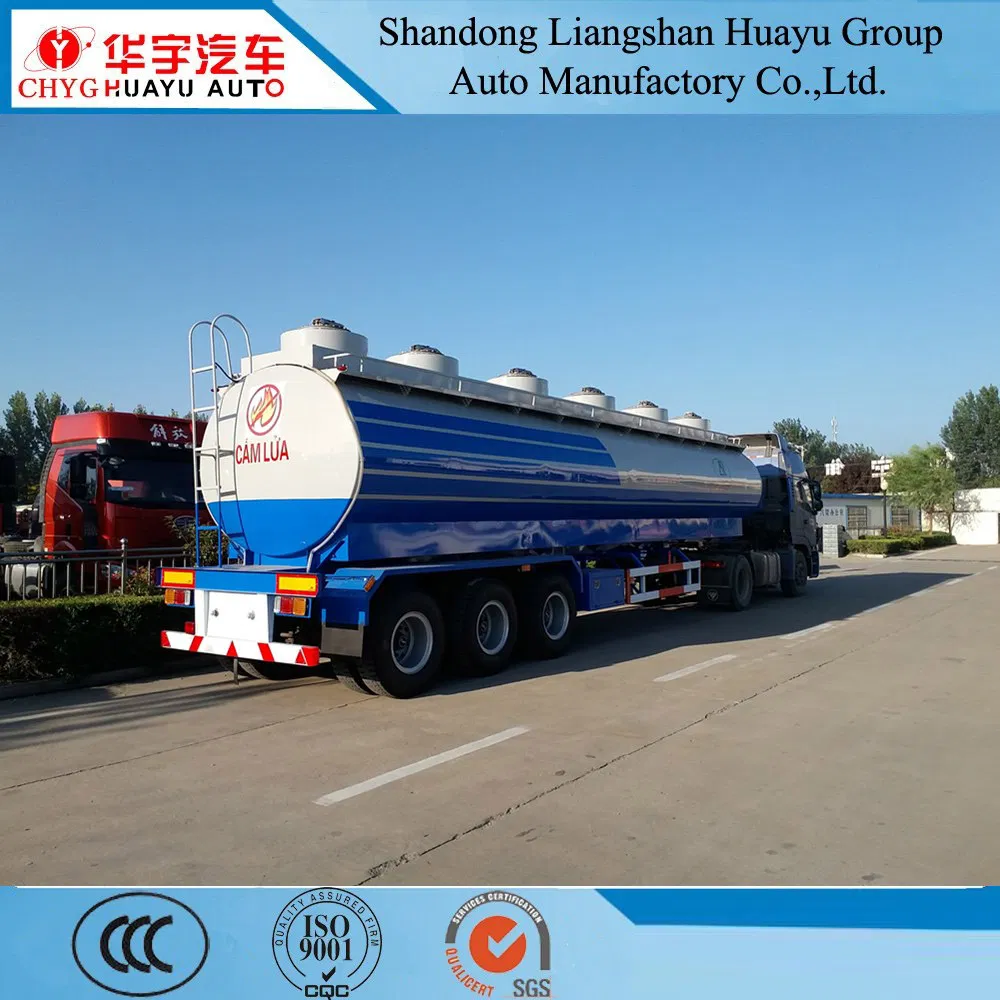

20000L 30000L 40000L 42000L 45000L /2axle/3axle/4axlecarbon Steel/Stainless Steel/Aluminum Alloy Tank/Tanker Semi Trailer for
Tank BodyShapeOptional ( Round or Suare)Dimension11700mm*2490mm*3990mm ( Exact size depends on the final design)Tare weightAbout 6000KGS-10000KGSTotal Volume(m3)25m³-60 m³Tanker Body Material5mm or 6mm/ Q235 carbon steel /aluminum /stainless steelEnd Plate5mm or 6mm /Q235 carbon st......
Send Inquiry
Product Description
Tank Body | |
Shape | Optional ( Round or Suare) |
Dimension | 11700mm*2490mm*3990mm ( Exact size depends on the final design) |
Tare weight | About 6000KGS-10000KGS |
Total Volume(m3) | 25m³-60 m³ |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel |
End Plate | 5mm or 6mm /Q235 carbon steel /aluminum /stainless steel |
Manhole Cover | Cabon steel or Aluminum alloy API manhole cover, 500mm |
Bottom Valve | Aluminum API Pneumatic Bottom Valve |
Discharging Valve | Diameter is 3 or 4 inch |
Compartments | Optional |
Discharging Pipe | 4" rubber hose, 2 pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Weldding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material |
Axle | 3 or 4 axles, BPW/FUWA/HUAJING brand |
Landing Gear | JOST (D200T)or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /air suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber(TKL brand); one piece of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |
