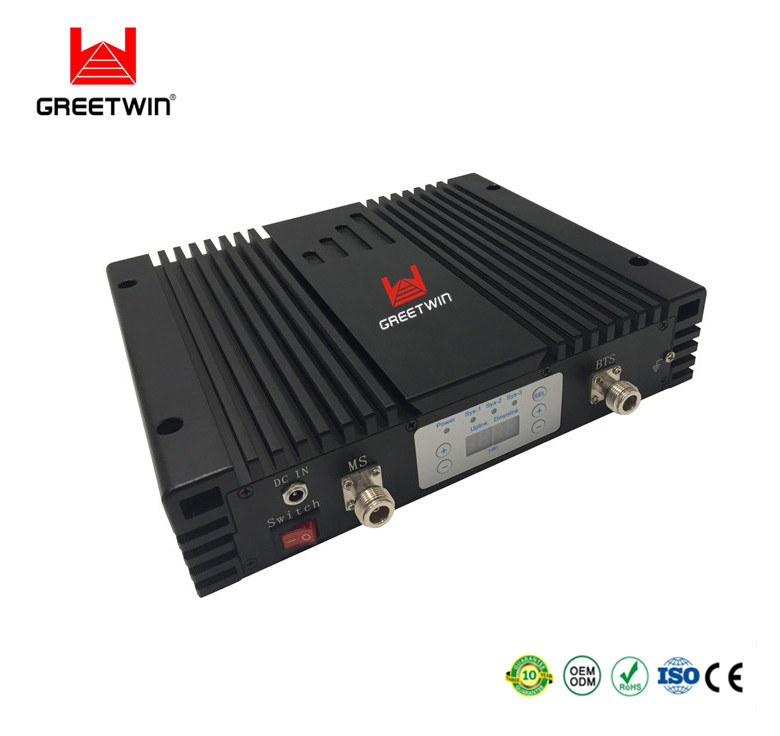

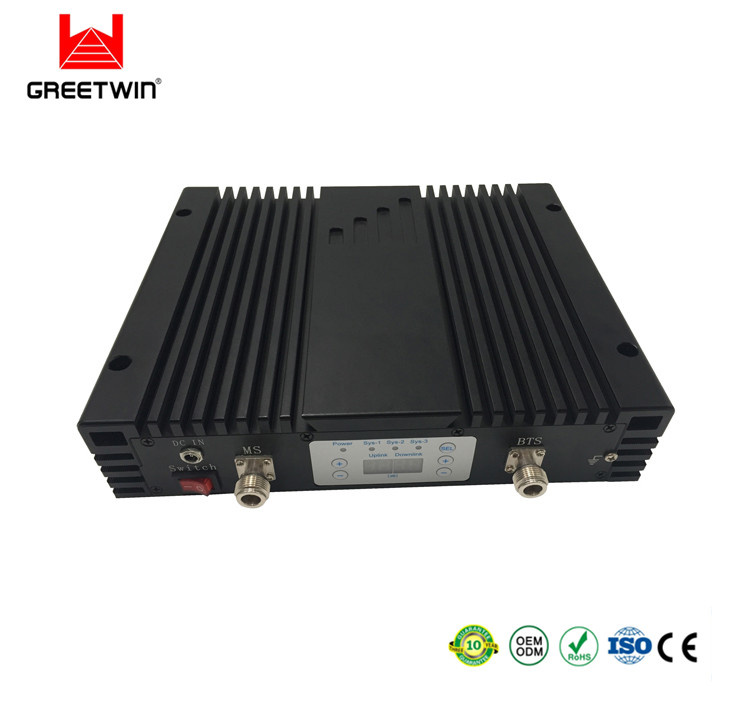

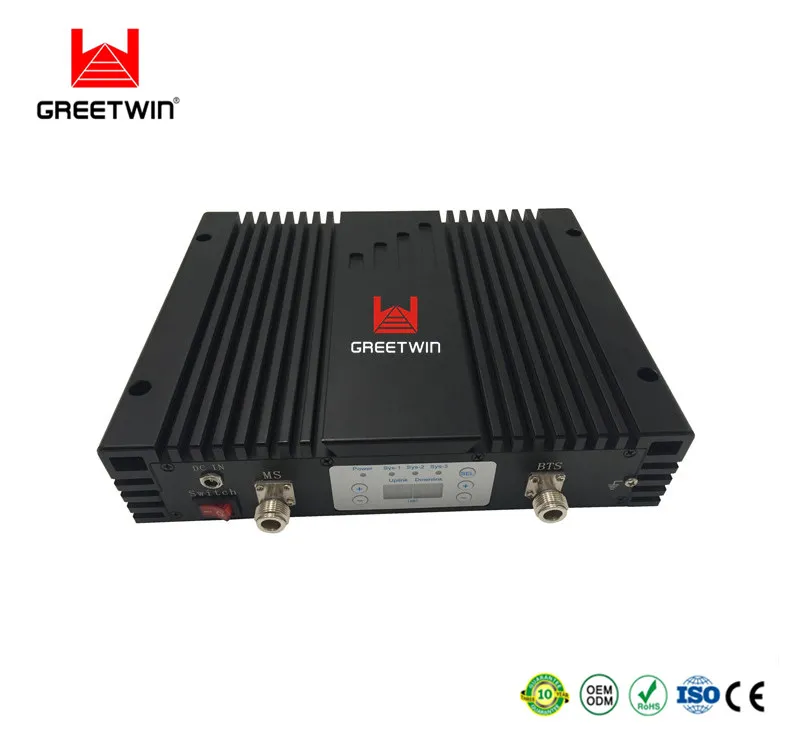

Indoor DCS LTE2600 LTE800& 1800&2600 Mhz 23dBm Cell Phone Signal Booster Triband Amplifier

Model:
GW-20LDL Sample:282.5 USD >20pcs,274.1 USD
GW-23LDL Sample:289.1 USD >20pcs,280.4 USD

Description:

Frequency Range		Uplink	Downlink
LTE800+1800+2600		1710-1785 / 832-862 / 2500-2570MHz	1805-1880/ 791-821 / 2620-2690MHz
Gain		65dB±2dB	70dB±2dB
Output Power		17dBm±2dBm	23dBm±2dBm
Band width		Wide Band
Manual Gain Control		31dB / 1dB Step
ALC		≥ 25dB
Ripple in Band		8dB
Noise Figure		≤ 6dB
VSWR		≤ 2.0
Intermodulation Products		≤ -40dBc
Spurious Emission	9KHz~1GHz	≤ -36dBm/30KHz
	1~12.75GHz	≤ -30dBm/30KHz
Time Delay		≤ 1.5 μs
Frequency stability		≤ 0.01ppm
MTBF		> 50000 hours
Impedance		50Ω

Indoor Tri Band Signal Repeater (Signal Booster) series is an ideal solution for three wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
The signal booster improves mobile signals with no negative impact on human health.

Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
Expansion and extending of the signal of base station.
Optimization of the quality of the signal and source
3. Cover about 500~2000m² without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.

Advantages:
Digital Display Panel, Intelligent mode setting
Smart function called which can be activated via the digital display panel.
Users can choose gain and working system by LCD Digital Panel.
Set the technical parameters simple and efficient, this is easier than DIP Switch.

Standard Package:
1) AC90-264V, DC10V/6A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS

Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)

Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.

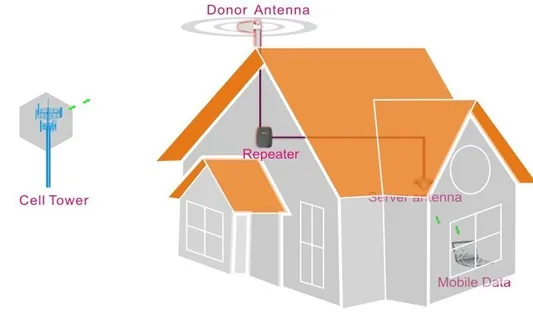

Application Diagram:

Indoor Lte800& Dcs1800&2600MHz 23dBm Cell Phone Signal Booster Triband Amplifier

Indoor Lte800& Dcs1800&2600MHz 23dBm Cell Phone Signal Booster Triband Amplifier

Specification.

Frequency Range		Uplink	Downlink
LTE800+1800+2600		1710-1785 / 832-862 / 2500-2570MHz	1805-1880/ 791-821 / 2620-2690MHz
Gain		65dB±2dB	70dB±2dB
Output Power		17dBm±2dBm	20dBm±2dBm
Band width		Wide Band
Manual Gain Control		31dB / 1dB Step
ALC		≥ 25dB
Ripple in Band		8dB
Noise Figure		≤ 6dB
VSWR		≤ 2.0
Intermodulation Products		≤ -40dBc
Spurious Emission	9KHz~1GHz	≤ -36dBm/30KHz
	1~12.75GHz	≤ -30dBm/30KHz
Time Delay		≤ 1.5 μs
Frequency stability		≤ 0.01ppm
MTBF		> 50000 hours
Impedance		50Ω

Advantage:

POWER LED	Green	Normal
POWER LED	Off	DC power problem
ALARM LED	Green	Sys-1,Sys-2 or Sys-3, working in linearity
	Red	There are strong input signal or severe self oscillation. Attention: input signal level is too high or the space of donor antenna and service antenna is not enough. please adjust the gain, If the red light still turning on that means over accepting of donor antenna or strong interference, then please adjust the place of donor antenna.
	Off	Repeater breaks down, Please re-plug in and check if Alarm LED turns red, if it is, please take measures to keep Alarm LED green; if it maintains off, it means the power break down.

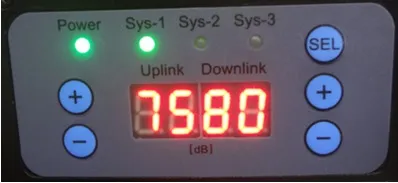

Uplink MGC Downlink MGC		Digital display panel will show the real-time gain, "+"increase gain,"-"decrease gain.
SEL		Select the different systems when you need, (only for Dual band, Tri band, Quad-band or Five band repeater.)
