Product Description

Terminal Box Outdoor

Model No	Size	Inputs&Outputs	Fiber Capacity
GJS-04	420* Φ205	5	12-144

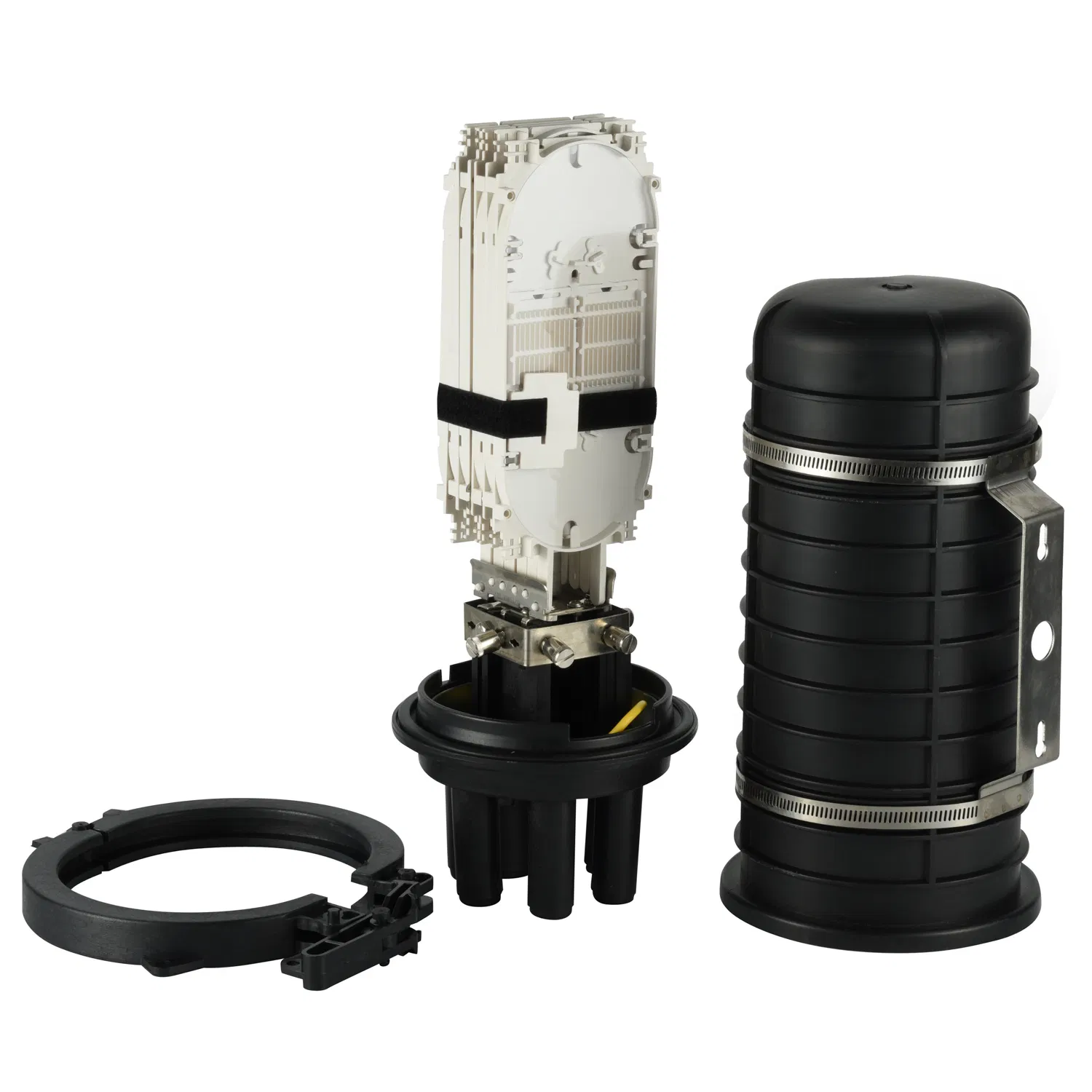

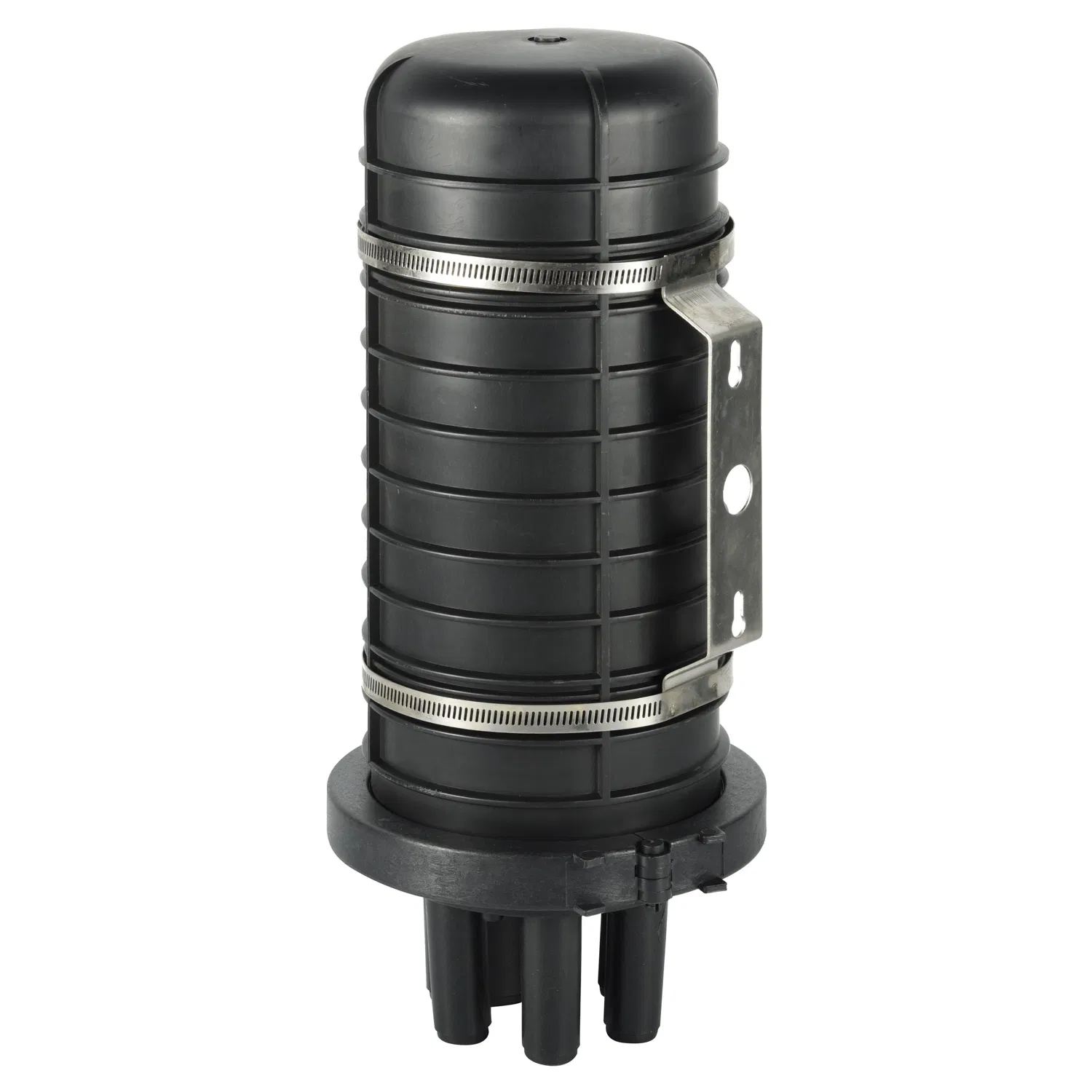

DM82509 Description
Vertical (Dome) fiber optic splice closures are made of excellent engineering plastics. Damei supply different ports types, fittings and different fiber optic core numbers for vertical/dome fiber optic splice closures.
Damei's Splice Closure is suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable projects.
Key Features
Suitable for ordinary fiber and ribbon fiber.
Fully kitted with all parts for convenient operation.
Overlap structure in splicing tray for easy installation.
Fiber-bending radium guaranteed more than 40mm.
Easy to install and re-entry with a common can wrench.
Excellent Heat Shrinkable Sealed to protect fiber and splice ensuring durability.
Stand up to severe condition of moisture, vibration and extreme temperatures.
Main Technical Parameter

Item	GJS-03
Cable ports	5 Entires
Number of fiber fusion	144 (bunchy)
Capacity of splice tray	12-24 (bunchy)
Dimension (mm)	420×205
Cable diameter(mm)	8~40
Max capacity of fiber	288 (bunchy)
Working temperature	-40ºC~65ºC
Insulation resistance	>2×104MΩ
Sealing Type	Heat-shrinkable Type
Installation Type	Pole-Mount
Sealing structure	Silicon gum material

Notes: Installation of Pole-Mount is default in Damei, the other can also be customized according to your requirements.
Application
Be suitable for Aerial and Duct.
CATV environment, Telecommunications, Customer premises environments, Carrier Networks and fiber optic networks.

Supply Waterproof Outdoor Fiber Optic Closure Box Telecom Cable Joint Closures Splice Enclosure Box
