Product Description

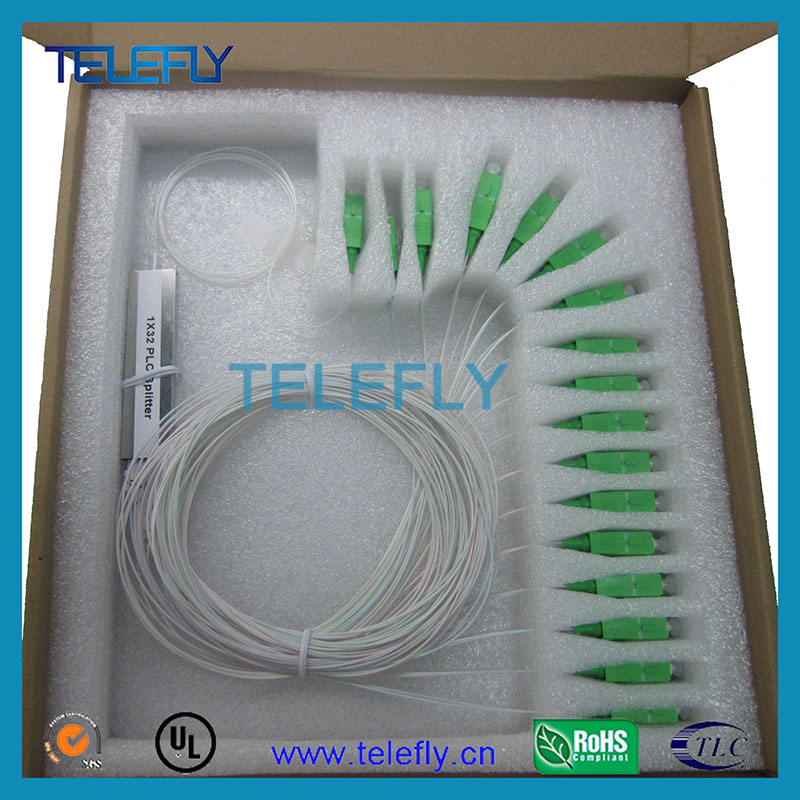

The Professional Supplier on PLC Splitter, Fiber Splitter,Fibre Optic splitter

TELEFLY's Single-mode Planar Lightwave Circuit Splitter (PLCS) are developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a minia-ture package, it provides a low cost light distribution solution with small form factor and high reliability. The PLCS devices have high performance in terms of low insertion loss, Low PDL, high return loss and excellent uniformity over a wide wave-length range from 1260nm to 1620nm and working in temperature from -40 to +85. The PLCS devices have standard configurations of 1*4, 1*8, 1*16, 1*32, 1*64, 2*2, 2*4, 2*8, 2*16 and 2*32.

Features
1. Compact design
2. Low insertion loss and low PDL
3. High reliability
4. High channel range
5. Large operating temperature range
6. Customized packaging and configuration
7. Compliant with Telcordia GR-1209-CORE, GR-1221-CORE

Applications
1. FTTX Systems
2. LAN, WAN and Metro Networks
3. Analog/Digital Passive Optical Networks
4. CATV Networks

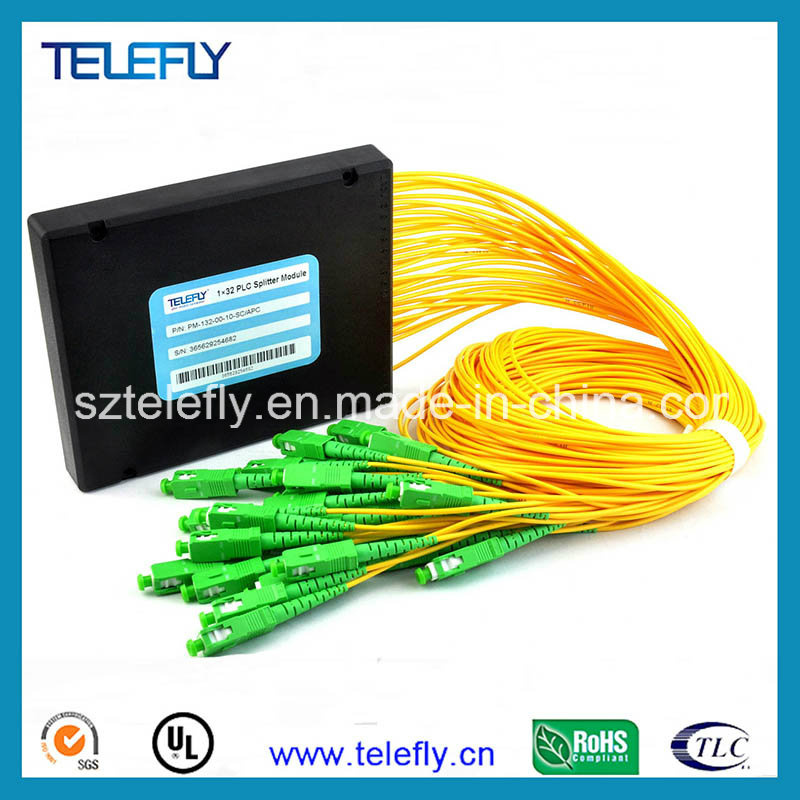

1*N PLC datasheet
Port Configuration		1*4	1*8	1*16	1*32	1*64
Fiber Type		SMF-28E or customer specified
Operation wavelength		1260nm to 1620nm
Insertion loss	Typical	6.8 db	10.0 db	13.0 db	16.0 db	19.5 db
Insertion loss	Max	7.2 db	10.5 db	13.5 db	16.9 db	21.0 db
Loss Uniformity	Max	0.6 db	0.8 db	1.2 db	1.5 db	2.5 db
Return Loss	Min	50 db	50 db	50 db	50 db	50 db
Polarization Dependent Loss	Max	0.2 db	0.3 db	0.3 db	0.3 db	0.4 db
Directivity	Min	55 db	55 db	55 db	55 db	55 db
Wavelength Dependent Loss	Max	0.3 db	0.3 db	0.5 db	0.5 db	0.8 db
Temperature Dependent Loss(-40 to +85)	Max	0.5 db	0.5 db	0.8 db	0.8 db	1.0 db
Operating Temperature	-40 to +85
Storage Temperature	-40 to +85

2*N PLC datasheet
Port Configuration		2*2	2*4	2*8	2*16	2*32
Fiber Type		SMF-28E or customer specified
Operation wavelength		1260nm to 1620nm
Insertion loss	Typical	3.8 db	7.4 db	10.8 db	14.2 db	17.0 db
Insertion loss	Max	4.2 db	7.8 db	11.2 db	14.6 db	17.5 db
Loss Uniformity	Max	1.0 db	1.4 db	1.5 db	2.0 db	2.5 db
Return Loss	Min	50 db	50 db	50 db	50 db	50 db
Polarization Dependent Loss	Max	0.2 db	0.2 db	0.4 db	0.4 db	0.4 db
Directivity	Min	55 db	55 db	55 db	55 db	55 db
Wavelength Dependent Loss	Max	0.8 db	0.8 db	0.8 db	0.8 db	0.8 db
Temperature Dependent Loss(-40 to +85)	Max	0.5 db	0.5 db	0.5 db	0.8 db	0.8 db
Operating Temperature	-40 to +85
Storage Temperature	-40 to +85
