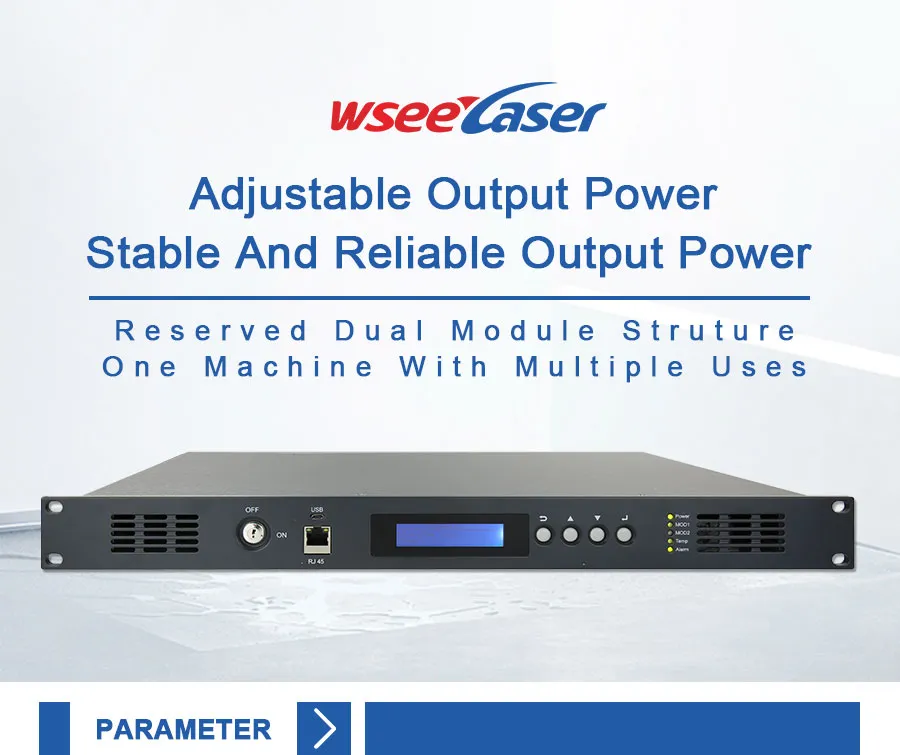

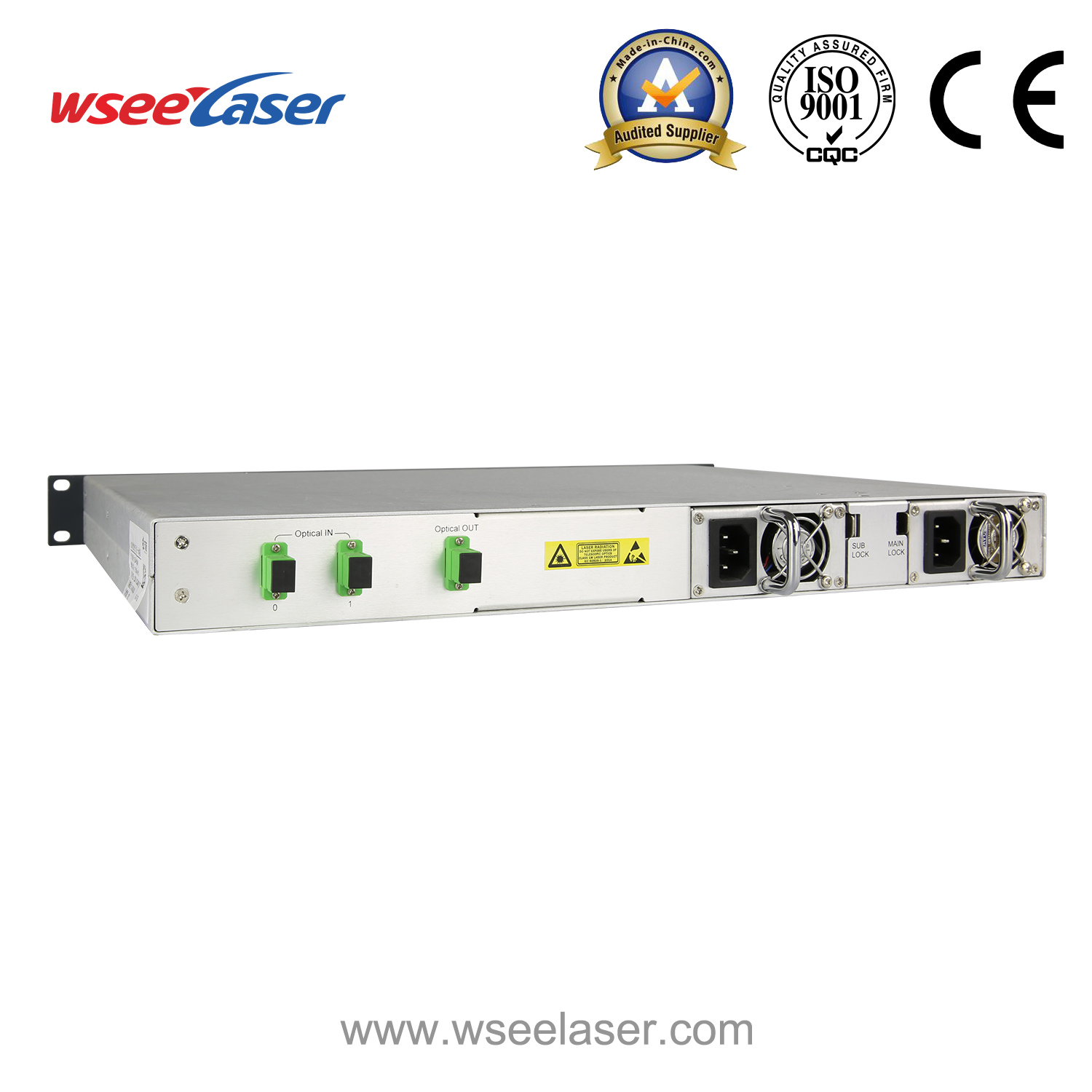

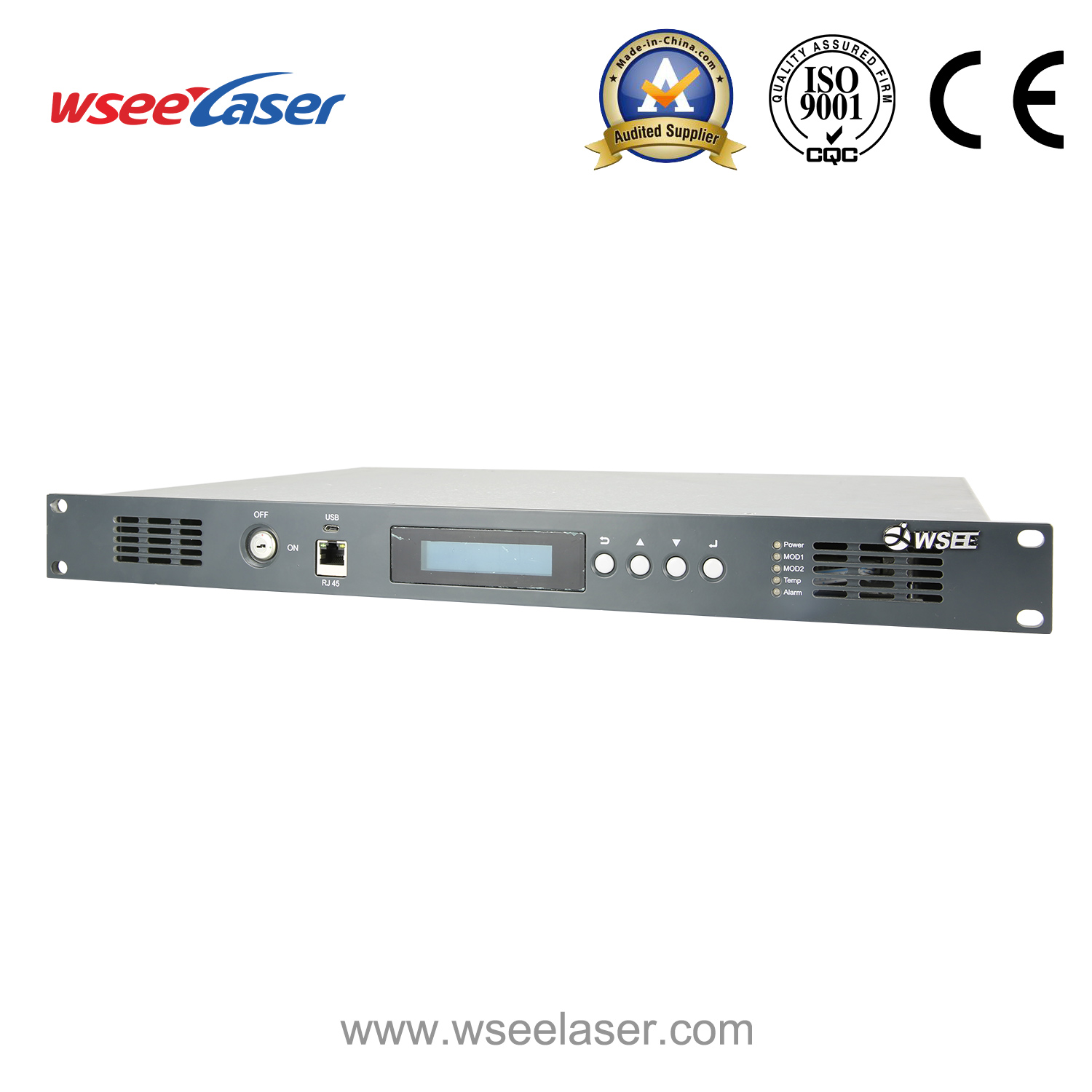

China Wsee Ea1500 CATV Erbium Optical Amplifier Dual Power Supply Hfc EDFA with RF in

Product Description

Technical parameters	WS-EA1500
Received wavelength	1535~1565 nm
Input optical power	-5dBm~+10dBm(Standard input+3dBm)
Output optical power	+3dBm
Output power stability	±0.1dBm
Noise Figure	≤ 5.0dB(Pin=0dB)
Input reflection loss	≥ 45dB
Output reflection loss	≥ 45dB
C/N	≥ 50dB
C/CTB	≥ 63dB
C/CSO	≥ 63dB
The optical fiber connector	FC/APC(Standard)&SC/APC&LC/APC(Customizable)
Voltage	AC220V(160V ~ 265V) /AC110V(90 ~130V)/DC48V(38 ~ 58V)
Total power consumption	≤ 10w
Operating temperature	-5ºC~+42ºC
Storage temperature	-30ºC~+70ºC
Maximum working relative humidity	Up to 95% non-condensing
Dimensions	357(W)482(L)44(H)mm
Packing size (one set)	595(W)490(L)120(H)mm
Packing size (two sets)	595(W)490(L)230(H)mm

Erbium doped fiber amplifier (EDFA) is a CATV professional device used to amplify and transmit 1550 nm optical signals in a cable television transmission system. Cable TV 1550nm single- wavelength transmission, DWDM multi-wavelength transmission, flat gain, low noise series (PA), mid-noise series (LA), and power amplifier series (BA) are available. The company can produce a wide range of products such as power amplifiers, pre-amplifiers, and line amplifiers to meet different application locations of equipment and different customerrequirements.
