China Original New Compatible Mini FTTH 4 Port Olt Epon Olt Equipment

Product Description

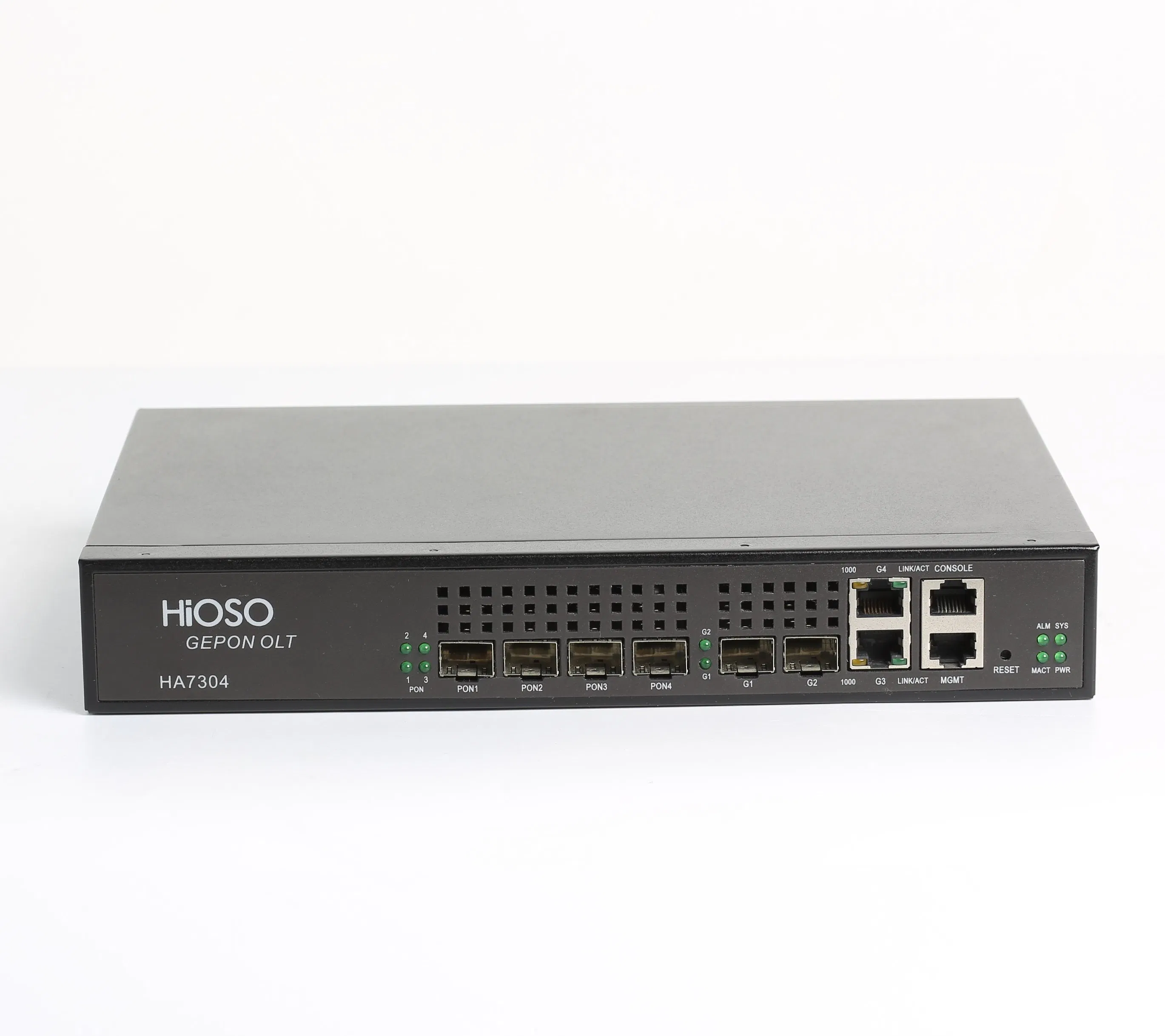

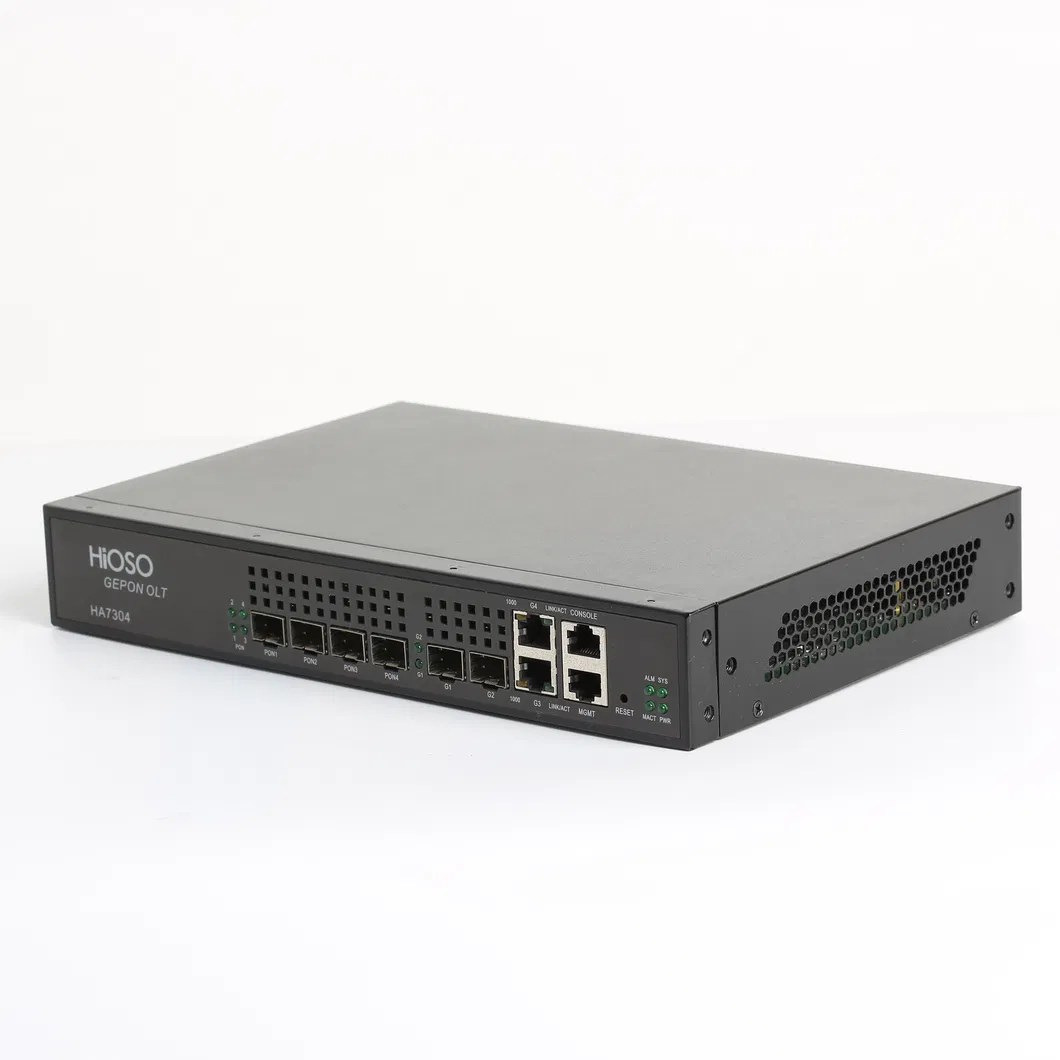

Mini 4 pon Epon OltHA7304 Standalone 4PON OLT

Feature

(1)Supply 4 SFP PON ports, 2 1000M SFP ports, 2 1000M RJ45 uplink ports

(2)Each PON port support 1:64 split ratio, total 256 ONUs access

(3)Distance can reach 20km under 1:32 split ratio

(4)Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access

Original New Compatible Mini FTTH 4 Port Olt Epon Olt Equipment

Parameter	Specification
Operating wavelength	1310(RX) /1490(TX)
Optical power	+2.5 ~ +7dBm
Receiving sensitivity	-30dBm
Max distance	20km
Max splitter ratio	1:64
Capacity	4 PON, maximum 256pcs ONU
MAC	8k
Uplink port	2 SFP ports + 2 TP ports
PON port	4 SFP PON ports
Control port	1 10/100/1000M RJ45 port 1 Console(RJ45), to debug the device 1 USB port
MTBF	100,000 hours
EPON traits	Support IEEE802.3ah
	Support DBA with minimum1Kbps granularity adjustable
	Support 1Gbps up link and down link symmetrical bandwidth
	Support AES-128 encryption to each Logical Link Identifier
	Support powerful OAM function, implement telnet management, maintenance and upgrade
	Support auto discovery and auto register of ONU (real-time operation)
Protocols supported	Support IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z
	Support IEEE802.1Q VLAN,IEEE802.1d Spanning Tree
	Support IEEE 802.1P QoS,IEEE802.3X Flow Control
	Support IEEE802.3ad Trunk,IEEE802.1W RSTP
Network management	Support GUI management based on SNMP
Network management	Support WEB and Telnet GUI management based on CLI
Other functions	Support 1GMPv1/v2 protocol report, query and leave message mouse
	Support ONU remote configure and upgrade
	Support real-time alarm detection, accurate fault location
	Support the alarm information sent to the mailbox, support SMS alarm

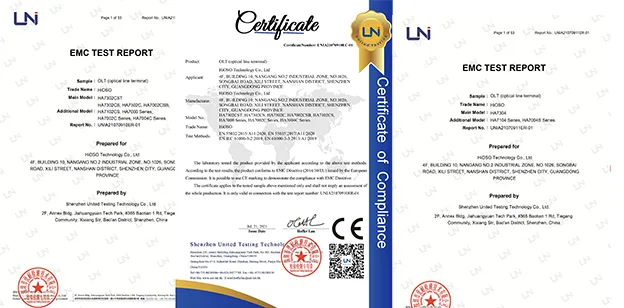

Certifications

Company Information

HiOSO Technology Co., Ltd. was founded in 2002, being dedicated to the research, production and sale of optical communication network products based on FTTH and FTTD. To make our products better, we have experienced and professional talents. Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems. Since the launch of our products in domestic market and international market, we have won a good reputation for our high quality products and sincere services. Our products are widely applied to network systems of Telecom, Radio and Television, Public Security and Bank industries. To be in line with different needs of different customers, we have people to trace the latest market information so as to keep our products competitive and vital. With the principle of "high quality, A-class service and continuous innovation", we have set up perfect testing systems which ensure the quality of every out-going product before delivering to the customers. We have made our products meet ISO9001:2000 international requirements, and obtained the certificate of Network Access License from Telecommunication Equipment Ministry. To be our clients, you can enjoy perfect services: technical support and related trainings can be obtained at any time, and problems occurred can be solved within 24 working hours. Besides, we provide a one-year replacement, a three-year free repair, and a whole life maintenance service for all of our products. Original New Compatible Mini FTTH 4 Port Olt Epon Olt Equipment
