Product Description

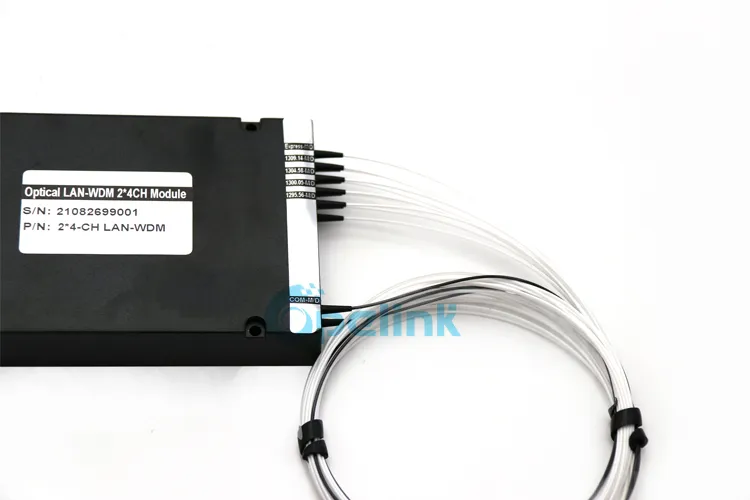

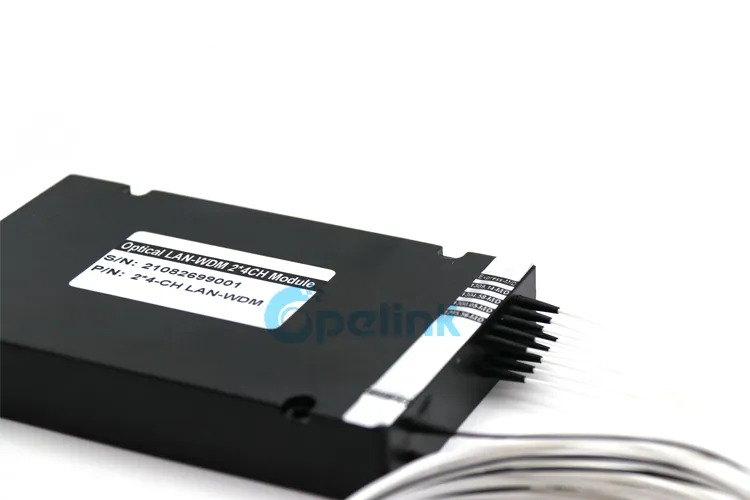

LC/FC/Sc/St/Mu OPELINK/OEM RoHS 4CH LAN 5.5X38mm Steel Tube Mux /Demux LAN-Wdm Factory

Description:
Optical LAN-WDM module is a based on TFF technology and a free-space packaging solution that can be used for 2/4 channel
wavelength multiplexing/demultiplexing with wavelengths in the range of 1260-1360nm. LAN-WDM Mux Demux is designed to
help network operators build the optical fiber foundation for 5G networks

Features:
Ultra low insertion loss
High isolation
Mux & demux
Compact size
High reliability
Epoxy-free optical path
Telcordia GR 1221 and GR-1209 compliant

Application:
Optimized package for CFP transceiver modules
According to 100 Gbps IEEE 802.3ba standard
Wdm system for local area network

Optical Specifications:

Parameter	Value
Center Wavelength (nm)	1295.56,1300.06.1304.59.1309.14
PASS Band(0.5db)	λITU±1
Insertion Loss(dB)	MAX 1.5
Pass band Ripple(dB)	<0.15
Adjacent Isolation(dB)	>28
Non-Adjacent Isolation(dB)	>40
PDL(dB)	<0.1
PMD(PS)	<0.1
Return Loss(dB)	>45
Directivity(dB)	>50
Max. Power Handling (mW)	500
Operating Temperature (ºC)	-5~70
Storage Temperature (ºC)	-40~85
Fiber Type	G657A fiber
Connector&Adaptor Type	CUSTOMIZE
Package Dimension(mm)	ABS 806012 or 1008010

For more details, please contact our sales.

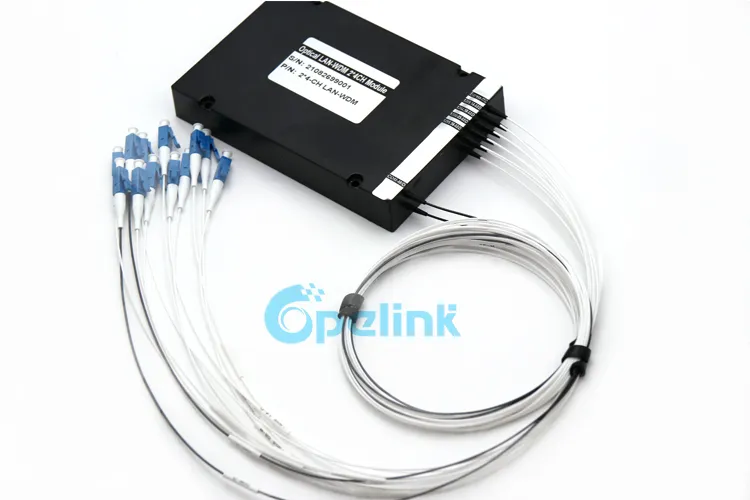

LC/FC/Sc/St/Mu Opelink/OEM RoHS 4CH LAN 5.5X38mm Steel Tube Mux /Demux LAN-Wdm Factory

FAQ:

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping
also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
