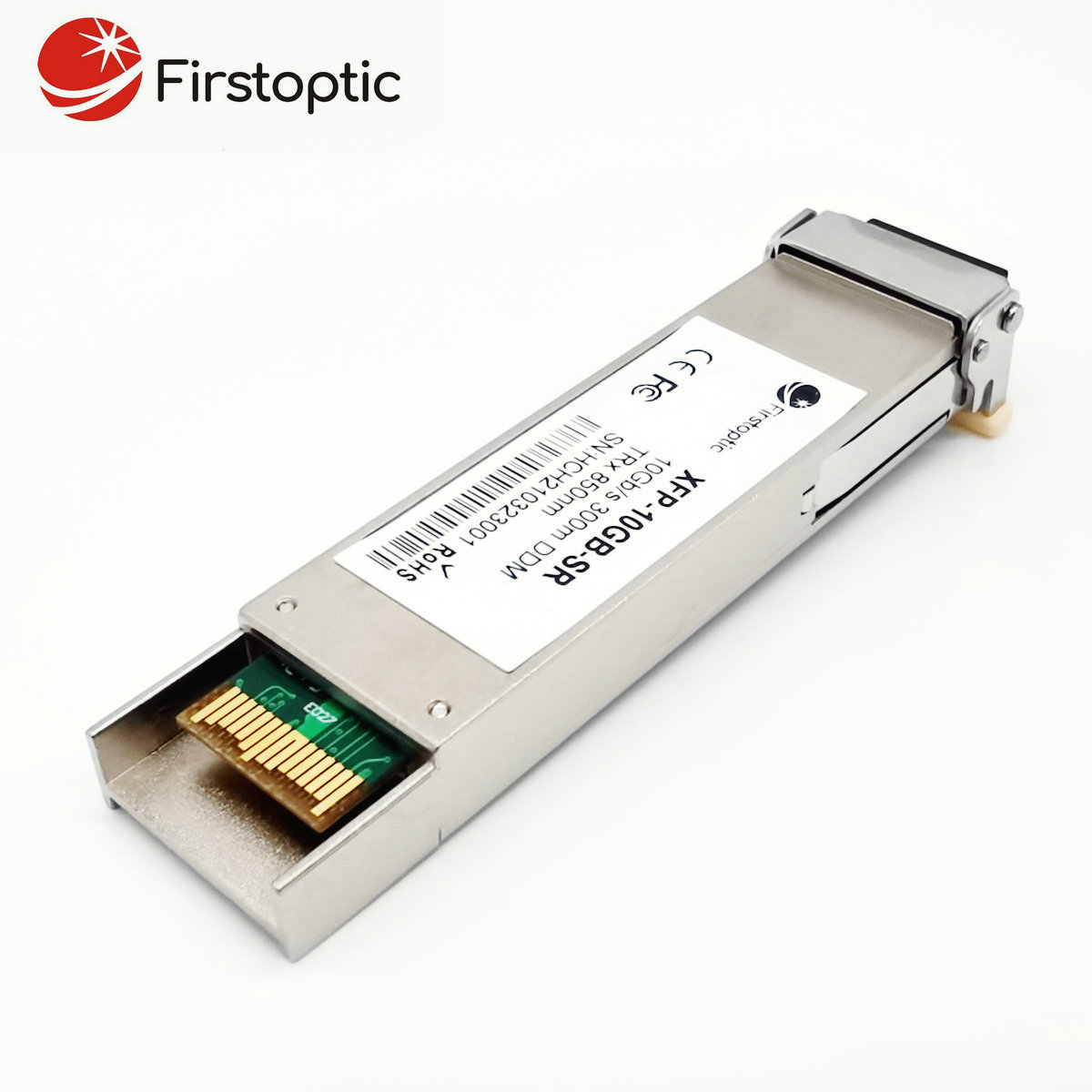

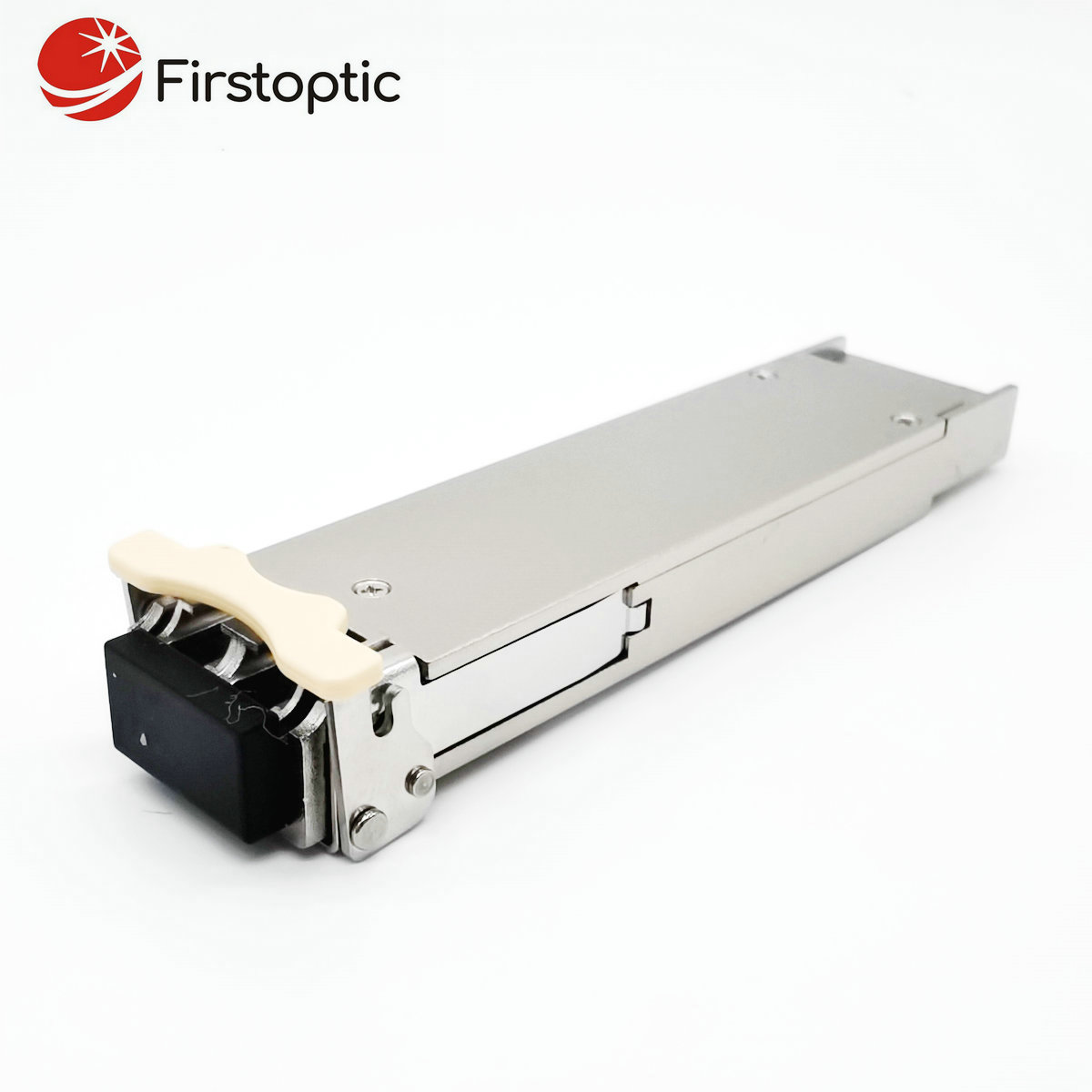

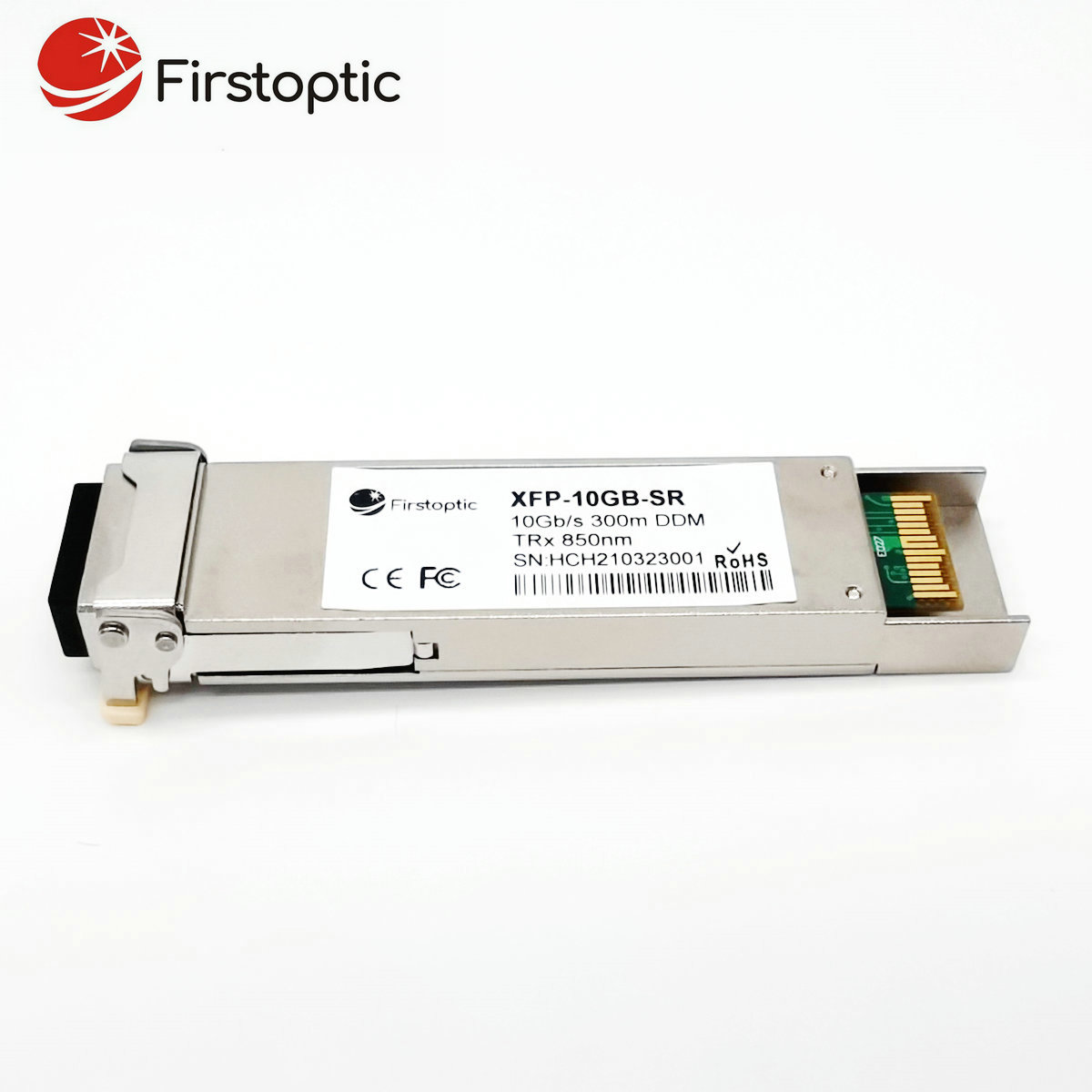

China Juniper Networks XFP-10G-S Compatible 10GBASE-SR XFP 850nm 300m DOM LC MMF Transceiver Module

Product Description

Specifications

Juniper Networks XFP-10G-S Compatible 10GBASE-SR XFP Transceiver Module (MMF, 850nm, 300m, LC, DOM)

HCH Modle No	XFP-10G-S	Vendor Name	HCH
Form Factor	XFP	Max Data Rate	10Gbps
Wavelength	850nm	Max Cable Distance	300m over OM3 MMF
Connector	LC duplex	Optical Components	VCSEL 850nm
Media	MMF	DOM Support	Yes
TX Power	-3.5~5.3dBm	Receiver Sensitivity	<-13dBm
Commercial Temperature Range	0 to 70°C (32 to 158°F)	Protocols	SFP+ MSA Compliant, CPRI, eCPRI

Describe
10G XFP series of optical module include SR,LRM,LR,ER,ZR,ZR+, etc., which supports a variety of transmission distances ranging from 300M to 100KM.It is characterized by low power consumption, small volume and wide temperature range.It is mainly used in SDH/SONET/FC transmission and other environments.

Features

* Support Multi Protocol from 9.9Gb/s to 11.3Gb/s
* Duplex LC or Single LC Connector
* 2-wire Interface for Management and Diagnostic Monitor
* XFI Electrical Interface with AC Coupling
* Hot Pluggable 30 pin Connector
* Compliant with XFP MSA
* Compliant with IEEE 802.3ae 10GBASE
* Compliant with 10G FC
* Compliant with SONET OC-192 / SDH STM-64
* Operation Temperature Range 0~70°C or -40~85°C Optional
* Low Power Dissipation
* RoHS-6 Compliant

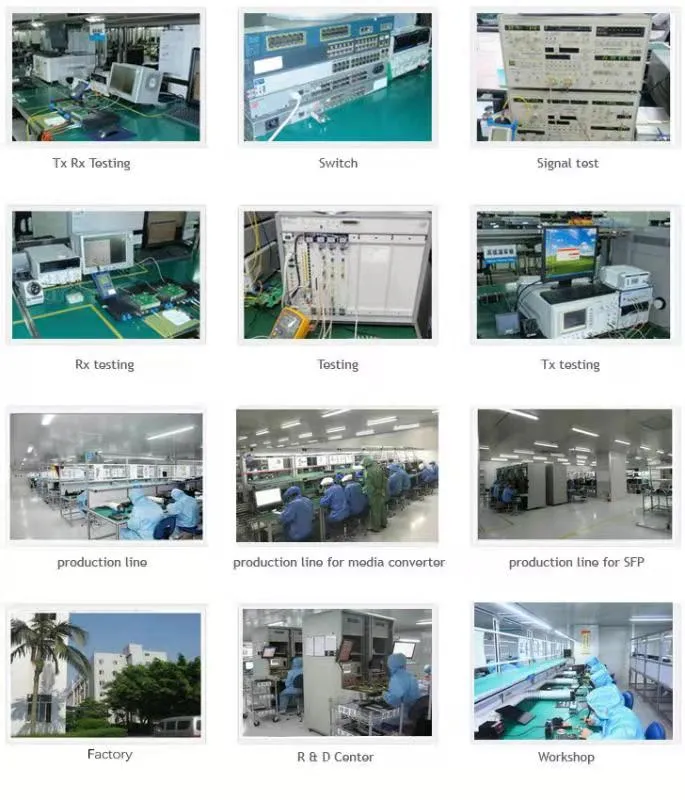

Our Company
