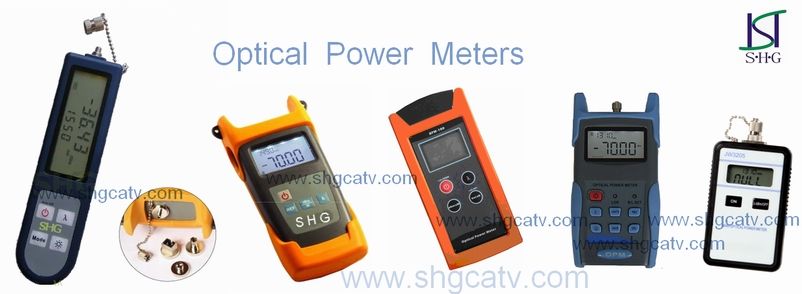

Handled Fiber Optic Power Meter (OPM-2)
SHG (OPM2) Handheld Fiber Optical Power Meter is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network.Compared with other usual power meters, the OPM2 has more functions, like automatic wavelength identification, auto wavelength......
Send Inquiry
Product Description
SHG (OPM2) Handheld Fiber Optical Power Meter is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network.
Compared with other usual power meters, the OPM2 has more functions, like automatic wavelength identification, auto wavelength switching, intelligent backlight, data saving via USB port.
Combined with OPM2 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.
Features
Wave ID Auto wavelength identification & switching
Frequency ID ---Auto frequency identification
2 types of backlight modes, manual or outside light intensity, which indicated by LED light red or blue.
Intelligent backlight
1000 records storage or download via USB cable
USB communication port for saved testing records download
Reference power level can be set up and stored
User self-calibrating function
Auto-off function
Up to 240hrs battery life
Compared with other usual power meters, the OPM2 has more functions, like automatic wavelength identification, auto wavelength switching, intelligent backlight, data saving via USB port.
Combined with OPM2 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.
Features
Wave ID Auto wavelength identification & switching
Frequency ID ---Auto frequency identification
2 types of backlight modes, manual or outside light intensity, which indicated by LED light red or blue.
Intelligent backlight
1000 records storage or download via USB cable
USB communication port for saved testing records download
Reference power level can be set up and stored
User self-calibrating function
Auto-off function
Up to 240hrs battery life
| Model | OPM-2A | OPM-2B |
| Calibration Wavelength(nm) | 800~1700 | |
| Detector type | InGaAs | |
| Measurement Range(dBm) | -70+10 | -50+26 |
| Uncertainty (dB) | +0.2(5%) | |
| linearity (dB) | 0.01 | |
| Display resolution(dB) | 0.03 | |
| Frequency ID Hz | 270 330 1K 2K | |
| Wave ID nm | 850,980,1300,1310,1490,1550,1625 | |
| Date Storage Capacity | 1000 | |
| Communication Port | USB | |
| Connector | FC/SC/ST Interchangeable | |
| Alkaline battery | 3AAA 1.5V or Li battery (9V) | |
| Power Adapter(V) | 8.4 | |
| Battery Operating time (h) | 240 without backlight | |
| Operation Temperature(oC) | -10(oC) +60 | |
| Storage Temperature(oC) | -25(oC)+70 | |
| Dimension(mm) | 172*82*33 | |
| Weight(g) | 310 | |
