FWT-1550DT Series 1550 nm Advanced Type Directly Modulated Optical Transmitters

Product Description
FWT-1550DT series of advanced 1550nm directly modulated optical transmitter, is mainly used in overlay insert systems to implement high-value and multi-functional local designed value-added services such as self-run programs. Low chirp, the output is the ITU standard wavelength, the RF driver adopts a self-developed RF predistortion circuit and a built-in perfect microcomputer automatic monitoring system to ensure the excellent performance index of the device.

FWT-1550DT series of advanced 1550nm directly modulated optical transmitter, suitable for 10 ~ 20 kilometers long distance transmission.

Product feature

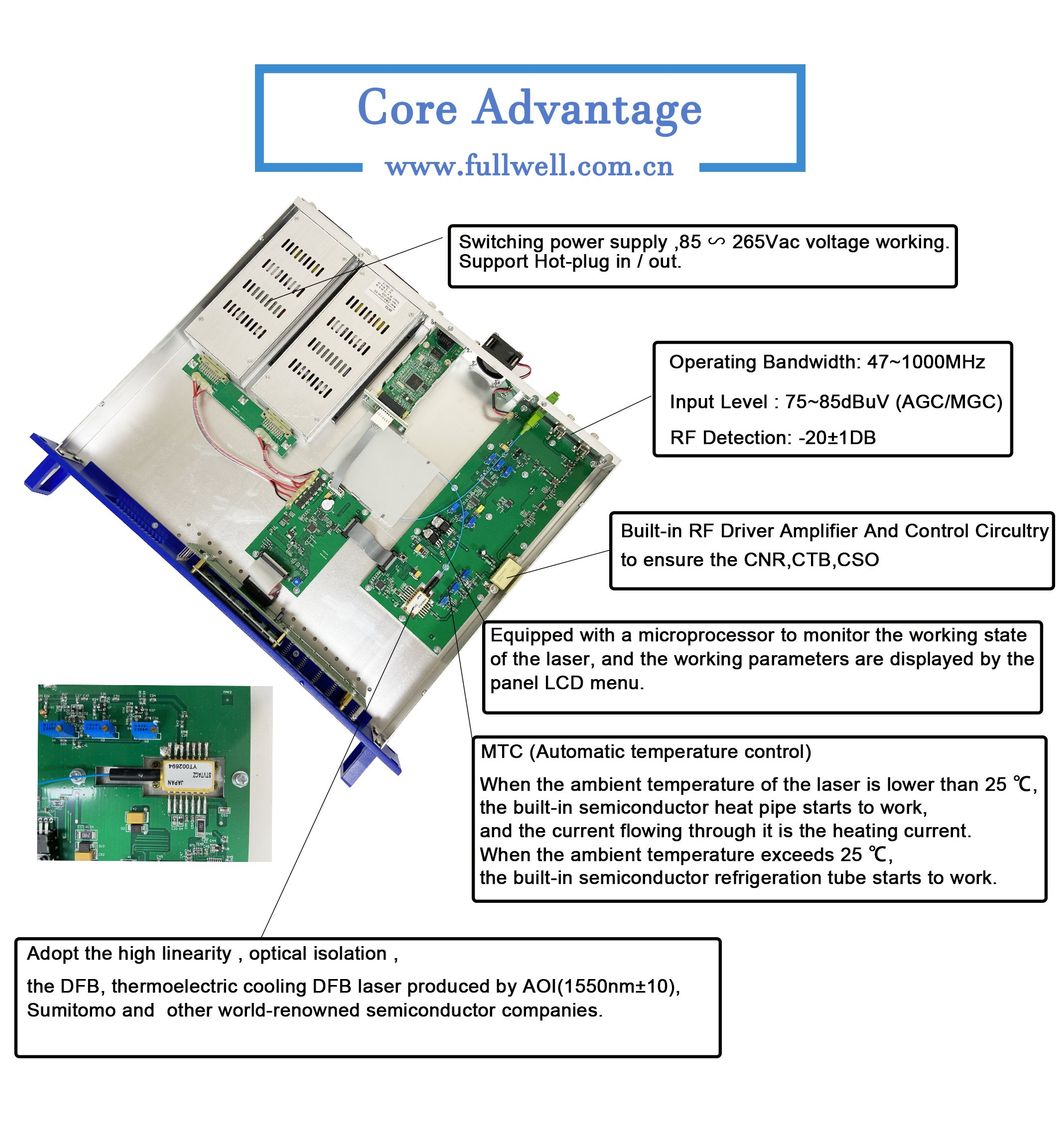

1. Top quality: The low chirp, high linearity DFB laser, and RF pre-correction circuit are used to keep the C / CTB, C / CSO, and C / N indexes in the best state.
2. Transmission range: 10 ~ 20 kilometers for short distance transmission.

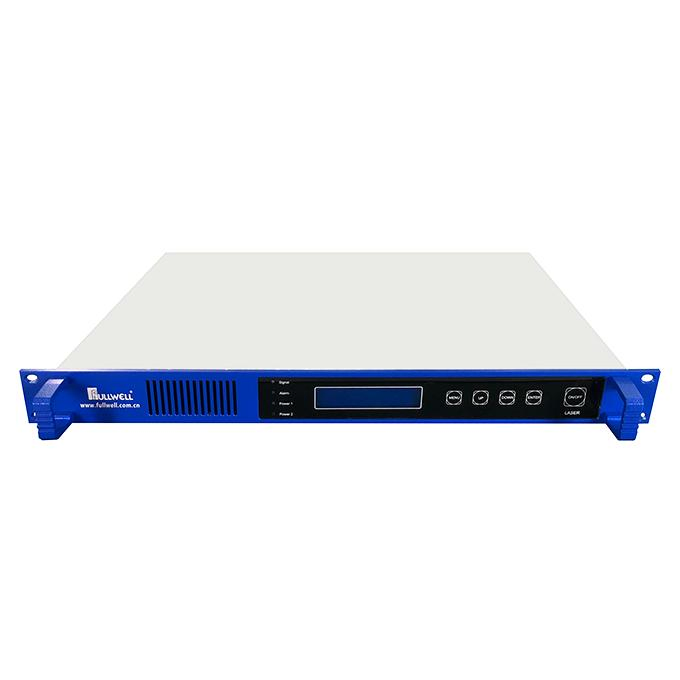

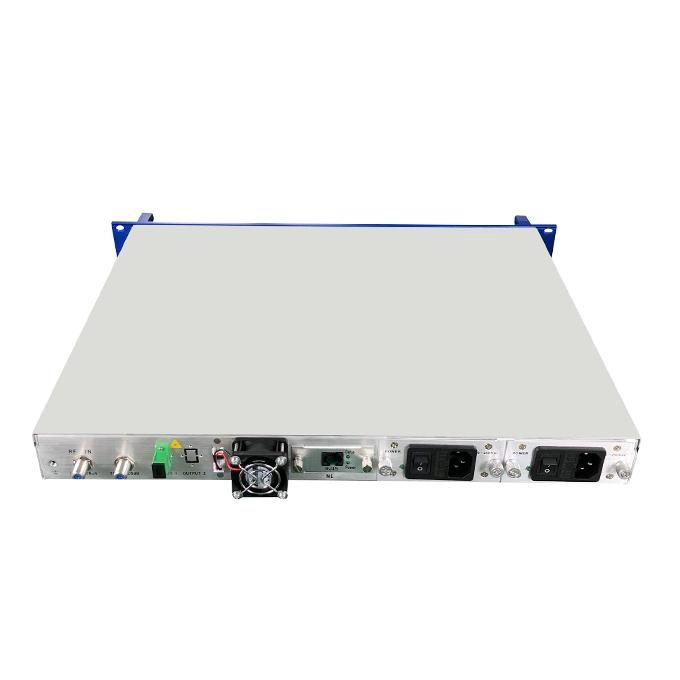

3. Reliability: 19" 1U standard rack, built-in high-performance 1 + 1 hot backup power supply, which can work at 86 ~ 265Vac city network. MS automatic switching, and chassis temperature automatic control.

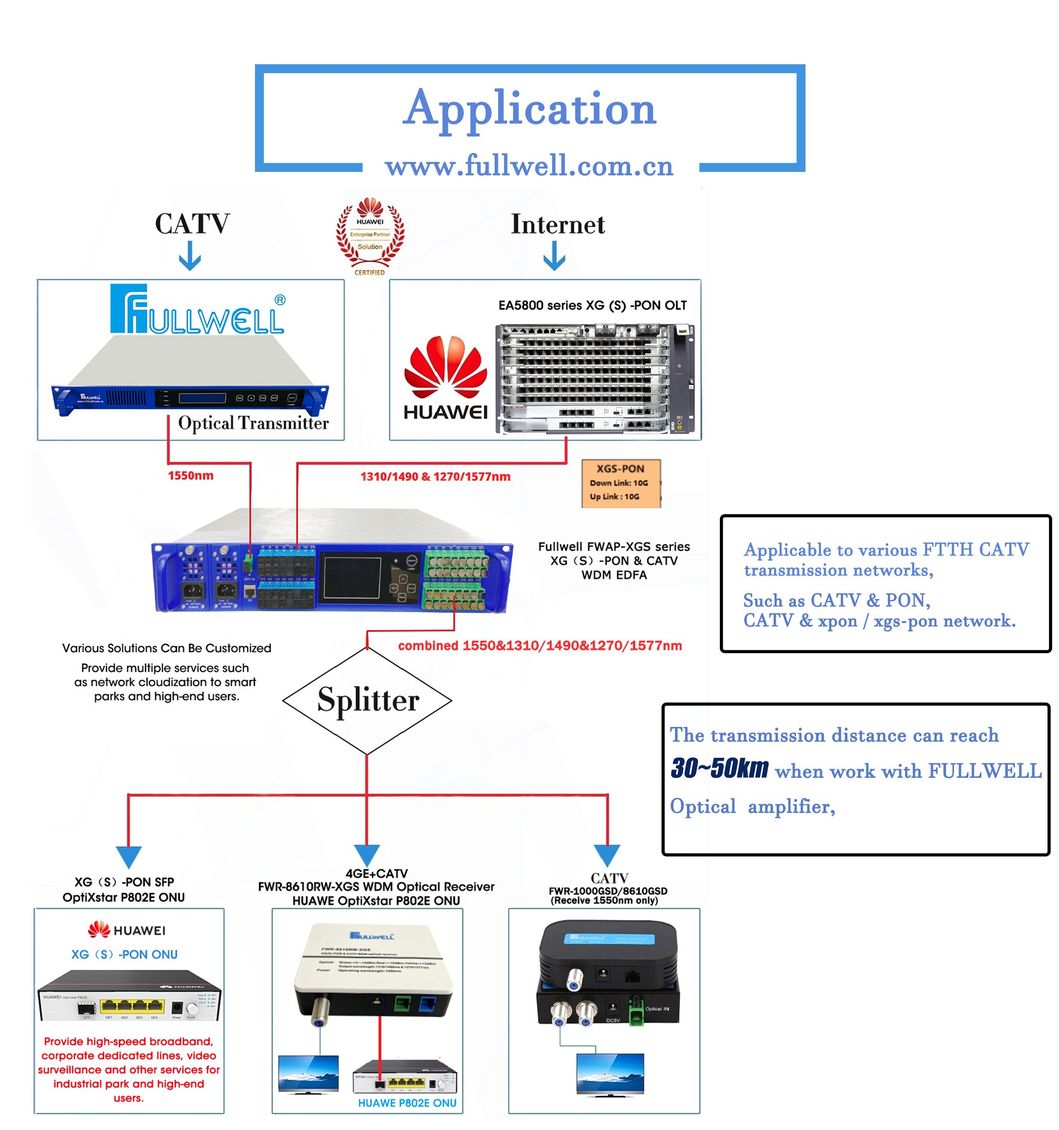

4. Excellent performance-price ratio: suitable for FTTH triple play CATV from headend to end user.
5. Intuitive: The laser is the most expensive component of the device. The built-in microprocessor software monitors the working status of the laser, and the working parameters are displayed on the panel LCD.

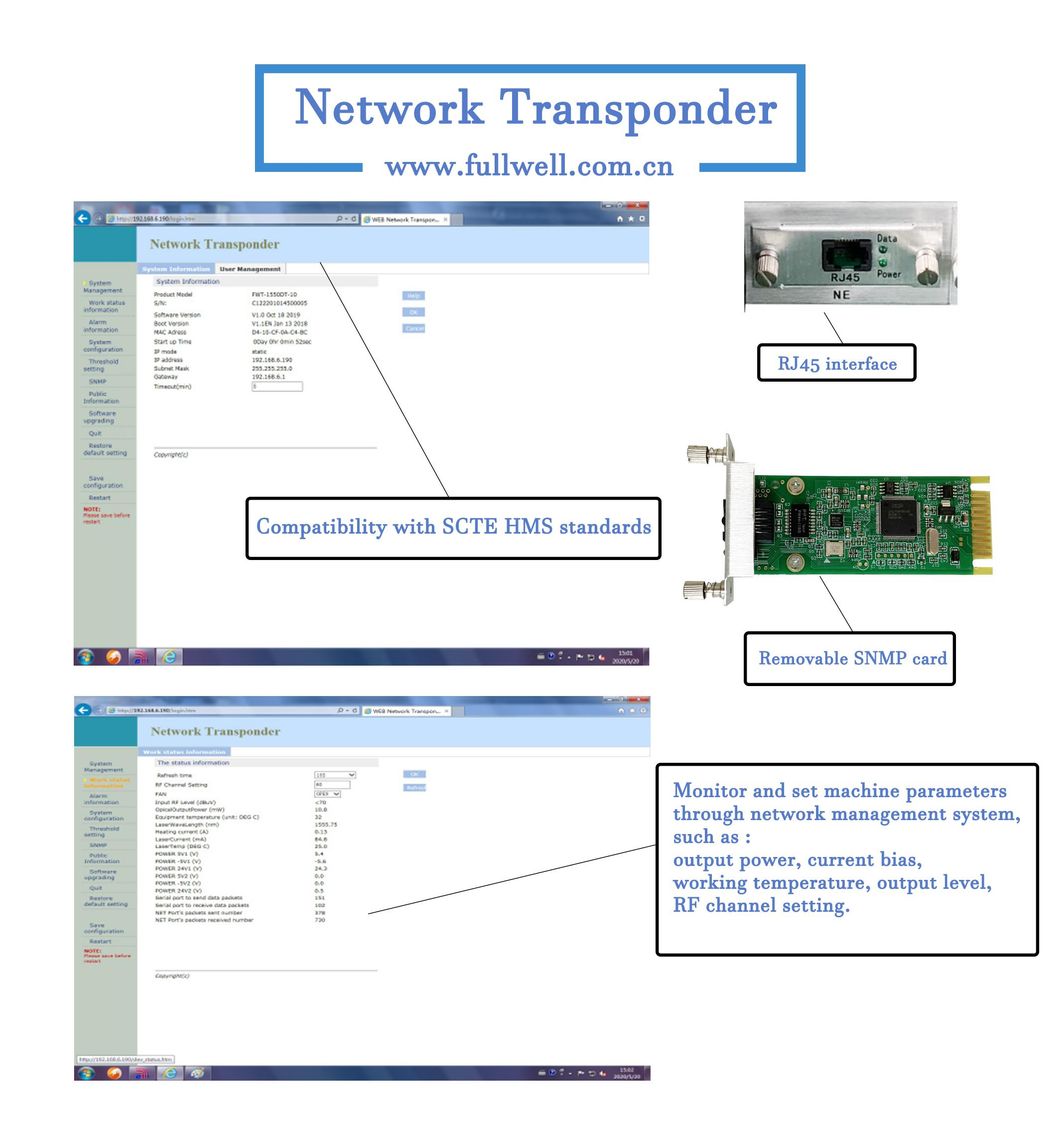

6. Network management type: SNMP network management, can realize the network management WEB monitoring function.
7. Can be customized 2 outputs, optical power 5 ~ 6dBm output.

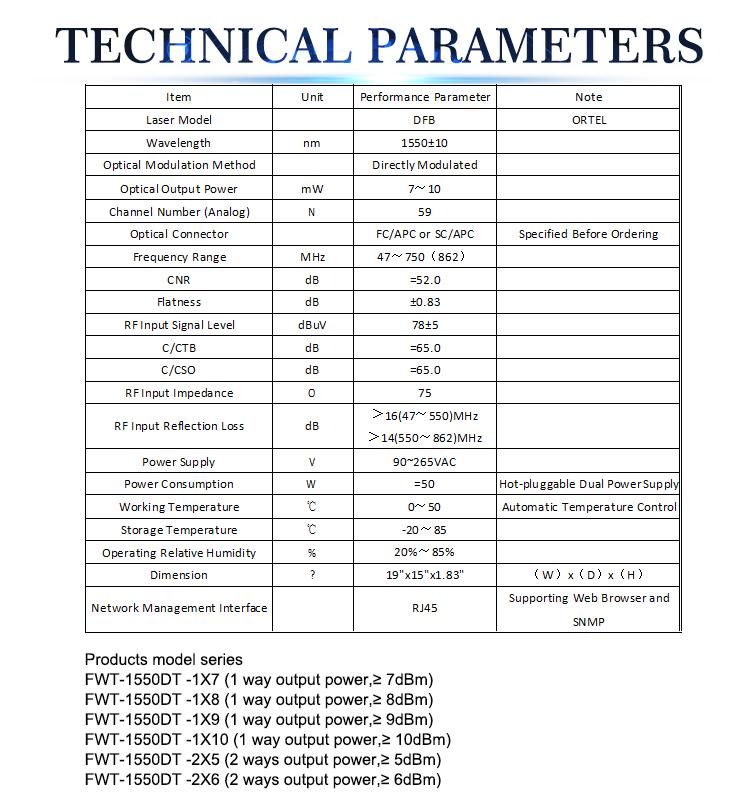

Technical Parameters

Item	Unit	Performance Parameter	Note
Laser Model		DFB	ORTEL
Wavelength	nm	1550±10
Optical Modulation Method		Directly Modulated
Optical Output Power	mW	7~10
Channel Number (Analog)	N	59
Optical Connector		FC/APC or SC/APC	Specified Before Ordering
Frequency Range	MHz	47~1000
CNR	dB	≥52.0
Flatness	dB	±0.83
RF Input Signal Level	dBuV	78±5
C/CTB	dB	≥65.0
C/CSO	dB	≥65.0
RF Input Impedance	Ω	75
RF Input Reflection Loss	dB	>16(47~550)MHz >14(550~1000)MHz
Power Supply	V	90~265VAC
Power Consumption	W	≤50	Hot-pluggable Dual Power Supply
Working Temperature	ºC	0~50	Automatic Temperature Control
Storage Temperature	ºC	-20~85
Operating Relative Humidity	%	20%~85%

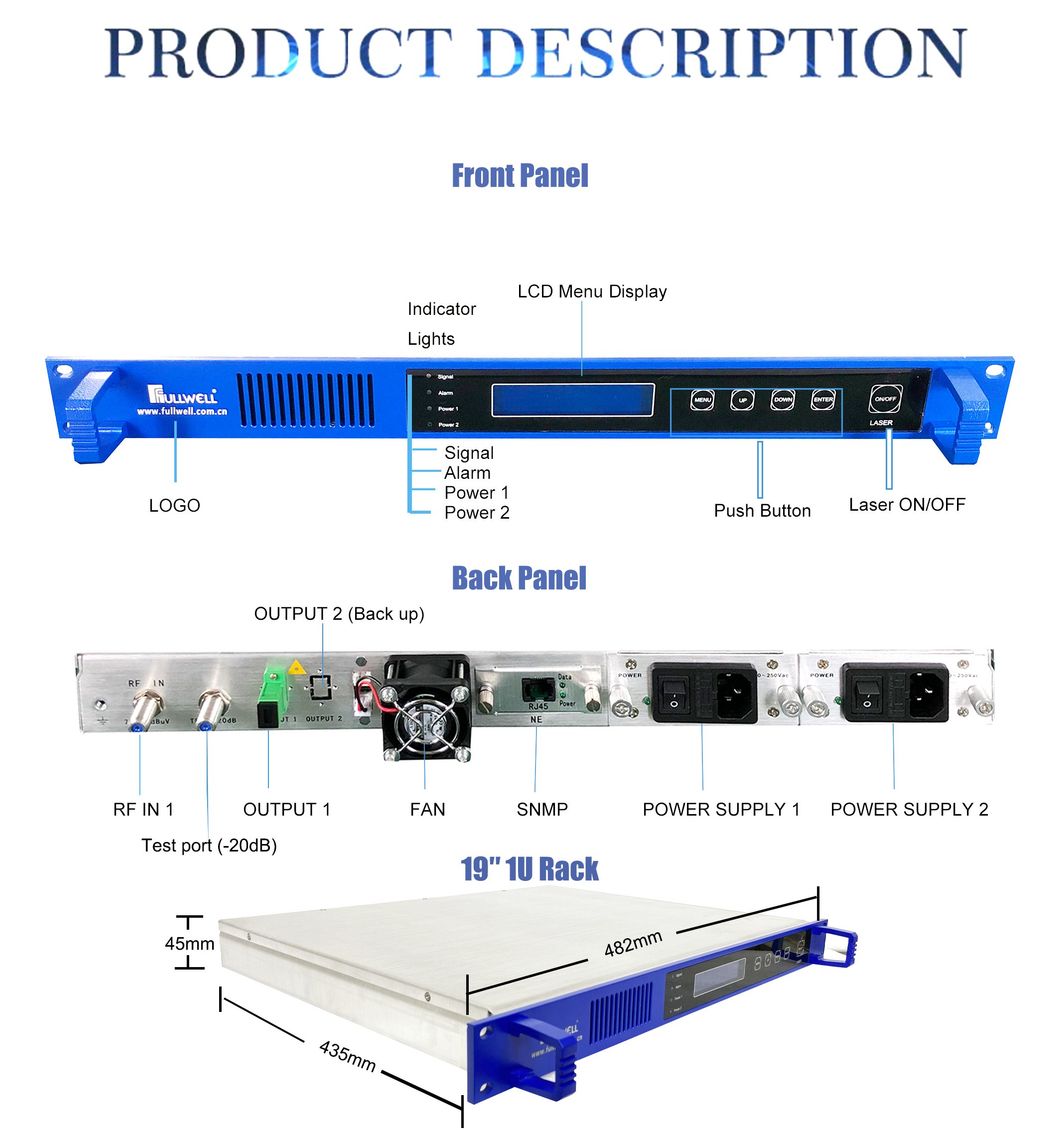

Dimension	″	19"x15"x1.83"	(W)x(D)x(H)
Network Management Interface		RJ45	Supporting Web Browser and SNMP

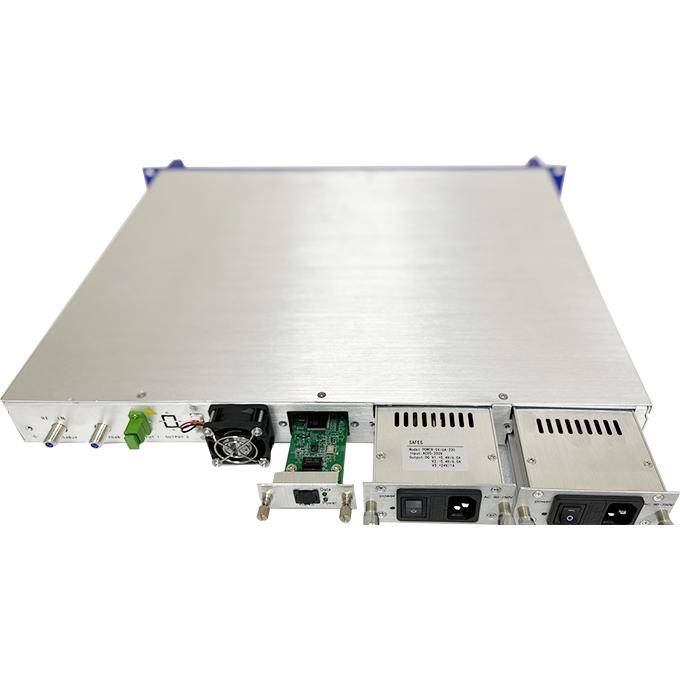

Fullwell 1550 CATV Optical Transmitter with Internal Modulation for 25km
