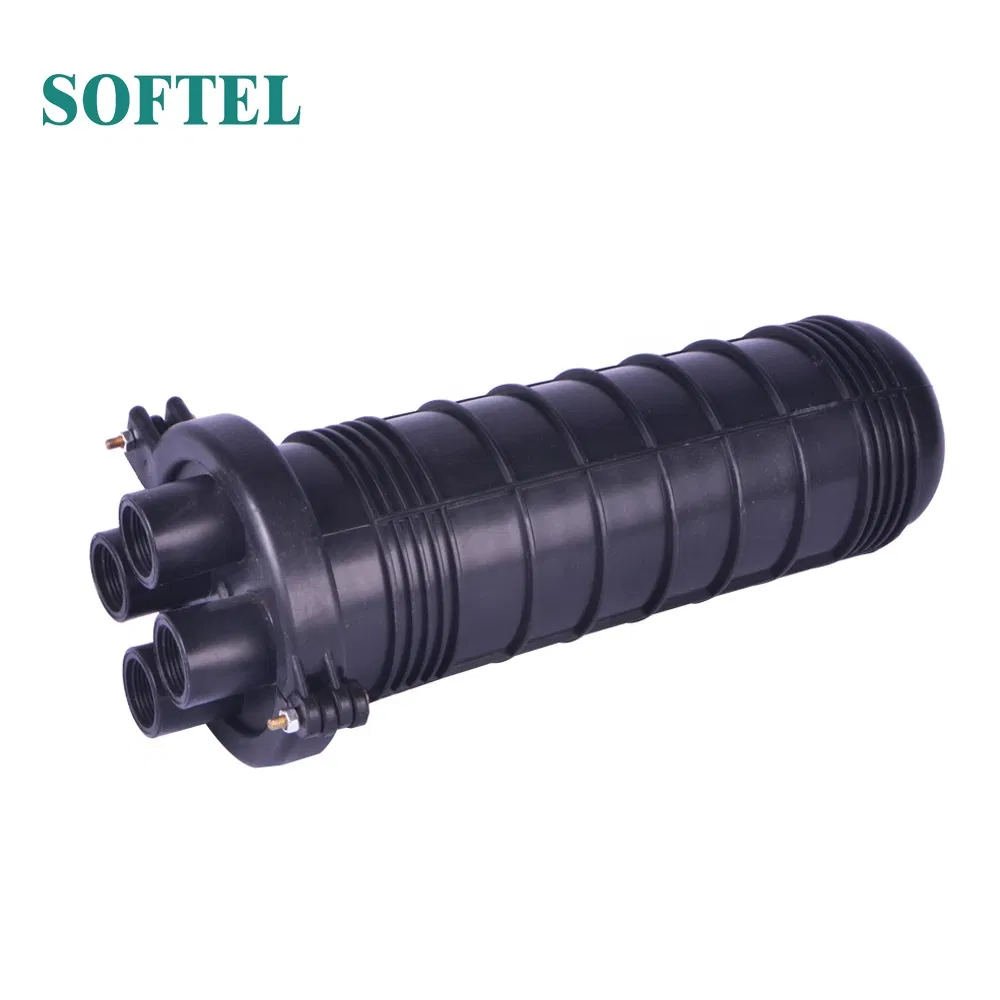

FTTH Splice Closure 48 Core Dome Fiber Optic Joint Closure

Product Description

FOM-G-48

FTTH Splice Closure 48 Core Dome Fiber Optic Joint Closure

Summary
Fiber optic splice case can be used in outside plant, underground, aerial, pedestal and direct buried applications. The device allows for direct jointing and bifurcated jointing. It also protects fiber optic splices from the elements while providing fast and easy no-cost re-entry.

Characteristic

1. Holds up to 96 fibers.

2. Easy to re-enter

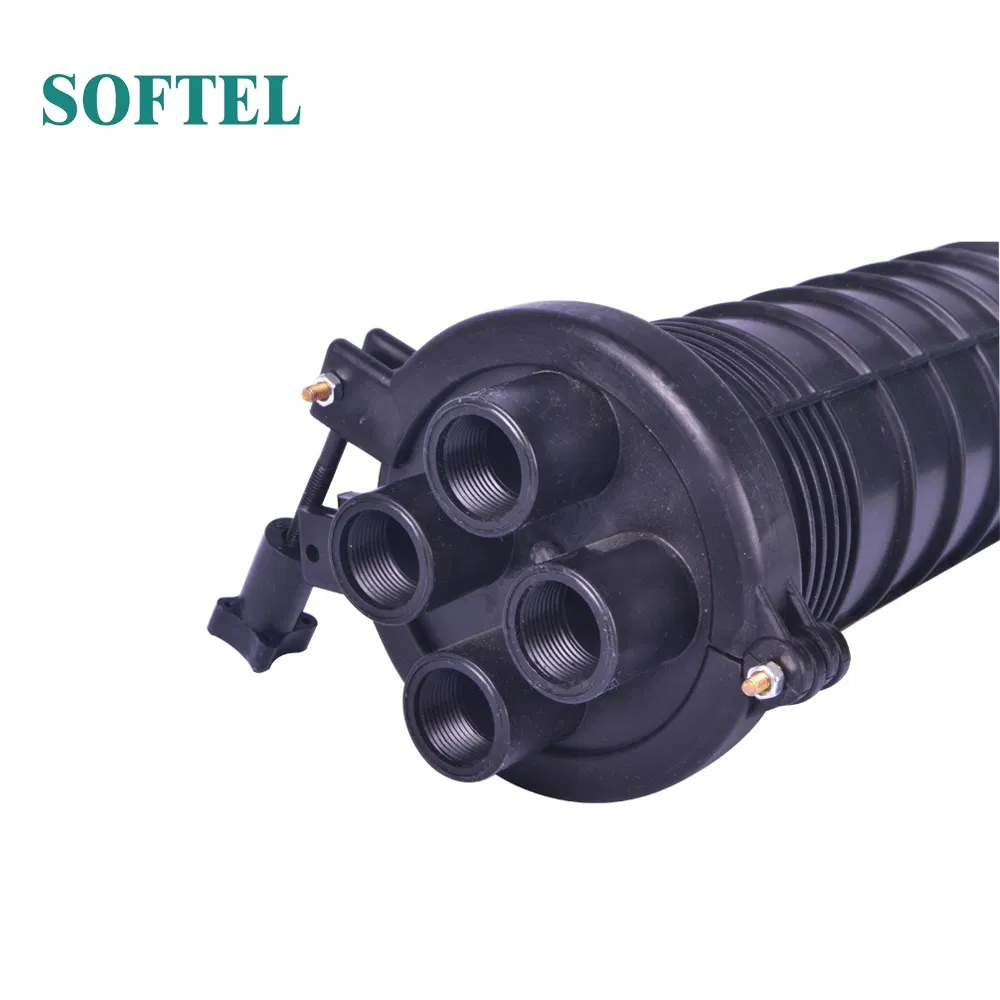

3. Cable entry/exit ports

4. Pressure testing valve and earth deriving device

5. Intergrated seal, air tight and water proof

6. Ideal for cable repair

7. Can be used in through, branch or mid span splice locations

8. Suitable for aerial, underground duct or direct burial applications

Parameters

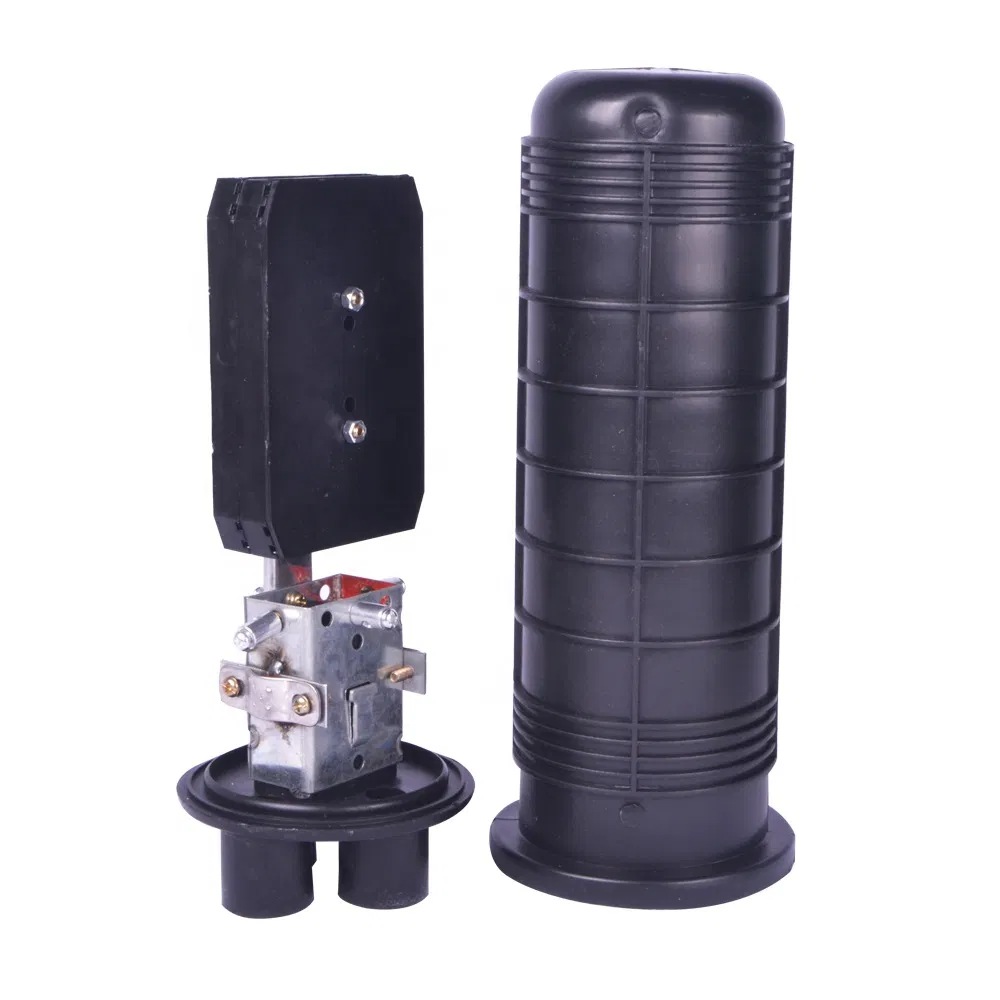

Name of components	Quantity	Usage	Remarks
FOSC cover	1 piece	Protecting fiber cable splices in whole	Height x Diameter 450mm x 170mm
Fiber optic splice tray (FOST)	Max. 4 trays (bunchy) Max.: 4 trays (ribbon)	Fixing heat shrinkable protective sleeve and holding fibers	Suitable for: Bunchy: 24(cores) Ribbon: 12 (pieces)
Base	1set	Fixing internal and external structure
Plastic hoop	1 set	Fixing between FOSC cover and base
Seal fitting	1 piece	Sealing between FOSC cover and base
Pressure testing valve	1 set	After inject air, it is used for pressure testing and sealing testing	Configuration as per requirement
Earthing deriving device	1 set	Deriving metal parts of fiber cables in FOSC for earthing connection	Configuration as per requirement
