Product Description

WS-OPM-35 series portable optical power meter is a new optical fiber test equipment, which is independent of the characteristics of foreign
optical instruments. This equipment can increase the function of red light source, integrate light power and red light source, and quickly
solve the problem of the ideal equipment

Technical parameters	WS-OPM-35
Red light source part(This feature is customizing for customers)
Light emitting device	FP-LD
Working wavelength(nm)	650nm
Typical output of output power(mw)	10mw(Customizable)
Transmission distance(Km)	20Km
Red light frequency scintillation function	Frequency is 2Hz
Optical power meter section
Calibrated wavelength(nm)	850,980,1300,1310,1490,1550,1625
Probe type	InGaAs
Detection range(dBm)	-70~+6(A Model);-50~+20(B Model);-50~+26(C Model)
Detection range(mw)	0~+400
Inherent uncertainty(dB)	±0.10
degree of linearity(dB)	±0.001
Display resolution(dB)	0.01
Storing data(group)	10
Communication interface	USB
Connector type	FC,SC Optional
lithium battery	900mAh,3.7V
The power adapter(V)	5V
Battery continuous working time(h)	200
working temperature(ºC)	-10~+60
Storage temperature(ºC)	-25~+70
Net weight(g)	145
Shape size(mm)	1578039

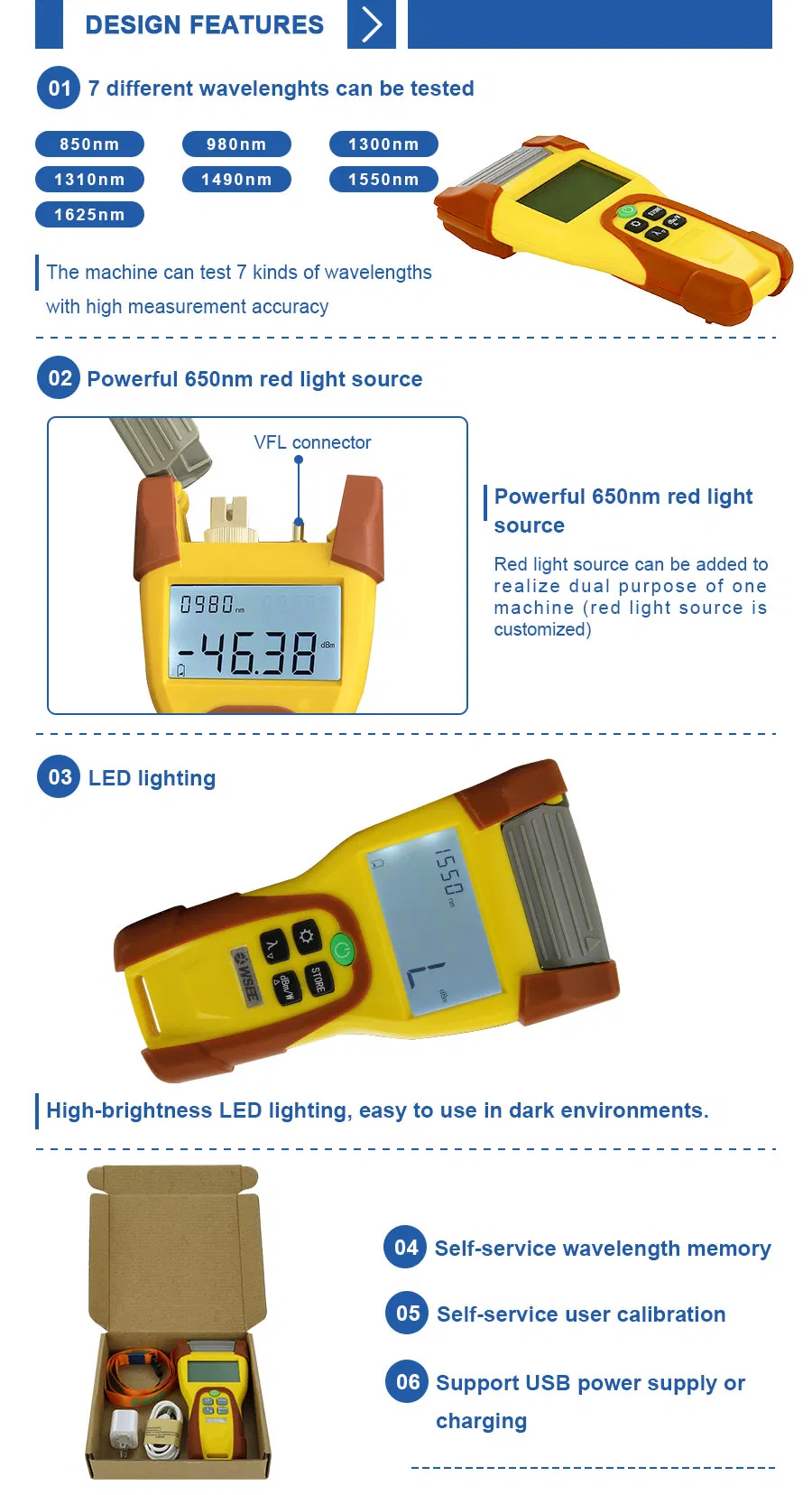

The machine can test 7 kinds of wavelengths with high measurement accuracy
Support USB power supply or charging
Powerful 650nm red light source
Red light source can be added to realize dual purpose of one machine (red light source is customized)
High-brightness LED lighting, easy to use in dark environments
Self-service wavelength memory
Self-service user calibration
