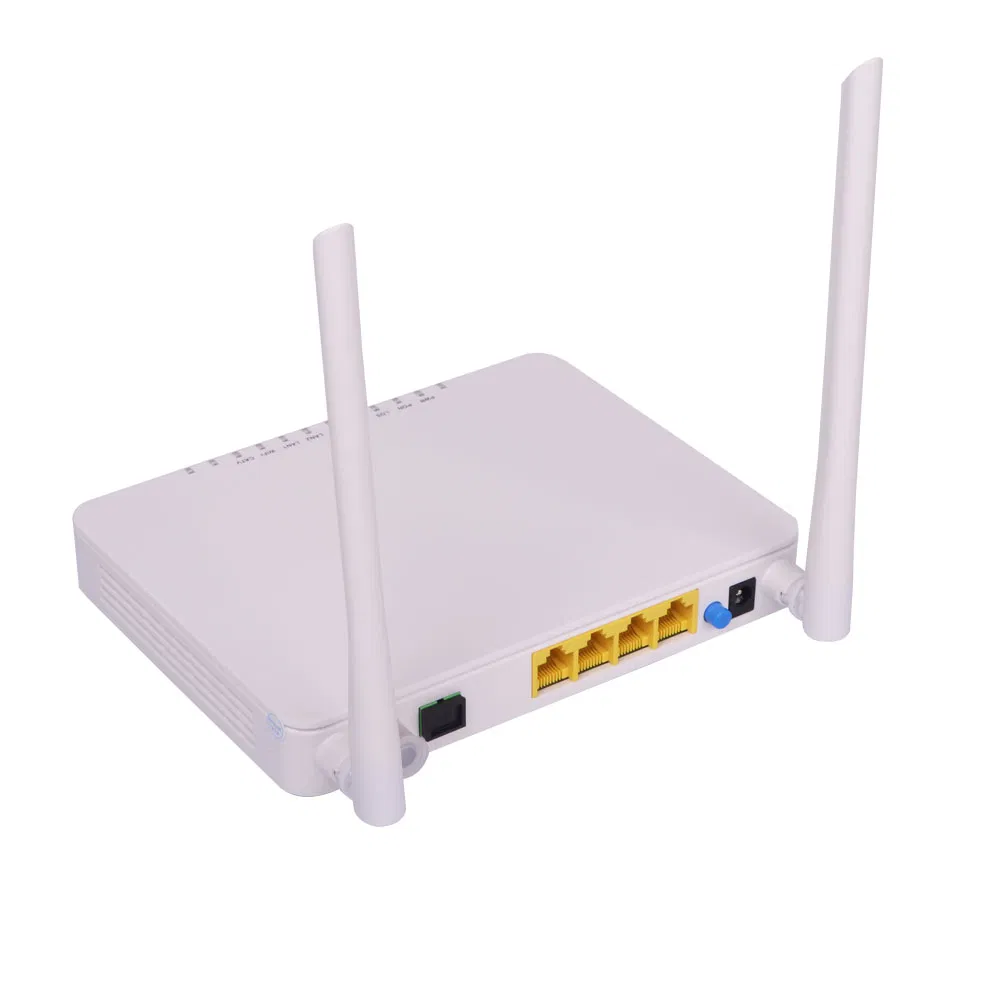

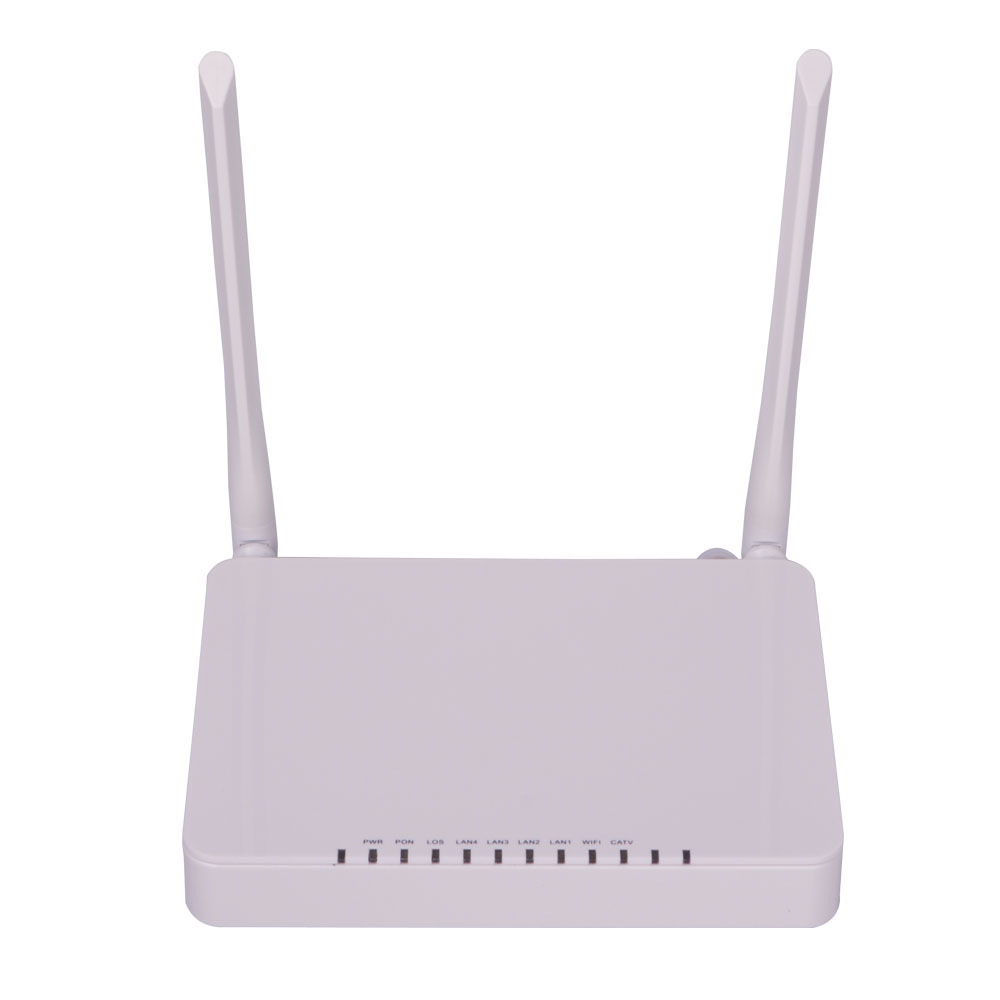

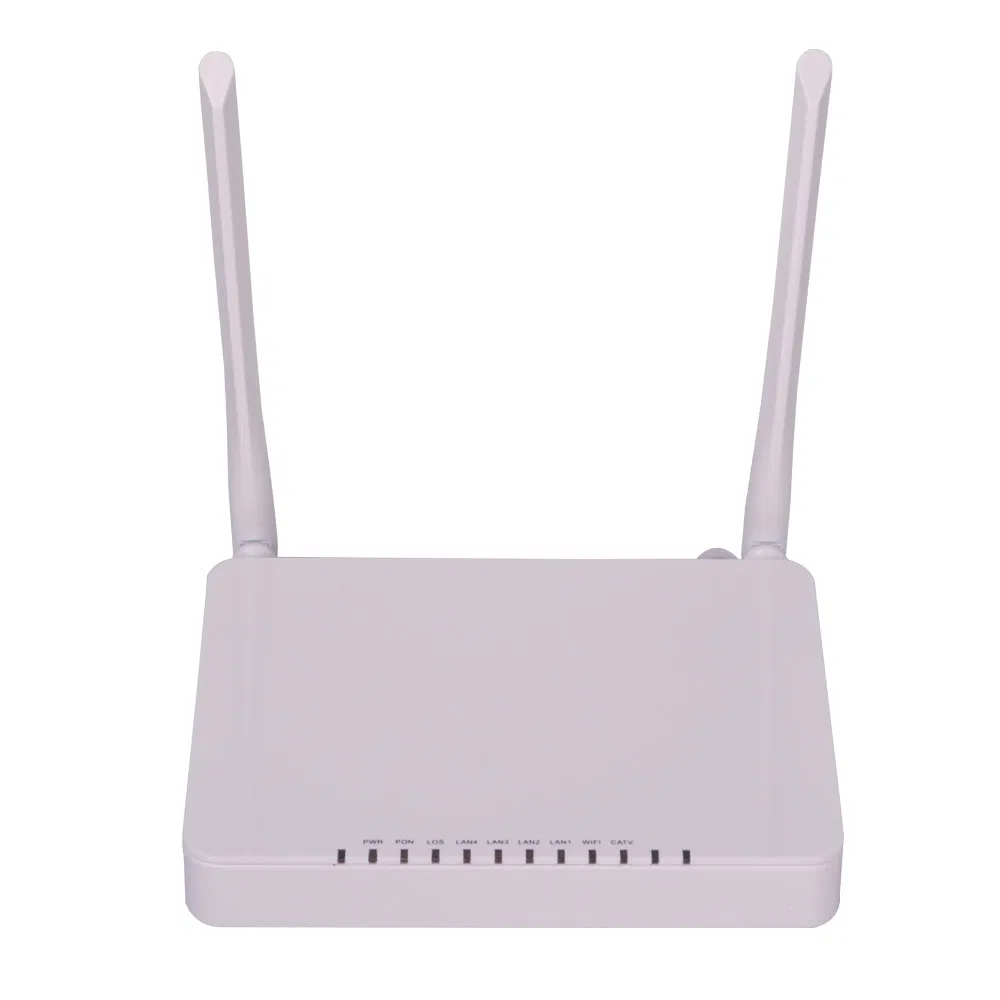

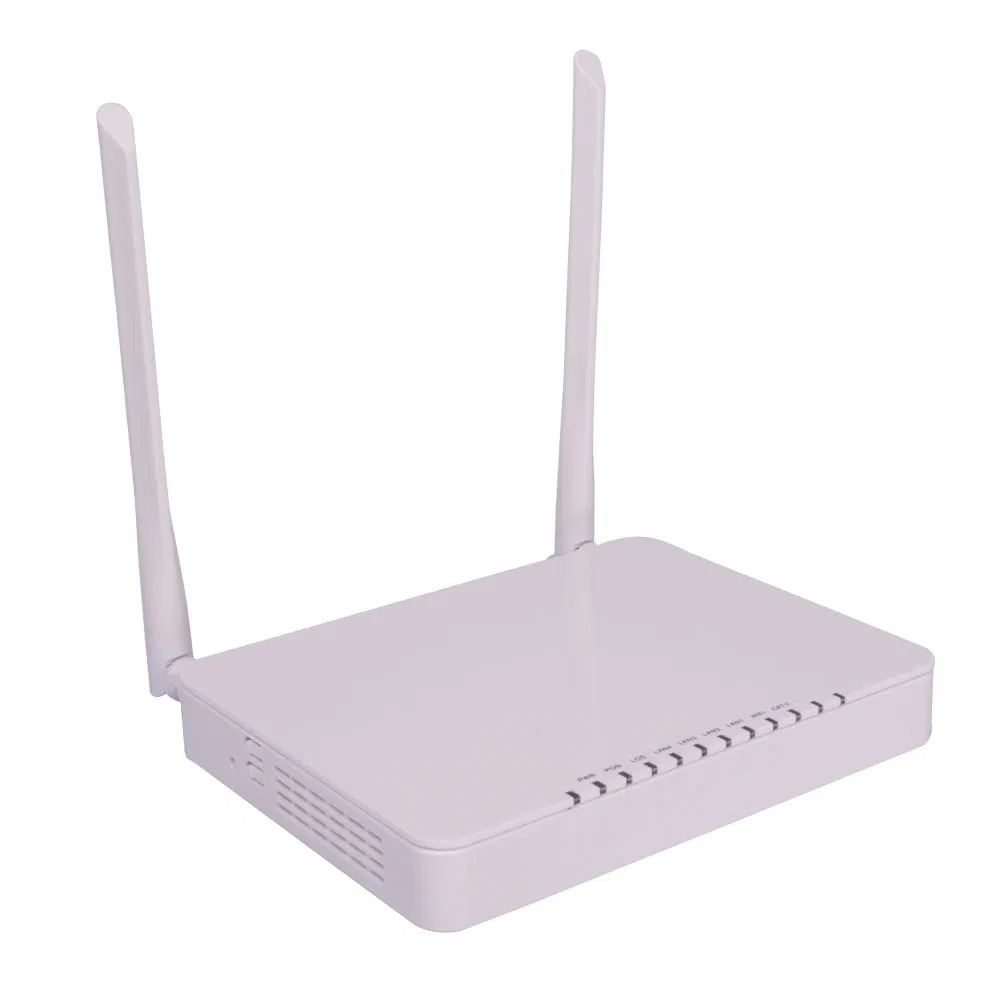

FTTH ONU Optical Network Unit 4ge+WiFi+CATV

Product Description

Wholesale FTTH Solution CATV EPON / GPON ONT / ONU

FTTH ONU Optical Network Unit 4ge+WiFi+CATV

ONT-4FE-RF(4GE+CATV) series is a FTTH bandwidth access equipment .Based on mature and stable GPON technology, it has powerful functions with high stability ,QoS guarantee ,compr -ehensive management and flexible networking construction,etc.ONTONT-4FE-RFseries is fully compatible with ITU-T G.984 technology standard.
It adopts single fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm .It only needs one-core fiber to transmit data service.

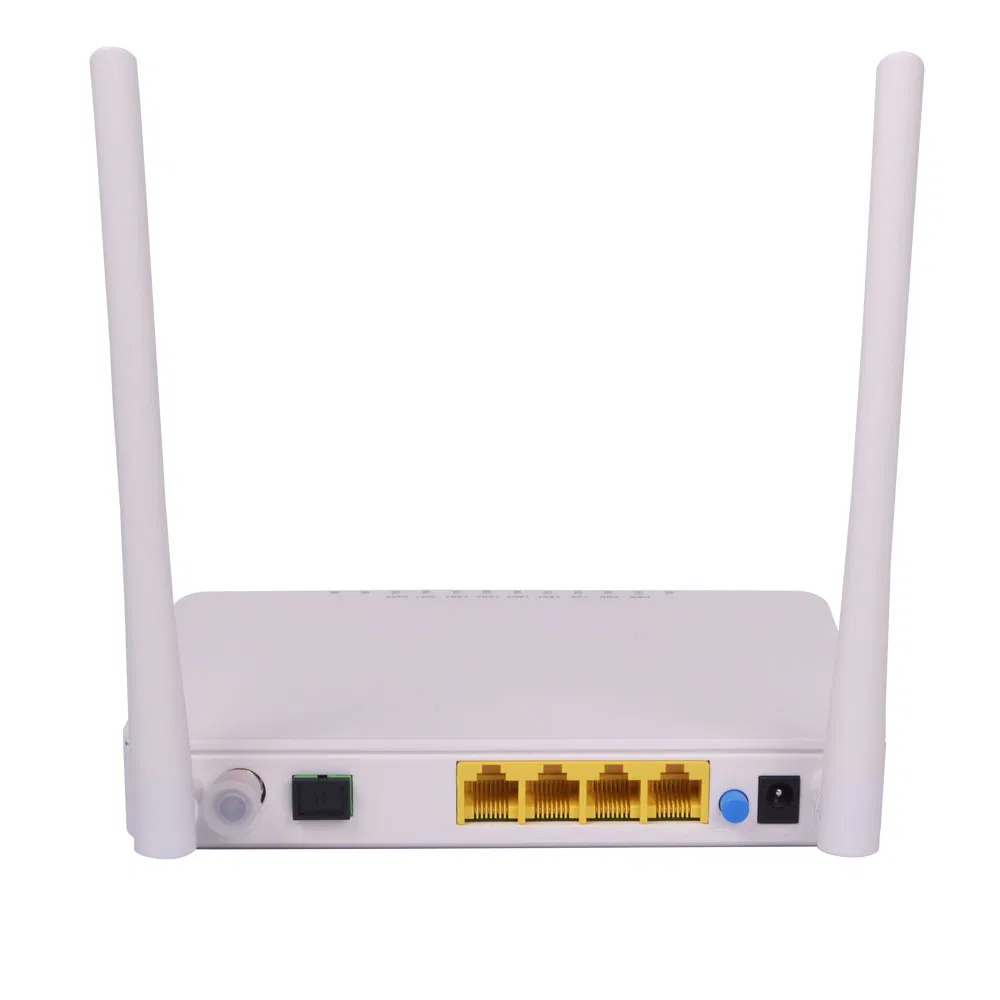

ONT-4FE-RF series has 1 PON port , four 10/100/1000BASE-T ports and one CATV output.

Application
Typical Solution: FTTH, FTTO, PON+EOC
Typical Business: INTERNET, CATV, IPTV, VOD, IP Camera

Functional Feature
Full compatible with ITU-T G.984
Support four GE auto-adapting Ethernet ports

Support one CATV output

Support OMCI and TR069 for remote management

Support Web for local management

Support Auto-negotiation and MDI/MDIX

Support the Ethernet interface rate, working mode and flows control

Support loopback at UNI

Support packet filtering and anti-illegal message attack protection

Support performance statistics of Ethernet lines

Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.

Support DHCP Option60 reporting the location information of the Ethernet interface

Support PPPoE+ for accurate subscribers identification

Support IGMP Snooping

Support AES-128

CATV support turn on/off RF output remotely

Item		Parameter
Interface	Uplink Interface	1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate: 2.488Gbps Upstream Data Rate: 1.244Gbps SC/PC single mode fiber 28dB Link loss and 30KM distance with 1:128
	CATV Interface	1 RF output Female F-Type Connector
	Ethernet Interface	4*10/100/1000Mauto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance
	Power Interface	12V DC Power supply
Performance Parameters	PON Optical Parameter	Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0~5dBm Rx Sensitivity: -27dBm Saturation Optical Power: -8dBm Connector Type: SC Optical Fiber: 9/125μm single-mode fiber
	Data Transmission Parameter	PON Throughput: Downstream 2.488Gbit/s s; U 1.244Gbit/s Ethernet: 1000Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms
	Business Capability	Layer 2 wire speed switching Support VLAN TAG/UNTAG, VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support link detection
Network Management	Management Mode	Standard compliant OMCI interface as defined by ITU-T G.984.4 Support TR069 and WEB management
Network Management	Management Function	Status monitor, Configuration management, Alarm management, Log management
Physical Features	Shell	Plastic casing
	Power	External 12VDC/1A power supply adapter Power consumption: <7W
	Dimension and Weight	Item Dimension: 200mm(L) x 140mm(W) x 33mm (H) Item weight: 0.5kg
	Environmental Specifications	Operating temperature: 0 to 50ºC Storage temperature: -40 to 85ºC Operating humidity: 10% to 90%(Non-condensing) Storage humidity: 5% to 95%(Non-condensing)
