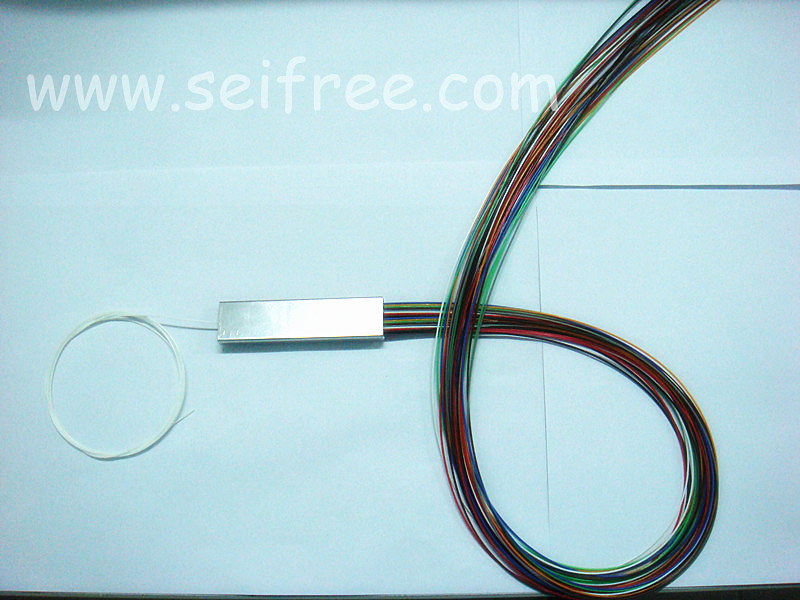

China FTTH Fiber Optical PLC Splitter 1*32 with Steel Package (E6)

Product Description

Single Mode Planar Lightwave Circuits Splitter
The Single Mode Planar Lightwave Circuits Splitter based on real time 6 DOF optical alignment monitoring and feedback technologies. The devices are designed and manufactured to meet Telcordia GR-1221-CORE requirements and ROHS compliant.

Applications                                                                                                         Features
Telecommunication system                                                                             Low excess loss
Access network                                                                                                   Low PDL
FTTH                                                                                                                      High reliability
PON
CATV

Ordering Information
SPLCS-      -       -       -       -       -       -

Ports	Fiber Type*	In Pigtail Dia.	Out Pigtail Dia.	Pigtail Length	Package	Connector Type
14=1x4	1=G652D	02=0.25mm	R=Ribbon Fiber	05=50cm	B2(3)	FU(A)=FC/UPC(APC)
24=2x4	2=G657A	09=0.9mm	09=0.9mm	10=100cm	C2	SU(A)=SC/UPC(APC)
18=2X8	/	2=2mm	2=2mm		D1(3)
		3=3mm	3=3mm	20=200cm	/	LU(A)=LC/UPC(APC)
264=2x64		X=Customization

Package and Mounting Dimension (mm)

Stainless Steel Tube (E)

Plastic Box (B)

Aluminum alloy Rack (D)

Outline

Mounting

Outline

E1=40x4x4

E5=60x12x4

B1=90x20x9.5

50x12x2Φ3.2

D1=129x29x160 1U LGX

E2=50x4x4

E6=80x12x6

B2=100x80x10

70x73.5x4Φ3.2

D2=129x58x160 2U LGX

E3=50x7x4

E7=80x20x4

B3=120x80x18

80x74.5x4Φ3.2

D3=485x43.5x230 1U 19' RACK

E4=60x7x4

E8=100x20x6

B4=141x115x18

100x106x4Φ3.2

D4=485x87x230 2U 19' RACK

Item

1x2

2x2

1x4

2x4

1x8

2x8

1x16

2x16

1x32

2x32

1x64

2x64

Ribbon Fiber

E1

E2

E1

E2

E1

E2

E4

E3

E4

E5

/

φ0.9 Stainless

E4

E5

E6

E7

E8

/

φ0.9 Plastic BOX

B1/2

B2

B3

B4

/

φ2 Plastic BOX

B1/2

B2

B3

B4

φ3 Plastic BOX

B1/2

B2

B3

B4

/

LGX

D1

D2

4U

/

19 Inches Rack

D3

D3(LC)/D4

Specification

Operating Wavelength	1260~1650 nm						Parameter	Unit	Value
Ports (N)	1 (M)			2 (M)			Fiber Type	/	G652D/ G657A*
Ports (N)	Insertion Loss	PDL	Uni.	Insertion Loss	PDL	Uni.	Directivity	dB	>55
2	≤4.30	≤0.20	≤0.50	≤4.50	≤0.20	≤0.80	Return Loss	dB	>50
4	≤7.40	≤0.30	≤0.80	≤7.60	≤0.30	≤1.00	Pigtail Dia.	mm	0.25/ 0.9 / 2 / 3
8	≤10.7	≤0.30	≤1.00	≤11.0	≤0.30	≤1.20	Pigtail Length	cm	>50
16	≤13.9	≤0.30	≤1.40	≤14.8	≤0.30	≤1.50	Operating Tem.	ºC	-40~ +85
32	≤17.2	≤0.30	≤1.60	≤17.8	≤0.30	≤1.80	Storage Tem.	ºC	-40~ +85
64	≤21.5	≤0.50	≤2.00	≤21.5	≤0.50	≤2.00	/
