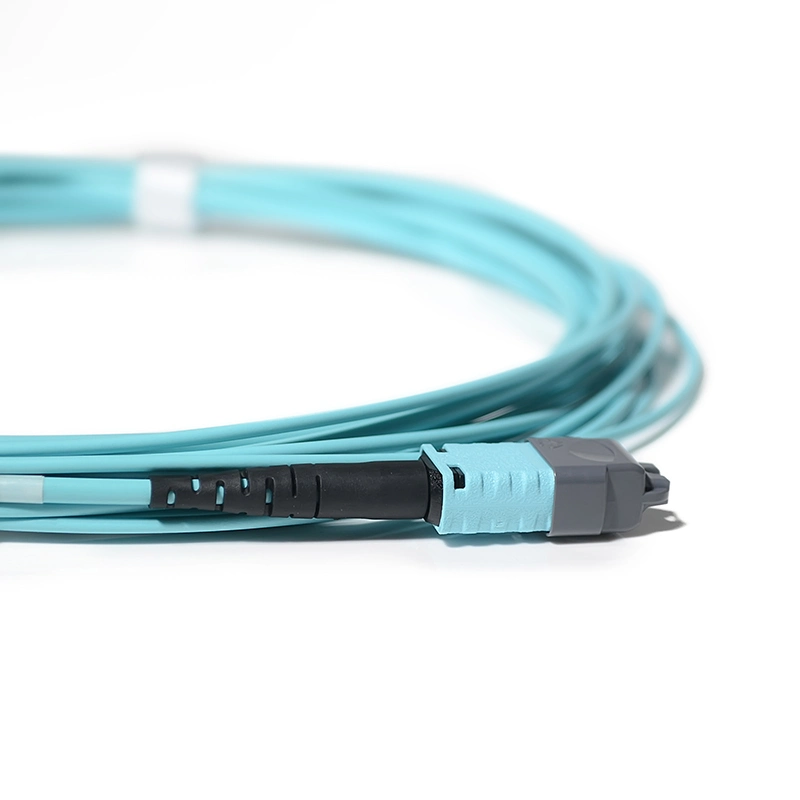

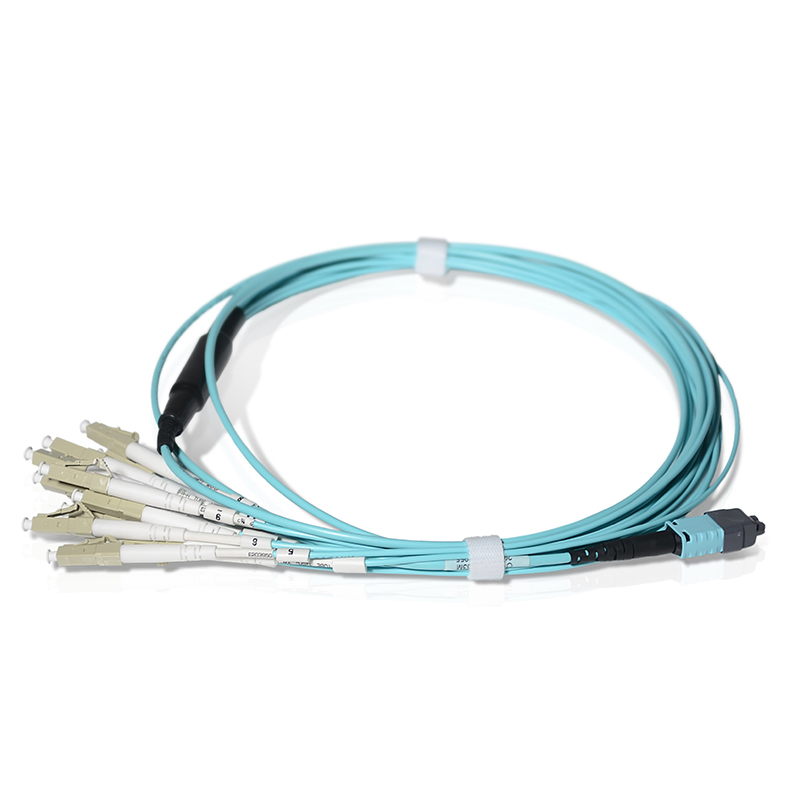

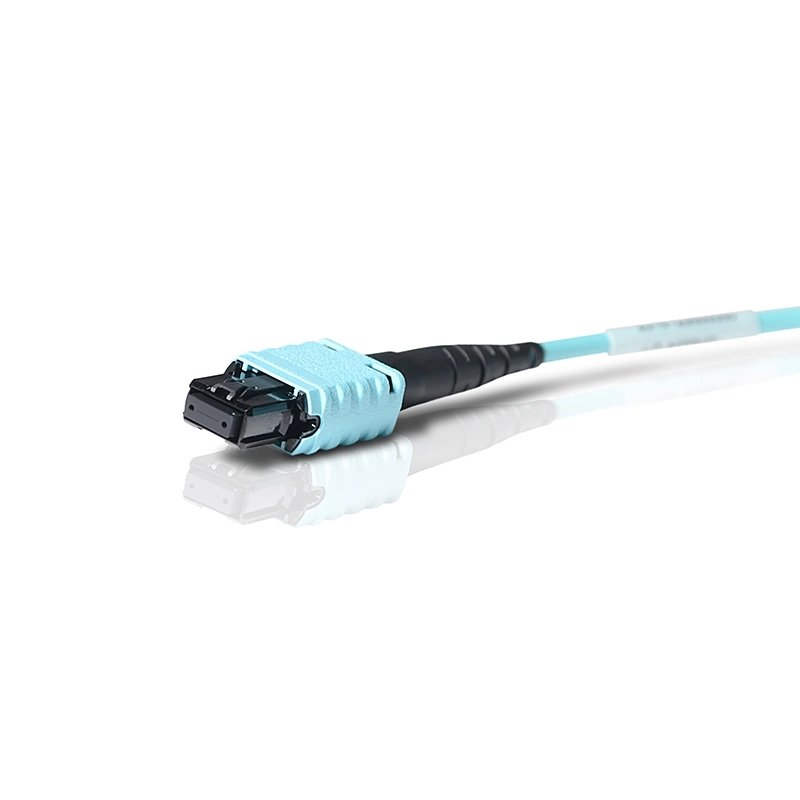

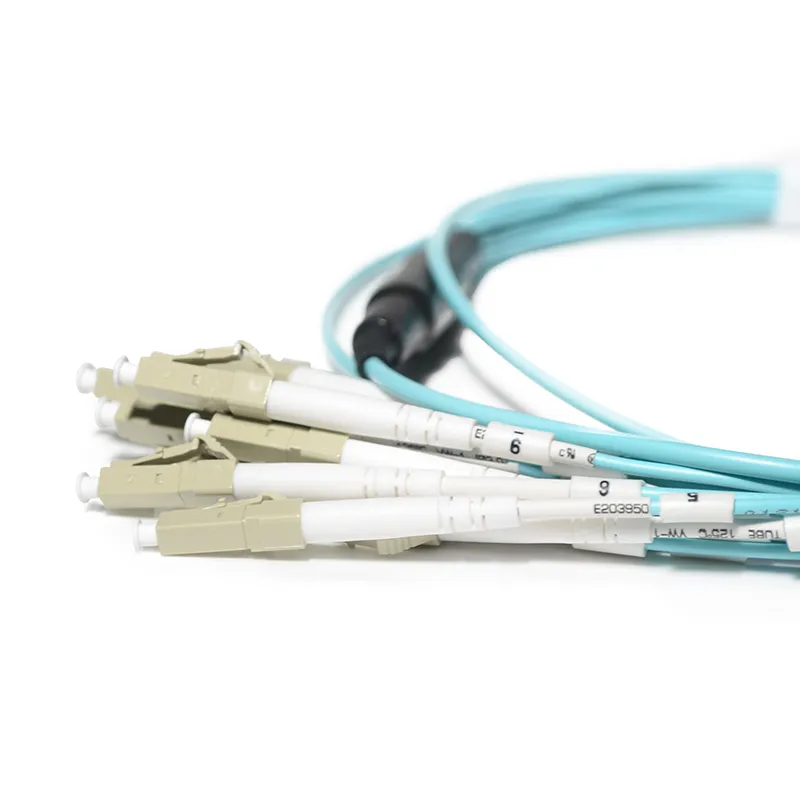

Fiber Optic Field Polarity/Pin Change MTP PRO Connector Cable
Fiber Optic Field Polarity/Pin Change MTP PRO connector cableThe MTP® PRO connector is the newest addition to the MTP brand MPO product family. This state-of-the-art connector brings simplified use to the MPO format by offering optimal field flexibility and enhanced performance, all while le......
Send Inquiry
Product Description
The MTP® PRO connector is the newest addition to the MTP brand MPO product family. This state-of-the-art connector brings simplified use to the MPO format by offering optimal field flexibility and enhanced performance, all while leveraging the proven features and technology of US Conec's MTP® connectors. With a novel design focused on simplicity and reliability, the MTP® PRO connector offers quick and effective polarity and pin reconfiguration in the field while ensuring product integrity and performance.
Connector Performance Specifications
| Model | SM | MM |
| Connector Fiber Count | 8, 12, 24 core | |
| Polish | PC, APC | |
| Housing Color | Standard (green), Elite (Yellow) | Standard(Beige) Elite(Auqa) |
| Insertion Loss Standard type | less than 0.7dB | Less than 0.5dB |
| Insertion loss Elite type | Less than 0.35dB | Less than 0.3dB |
| Return Loss | PC >50dB, APC>60dB | >30dB |
| Durability (500 matings) | less than 0.2dB | |
| Test Eavelength | 1310/1550nm | 850/1300nm |
Fiber Cable Perfomance Specifications
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 8, 12, 24, 48, 72, 96, 144 cores |
| Cable Diameter | 3.0mm 5.5mm or customized |
| Jacket Color | Yeloow, Orange, Aqua, Purple |
| Jacket Material | OFNR, OFNP, PVC, LSZH |
| Tensile Strength | 500N |
| Operating Temperature | -20 to 70 ºC |
| Storage Temperature | -40 to 75ºC |
Application
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Features and Benefits
- Field Pin Change
Field friendly configuration while maintaining product integrity with safe handling of pins and easy color identification - Field Polarity Change
Simple one-step color coded polarity change feature without removing connector housing - Debris Reduction System
Geometry and material optimized to reduce debris generation - Integrated Push-Pull Sleeve
Robust push-pull insertion and extraction housing design for ease of use and access - Environmentally Friendly
RoHS and REACH compliant without exemptions
