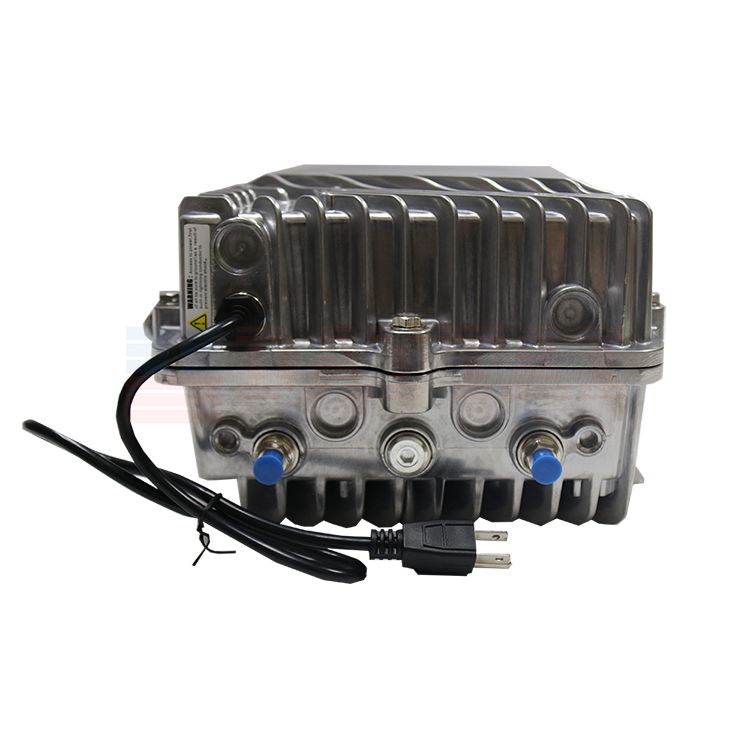

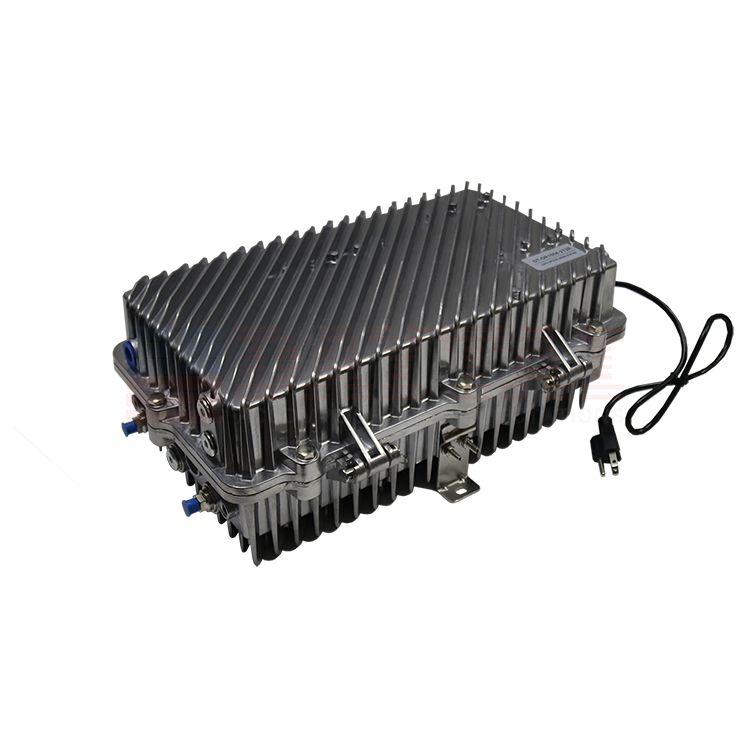

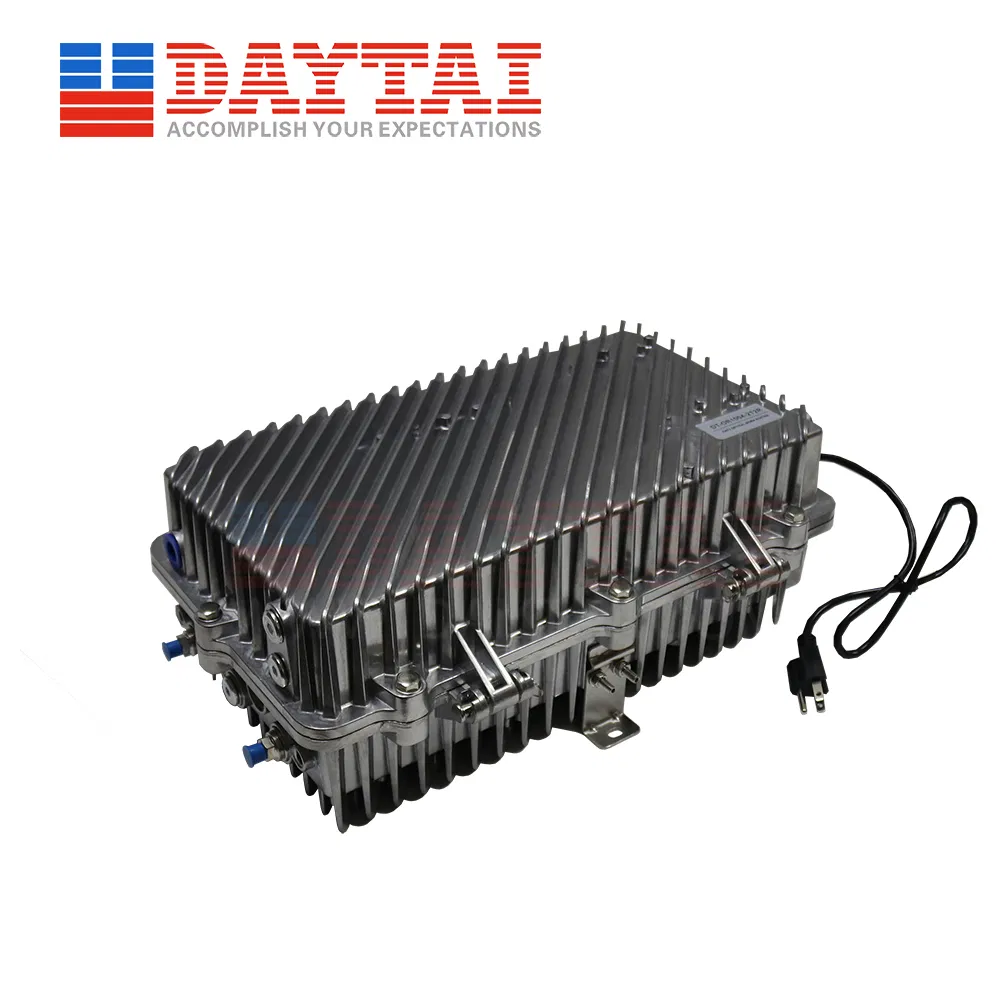

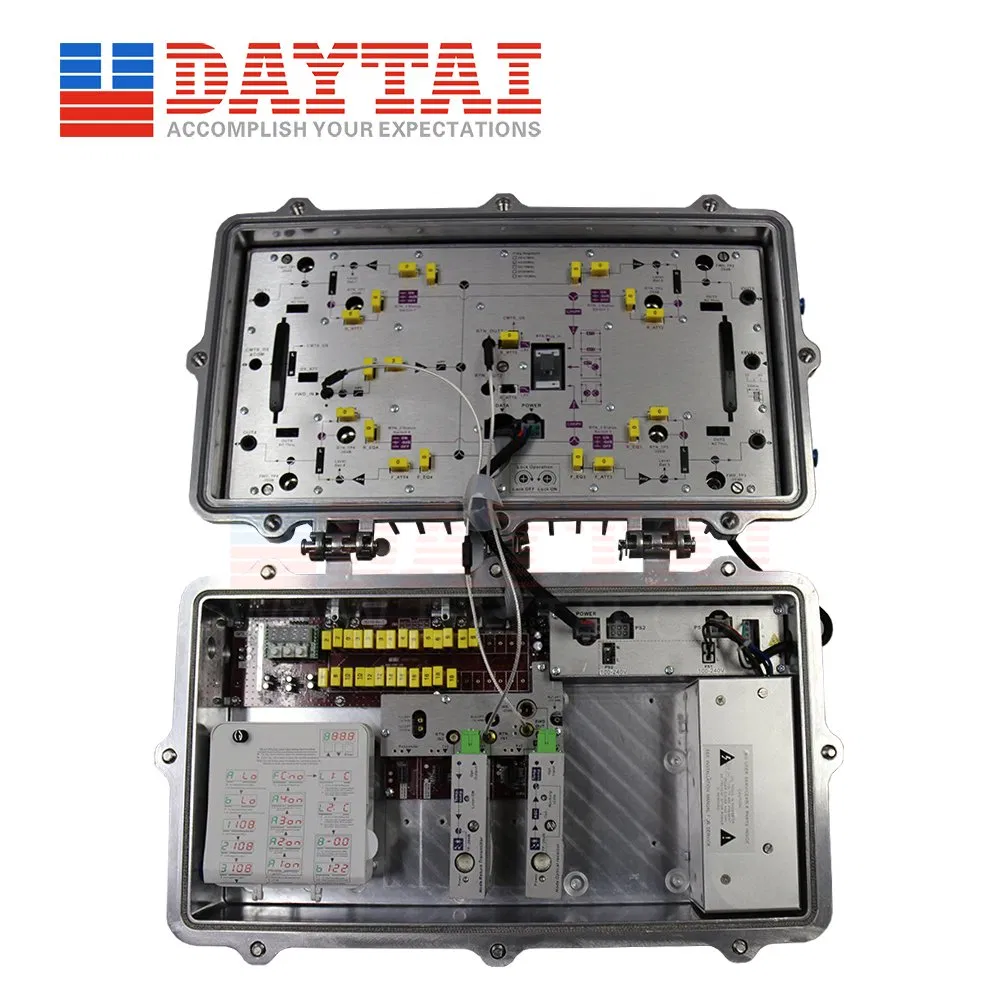

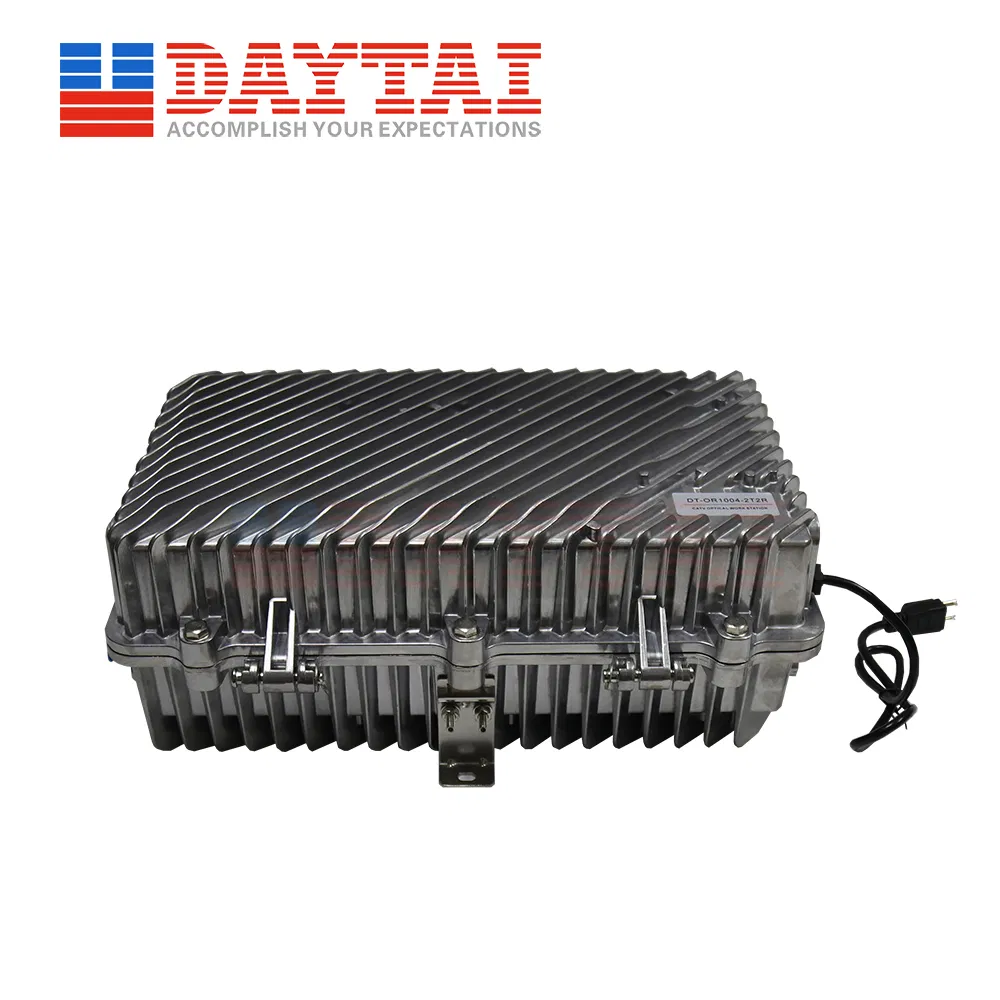

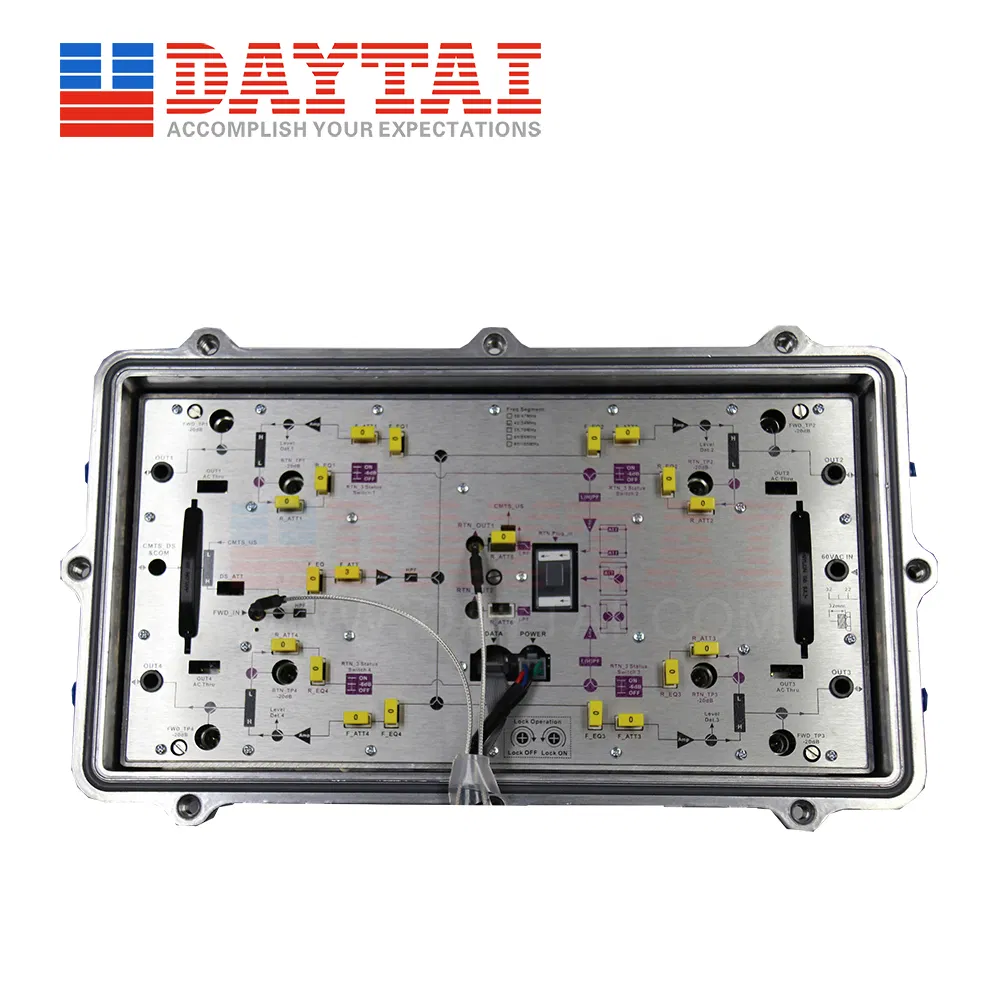

Dual Power Outdoor Node 4 Way Optical Workstation with Snmp
Description4 Way Optical Workstation (DT-OR1004-1T1R),4 Pcs RF Ports Optical Node,configured 1 forward path optical receiver modules,1 return path optical transmitter modules,1 Ethernet transponder module and 2 switching power supply modules at most. Adopts advanced optical AGC technology, the adjus......
Send Inquiry
Product Description
★Description

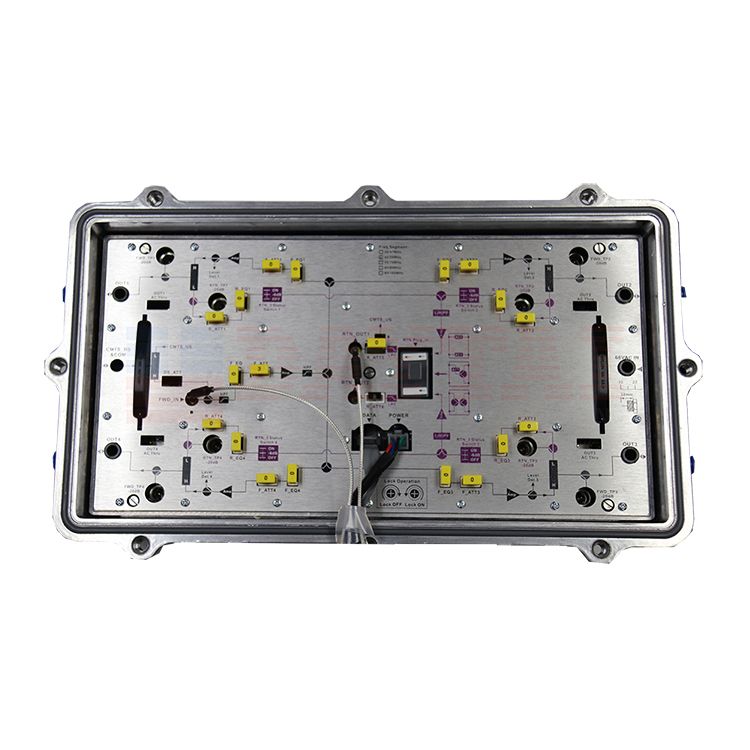

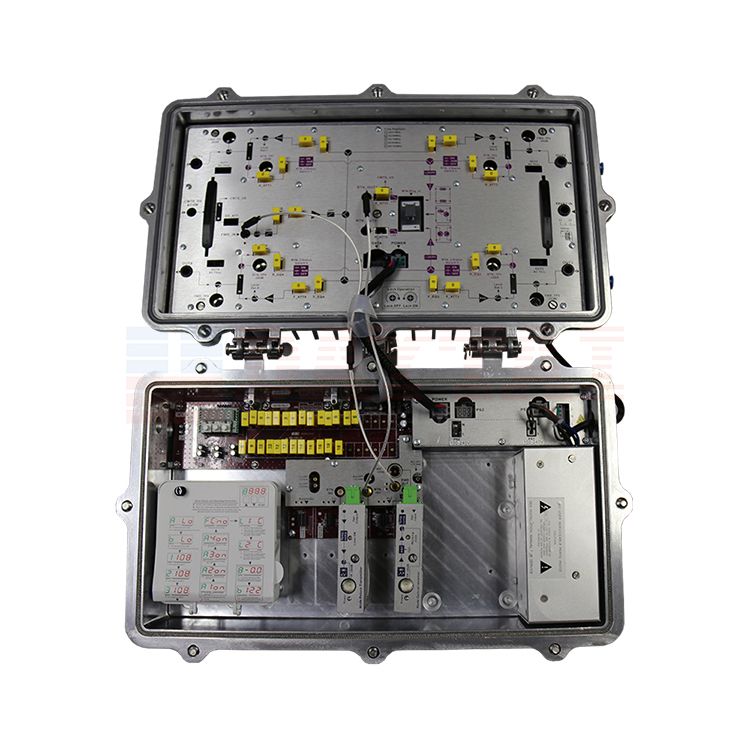

4 Way Optical Workstation (DT-OR1004-1T1R),4 Pcs RF Ports Optical Node,configured 1 forward path optical receiver modules,
1 return path optical transmitter modules,1 Ethernet transponder module and 2 switching power supply modules at most.
Adopts advanced optical AGC technology, the adjustment of output level and output slope both adopt fixed inserter. Add LED
nixie tube display function,(Forward Part Optical Parameters:Optical AGC control range:+2~-8/-7/-6/-5 dBm adjustable,Optical
Return Loss:>45dB,Optical Receiving Wavelength:1100 ~ 1600, Optical Connector Type:FC/APC, SC/APC OR specified by the user,
Optical Fiber Type:Single mode. Link Performance:C/N:≥ 51dB, C/CTB:≥ 65dB,C/CSO:≥ 60dB.RF Parameters:Frequency Range:54/85~862/1003MHz, Rated Output Level:≥ 108dBμV, Max Output Level:≥ 114dBμV, Output Return Loss:(85 ~550MHz) ≥16 / (550~1000MHz) ≥14dB), (Return Part Optical Parameters: Optical Transmit Wavelength:1310±10, 1470±10,1550±10, 1530±10, 1590±10, 1610±10nm OR specified by the user, Optical Connector Type:FC/APC, SC/APC OR specified by the user. RF Parameters:Frequency Range:5 ~ 42/65MHz OR specified by the user, Input Level:75~ 85dBμV, Input Return Loss:≥16dB), Dimension:460mm(L)×282mm(W)×175mm(H), Add SNMP( Network Management) is optional, Add transponder is optional, Add Return path optical transmit modules FP(G) isolation is optional, Single Power OR Double Power is optional, Power Supply:AC (150~265V) OR AC (35~90V), Power Plug:European standard Plug or American standard Plug is optional.
★Specification
Item | Unit | Performance Parameters | ||||
Forward Part | ||||||
Optical Parameters | ||||||
Optical AGC control range | dBm | +2~-8/-7/-6/-5 adjustable | ||||
Optical Return Loss | dB | >45 | ||||
Optical Receiving Wavelength | nm | 1100 ~ 1600 | ||||
Optical Connector Type | - | FC/APC, SC/APC or specified by the user | ||||
Optical Fiber Type | - | Single mode | ||||
Link Performance | ||||||
C/N | dB | ≥ 51 | -1dBm optical input, output level 108dBμV, EQ 8dB | |||
C/CTB | dB | ≥ 65 | ||||
C/CSO | dB | ≥ 60 | ||||
RF Parameters | ||||||
Frequency Range | MHz | 54/85 ~862/1003 | ||||
Flatness in Band | dB | ±0.75 | ||||
Rated Output Level | dBμV | ≥ 108 (when the optical AGC control range is +2~-8) | ||||
Max Output Level | dBμV | ≥ 114 (when the optical AGC control range is +2~-5) | ||||
Output Return Loss | dB | (85 ~550MHz) ≥16 / (550~1000MHz) ≥14 | ||||
Redundant Receiver Isolation | dB | ≥75 | ||||
Output Impedance | Ω | 75 | ||||
Return Part | ||||||
Optical Parameters | ||||||
Optical Transmit Wavelength | nm | 1310±10, 1470±10,1550±10, 1530±10,1590±10, 1610±10, (or specified by the user) | ||||
Laser Type | - | DFB or FP laser | ||||
Output Optical Power | mW | 1,2,3 | ||||
Optical Connector Type | - | FC/APC, SC/APC (or specified by the user) | ||||
RF Parameters | ||||||
Frequency Range | MHz | 5 ~ 42/65 (or specified by the user) | ||||
Flatness in Band | dB | ±0.75 | ||||
Input Level | dBμV | 75~ 85 | ||||
Input Return Loss | dB | ≥16 | ||||
Independent Transmit Isolation | dB | ≥60 | ||||
Input Impedance | Ω | 75 | ||||
NPR dynamic range | dB | ≥15 (NPR≥30 dB) Use DFB laser | ≥10 (NPR≥30 dB) Use FP laser | |||
RF Parameters of C-CMTS interface | ||||||
CMTS_DS forward path insertion port level | dBμV | 100±2 | ||||
CMTS_US return path output gain | dB | 0±1 | Port~CMTS_US OUT | |||
Isolation (forward path-CMTS_US return path output) | dB | ≥70 | ||||
General Performance | ||||||
Power voltage | V | A:AC(150~265)V;B:AC(35~90)V | ||||
Feed current through | A | 10 | ||||
Operating temperature | ºC | -40~+60 | ||||
Storage temperature | ºC | -40~+70 | ||||
Relative humidity | % | Max 95% no condensation | ||||
Consumption | VA | ≤ 42 | ||||
Dimension | mm | 460(L)×282(W)×175(H) | ||||
★Order information
Item | DAYTAI Model | Description | ||
1 | DT-OR1004-1T1R | Configured 1 forward path optical receiver modules, 1 return path optical transmitter modules | ||
2 | DT-OR1004-2T2R | Configured 2 forward path optical receiver modules, 2 return path optical transmitter modules | ||
3 | Optional Configuration: | |||
4 | Forward Part | Optical Parameters | Optical Connector Type | FC/APC, SC/APC OR specified by the user |
5 | RF Parameters | Frequency Range | 54 or 85 ~862 or 1003MHz | |
6 | Return Part | Optical Parameters | Optical Transmit Wavelength | 1310±10,1470±10,1550±10,1530±10,1590±10,1610±10,(or specified by the user) |
Laser Type | DFB or FP laser | |||
Optical Connector Type | FC/APC, SC/APC OR specified by the user | |||
RF Parameters | Frequency Range | 5 ~ 42 or 65MHz (or specified by the user) | ||
7 | Transponder | Add transponder is optional | ||
8 | SNMP | Add SNMP (Simple Network Management Protocol) is optional | ||
9 | FP(G) isolation | Add Return path optical transmit modules FP(G) isolation is optional | ||
10 | Power Supply | Single Power OR Double Power is optional | ||
AC (150~265V) OR AC (35~90V) | ||||
European standard Plug or American standard Plug is optional | ||||
