6 Core LC Upc Multimode Om3 LC/Upc Bundle Fiber Optic Pigtail
6 Core LC UPC Multimode OM3 LC/UPC Bundle Fiber Optic PigtailDescription12 fibers/Colored pigtailIt's consists of 12pcs of Simplex pigtail.12pcs is a unit. Meets Telcordia GR-326 Core and ROHS requirements.The connector could be SC, FC, LC, ST, MU, and E2000etc.The cable could be G652D, G655, G6......
Send Inquiry
Product Description

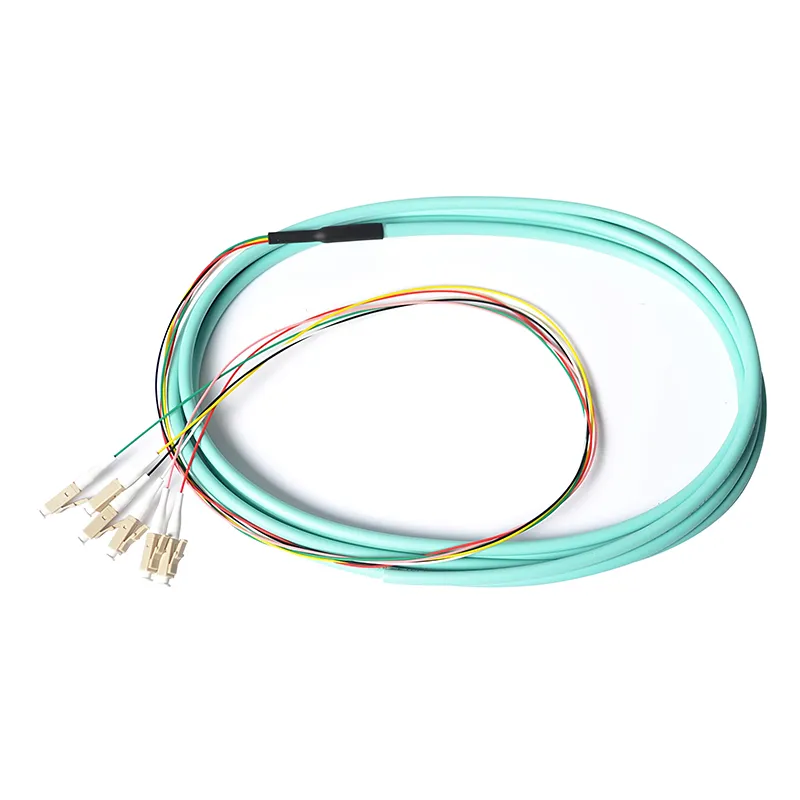

6 Core LC UPC Multimode OM3 LC/UPC Bundle Fiber Optic Pigtail
Description

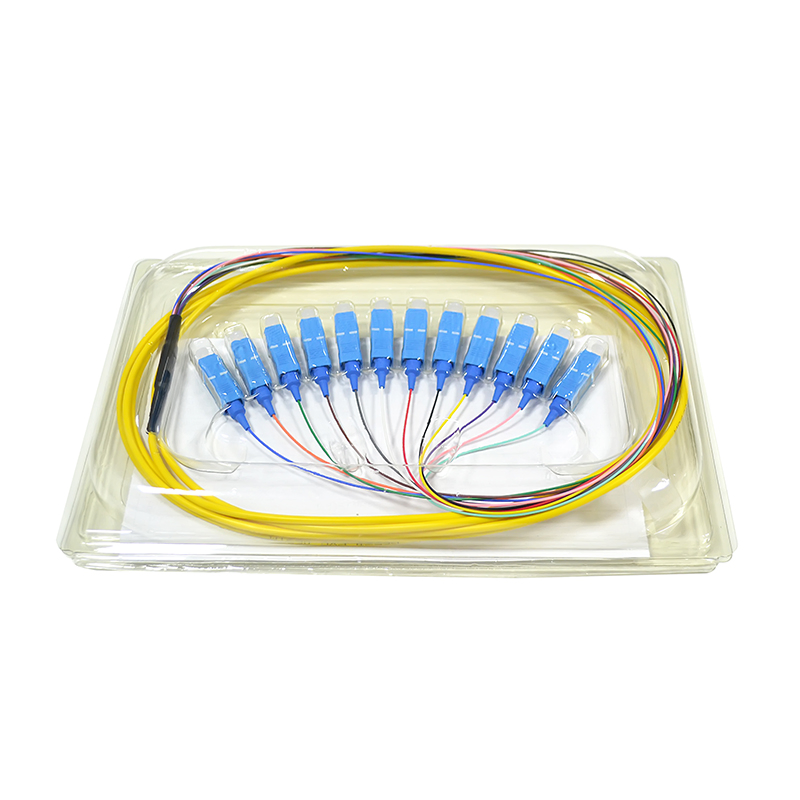

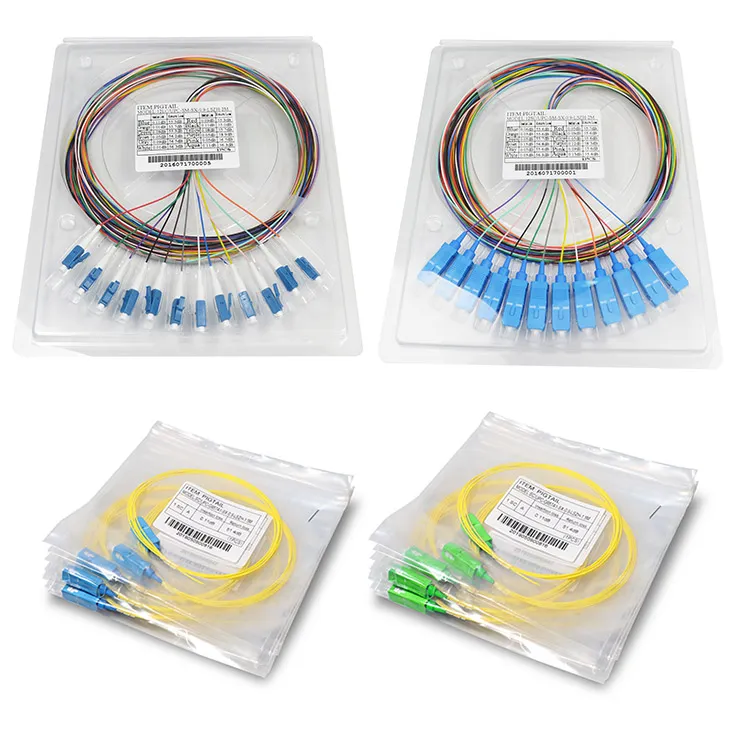

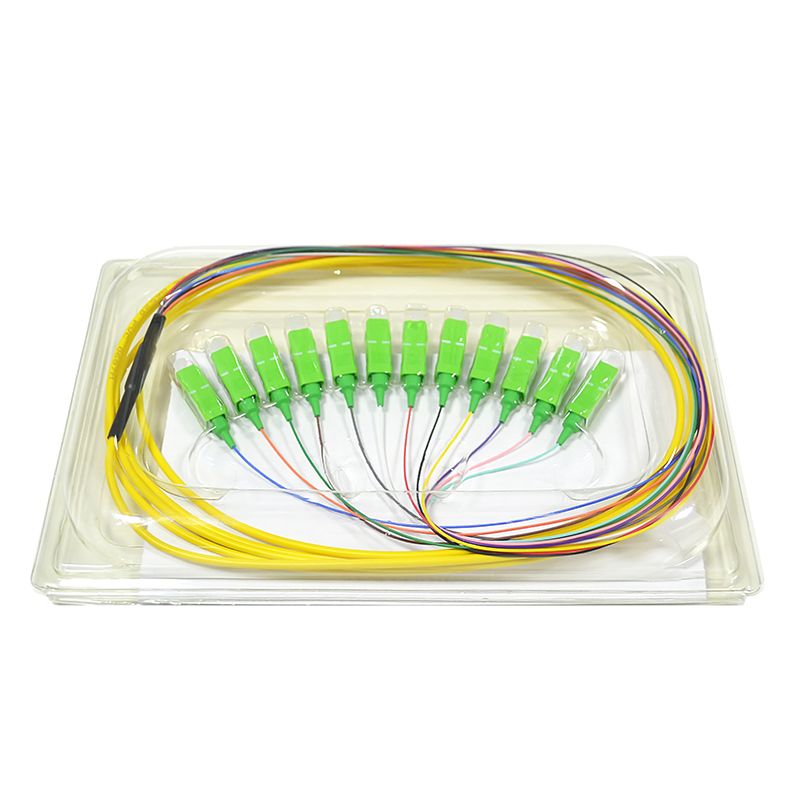

12 fibers/Colored pigtail
It's consists of 12pcs of Simplex pigtail.12pcs is a unit. Meets Telcordia GR-326 Core and ROHS requirements.

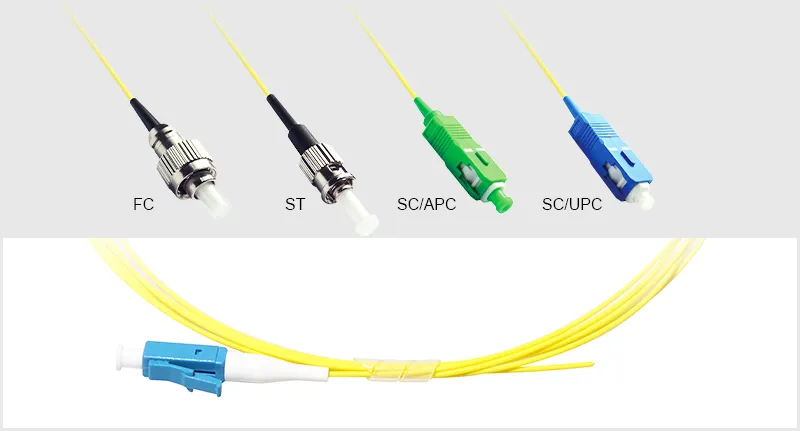

The connector could be SC, FC, LC, ST, MU, and E2000etc.
The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.
The cable size could be 0.25, 0.9,
There are 12 colors for your option.
Both 250um and 900um is same colored, easy to identify and make right splice.
Tight buffer, semi-tight buffer. Loose buffer are available
Feature
1.Low cost
2.Low Insertion Loss & PDL
3.High return loss (low amounts of reflection at the interface)
4.Factory-terminated and Tested
5.Ease of installation
6.Reliability
7.Low environmental sensitivity
8.Connector with Ceramic Ferrules
Application
1.Access Network
2.Telecom/CATV Systems
3.Active device termination
4.Local Area Networks (LANs)
5.Metro
6.Test equipment
7.Data processing networks
8.Wide Area networks (WANs)
9.FTTX
Product Specification
| Fiber count | 12 | Fiber Mode | 9/125μm |
| Connector Type1 | SC/APC | Connector Type2 | Unterminated |
| Fiber Mode | SM | Breakout length | 0.5m |
| Wavelength | 1310/1550nm | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Geometric Specification (only for 3D interferometer tested)
| SC | 5~15 mm | |
| Apex Offset | ≤50 um | |
| Fiber Spherical Height | +/- 50 nm | |
| Angular Offset | 8°± 0.2° | |
