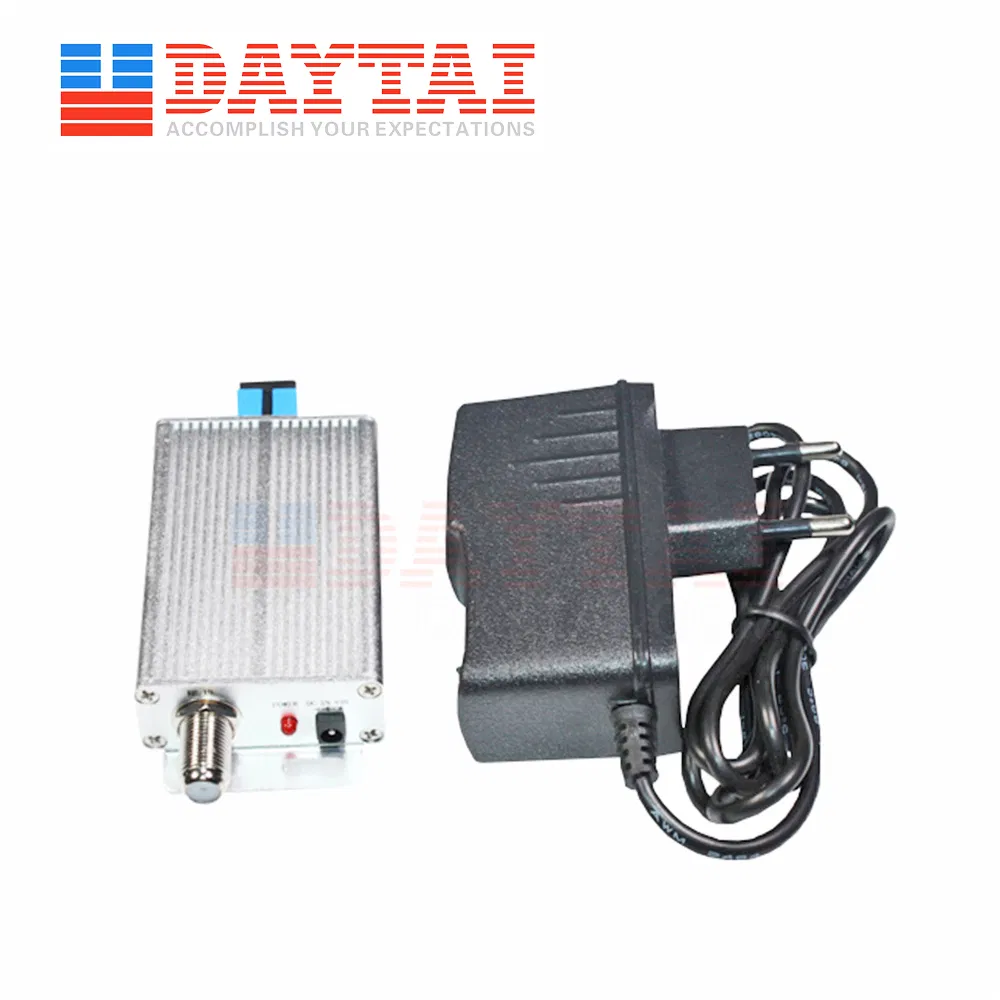

3MW 6MW 1310nm Mini FTTH CATV Optical Transmitter
Description FTTH MINI CATV Optical Transmitter,(DTMT-13/14/15/16-xxMW),Output Optical Wavelength:1310 or 1550 or 1470 or 1610 nm, Optical Return Loss:45dB,Optical Connector:SC/APC,Optical Fiber Type:Single Mode,Frequency Range:40-1000MHz,Input Level:65-85dBuV,C/N:52dbc,Power Input Voltage:+6V~18V,Di......
Send Inquiry
Product Description
Description
FTTH MINI CATV Optical Transmitter,(DTMT-13/14/15/16-xxMW),Output Optical Wavelength:1310 or 1550 or 1470 or 1610 nm, Optical Return Loss:45dB,Optical Connector:SC/APC,Optical Fiber Type:Single Mode,Frequency Range:40-1000MHz,Input Level:65-85dBuV,C/N:52dbc,Power Input Voltage:+6V~18V,Dimensions:90*45*19mm,Net weight:0.066Kg.
Features

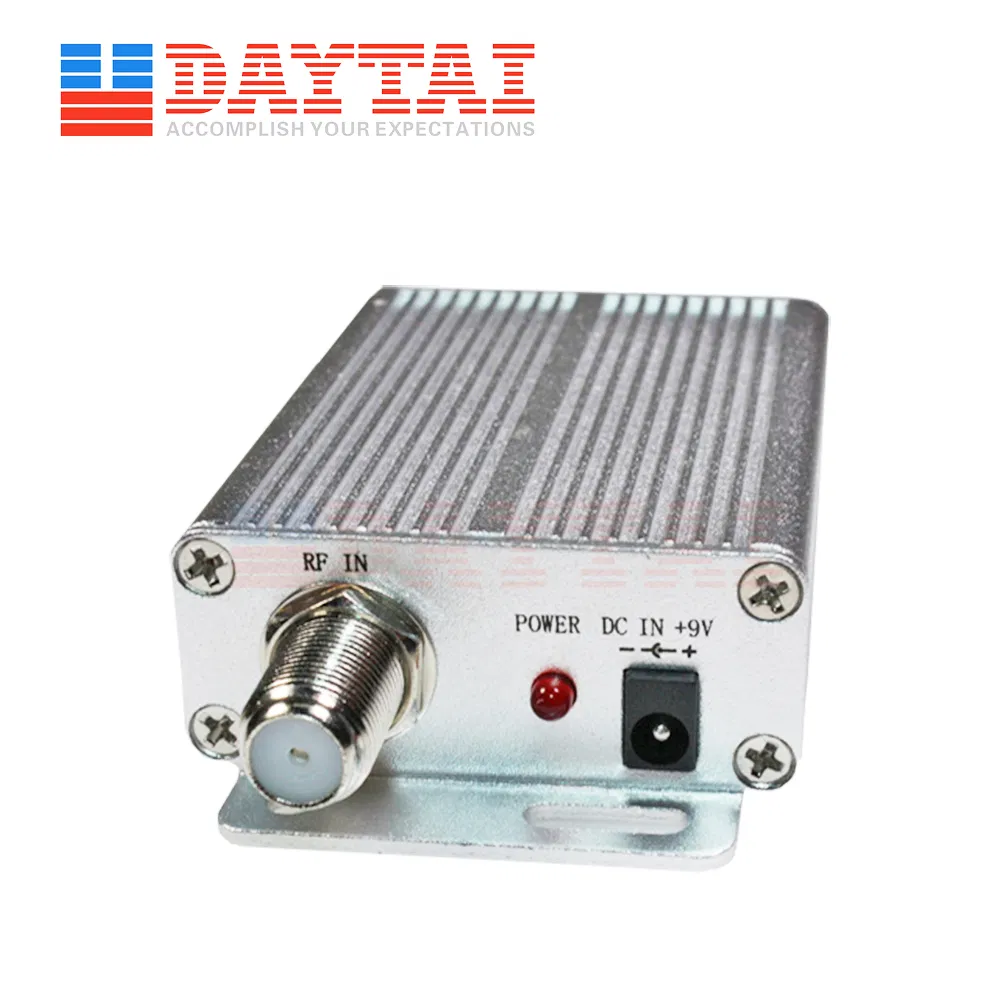

⊙Red-LED Power Indication
⊙Smaller size and easier install
⊙Voltage supply: +6V~18V(DC)
⊙Frequency range 40-1000MHz.
⊙Excellent Linearity and flatness
⊙Model Number: DTMT-13/15-xxMW
⊙Aluminum Profiles housing,excellent heat dissipation performance
⊙GaAs Active Devices,designed For FTTH(Fiber To The Home Network)

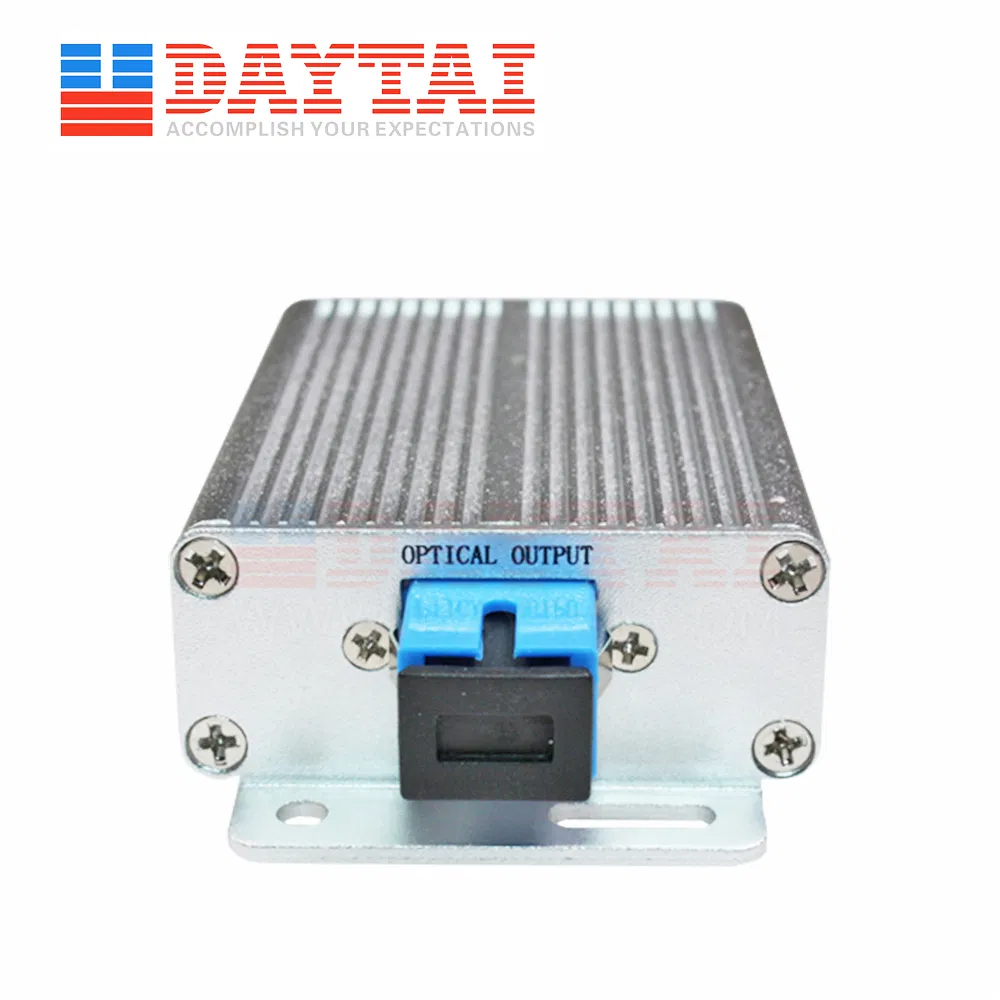

⊙RF "F" Connector In and Optical Wavelength Output 1310nm & 1550nm or customized
Product Performance
| Number Item | Unit | Description | Remark | ||
| Output Optical Wavelength:1310 or 1550nm (Can be customized) | |||||
| 1310nm Wavelength Output Power :1mW,3mW ,6mW ,10mW is optional (Usually the Standard power is 6mw or 10mw) | |||||
| 1550nm Wavelength Output Power :1mW,3mW ,5mW,6mW is optional (MAX is 6mW,Usually the Standard power is 6mw) | |||||
| Customer Interface | |||||
| 1 | RF Connector | 75Ω"F" connector | |||
| 2 | Optical Connector | SC/APC | Can be customized | ||
| 3 | DC Supply | DC Adapter | |||
| Optical Parameter | |||||
| 4 | Optical Return Loss | dB | >45 | ||
| 5 | Output Optical Wavelength | nm | 1310 or 1550 or 1470 or 1610 nm | Can be customized | |
| Output Optical Power | mW | ≤10 | Can be customized | ||
| 6 | Optical Fiber Type | Single Mode | |||
| RF Parameter | |||||
| 7 | Frequency Range | MHz | 40-1000 | ||
| 8 | Flatness | dB | ±0.5 | ||
| 9 | Input Level | dBuV | 65-85 | ||
| 10 | Output Impedance | Ω | 75 | ||
| 11 | C/N | dBc | 52 | ||
| Other Parameter | |||||
| 12 | Power Input Voltage | VDC | +6V~18V | Factory Supply 9V DC Adaptor | |
| 13 | Power Consumption | W | <1.5 | ||
| 14 | Dimensions | mm | 90*45*19 | ||
| 15 | Net weight | KG | 0.066 | Not Include Power Adaptor | |
