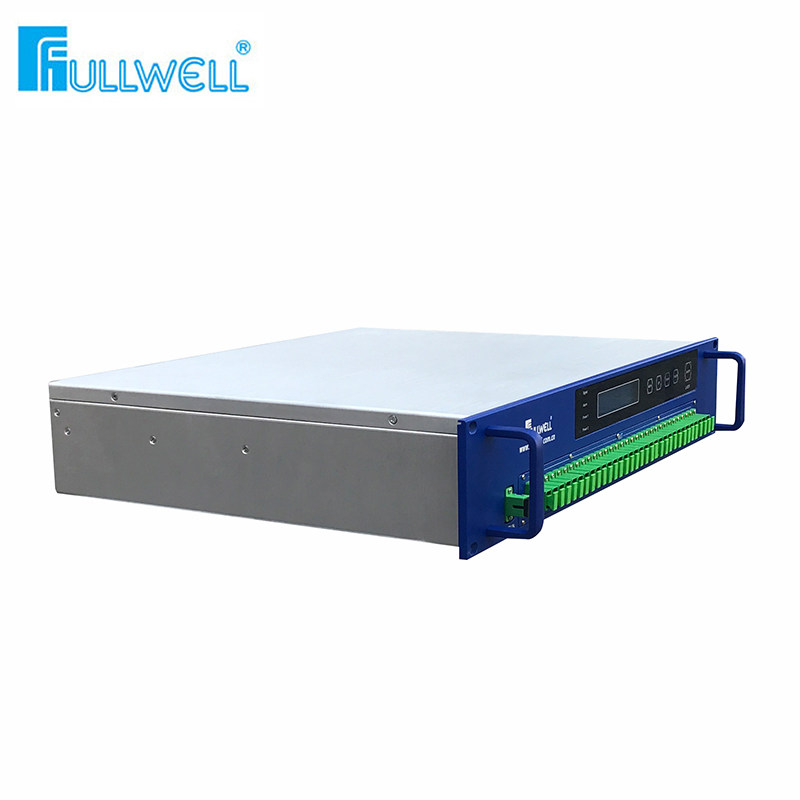

32 Port Fullwell CATV EDFA

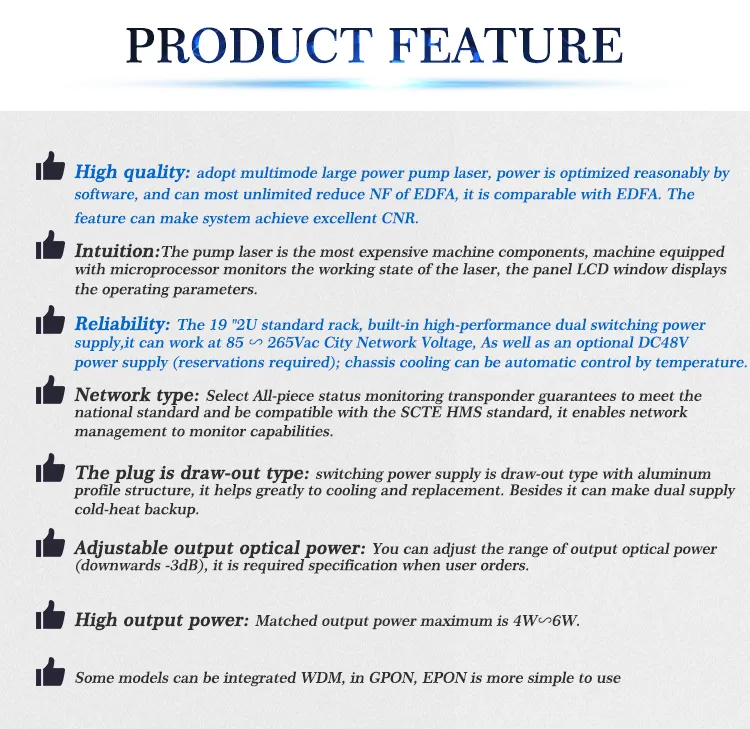

High power CATV EDFAFWA-1550H-32x16Product Features1. 19 inch / 2 U rack mount.2.32 port SC/APC 3. 3 Multi-pump , OFS ED fiber. 4.Phillips fans5.High gain and low noise figure.6.Front panel display for operating parameters and warming.7.SNMP , RJ45 port, operate through web interface easily.8.Output......
Send Inquiry
Product Description
FWA-1550H-32x16

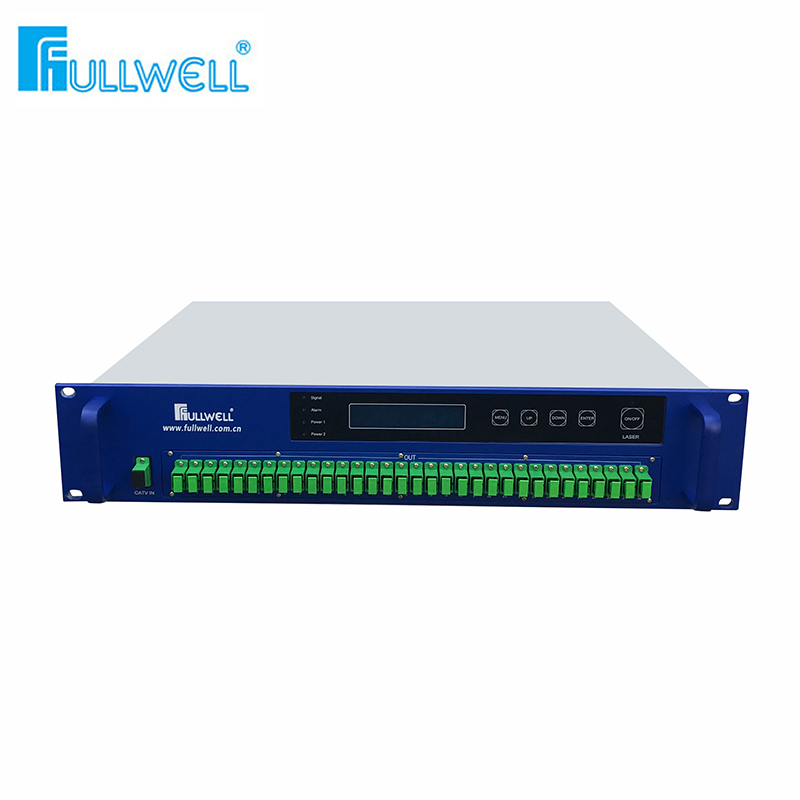

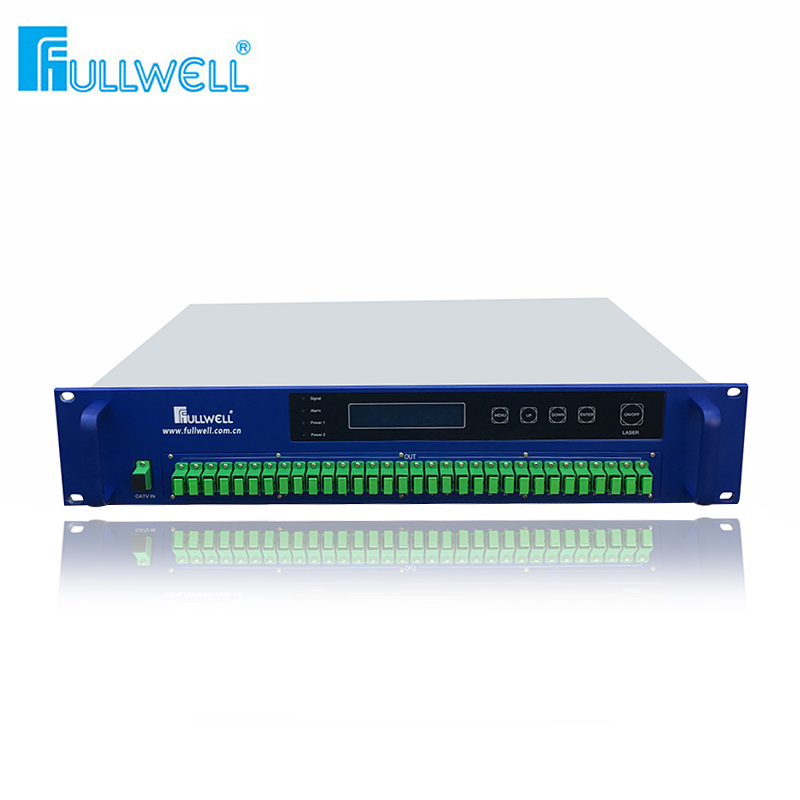

1. 19 inch / 2 U rack mount.
2.32 port SC/APC
3. 3 Multi-pump , OFS ED fiber.
4.Phillips fans
5.High gain and low noise figure.

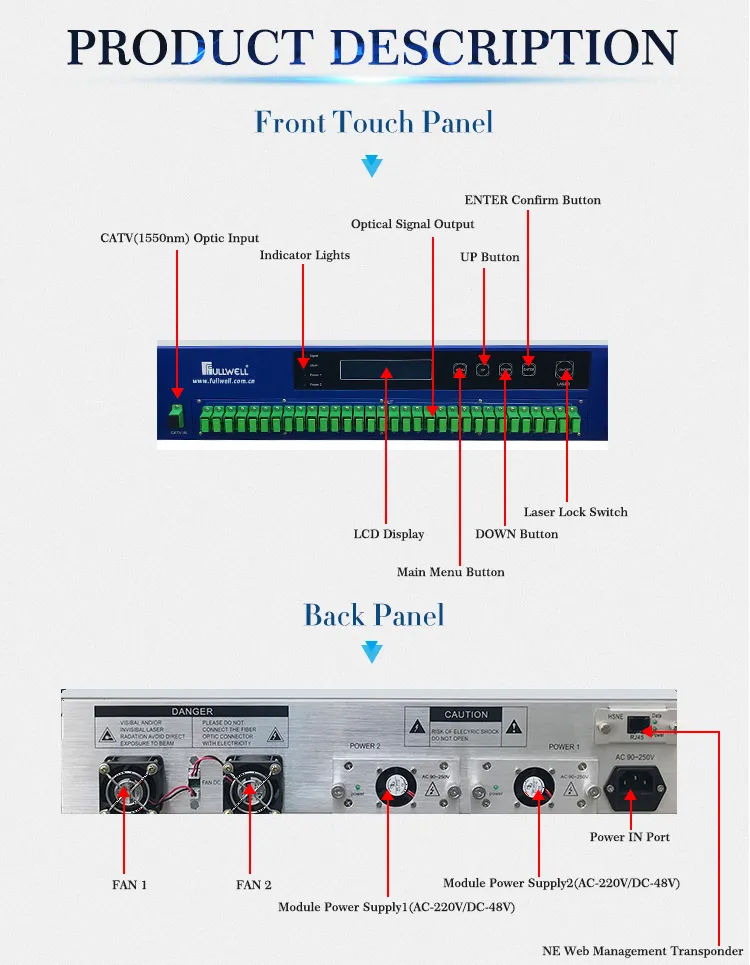

6.Front panel display for operating parameters and warming.

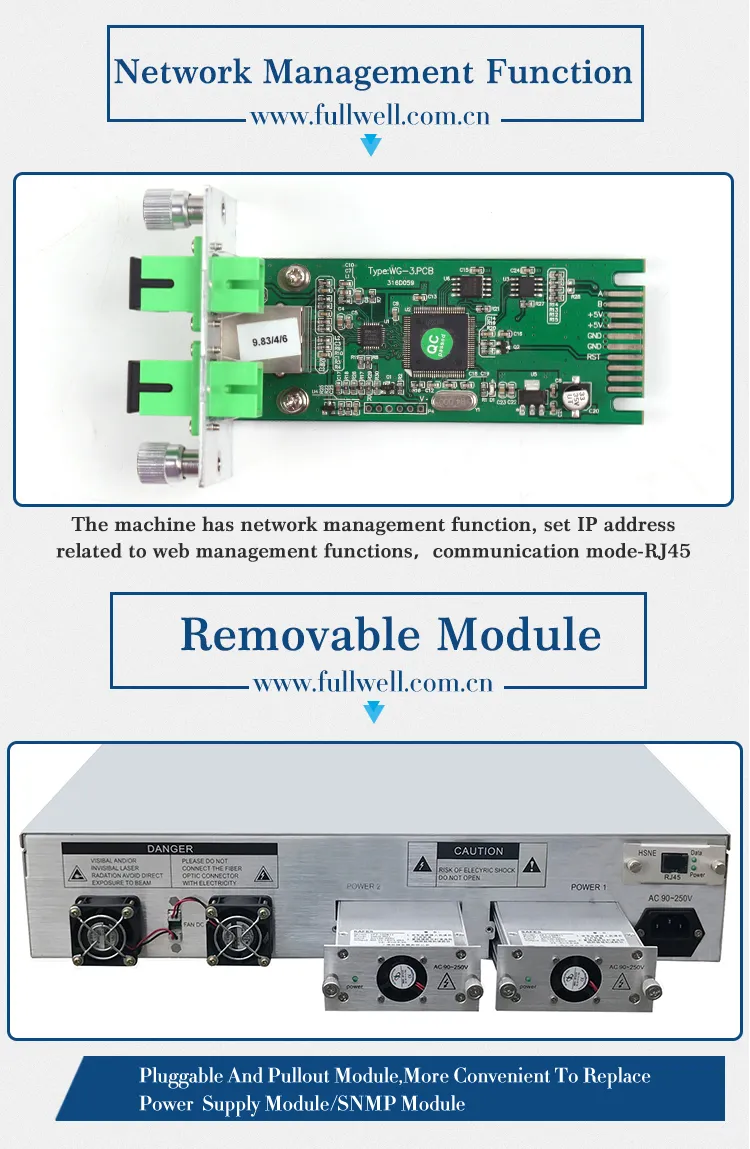

7.SNMP , RJ45 port, operate through web interface easily.
8.Output power 0~-3dBm adjustable.

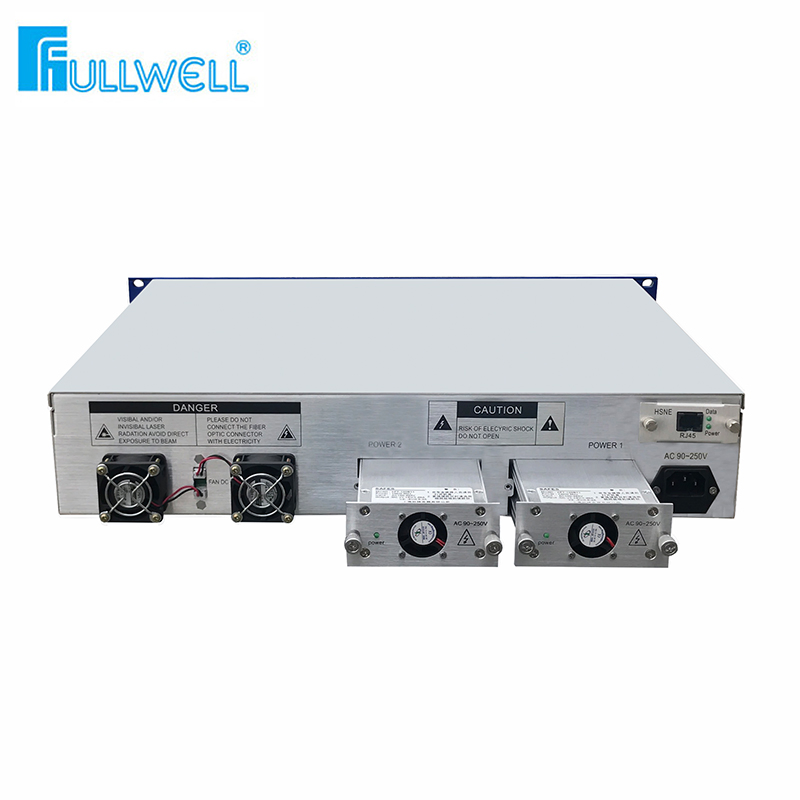

9.Hot-plug switching power supply design

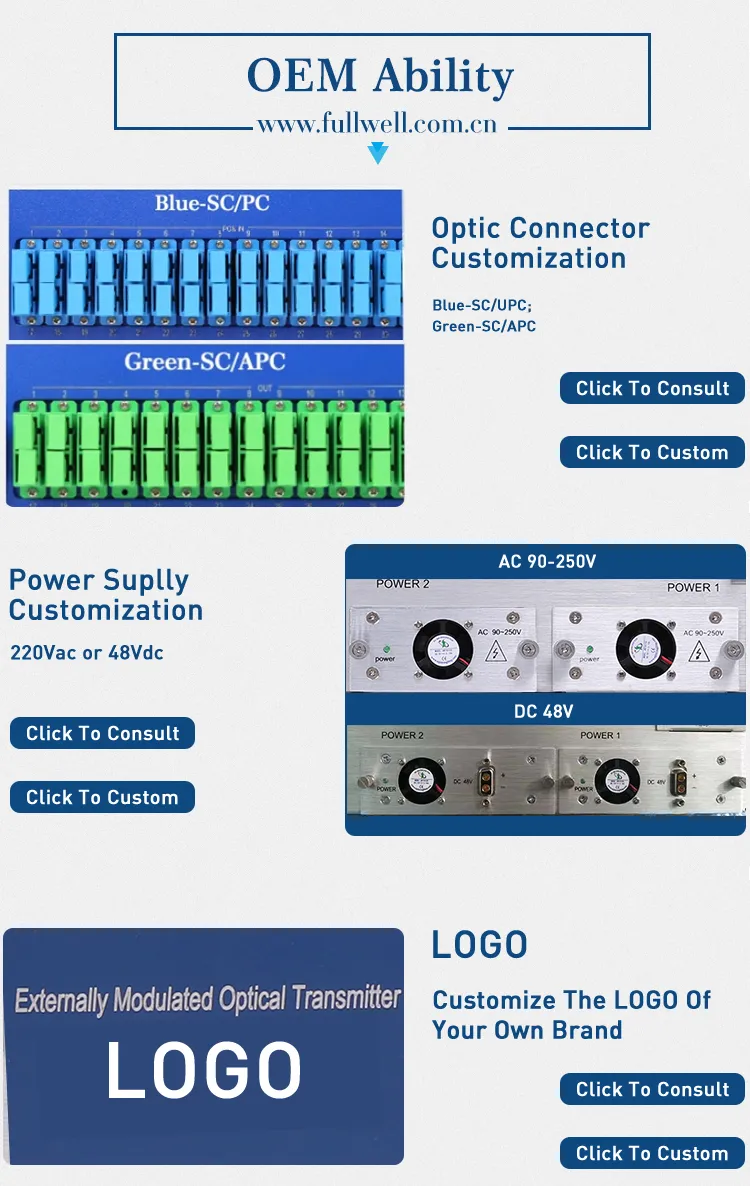

10. OEM offered.

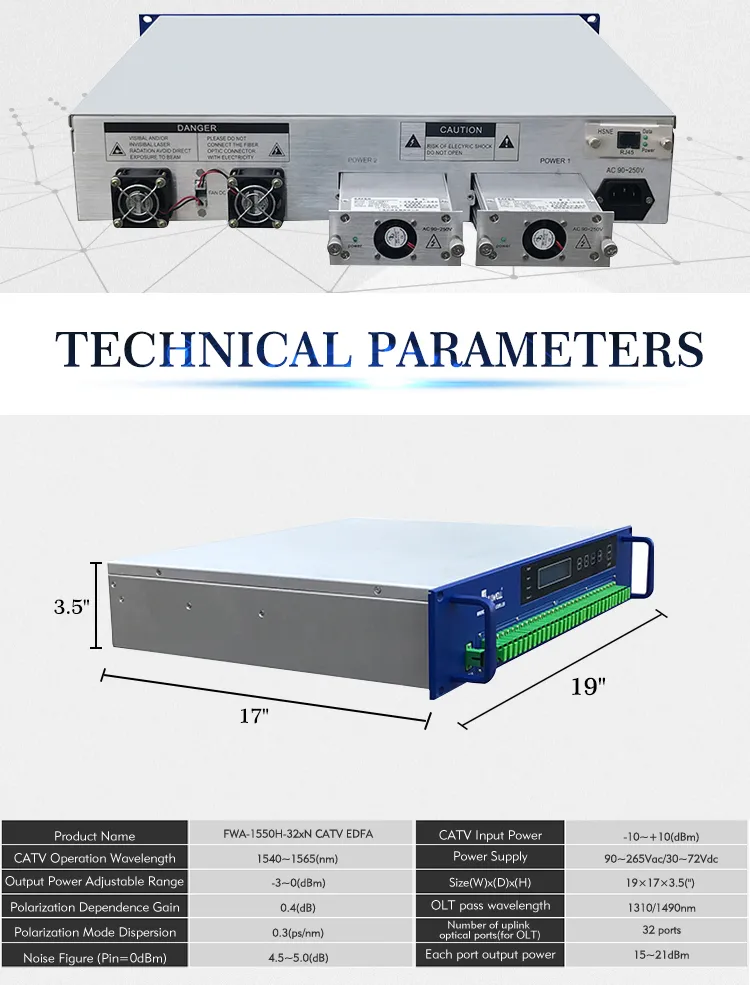

Main technical indicators
| Device type | FWA-1550H-32x16 |
| Project | |
| Operating wavelength (nm) | 1540~1565 |
| Input optical power(dBm) | , -10~+10 |
| Nominal input optical power (dBm) | 3 |
| Noise figure (dB) (+3 dBm,@1550nm) | 5.0~6.0 |
| Gain flatness(dB) | <±0.3 |
| Stability of output optical power (dB) | <±0.5 |
| Polarization sensitivity (dB) | <0.2 |
| Polarization modal dispersion (ps) | <0.5 |
| Optical connector(IN/OUT) | SC/APC LC/APC |
| Pump work quantity (N) | 3 |
| Saturated output power (dBm) | 16dBm |
| Power supplies (Vac) | 115~265(draw-out plug) |
| Power supplies (Vdc) | 48(draw-out plug)-optional |
| Operating temperature (ºC) | 0~50 |
| Size (mm) | 88×482.6×387 |
