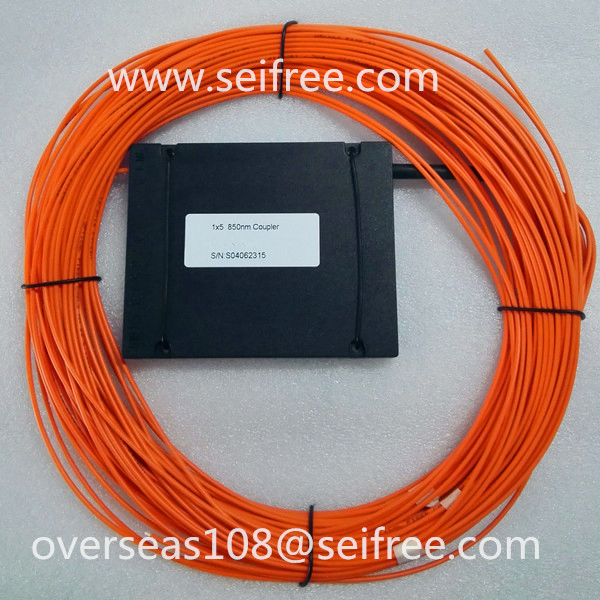

China 1X5 Multi Mode Fiber Coupler of ABS Box Without Connector

Product Description

Description
The Multi-Mode Tree Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi windows. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.

Applications                                                      Features
LAN                                                                    Low Excess Loss
Core Room                                                        High Reliability
Video Surveillance
Fiber Optical Sensor

Ordering Information
SMTC-       -       -       -       -       -       -       -

Ports	Wavelength	Coupling ratio	Fiber Type	Pigtail Dia.	Pigtail Length	Package	Connector Type
13=1x3	85=850nm	00=50/50	OM1(62.5/125)	09=0.9mm	05=50cm	B2	FU(A)=FC/UPC(APC)
14=1x4	13=1300nm		OM1(50/125)	2=2mm	10=100cm	C2	SU(A)=SC/UPC(APC)
	83=850&1300nm		OM1(50/125)	3=3mm		D1(3)
17=17	/		OM1(50/125)		20=200cm	/	LU(A)=LC/UPC(APC)
18=1X8		X=Customization

Package and Mounting Dimension (mm)

Stainless Steel Tube (A)		Plastic Box (B)		Aluminum alloy Box (C)		Aluminum alloy Rack (D)
Outline	Outline	Outline	Mounting	Outline	Mounting	Outline
/	/	B1=90x20x9.5	50x12x2Φ3.2	C1=85x18x8.4	44.5x13x2Φ3	D1=129x29x160 1U LGX
		B2=100x80x10	70x73.5x4Φ3.2	C2=90x72x8	86x68x4Φ3	D2=129x58x160 2U LGX
		B3=120x80x18	80x74.5x4Φ3.2	C3=110x95x7.5	99x84x4Φ3.5	D3=485x43.5x230 1U 19' RACK
		B4=141x115x18	100x106x4Φ3.2	C4=110x95x15	99x84x4Φ3.5	D4=485x87x230 2U 19' RACK
Item		1X3	1X4	1X5	1X6	1X7	1X8
φ0.9(φ2,φ3) Plastic Box		B2	B2	B2	B2	B2	B2
φ0.9(φ2/φ3) Aluminum Alloy Box		C2	C2	C2	C2	C2	C2
LGX		D1	D1	D1	D1	D1	D2
19 Inches Rack		D3	D3	D3	D3	D3	D3

Specification

Operating Wavelength(nm)	850±20/1310±20			850&1310±20			Parameter	Unit	Value
Ports (m x n)	Insertion Loss	PDL	Uni.	Insertion Loss	PDL	Uni.	Fiber Type	/	OM1(62.5/125)/ OM2,OM3,OM4 (50/125)
Ports (m x n)	dB						Fiber Type	/	OM1(62.5/125)/ OM2,OM3,OM4 (50/125)
1x3	≤6.80	≤0.20	≤0.50	≤7.30	≤0.20	≤0.60	Directivity	dB	>36
1x4	≤7.90	≤0.20	≤0.70	≤8.30	≤0.20	≤0.80	Return Loss	dB	>36
1x5	≤8.90	≤0.30	≤1.10	≤9.40	≤0.30	≤1.20	Pigtail Dia.	mm	0.9 / 2 / 3
1x6	≤9.90	≤0.30	≤1.30	≤10.4	≤0.30	≤1.50	Pigtail Length	cm	>50
1x7	≤11.2	≤0.30	≤1.50	≤11.7	≤0.30	≤1.80	Operating Tem.	ºC	-10~ +70
1x8	≤12.2	≤0.30	≤1.70	≤13.0	≤0.30	≤2.00	Storage Tem.	ºC	-40~ +85
