China 1u Rack Mount 18CH E2000 Fiber Optic Multiplex CWDM

Product Description

1U Rack Mount 18CH E2000 Fiber Optic Multiplex CWDM

Features
1. Low Insertion Loss
2. Wide pass band
3. High Channel Isolation
4. High Stability and reliability
5. Epoxy-free on Optical Path

Applications
1. Line Monitoring
2. WDM Network
3. Cellular Application
4. Fiber Optical amplifier
5. Acess Network

Specifications

Parameters				Unit		Specification
Channel Count				Ch		18
Channel Center Wavelength				nm		1270/ 1290/ 1310/ 1330/ 1350/1370/1390/1410/ 1430/ 1450/ 1470/ 1490/ 1510/ 1530/ 1550/ 1570/ 1590/ 1610
Channel Passband			Min	nm		±7.5
Insertion Loss			Max	dB		<3.0
Isolation	Adjacent Channel		Min	dB		30
	Non-Adjacent Channel		Min	dB		40
Passband Ripple			Max	dB		0.3
Polarization Dependent Loss			Max	dB		0.1
Directivity			Min	dB		55
Return Loss			Min	dB		50
Polarization Mode Dispersion			Max	ps		0.1
Power Handling			Max	mW		500
Pigtail and Connector Type		COM			0.9/mm black loose tube with /APC connector
		Other ports			0.9/mm white loose tube with /APC connector
Fiber Type						SMF-28e
Fiber length				m		≥1
Operating Temperature				°C		-10 ~ 70

Remarks: Above specification are for device without connector

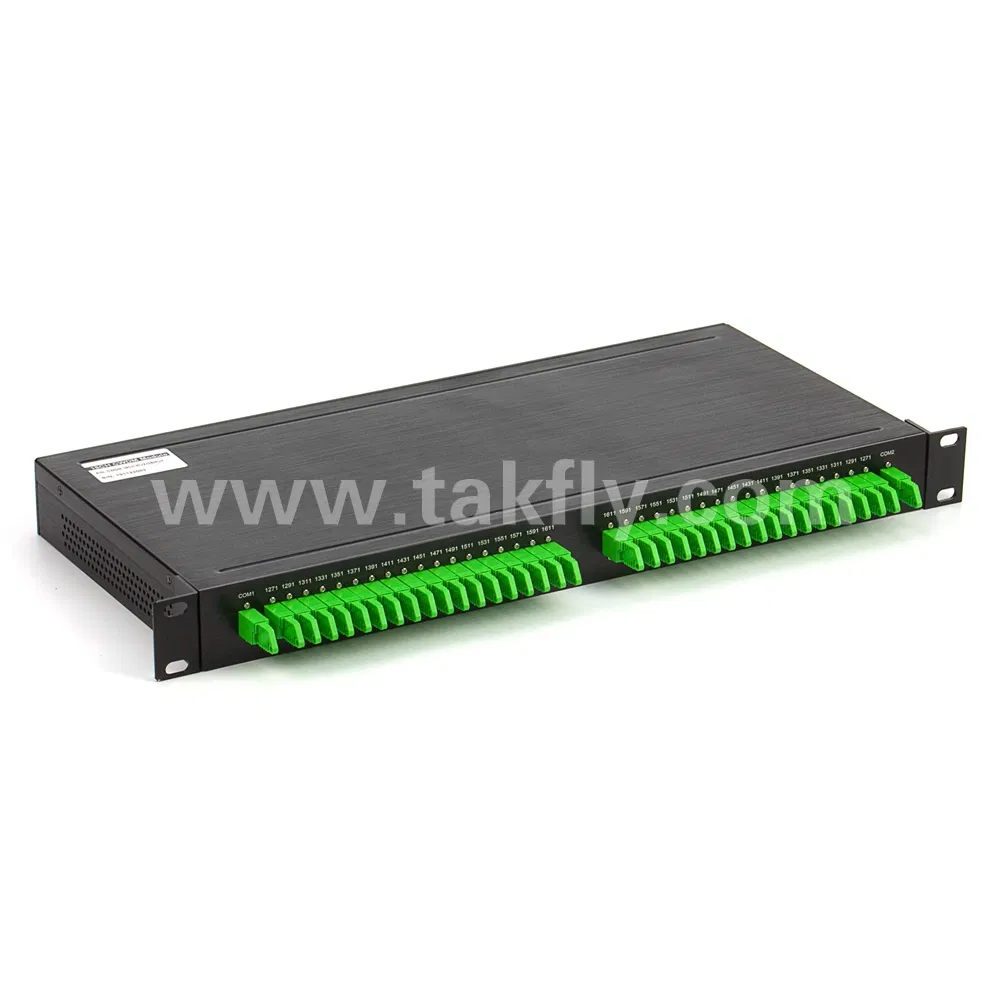

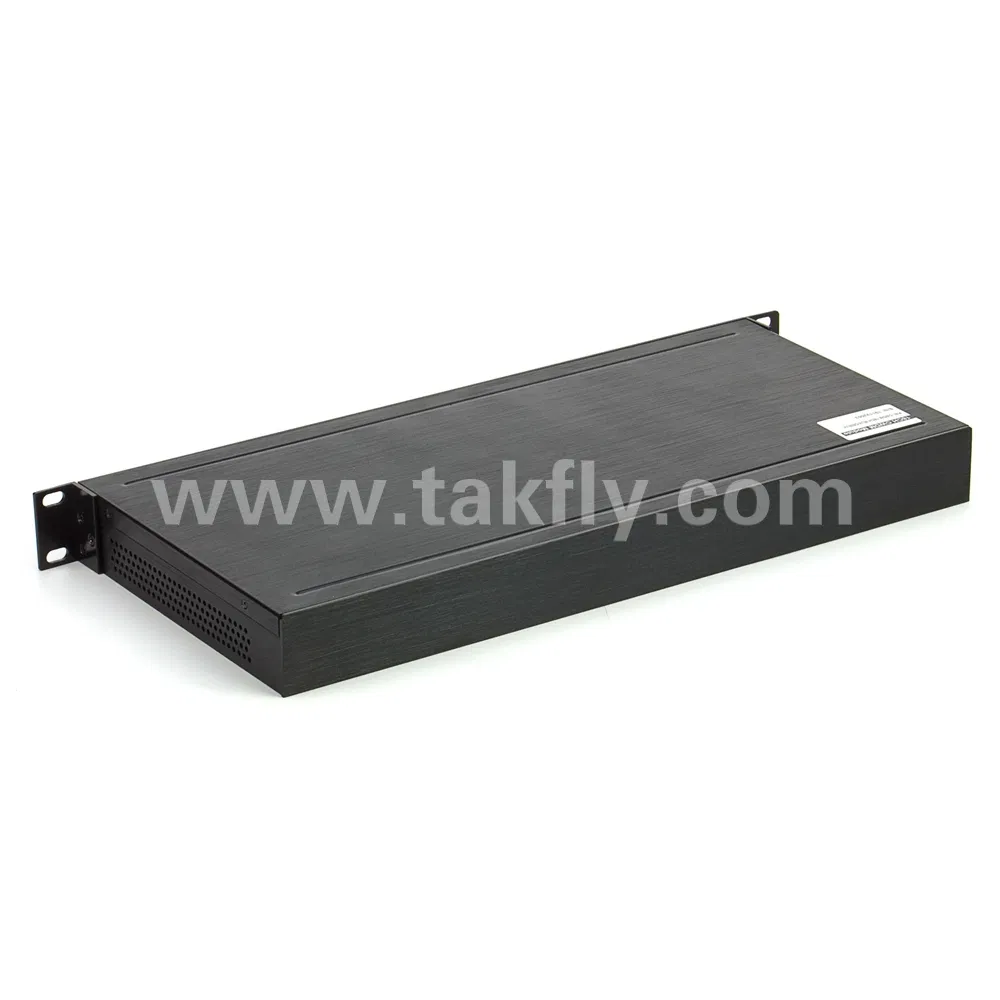

1u Rack Mount 18CH E2000 Fiber Optic Multiplex CWDM

Why choose TAKFLY--- Advantages as follows:

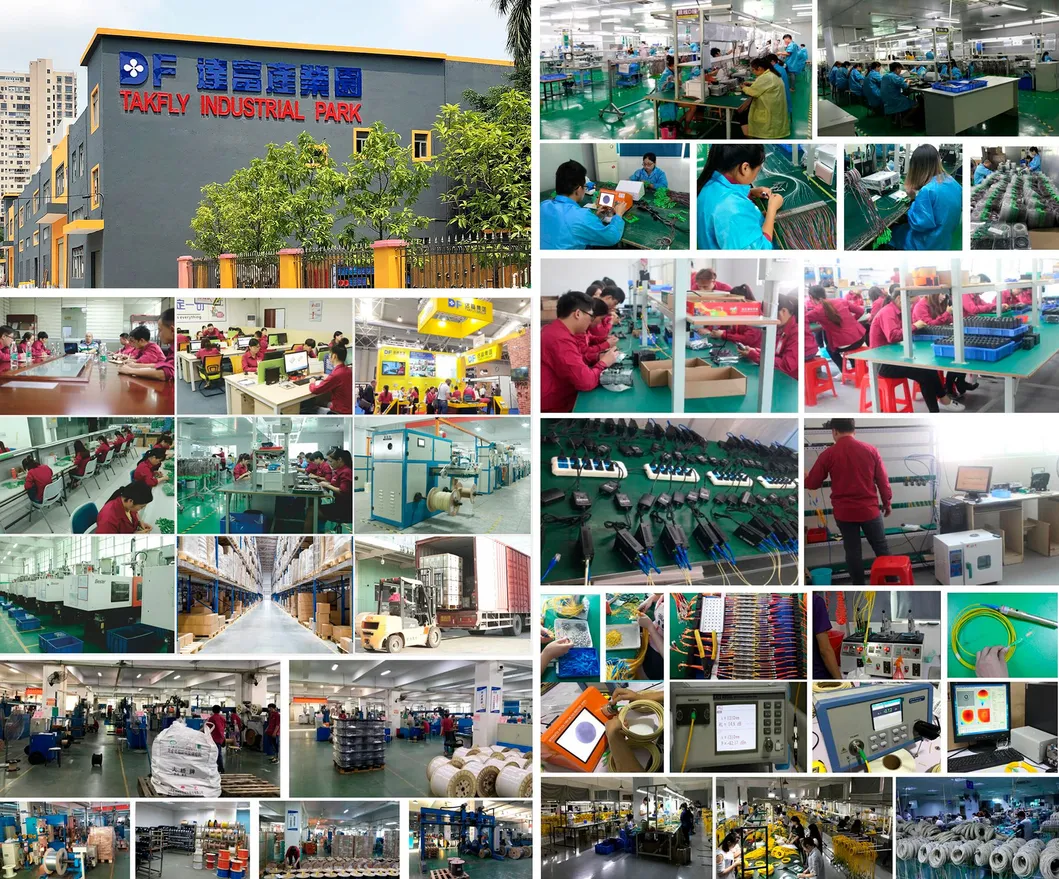

Professional manufacturer:

More than 18 years manufacturing experience in Fiber optic products-one stop purcharsing.
More than 450 assembly workers with 3 years experienced;
More than 26 R&D Engineers;
16 Sets Germany imported Injection Machine and More than 10 Cable Production Lines;
More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
OEM Brand is acceptable.
Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
After-sales Services: Available for 24 hours.

Quality Control:

Spot check the raw material incoming inspection before production;
Fully check after every individual process finished;
Fully check production half done;
Fully check the finished products before packing;
Spot check before shipping;

Delivery:

Samples: 1-3 working days.
Mass Production Order: 3-7 working days.

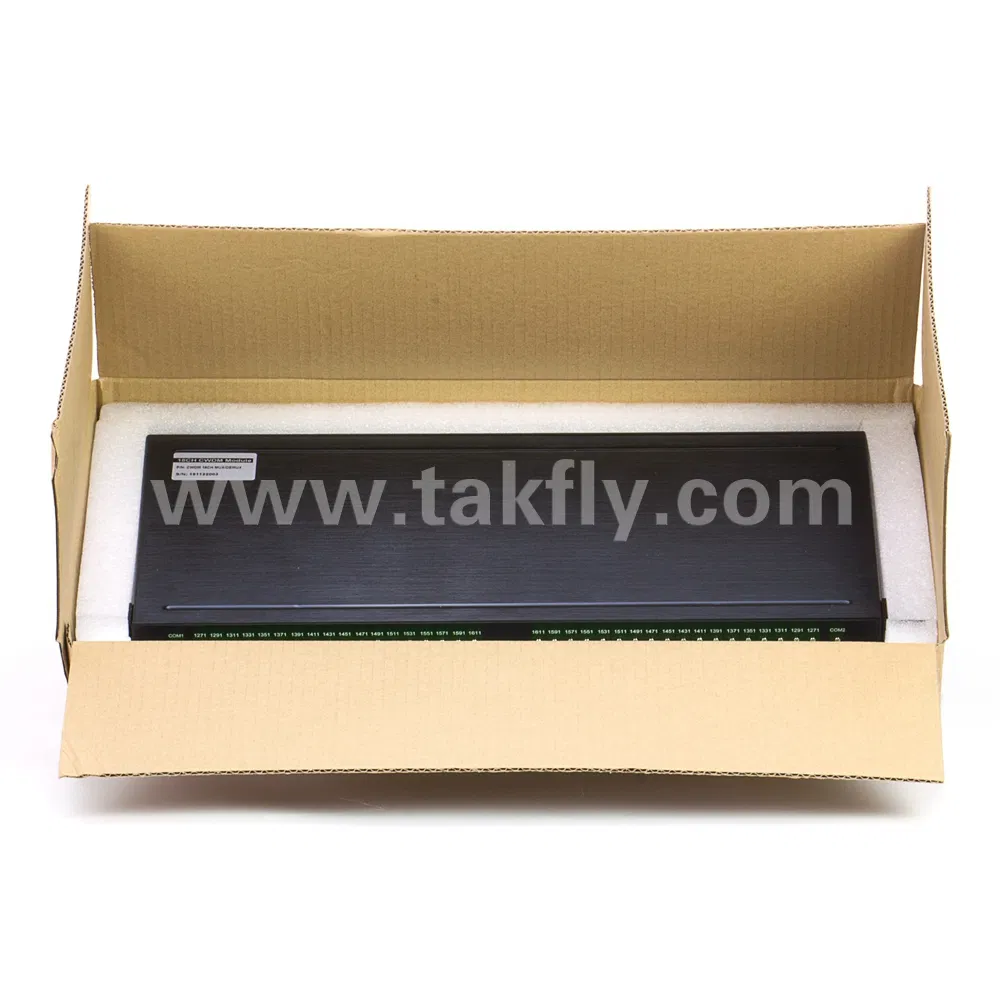

Packaging: Plastic Bag, Carton and Pallet are available according to your request.

Shipping:

DHL,UPS,FEDEX,TNT,EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients;
By Sea or By Air, could use your own pointed forwarder or our cooperated one.

Payment Term: T/T,Paypal, Western Union and L/C are available.
Price: If your QTY is big, the price could be negotiated.

I have been working in this field more than 5 years, I believe, I could give you very good service and professional answers!
If you're interested in our products or have any doubt, why not send me inquiry at once?
