Product Description

1GE+1FE+CATV+WIFI XPON ONU wifi modem CATV same like HUAWEI ZTE

Description:

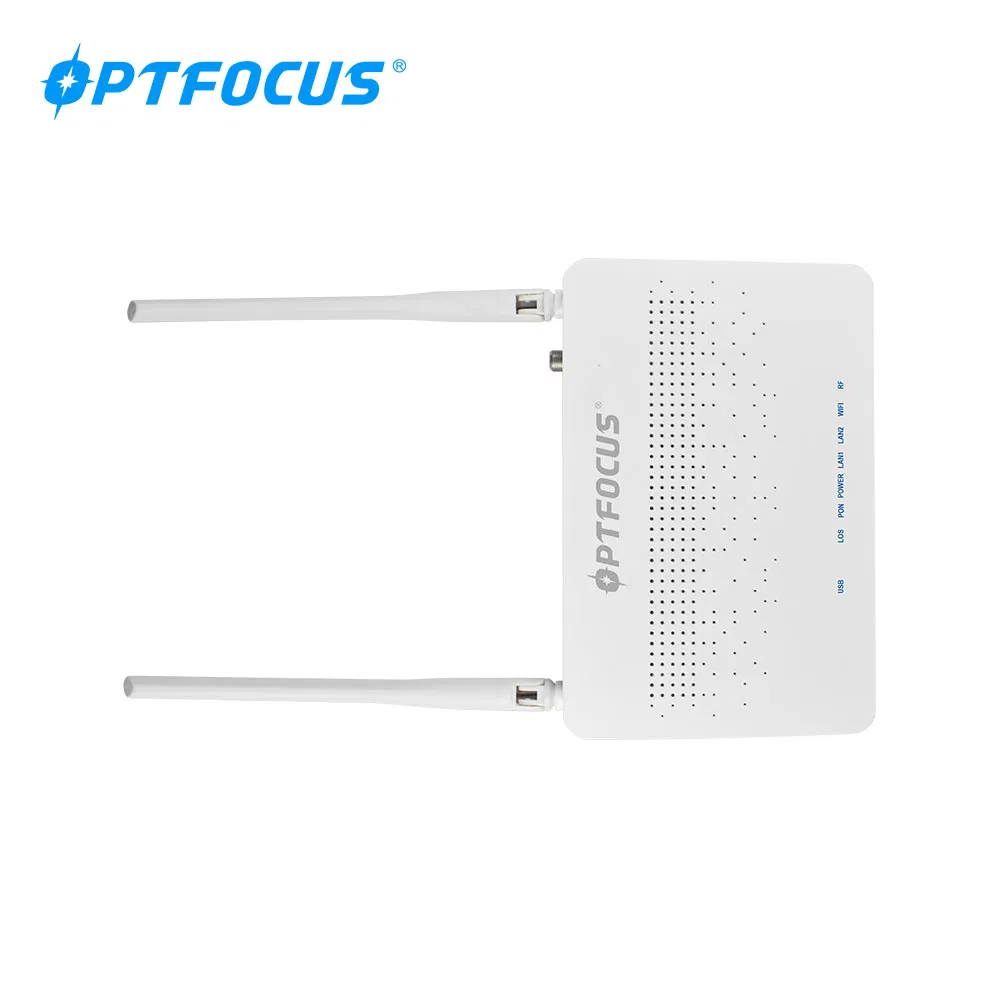

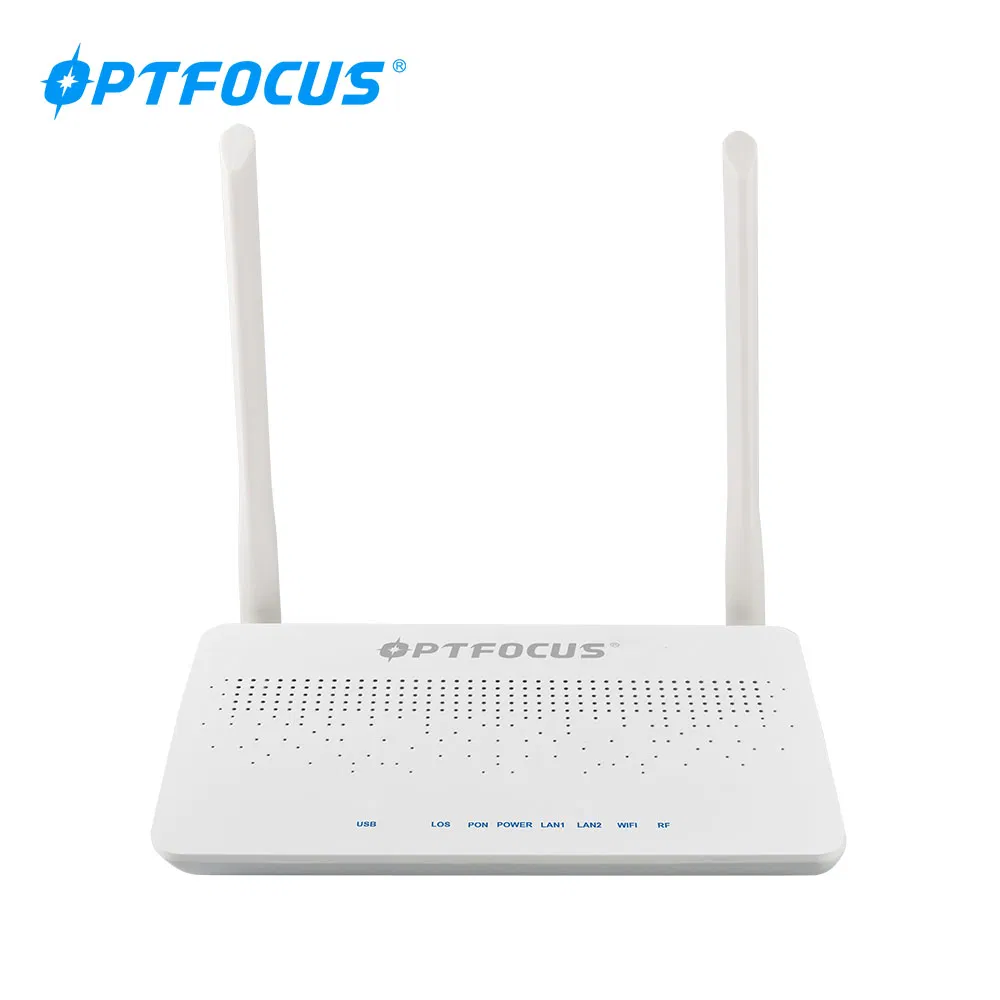

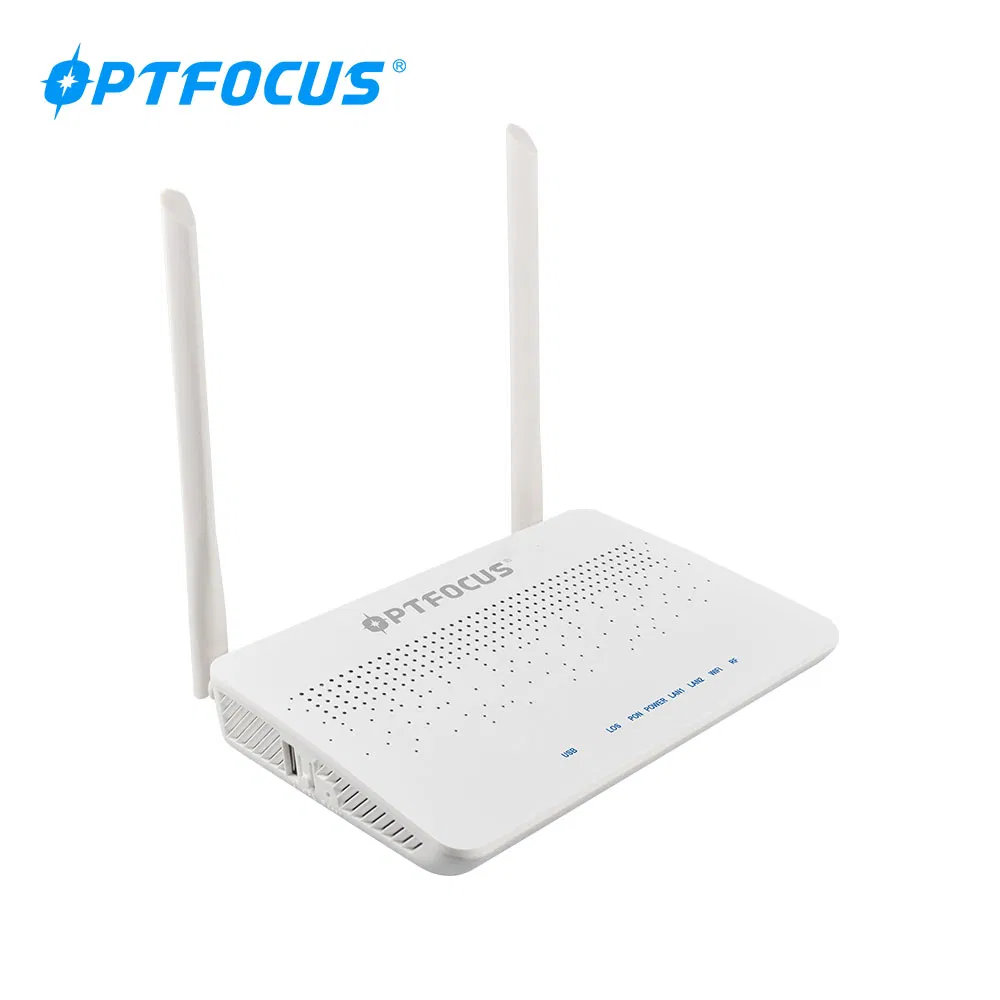

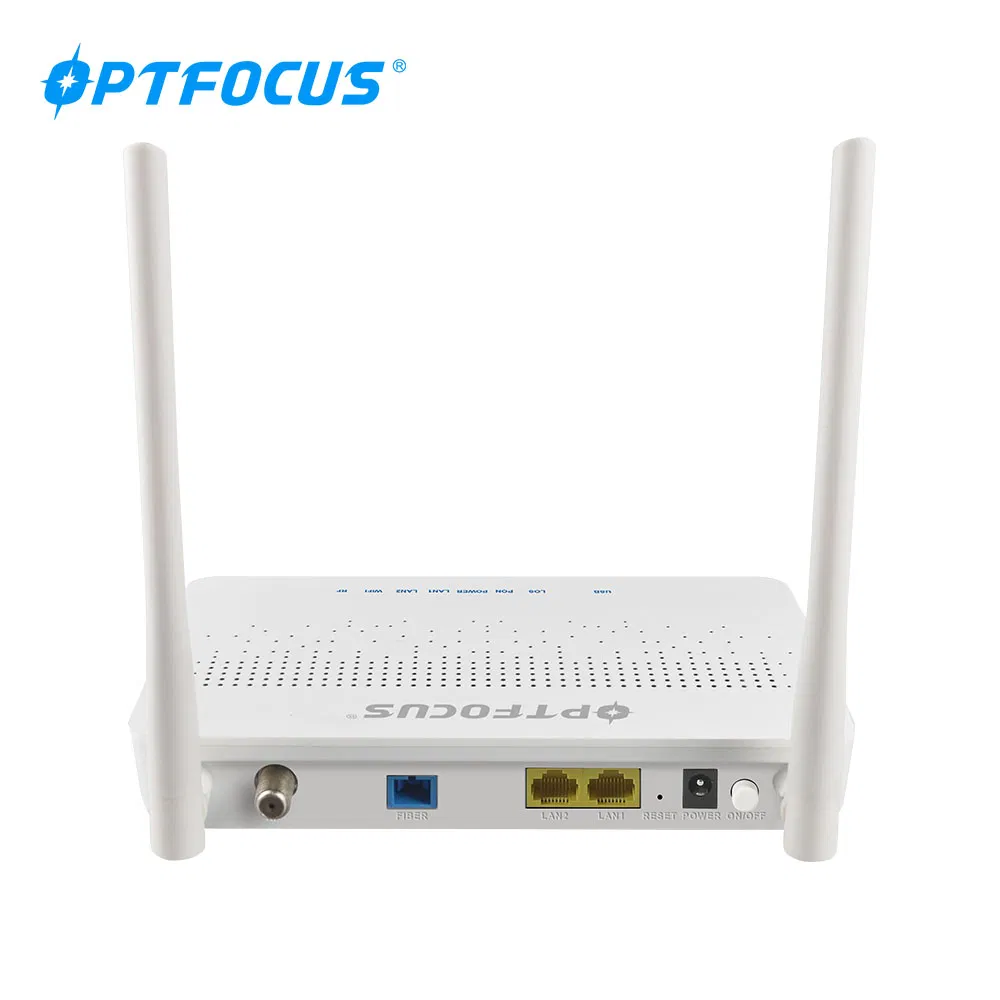

OFSX622-CW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.

Basic Characteristics

Tech parameters	description
Up-link interface	1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
Wavelength(nm)	TX 1310nm,RX 1490nm
Fiber connector	SC/UPC connector (SC / APC optional)
Down-link data interface	110/100Mbps and 110/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED	7 pcs
DC supply interface	input+12V 1A
Power	≤8W
Operating temperature	-5~+55ºC
Humidity	10~85%(non-condensation)
Storage temperature	-30~+70ºC
Dimension(MM)	16711932mm(mainframe)
Weight	0.6Kg(mainframe)

WIFI characteristics

Tech features	description
antenna	2T2R Mode 5DBI Gain ,Frequency:2.4G
rate	300Mbps PHY rate
encryption methods	WFA,WPA,WPA2,WAPI

CATV Technical features

Tech features	description
Optical wavelength	1540~1560nm
Optical input range	0~-15 DBm
Optical return loss	≥45 DB
Bandwidth	45~1000 MHz
Flatness	+/-1 DB
RF output level	≥72 dBuv
AGC control range	0~-14 DBm
RF Output return loss	≥14 DB
Output impedance	75Ω
CNR	≥50 DB
CTB	≥60 DB
CSO	≥60 DB

Definition of indicator LED

symbol	color	meaning
PWR	green	ON:successfully connect with power OFF:fail to connect with power
PON	green	ON:ONU port Link link correctly Flicker: PON registering OFF:ONU ports link link faulty
LAN	green	ON: Link up correctly Flicker: data is transmitting OFF: link down faulty
WIFI	green	ON: WIFI is running OFF:WIFI startup fail
LOS	red	Flicker: fail to connect with PON port OFF: detected fiber to input
TEL	green	ON: Register success
		OFF:Register fail
CATV	Green	Input optical power:0~ -15DBm
	Red	Input optical power:≥0DBm,or -15DBm≥

Features

Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
Completely compatible with GPON international standard IEEE802.3ah/802.3-2005
Support China Telecom GPON CTC3.1 standard and expand OAM
Support triple churning encryption request
Support DBA reporting mechanism request
Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
Support the remote upgrade and download
Support status detection and fault report
Support to save configured parameters if power down
Support to configure the work mode at the user port
Support MDI-MDIX automatic-detection at the user port.
Support data encryption and decryption
Support access authentication based on serial number
Support access authentication based on MAC address
Support 802.1Q VLAN
Support rich QinQ VLAN functions and IGMP Snooping
Support traffic rule to modify the related priority.
Support IEEE802.11n 2T2R WiFi function
Support to restore the factory settings
Support the remote reset and reboot
Support dying gasp outage alarm
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset
