China 1550nm 1u 8 Ports 16 19 23dB Mini Wdm EDFA Optical Amplifier for CATV Pon Network

Product Description

Technical parameters	WS-52EYAxx
Operating Wavelength	1535-1565nm
Input Power	-5dBm~+10dBm(normal input -2dBm~+5dBm)
Output Total Power	26~39dBm
Output Ports	SC connector:4/16;LC connector:8/32
Noise Figure	< 5.5dB(Pin=0dB)
PDL	< 0.3dB
PDG	< 0.4dB
PMD	< 0.3dB
Pump Leakage Power	< -30dBm
Return Loss	≥ 45dB
Fiber Connector	SC/APC&SC/UPC&LC/APC&LC/UPC
Power Supply	220V(AC90V~265V)&110V(AC90V-130V)&48V(DC30~72V)
Power Consumption	≤60w
Operating Temperature	-5ºC ~+42ºC
Storage Temperature	-30ºC ~+70ºC
Humidity	5~95%
Net Size	357(W)482(L)44(H)
Net Weight(one-piece)	595(W)490(L)120(H)

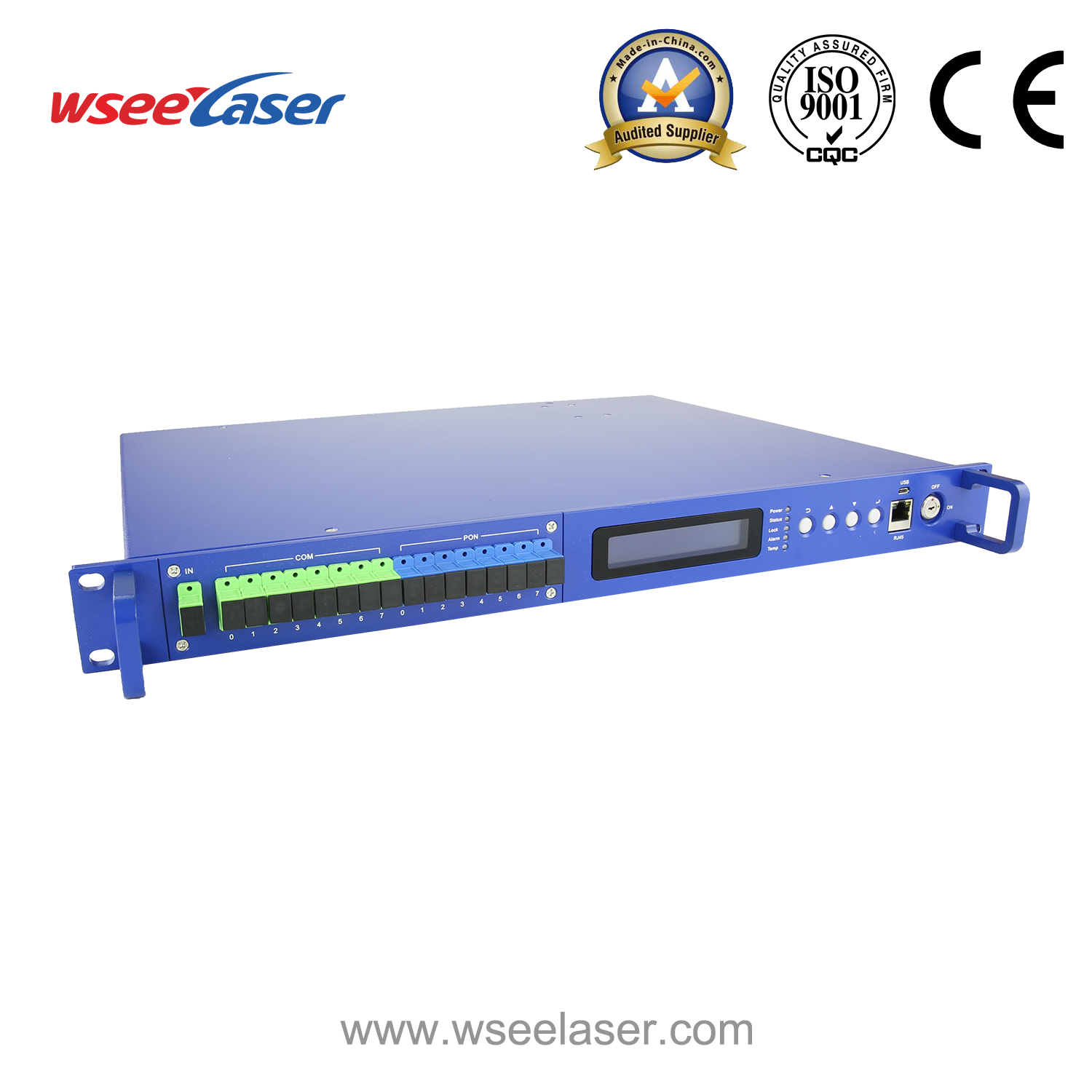

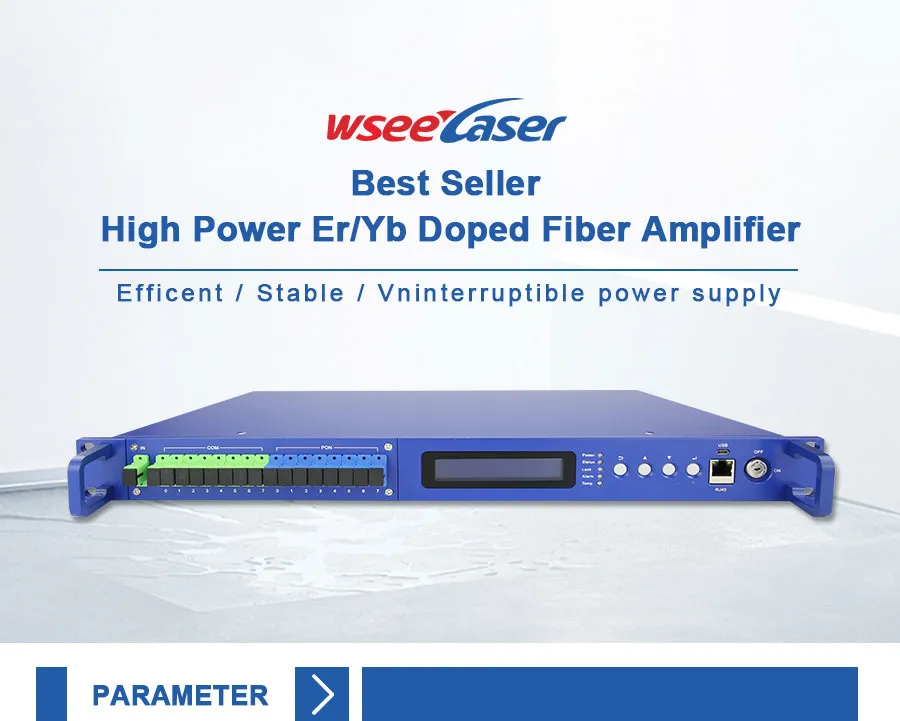

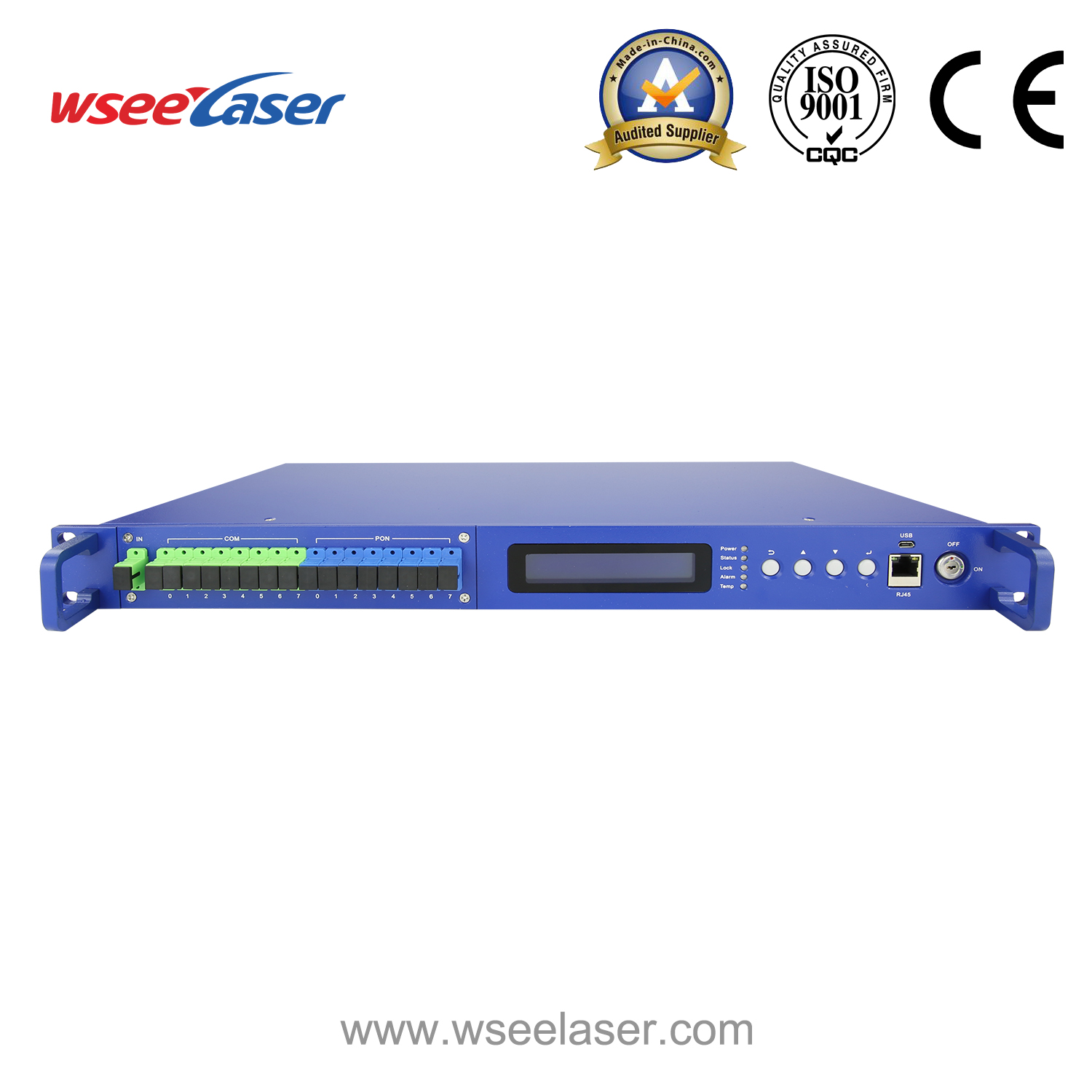

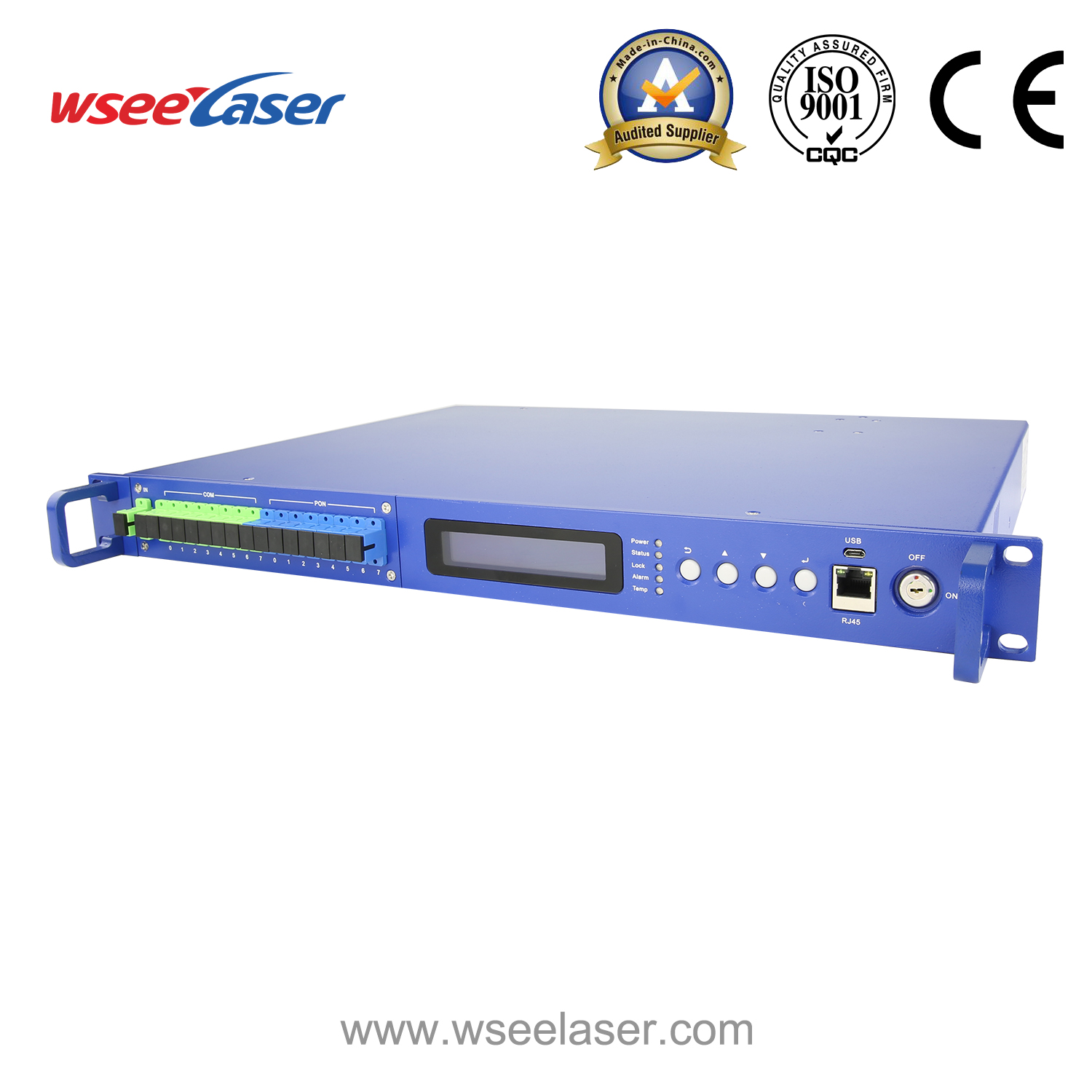

WS-52EYAxx series is a high - power erbium ytterbium fiber amplifier with a gain spectrum bandwidth of 1535 - 1565 nm,mainly
designed for the application of CATV or 1 to 8 continuous band-shaped channels (ITU wavelength),It provides a flexible and low-cost
solution for CATV system to cover a large area of FTTH in large and medium-sized cities.
WS-52EYAxx can realize single wavelength transmission of cable TV, CWDM single fiber three waves, flat gain, DWDM;Its reliable
and excellent performance ratio,mainly used forFTTH, FTTB, DBS, MMDS, FTTX pon. It is an important equipment for constructing
CATV large and medium-sized optical fiber transmission network.

1550nm 1u 8 Ports 16 19 23dB Mini Wdm EDFA Optical Amplifier for CATV Pon Network
