1310nm Optical Isolator , Single Stage, Single Mode SMF-28e Fiber

Product Description

Description
Single mode optical isolator made use of magnetic light crystals of Faraday Effect. The optical components allow the light to transit only one direction. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.
Applications                 Features
Optical Amplifiers       Low Excess Loss
WDM System               Wide Pass Band
Test Equipment       High Reliability

Ordering Information

Stage	Wavelength	Grade	Pigtail Dia.	Pigtail Length	Package	Connector Type
S1=Single Stage	31=1310nm	P= Premium	02=0.25mm	05=50cm	A6	FU(A)=FC/UPC(APC)
S2=Dual Stage	55=1550nm	A= A Grade	09=0.9mm	10=100cm	B1	SU(A)=SC/UPC(APC)
/				15=150cm	C1	…
						LU(A)=LC/UPC(APC)
			X=Customization

Specification

Parameter	Unit	Value
Grade	/	Premium		A
Stage		Single	Dual	Single	Dual
Wavelength	nm	1310±15, 1550±15
Isolation (@23ºC Over Band)	dB	>30	>46	>30	>46
Insertion Loss	nm	<0.4	<0.6	<0.6	<0.8
PDL	dB	<0.1		<0.15
PMD	ps	<0.05	<0.1	<0.05	<0.1
Insertion Loss Temperature Sensitivity	dB/ºC	<0.005
Wavelength Temperature Shifting	nm/ºC	<0.002
Return Loss	dB	>60			>55
Fiber Type	/	SMF-28e
Pigtail Dia.	mm	0.25 /0.9
Pigtail Length	cm	>50
Operating Tem.	ºC	-5~ +70
Storage Tem.	ºC	-40~ +85

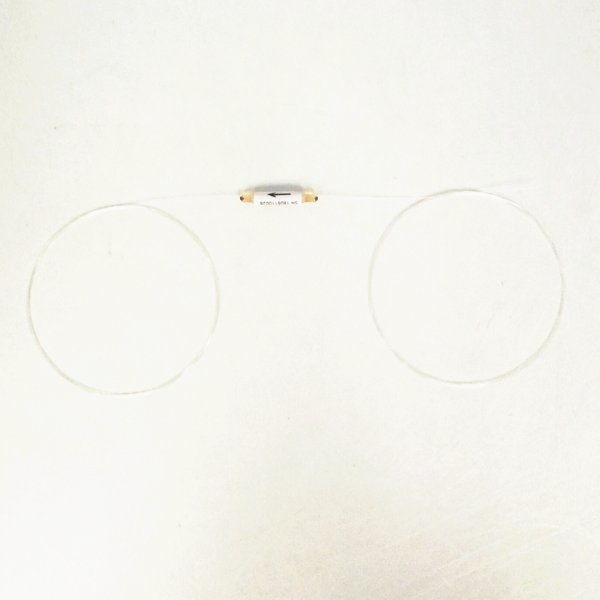

1310nm Optical Isolator, Single Stage, Single Mode SMF-28e Fiber

FAQ
1.Is your company a manufacturer or dealer?
---We have our own factory in Wuhan, China.

2.Can you provide free samples for us?
---Sure, we can provide free samples for you, but the freight should be paid by you.

3.What's the lead time for all the goods that I required?
---It depend on the quantity of products. Generally, it would be 1-2 weeks.

4.What's the warranty for your products?
----Normally it is 1 year.

5.What's your payment term?
---It is 100% T/T in advance.

6.What's the MOQ for your products?
---1pcs is okay.
