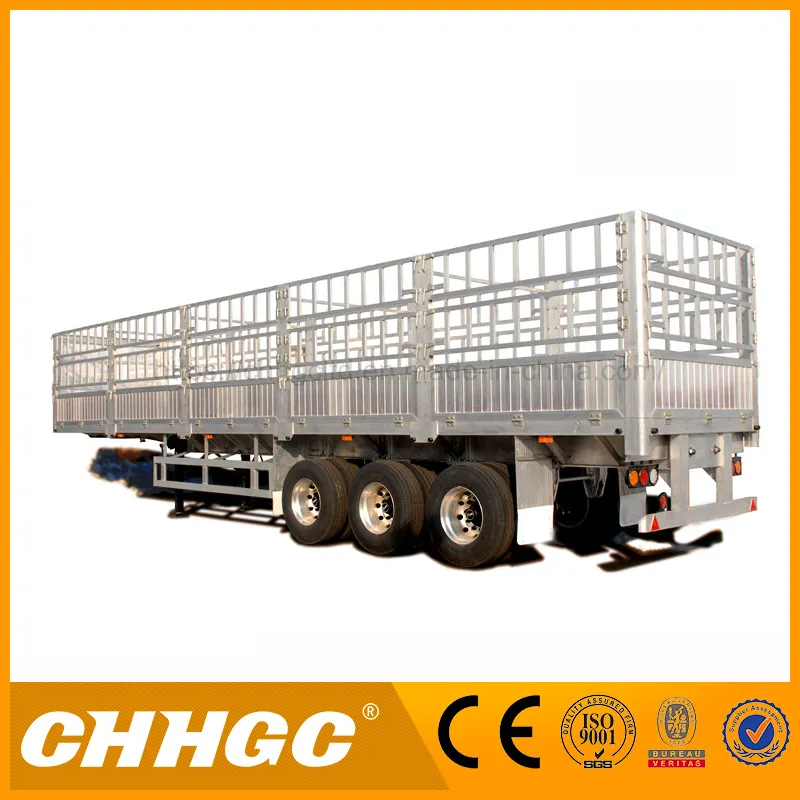

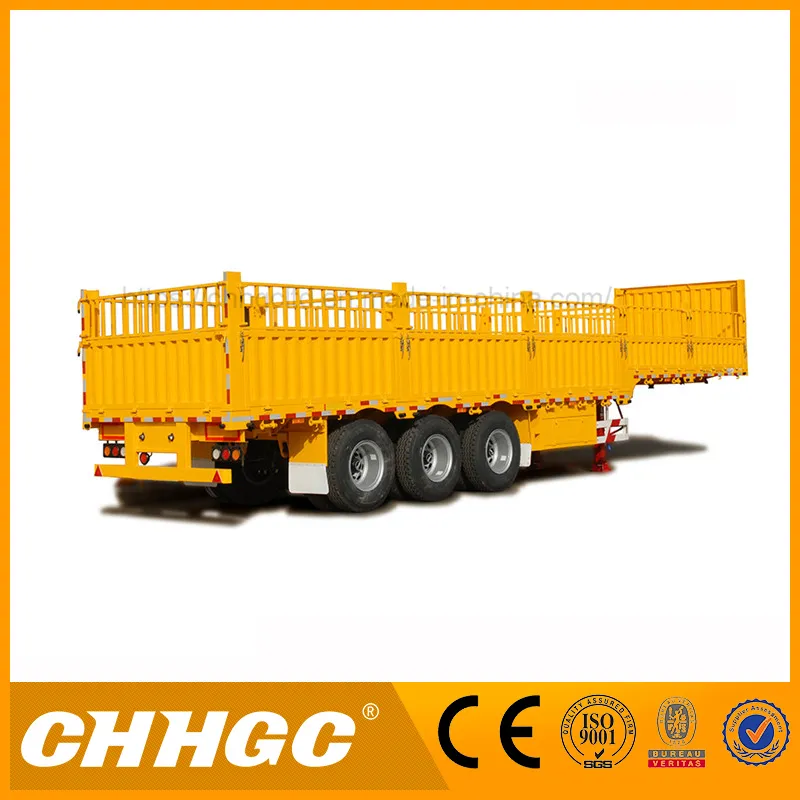

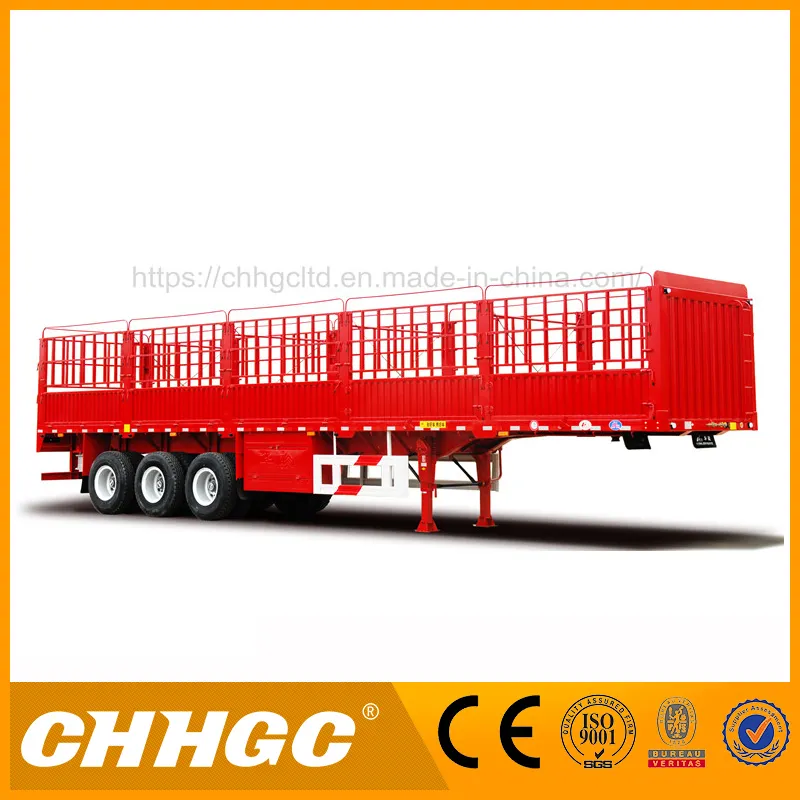

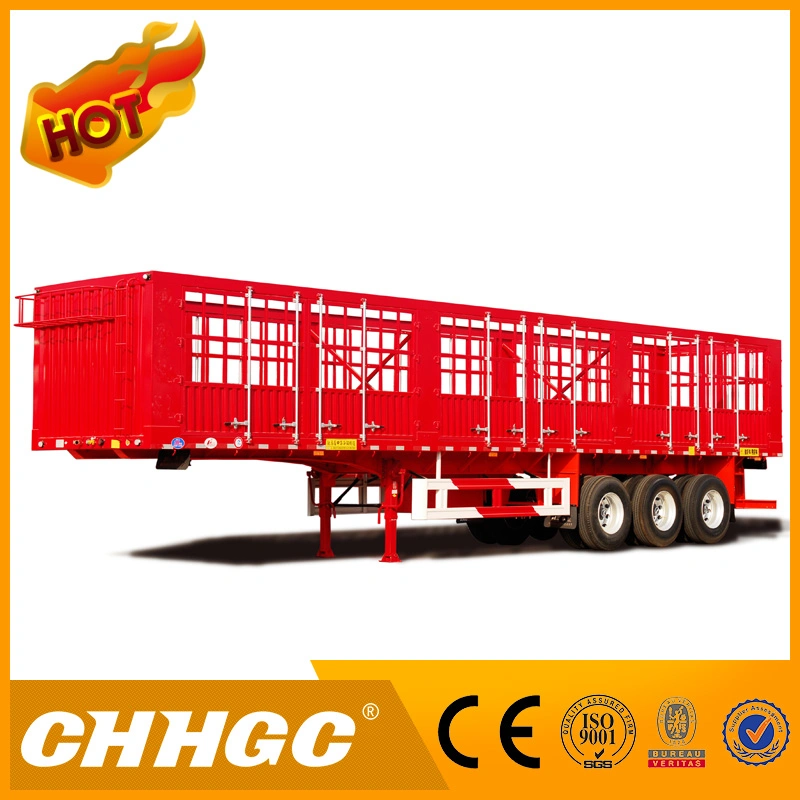

Van Type Truck Cargo Semi-Trailer

Product Description

Van Type Truck Cargo Semi-Trailer

Product Description

Item No.	HHZ9402XXYHJD	Batch	254
Brand	CHHGC	Type	Van semi trailer
Rated weight	31500	Total Weight(kg)	40000
Curb weight(kg)	8500	Axles' Quantity	3
Axle base(mm)	8030+1310+1310, 8530+1310+1310	Axle load	24000 (3 axles installed side by side)
Q'ty of the steel plate spring	-/10/10/10,-/4/4/4,-/-/-/-	Tyre Quantity	12
Tyre size	11.00R20 12PR,12R22.5 12PR	Approach /Departure angle	-/16
Front/rear suspension(mm)	-/2550	Wheel base(mm)	1820/1820/1820, 1840/1840/1840
Overall length	14600	Overall wide	2550
Overall height	3350/3550/3750/3950	Van length	14440
Van wide	2450/2400	Van height	1800/2000/2200/2400
Max loading of the saddle	16000
Configuration tables


********************************************************************************************************************************
	Light coal semi trailer	Standard coal semi trailer	Heavy coal semi trailer
Height of longitudinal beam	500	500	500
Thickness of	810	14/14	16/20
upper/lower wing plates	810	14/14	16/20
Longitudinal beam web	85	86	δ5
specification of side beam	14# profile steel	16# profile steel	20# light channel steel
Thickness of baseplate(flat-bed)	high strengh steel δ1.5	δ3	δ4
Specification of throughout beam	W-shaped throughout beam	Rectangular tube	14# light channel steel
Door operation mode	seven or five hinged doors	13m seven hinged door	four hinged doors
Door operation mode	seven or five hinged doors	11m five hinged door	four hinged doors
Specification and number of tookit	one 1 m tookit	one 1 m tookit	one 2.5m toolkit
specification of leaf spring	4*10 plate type I	10-plate type II	12-plate type II
diameter of balance arm pin	500mm	50mm	75mm

Certificate

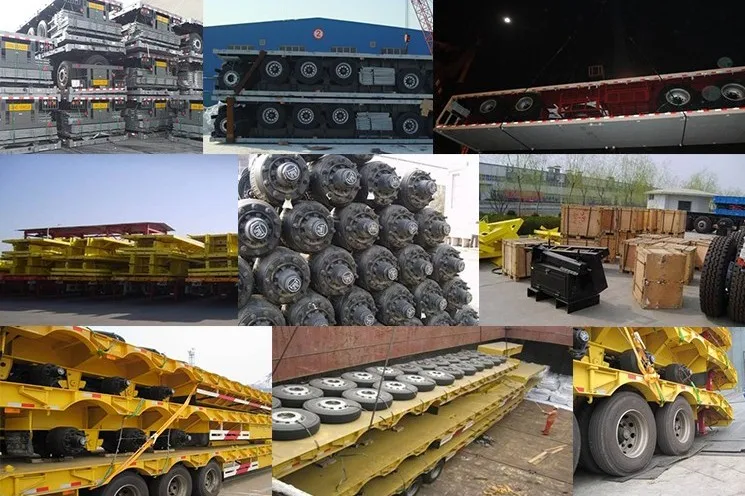

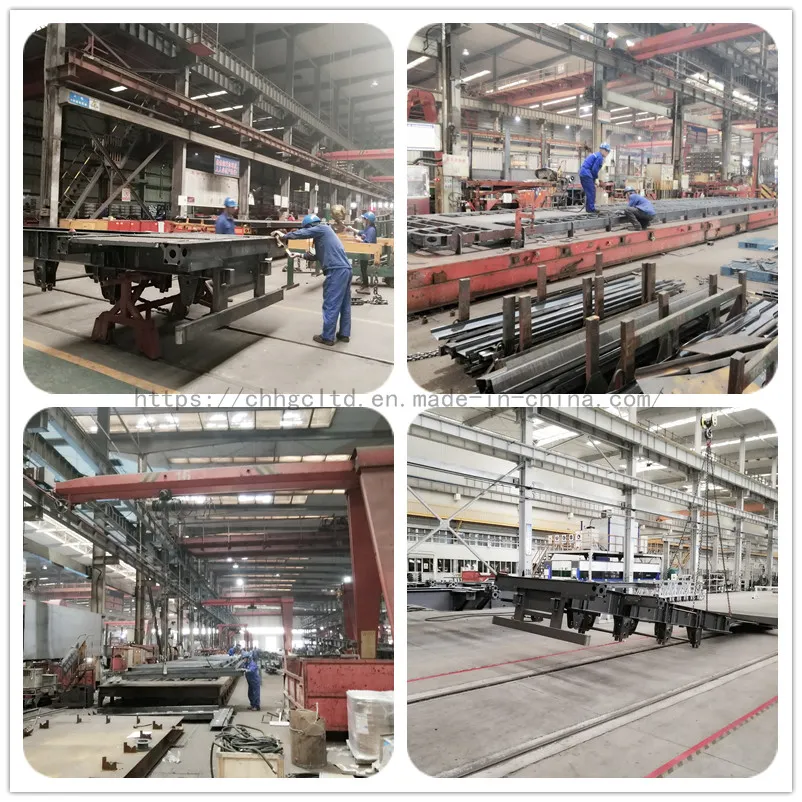

Workshop

Business Partners
Van Type Truck Cargo Semi-Trailer

FAQ:
Q1. How to ship the vehicles?
A: By container, bulk ship, RORO.

Q2. Do you have RHD(right hand driving) vehicles?
A: Yes, noramlly we supply all LHD vehicles, and we have some RHD model vehicles.

Q3. What is your payment term?
A:  We usually accept T/T or L/C depends on the quantity.
   T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which model vehicles do you supply?
A: We supply all kinds of vehicles such as SUV, MPV, Pickup,van,truck, bus etc,.

Q5. What is your terms of delivery?
A:   FOB, CIF.

Q6. How about your delivery time?
A:  Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:  Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
