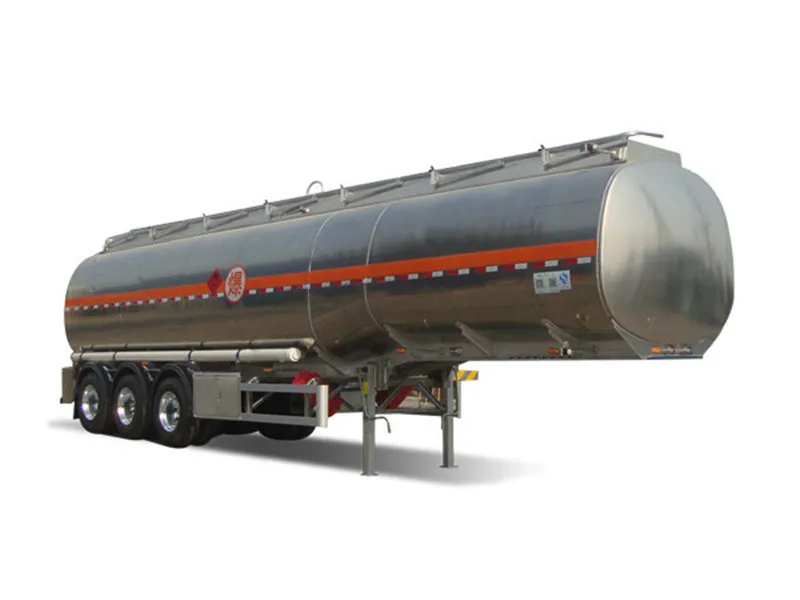

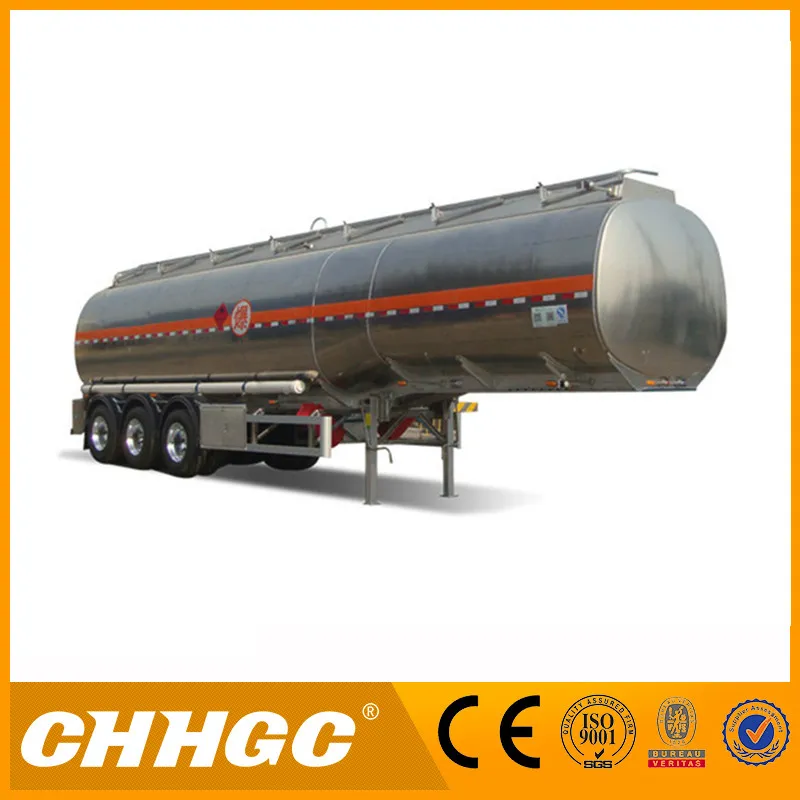

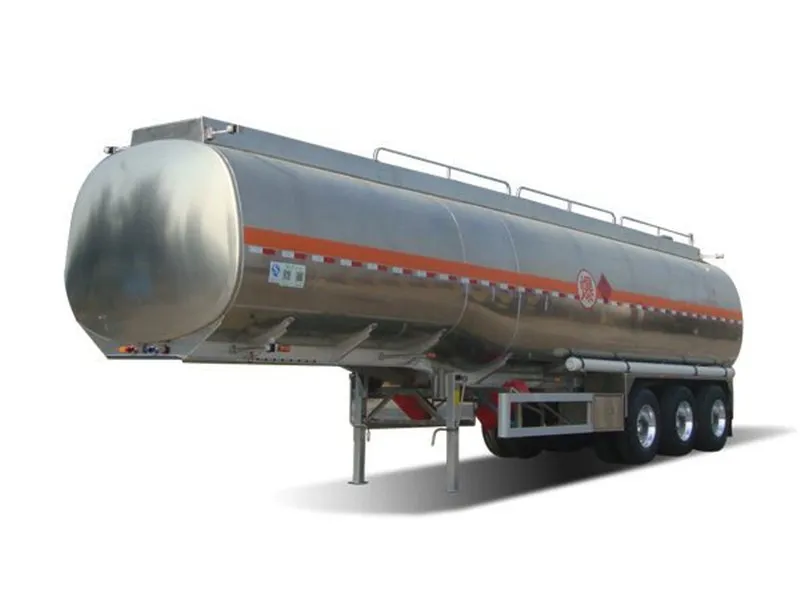

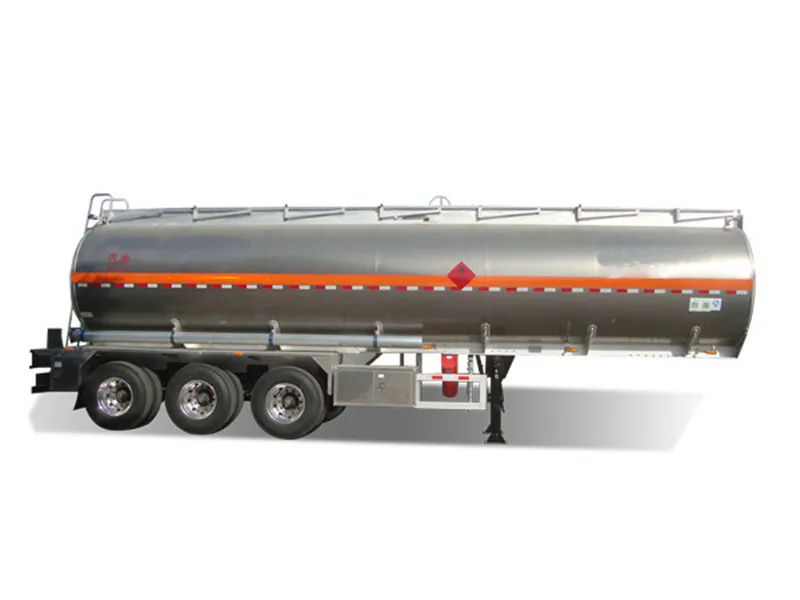

3 Axle 50cbm Liquid Tank Semi-Trailer
ISO CCC Approved 3 Axle 50cbm Liquid Tank Semi-TrailerProduct DescriptionItem No.HHZ9401GHYHJBBatch240BrandCHHGCTypeFlammable liquid tank semi-trailerRated weight31500Total Weight(kg)39800Curb weight(kg)8300Axles' Quantity3Axle base(mm)5480+1310+1310Axle load24000(3 axles installed side by side)......
Send Inquiry
Product Description
ISO CCC Approved 3 Axle 50cbm Liquid Tank Semi-Trailer
Product Description
| Item No. | HHZ9401GHYHJB | Batch | 240 |
| Brand | CHHGC | Type | Flammable liquid tank semi-trailer |
| Rated weight | 31500 | Total Weight(kg) | 39800 |
| Curb weight(kg) | 8300 | Axles' Quantity | 3 |
| Axle base(mm) | 5480+1310+1310 | Axle load | 24000(3 axles installed side by side) |
| Q'ty of the steel plate spring | -/10/10/10,-/12/12/12,-/7/7/7 | Tyre Quantity | 12 |
| Tyre size | 11.00R20 12PR,11.00-20 12PR, 12R22.5 12PR | Approach/Departure angle | -/23 |
| Front/rear suspension(mm) | -/1400 | Wheel base(mm) | 1840/1840/1840,1820/1820/1820 |
| Overall length | 10650 | Overall wide | 2500 |
| Overall height | 3490/3690 | Max loading of the saddle | 15800 |
| Some other typical chemical semi trailers for your option. | |||
40m³ liquid chemical tank semi trailer | 32 m³ liquid chemical tank semi trailer | ||
| Model | HHZ9401GHYHJB | Model | ZJV9400GHYHT |
| Overall dimensions(mm) | 10650*2500*3490,3690 | Overall dimensions(mm) | 10650*2500*3490 |
| Sizes of tank body | 10200*2490*1950mm | Sizes of tank body | 3700/6500 in lengths of tank body(front/ rear), 3460 in width, and 1450/1700 in height(front/rear) |
| Nominal capacity | 40.3m³ | Nominal capacity | 32.2m³ |
| Number of axle | 3 | Number of axle | 3 |
| Wheelbase(mm) | 5480+1310+1310 | Wheelbase(mm) | 5480+1310+1310 |
| Nominal front/rear suspension | 1150/1400 | Nominal front/rear suspension | 1150/1400 |
| Bearing capacity(kg) | 31500 | Bearing capacity(kg) | 29000 |
| Curb Weight(kg) | 8300 | Curb Weight(kg) | 10680 |
| Number of leaf spring plate | 7 \10\12 | Number of leaf spring plate | 10 \12 |
51 m³ liquid chemical tank semi trailer | 40 m³ liquid chemical tank semi trailer | ||
| Model | HHZ9400GHYHJB | Model | ZCZ9403GRYHJC |
| Overall dimensions(mm) | 12000*2500*3850 | Overall dimensions(mm) | 12000*2500*3520, 3620,3720 |
| Sizes of tank body | 11800mm in length, 2484mm in width(maximum), and 2350mm in height(maximum) | Sizes of tank body | 11440 in straight segment of tank body, with maximum width at 3495 and maximum height at 1950 |
| Nominal capacity | 51m³ | Nominal capacity | 51m³ |
| Number of axle | 3 | Number of axle | 3 |
| Wheelbase(mm) | 6300+1310+1310 | Wheelbase(mm) | 6300+1310+1310 |
| Nominal front/rear suspension | 1300/1780 | Nominal front/rear suspension | 1300/1780 |
| Bearing capacity(kg) | 31000 | Bearing capacity(kg) | 31000 |
| Curb Weight(kg) | 9000 | Curb Weight(kg) | 9000 |
| Number of leaf spring plate | 7 \ 10 \ 12 | Number of leaf spring plate | 7 \ 10 \ 12 |
small liquid chemical tank semi trailer | |||
| Model | HHV5312GYYHJCA | HHZ5311GYYDF | ZCZ5310GYYZZ |
| Overall dimensions(mm) | 11980*2500*3850,3550 | 11890*2500*3600,3850 | 11990*2500*3950,3650 |
| Sizes of tank body | 9300mm in exterior length of tank body, 2460mm in width, and 1890mm in height | 9300mm in exterior length of tank body, 2460mm in upper width, 2460mm in lower width, and 1890mm in height | 8950mm in exterior length of tank body, 2350mm in major length of cross section and 1450mm in minor length |
| Nominal capacity | 23.1m³ | 23.1m³ | 22m³ |
| Rated Bearing capacity(kg) | 15500 | 15500 | 14000 |
| Curb Weight(kg) | 15260 | 15290 | 16520 |
| Total mass | 30890 | 30985 | 30650 |
20/24 m³ liquid chemical tank semi trailer | |||
| Model | HHZ9400GHYHJA | HHZ9401GRYHJC | |
| Overall dimensions(mm) | 10650*2500*3620 | 10650*2500*3650,3750 | |
| Sizes of tank body | 1750mm in diameter of tank body, 959mm in straight segment, and 10200mm in total length | 1716mm in front segment diameter of tank body, 1966mm in rear segment diameter, and 9222mm in total straight length of tank body | |
| Nominal capacity | 20m³ | 24m³ | |
| Number of axle | 3 | 3 | |
| Wheelbase(mm) | 5480+1310+1310 | 5480+1310+1310, 5300+1310+1310 | |
| Nominal front/rear suspension | 1150/1400 | 1150/1400,1300/1430 | |
| Bearing capacity(kg) | 29800 | 29500 | |
| Curb Weight(kg) | 10200 | 10480 | |
| Number of leaf spring plate | 4 \10\12 | 4 \7\10\12 | |

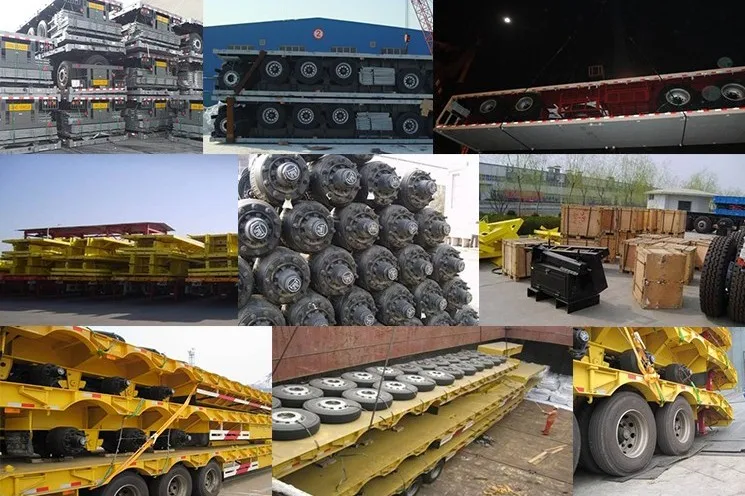

Workshop
Business Partners
FAQ:
Q1. How to ship the vehicles?
A: By container, bulk ship, RORO.
Q2. Do you have RHD(right hand driving) vehicles?
A: Yes, noramlly we supply all LHD vehicles, and we have some RHD model vehicles.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which model vehicles do you supply?
A: We supply all kinds of vehicles such as SUV, MPV, Pickup,van,truck, bus etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
