Product Description

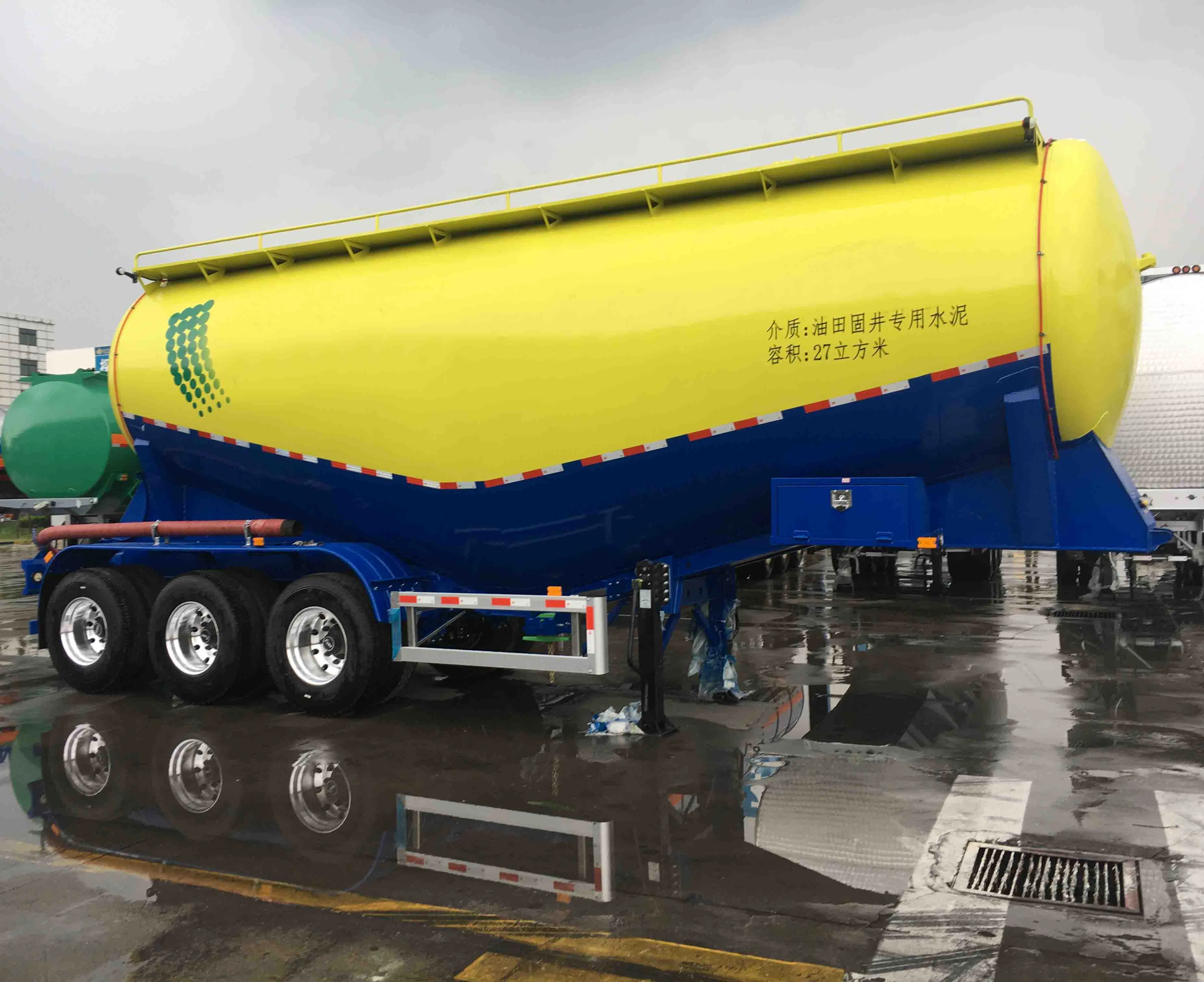

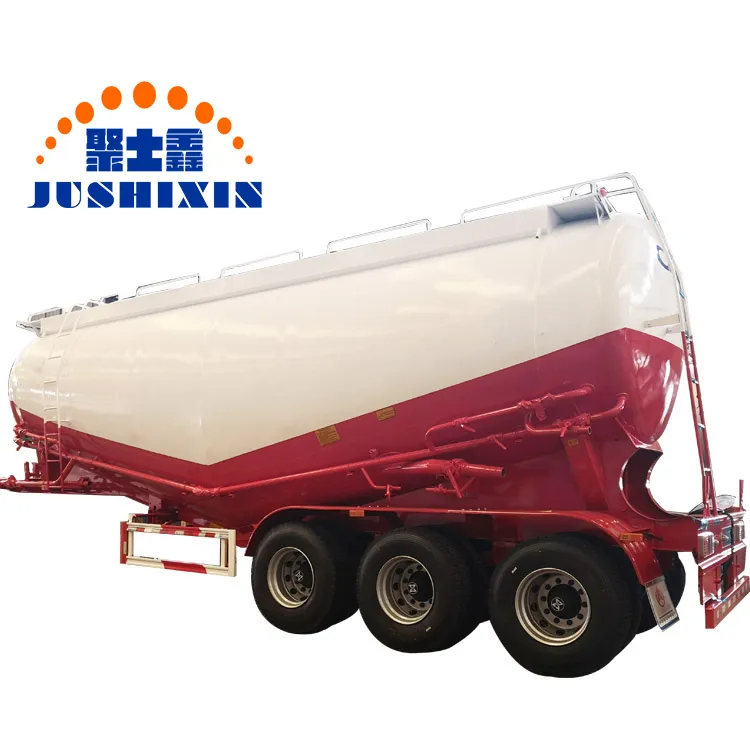

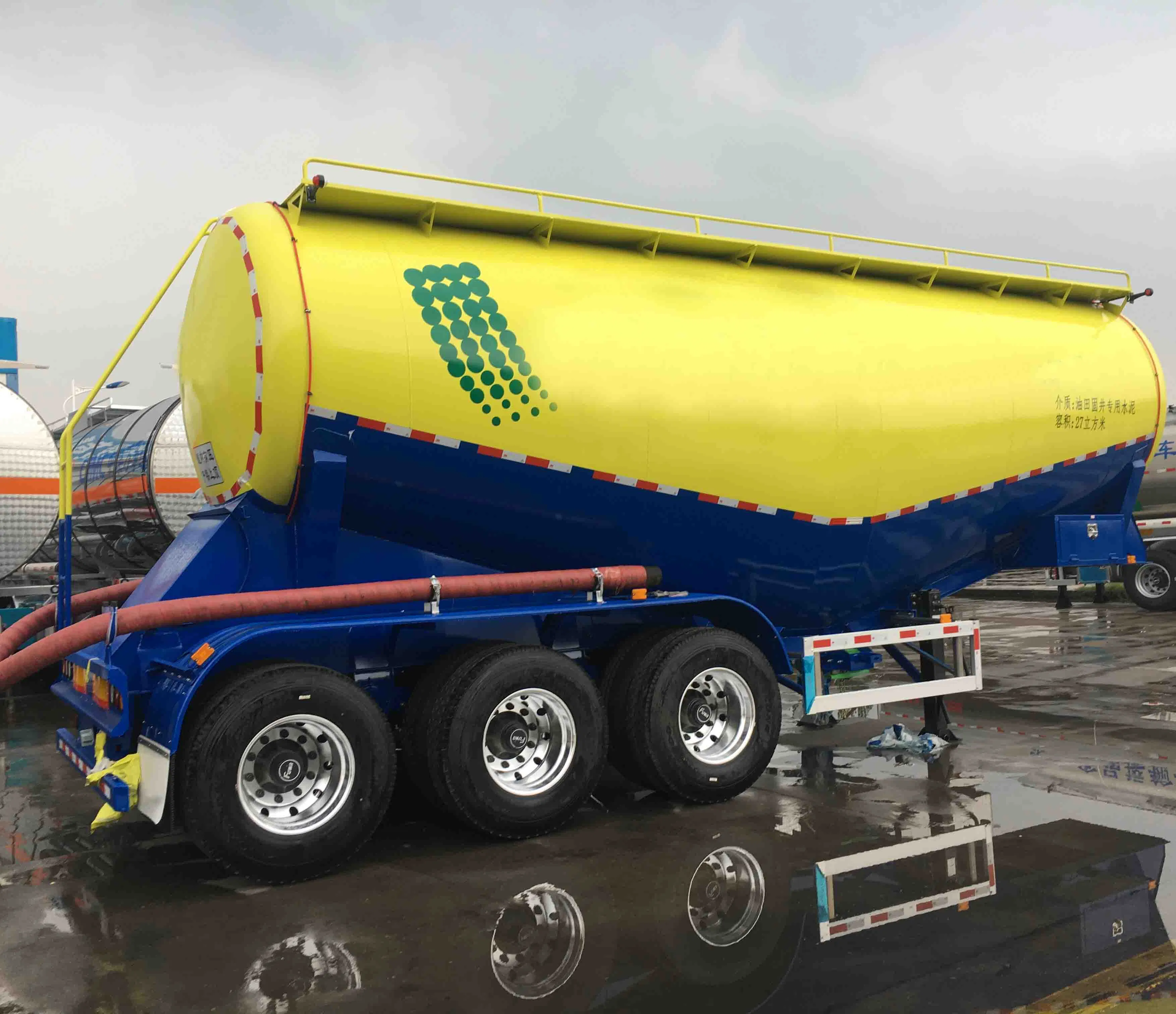

New Type 55CBM 3Axles Bulk Cement Powder Materal Transport Tank Semi Trailer

New Type 55cbm 3axles Bulk Cement Powder Materal Transport Tank Semi Trailer

One-step service, make you more comfortable:
Professional Production Line:
Experienced workers make high assembling for fast quality delivery
Customize:
Professional design team customize tank trailers to fulfill client's unique requirement
7*24H Service
7*24H service provide professional and fast response
Parts Support:
Abundant parts supply provide lasting support for different kinds tank trailers
Quality assurance & Technical support
Provide 12 months quality assurance and a life long time technical support to solve client's problems.

1.Product Description:

Main Dimensions of bulk cement tank semi trailer
TANK BODY:
Shape	Optional(One Silo with V type or Two, Three Silos Design)
Dimension	12000×2490×3990mm(Adjustable as your requirements)
Tare weight	About 7.5-15T
Total Volume	30m³-70m³
Tanker Body Material	5mm or 6mm Q235 carbon steel
End Plate	5mm or 6mm Q235 carbon steel
Diesel Engine	WEICHAI 4100/4102 or other brands
Compressor	BOHAI 10m³/12m³or other brands
Manhole Cover	Cabon steel Diameter: 500mm
Discharging Valve	Diameter is 3 or 4 inches
Discharging Pipe	3 or 4 inches rubber hose, 1pcs, 6m/each
Cat Walk	With(Common model or special design)
CHASSIS:
Main Beams	Welding design, Q345 carbon steel
Axle	2 or 3 axles, 12T/13T/16T, BPW/FUWA brand
Landing Gear	JOST(D200T) or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical Suspension or Air Suspension
Leaf Spring	90mm(W)×13mm(Thickness)×10(Layer) or 100mm×12mm×12
Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two 45L air tanks
Rim	9.00-22.5/8.00-20/8.5-20
Tire	12.00R22.5, 315/80R22.5, 11.00R20, 12.00R20
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints
Accessories	One standard tool box
Shipping Terms	By Flat Rack or Bulk Cargo or RORO

2.Jushixin bulk cement tank semi trailers advantages:

1. Best Raw Material:
Good performance support strong structure for longer service life
2. Light Weight:
High strength steel make lighter tare weight, reduce fuel consumption
3. Fast Unloading:
Quality engine support higher unloading rate, increase round trip rate.
4. High Loading Rate:
Unique design make loading rate >98%, load more for per trip
5. Low Residual Rate:
Reasonable angle design, unloading faster and residual rate<0.3%, increase economy for one trip.
6.All Jushixin tank semi trailers adopts famous brand, such as:
Axle:
FUWA or BPW brand axle support trailer durable
Chassis:
China best Q345B-T700 support strong trailer skeleton
Tire:
Better quality tire support trailer running safety and smoothly
King Pin:
JOST detachable type support durable, fast and easy replace
Emergency Valve:
Fast response, support safety and protect tire use longer time

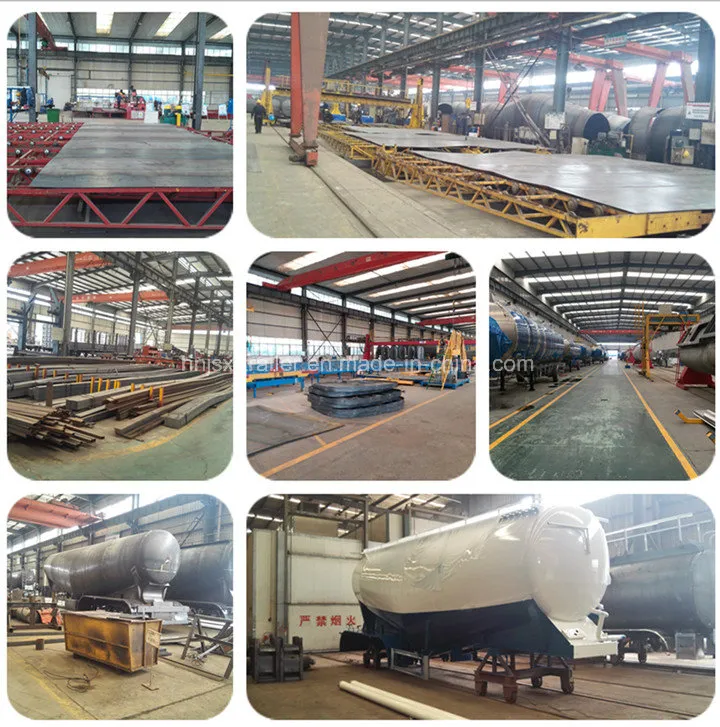

3.Factory Show:
With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built long
business relationship with many world famous enterprises.Standard manufacturing process to ensure the quality of the
semi trailers. All our trailers are made according to your requirements!
New Type 55cbm 3axles Bulk Cement Powder Materal Transport Tank Semi Trailer

4.Certifications:
Our bulk cement tanker semi trailers are approved by CCC and ISO/TS16949 organization, I think the reports
issued by the 3rd party could better clarify the quality of our liquid tank semi trailers.
Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--Obtaining a satisfied smile!
1.we can do the designs according to the customers' requirement
2.we can offer you the high quality & reasonable price
3.we can offer your a good after-sell service

5.FAQ:
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should rein stall in your country.
Also we can choose flat rack container, in this way do not need to assemble your truck.

Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.

Q:I want to be your agent in my country , is that ok?
A:It's ok, If your quantity is big, we will consider. For the first time 50 units is ok.

Q: I want the front two types are bias type and the rear 9 types are radial
types, is it ok?
A: We can make the types as your requirement to suit your country's need.

6.Contact us:
If you are interested in our bulk cement tank semi trailer, welcome to contact Alan at any time!
